⚡ Joyonway P20B29 Control Box – Complete Multi-Pump Spa Control System

Advanced spa control system engineered for demanding hot tub configurations requiring multiple pump outputs and comprehensive component management.

📋 Product Overview

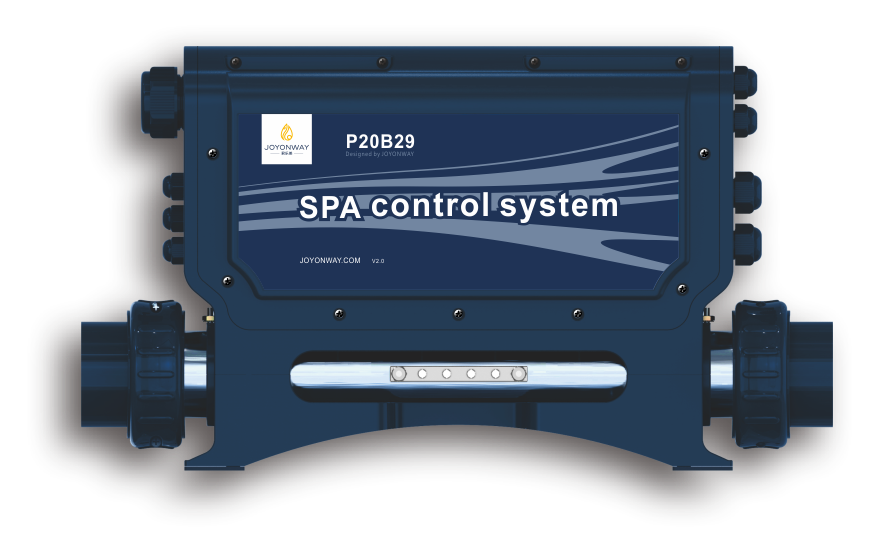

The Joyonway P20B29 Control Box represents the flagship spa control system from Joyonway’s acclaimed PB series. Designed for hot tubs requiring extensive pump configurations, this control box delivers comprehensive management for up to four massage pumps, circulation pump, air blower, ozone generator, and 12V lighting from a single integrated unit.

Featuring a powerful 3kW integrated heater with 2-inch socket union sleeves, the P20B29 provides rapid water heating and precise temperature control. The system operates on standard European 230V/50Hz power supply with easy-grip connection terminals for straightforward component installation.

Compatible with Joyonway’s range of colour display topside panels (PB553, PB554, and PB555), this control box offers intuitive operation and real-time system monitoring. The optional WiFi module (WF01) enables smartphone control for added convenience. Built to IPX5 water resistance standards, the P20B29 delivers reliable performance in demanding spa environments.

⭐ Key Features

• ✅ Multi-Pump Control – Manages up to three 2-speed jet pumps plus one single-speed pump for comprehensive hydrotherapy options
• ✅ 3kW Integrated Heater – Powerful heating element with 2-inch socket union connections for efficient water temperature management
• ✅ Circulation Pump Support – Dedicated 2.5A output for continuous water circulation and filtration
• ✅ Air Blower Output – 5A maximum capacity for vigorous air massage experiences
• ✅ 12V DC Lighting – 2A output for LED spa lighting control
• ✅ Ozone Generator Ready – Output for water sanitisation equipment
• ✅ Auxiliary Output – Additional output for supplementary accessories
• ✅ Triple Topside Compatibility – Works with PB553, PB554, and PB555 colour display panels
• ✅ WiFi Ready – Optional WF01 module enables smartphone app control
• ✅ IPX5 Water Resistance – Protected enclosure for reliable spa environment operation
• ✅ Easy-Grip Terminals – Spring-loaded cable connections for secure component installation

⚡ Electrical Specifications

Specification	Value
Input Voltage	220-240V AC
Frequency	50/60Hz
Heater Output	3.0kW
Heater Type	Integrated with 2″ socket unions

🔌 Output & Connection Specifications

Output	Quantity	Specification
Pump 1	1	230V, 1 or 2 speed, 10A max
Pump 2	1	230V, 1 or 2 speed, 10A max
Pump 3	1	230V, 1 or 2 speed, 10A max
Pump 4	1	230V, 1 speed only, 10A max
Circulation Pump	1	230V, 2.5A max
Blower	1	230V, 5A max
Ozone	1	230V
Light	1	DC 12V, 2A max
Auxiliary	1	230V

Sensor Inputs:

Sensor	Type	Notes
Temperature Sensor	Electronic	Integrated with heater assembly
Hi-Limit Sensor	Manual reset	Thermal protection system

🔗 Compatibility

Compatible Topside Panels:

Panel Model	Compatible	Notes
PB553	✅ Yes	Standard colour display panel
PB554	✅ Yes	Enhanced colour display panel
PB555	✅ Yes	Advanced colour display panel

Connection Type: 4 inline pins

Optional Accessories:

Accessory	Reference	Notes
WiFi Module	WF01	Enables smartphone app control (sold separately)
3kW Replacement Heater	H001	Compatible replacement heater element

Replacement Compatibility:

⚠️ The P20B29 can replace older or discontinued spa control systems. Contact Parts4Tubs with your current control box model for replacement advice.

📐 Physical Specifications

Specification	Value
Dimensions (Including Heater)	434 mm (L) × 278 mm (H) × 82 mm (W)
Dimensions (Box Only)	360 mm (L) × 278 mm (H) × 82 mm (W)
Heater Connection Size	2″ (50mm) socket union sleeves
IP Rating	IPX5
Mounting Type	Standard spa pack mounting

🛡️ Safety Features

Safety Feature	Specification
Thermal Protection	Hi-limit manual reset sensor
Water Resistance	IPX5 rated enclosure
Fused Outputs	Individual fuse protection on outputs
Easy-Grip Terminals	Spring-loaded cable connections for secure installation

💻 Programming & Features

Control Features:

• Multi-pump sequencing and speed control
• Temperature set point adjustment
• Filtration cycle programming
• Economy and sleep mode options
• Real-time system status display via topside panel
• Optional WiFi remote control via smartphone app

WiFi Connectivity (Optional WF01 Module):

Feature	Available
Remote Temperature Adjustment	✅ Yes
Pump/Blower Control	✅ Yes
Lighting Control	✅ Yes
Filtration Programming	✅ Yes
Day/Night/Economy Modes	✅ Yes
Connection Methods	WiFi/Hotspot, LAN, Cloud

🔧 Installation Requirements

Pre-Installation Checklist:

• [ ] Electrical supply meets 230V/50Hz requirements
• [ ] Appropriate breaker/RCD installed as per manufacturer specifications
• [ ] Correct wire gauge available for amperage requirements
• [ ] 2″ plumbing compatible with heater union connections

Electrical Requirements:

Requirement	Specification
Supply Voltage	220-240V AC
Circuit Breaker	Refer to manufacturer documentation
Dedicated Circuit	Required

Connection Notes:

⚠️ Refer to manufacturer wiring diagram and installation manual.

⚠️ All electrical work must comply with BS 7671 (IET Wiring Regulations).

⚠️ Spa electrical installations in the UK require Part P certification.

🎯 Ideal Applications

Application	Suitability	Notes
🏠 Home hot tub	✅ Excellent	Ideal for multi-pump residential spas
🏠 Garden spa	✅ Excellent	IPX5 rated for outdoor installation
🏊 Swim spa	✅ Excellent	Multiple pump outputs suit swim spa requirements
🏢 Holiday let	✅ Excellent	Robust design for frequent use
🏢 Commercial	⚠️ Suitable	Check local regulations for commercial installations
🔄 Replacement/Upgrade	✅ Excellent	Versatile replacement for older control systems

❓ Frequently Asked Questions

Q: Will this control box work with my spa?

A: The P20B29 is designed as a versatile replacement control system. Compatibility depends on your spa’s electrical requirements, plumbing configuration (2″ connections required for heater), and component specifications. Contact Parts4Tubs with your spa model details for confirmation.

Q: Do I need a qualified electrician to install this?

A: Yes. All spa control box installations must be performed by a qualified electrician in compliance with BS 7671 and Part P regulations.

Q: What topside panel does this work with?

A: The P20B29 is compatible with three Joyonway topside panels: PB553, PB554, and PB555. All feature colour displays and connect via a 4-pin inline plug. Topside panels are sold separately.

Q: Can this replace my existing control box?

A: The P20B29 can replace many older or discontinued spa control systems. It’s particularly suited for spas requiring multiple pump outputs. Contact Parts4Tubs with your current control box model for replacement advice.

Q: Does this include a topside panel?

A: No. This listing is for the P20B29 control box with integrated 3kW heater only. Compatible topside panels (PB553, PB554, or PB555) are sold separately.

Q: Can I control my spa from my smartphone?

A: Yes, with the optional WF01 WiFi module (sold separately). This enables remote control via the Joyonway smartphone app for temperature adjustment, pump control, lighting, and more.

Q: What pump configurations does this support?

A: The P20B29 supports up to three 2-speed massage pumps, one single-speed pump (Pump 4), a dedicated circulation pump, and an air blower. You can configure it for dual-speed pump operation or single-speed pump with circulation pump on Pump 1 output.

Q: What is the heater connection size?

A: The integrated 3kW heater features 2-inch (50mm) socket union sleeves for connection to your spa plumbing.

🏆 Why Choose the Joyonway P20B29

• ✅ Flagship Multi-Pump Capability – Controls up to four massage pumps plus circulation pump and blower for comprehensive spa configurations
• ✅ Powerful 3kW Integrated Heater – Rapid heating with replaceable heater element for long-term serviceability
• ✅ IPX5 Water Resistance – Robust protection for reliable operation in demanding spa environments
• ✅ WiFi Ready – Optional smartphone control for modern convenience
• ✅ Triple Topside Compatibility – Choice of three colour display panels for flexible installation
• ✅ Easy-Grip Terminals – Spring-loaded connections simplify component installation

🤝 Why Buy From Parts4Tubs

• ✅ UK-based company with local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa specialists
• ✅ Competitive pricing
• ✅ Full warranty support
• ✅ Easy returns within 30 days
• ✅ Compatible components and accessories available
• ✅ Technical support for installation queries

✨ Summary

The Joyonway P20B29 is a comprehensive 230V/50Hz spa control system featuring a powerful 3kW integrated heater and support for up to four massage pumps, circulation pump, air blower, ozone generator, and 12V lighting. Compatible with PB553, PB554, and PB555 colour display topside panels, this IPX5-rated control box offers optional WiFi connectivity for smartphone control. Featuring easy-grip spring-loaded terminals and 2-inch heater union connections, the P20B29 delivers versatile performance for demanding residential and commercial spa applications. Contact Parts4Tubs today for compatibility advice and expert support.
