🏊‍♂️ Hayward SharkVac XL Pilot Robotic Pool Cleaner – Caddy Included | Foam + Brushes 🦈

Intelligent Floor, Wall & Waterline Cleaning with ASCL® Smart Navigation

📋 PRODUCT OVERVIEW

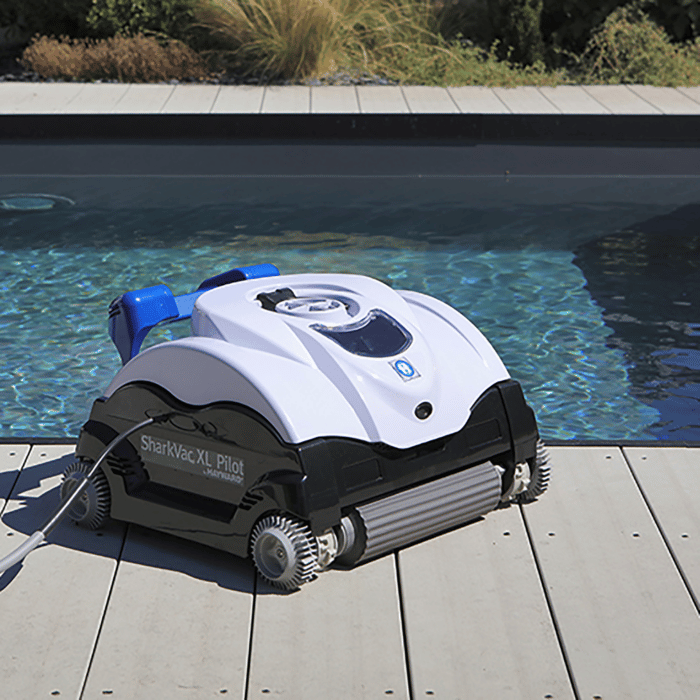

The Hayward SharkVac XL Pilot represents the pinnacle of automated pool cleaning technology from one of the industry’s most trusted names. This fully automatic robotic cleaner independently scrubs, vacuums, and filters your entire pool without requiring any connection to your existing filtration system.

Powered by Adaptive Seek Control Logic (ASCL®) microprocessor technology, the SharkVac XL Pilot intelligently optimises its cleaning routine for your individual pool’s size and shape. The innovative dual-roller system combines foam rollers at the front with brush rollers at the back, ensuring effective cleaning across all pool surface types – from delicate vinyl liners to robust tiled finishes.

Designed for in-ground pools up to 6m x 12m, this premium cleaner tackles floor, walls, and waterline with ease. Simply drop it in, switch it on, and let the SharkVac XL Pilot do the work. The included ergonomic caddy makes transportation and storage effortless.

⭐ KEY FEATURES

✅ ASCL® Smart Navigation – Adaptive Seek Control Logic microprocessor optimises cleaning patterns for your specific pool size and shape

✅ Complete Pool Coverage – Cleans floor, walls, and waterline in a single automated cycle

✅ Dual-Action Roller System – Foam roller (front) for gentle surface care, brush roller (back) for effective scrubbing on all surfaces

✅ Selectable Cleaning Modes – Choose between “Floor Only” (2 hours) or “Full Cycle” (3 hours) via the power supply button

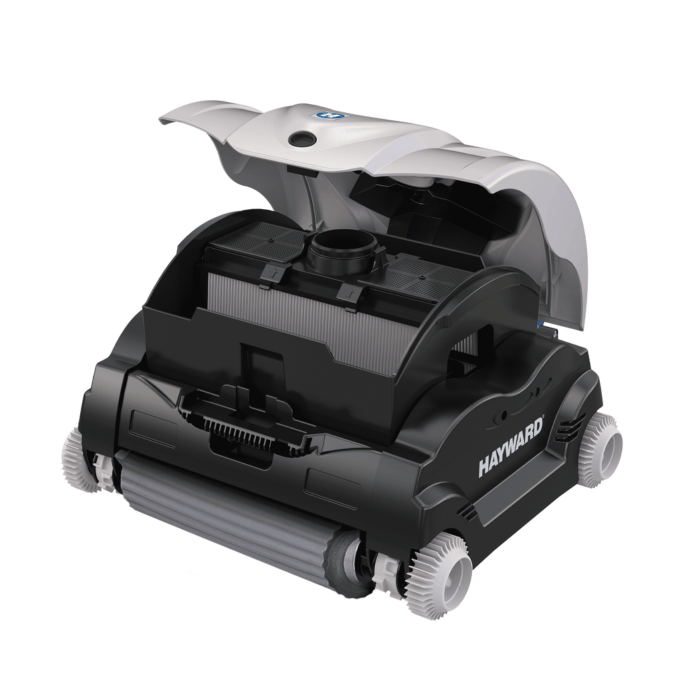

✅ Top-Access Filtration – Easy filter maintenance without inverting the unit; simply lift out and rinse

✅ 30 Micron Fine Filtration – Pleated cellulose/polyester blend cartridges capture fine particles and debris

✅ Triple-Sealed Motor Protection – Redundant radial shaft seals and O-ring ensure complete waterproof integrity

✅ Electronic Overload Protection – Auto-shutoff monitoring prevents motor damage

✅ Adjustable Float Technology – Three-position float system allows customised wall climbing behaviour

✅ Out-of-Water Detection – Smart sensors protect the unit when removed from pool

✅ Ergonomic Caddy Included – Transport and store your cleaner with ease

✅ 16.76m Floating Cable – Generous cable length suits pools up to 6m x 12m

🔧 TECHNICAL SPECIFICATIONS

Specification	Detail
Model	RC9743WCPCEDY
Cleaner Type	Robotic (fully automatic)
Pool Capacity	In-ground pools up to 6m x 12m
Cleaning Coverage	Floor, walls & waterline
Cable Length	16.76 metres (floating)
Suction Capacity	17 m³/h
Cleaning Speed	17 m/min
Filtration Fineness	30 microns
Filter Type	Removable, reusable pleated element cartridge
Filter Media	Pleated cellulose/polyester blend
Cycle Time (Floor Only)	2 hours
Cycle Time (Full Cycle)	3 hours
Roller System	Front: Foam
Unit Weight	10.45 kg (without cable)
Dimensions (H x L x W)	74 x 61 x 43 cm
Power Supply Input	230V ~ 50/60 Hz
Power Supply Output	24V DC, 4A rated
Power Supply Weight	3.8 kg
Operating Temperature	10°C – 35°C water temperature
Materials	High-impact ABS; stainless steel metal parts
Motor Housing	Sealed, watertight, high-impact polypropylene
Drive System	Direct drive with polyurethane track & acetal/stainless steel bearings
Caddy	Included

🛡️ Warranty: 3 Years – Manufacturer’s limited warranty against defects in materials and workmanship

🧠 SMART TECHNOLOGY

Adaptive Seek Control Logic (ASCL®)

The SharkVac XL Pilot’s onboard microprocessor employs Hayward’s patented ASCL® technology, which continuously adapts the cleaning routine to match your pool’s unique dimensions and shape. This intelligent system ensures comprehensive coverage without wasted movement.

Movable Flotation Technology

Patent-pending adjustable float positioning allows you to customise wall climbing behaviour:

Position	Behaviour
Position I (Default)	Balanced cleaning – optimal for most pools
Position II	Faster waterline travel – enhanced floor coverage
Position III	Extended waterline scrubbing – ideal for tile and fibreglass surfaces

Self-Diagnostics & Protection

• Electronic overload monitoring with automatic shutoff
• Out-of-water detection prevents motor damage
• Beach-entry pool sensor for automatic directional adjustment
• Triple redundant shaft seals ensure motor compartment integrity

⚡ POWER SPECIFICATIONS

⚡ Input Power: 230V ~ 50/60 Hz
⚡ Output Voltage: 24V DC
⚡ Rated Output Current: 4A
⚡ Power Supply Weight: 3.8 kg
⚡ Minimum Distance from Pool: 3.5 metres

Safety Requirements:

• 30mA RCD (Residual Current Device) protection required
• Power supply must remain minimum 3.5m from pool edge
• Do not use extension cords

🏊 CLEANING PERFORMANCE

Surfaces Cleaned

• ✅ Pool floor – complete coverage
• ✅ Pool walls – intelligent climbing technology
• ✅ Waterline – adjustable scrubbing intensity
• ✅ Coves & corners – thorough navigation

Debris Types Handled

• 🍂 Leaves & large debris
• 🏖️ Sand & fine particles (30 micron filtration)
• 🌿 Algae residue
• 💇 Hair & fibres
• 🧱 Calcium deposits (frequent filter cleaning recommended)

Cleaning Modes

Mode	Duration	Best For
Floor Only	2 hours	Quick cleans, pool covers in use, energy saving
Full Cycle	3 hours	Complete floor, wall & waterline cleaning

🏠 POOL COMPATIBILITY

Pool Types

• ✅ In-ground pools (maximum 6m x 12m)

Compatible Surfaces

• ✅ Concrete
• ✅ Fibreglass
• ✅ Vinyl liner
• ✅ Mosaic
• ✅ Polyester
• ✅ PVC
• ✅ Stainless steel
• ✅ Tiled

Pool Shapes

Suitable for all standard pool shapes – the ASCL® microprocessor automatically adapts to your pool’s configuration.

Maximum Pool Size

• Length: 12 metres
• Width: 6 metres

💰 RUNNING COSTS

💰 Annual Running Cost Estimate:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
• Power consumption: ~96W (24V × 4A)
• Usage: 3 hrs × 2 per week × 26 weeks = 156 hrs/year
• UK electricity rate: £0.24/kWh

✅ Estimated annual cost: ~£3.60

Cost Comparison

Cleaning Method	Annual Cost
❌ Professional pool service	~£1,040
❌ Manual cleaning (labour value)	~£624
✅ Hayward SharkVac XL Pilot	~£4

💵 Potential Savings: £1,000+ per year

Plus reduced chemical and water usage from independent filtration

🎯 IDEAL FOR

• 🏠 Residential family pools up to 72m²
• 🏊‍♂️ Pools with beach/Californian-style entries
• 🌳 Tree-surrounded pools with leaf debris
• 🧹 Upgrading from manual pool cleaning
• ⏰ Pool owners wanting time-saving automation
• 🔄 Those seeking independence from main filtration system
• 🏠 Holiday homes and rental properties

📦 WHAT’S INCLUDED

• ✅ Hayward SharkVac XL Pilot robotic cleaner unit
• ✅ Power supply (230V input / 24V DC output)
• ✅ 16.76m floating cable (pre-attached)
• ✅ Ergonomic transport caddy (pre-assembled)
• ✅ Dual pleated filter cartridges (RCX70101PAK2)
• ✅ Foam roller (front)
• ✅ Brush roller (back)
• ✅ Owner’s manual

📥 DOWNLOADS

📄 Product Specification Sheet (PDF)

📄 Owner’s Manual (PDF)

🔧 OPTIONAL ACCESSORIES

Item	Part Number	Description
Replacement Filter Panels	RCX70101PAK2	Standard filtration (included)
Start-of-Season Filters	RCX70103PAK2	For larger debris collection
Ergonomic Trolley	RC97385D	Transport caddy (included with this model)

🏆 WHY CHOOSE THE HAYWARD SHARKVAC XL PILOT

✅ Proven Technology – ASCL® microprocessor has been refined over years of Hayward robotic cleaner development

✅ Universal Surface Compatibility – Dual foam/brush roller system works on all pool finishes without causing damage

✅ Exceptional Filtration – 30 micron capture rate removes fine particles other cleaners miss

✅ User-Friendly Design – Top-access filter, simple controls, included caddy

✅ Energy Efficient – Low running costs of approximately £4 per year

✅ Built to Last – Triple-sealed motors, stainless steel components, electronic overload protection

✅ 3-Year Warranty – Manufacturer confidence backed by comprehensive warranty coverage
