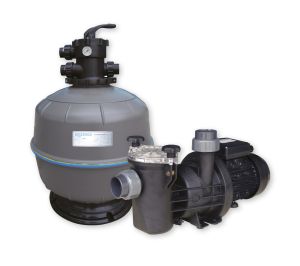

💦 Certikin 20″ Exotuf Filter, Valve, Sand, 0.75HP Swimflo Pump & Base Complete Package
Efficient Filtration for Small to Medium Pools – Reliable Performance Year After Year
📋 Product Overview
The Certikin 20″ Exotuf Filter and 0.75HP Swimflo Pump Package provides a complete, ready-to-install filtration solution for small to medium residential swimming pools. This thoughtfully matched system combines the robust Waterco Exotuf E500 sand filter with Certikin’s energy-efficient Swimflo circulation pump, pre-loaded with the correct sand charge and mounted on a stable base platform.
The Exotuf E500 filter vessel is precision injection moulded using advanced thermoplastic technology, delivering exceptional structural strength that rivals filters costing significantly more. With a pressure rating of 3.5 bar (350 kPa), this filter handles demanding pool environments including in-floor cleaning systems without compromise.
Paired with the quiet-running 0.75HP Swimflo pump, this package delivers reliable water circulation with impressive hydraulic efficiency. The self-priming pump design eliminates manual priming hassles, whilst the one-piece composite body ensures years of trouble-free operation in both chlorine and salt water pools.
Ideal for pools up to 56,500 litres with optimal 6-hour turnover, this system represents outstanding value for homeowners seeking professional-quality equipment without commercial-grade pricing.
✨ Key Features
✅ Exotuf E500 Filter Tank – Precision injection moulded thermoplastic construction for superior durability and structural integrity
✅ 3.5 Bar Pressure Rating – Heavy-duty performance suitable for in-floor cleaning systems and demanding pool configurations
✅ Six-Way Multiport Valve – Complete filtration control with filter, backwash, rinse, waste, recirculate, and closed positions
✅ 0.75HP Swimflo Pump – Energy-efficient circulation with high hydraulic performance and ultra-quiet operation
✅ Self-Priming Design – Improved self-priming capability eliminates manual intervention and ensures reliable startup
✅ Complete Sand Media Included – 90 kg of correctly graded filter sand pre-measured for optimal bed depth
✅ Integrated Pressure Gauge – Easy monitoring of filter condition to determine backwash timing
✅ Sight Glass – Visual confirmation during backwash cycles ensures thorough media cleaning
✅ Salt Chlorinator Compatible – Both filter and pump suitable for salt water pool systems
✅ Corrosion & UV Resistant – Engineered materials withstand outdoor installation and pool chemical environments
✅ 360° Valve Orientation – Flexible multiport valve positioning adapts to any plumbing configuration
✅ 10-Year Tank Warranty – Comprehensive manufacturer warranty demonstrates confidence in build quality
⚙️ Technical Specifications
| Specification | Value |
|---|---|
| Filter Type | Top Mount Sand Filter |
| Filter Model | Waterco Exotuf E500 |
| Tank Diameter | 500mm (20″) |
| Filter Area | 0.20 m² |
| Bed Depth | 250mm |
| Maximum Flow Rate | 157 lpm (9.4 m³/h) |
| Maximum Pool Capacity | 56,500 litres (6-hour turnover) |
| Minimum Backwash Flow | 131 lpm |
| Working Pressure | 3.5 bar (350 kPa) |
| Inlet/Outlet Size | 40mm |
| Tank Material | Precision Injection Moulded Thermoplastic |
| Sand Media Capacity | 90 kg |
| Pump Model | Certikin Swimflo |
| Pump Power | 0.75HP (0.55 kW) |
| Pump Voltage | Single Phase 220V |
| Pump Connections | 1.5″ suction and delivery |
| Motor Protection | IP55 Rated |
| Valve Type | 6-Way Multiport (Top Mount) |
| Certifications | CE Approved |
| Filter Tank Warranty | 10 years (residential) |
| Valve Warranty | 2 years |
| Pump Warranty | 2 years |
📐 Pool Sizing Guide
Sizing Principle: The filter flow rate should turn over the entire pool volume within 6-8 hours for optimal water clarity and hygiene.
Formula:
Required Flow Rate (m³/h) = Pool Volume (m³) ÷ Turnover Time (hours)
Pool Size Compatibility:
| Pool Type | Volume Range | Suitability |
|---|---|---|
| 🏊 Small Above-Ground | Up to 25,000 L | ✅ Excellent – premium performance |
| 🏊 Medium Above-Ground | 25,000-45,000 L | ✅ Excellent – optimal match |
| 🏊 Large Above-Ground | 45,000-56,500 L | ✅ Very Good – designed capacity |
| 🏠 Small In-Ground | Up to 40,000 L | ✅ Excellent – ideal choice |
| 🏠 Medium In-Ground | 40,000-56,500 L | ✅ Good – efficient turnover |
| 🏠 Large In-Ground | 56,500+ L | ⚠️ Consider 24″ E600 model |
This System Delivers:
📍 Maximum Flow Rate: 9.4 m³/h (157 lpm)
📍 Optimal Pool Size: Up to 56,500 litres
📍 6-Hour Turnover Capacity: 56,500 litres
📍 8-Hour Turnover Capacity: Up to 75,000 litres
🔌 Installation Requirements
Plumbing Specifications:
| Requirement | Specification |
|---|---|
| Filter Inlet Connection | 40mm |
| Filter Outlet Connection | 40mm |
| Pump Connections | 1.5″ (38mm) |
| Valve Position | Top Mount |
| Union Connections | 1.5″ socket unions included |
Physical Installation:
| Requirement | Details |
|---|---|
| Base Surface | Solid, level concrete pad or stable platform |
| Clearance Above | Minimum 500mm for valve operation and maintenance |
| Clearance Around | Minimum 400mm for backwash hose and servicing |
| Location | Sheltered outdoor position preferred |
| Drainage | Access to suitable drain point for backwash water |
Electrical Requirements:
| Requirement | Details |
|---|---|
| Power Supply | Single Phase 220-240V |
| Circuit Protection | Dedicated RCD protected circuit recommended |
| Cable Entry | Weatherproof junction box |
⚠️ Professional Installation: We recommend installation by a qualified pool technician to ensure optimal performance and warranty validity.
🛠️ Maintenance Guide
Routine Maintenance Schedule:
| Task | Frequency | How |
|---|---|---|
| Check pressure gauge | Weekly | Normal reading: 0.5-1.0 bar (clean filter baseline) |
| Backwash filter | When pressure rises 0.5-0.7 bar above baseline | Typically every 1-2 weeks |
| Rinse after backwash | After each backwash | Run rinse cycle for 30-60 seconds |
| Inspect pump strainer basket | Weekly | Remove debris, clean as required |
| Check pump lid O-ring | Monthly | Lubricate with silicone grease |
| Inspect valve seals | Seasonally | Replace if worn or cracked |
| Check sand level | Annually | Top up if media has settled |
| Full sand replacement | Every 5-7 years | Replace with 90kg grade 16/33 sand |
Pressure Gauge Guide:
📊 Clean Filter Baseline: 0.5-1.0 bar
📊 Backwash Required: When pressure rises 0.5-0.7 bar above baseline
📊 Maximum Safe Pressure: 2.5 bar
⚠️ If pressure exceeds 2.5 bar, stop pump immediately and investigate cause.
Winterisation (UK Climate):
Proper winter preparation protects your investment from frost damage:
- Drain filter tank completely via drain plug
- Remove and store drain plug indoors
- Set multiport valve to “Winterise” position between settings or remove for storage
- Drain pump housing and remove drain plugs
- Cover filter and pump or relocate to frost-free location
- Never leave water in filter or pump during freezing conditions
🪨 Filter Media Information
Compatible Media Types:
| Media Type | Capacity | Filtration Rating | Typical Lifespan | Benefits |
|---|---|---|---|---|
| Silica Sand (16/33 grade) | 90 kg | 20-40 microns | 5-7 years | Economical, proven performance |
| Filter Glass | ~80 kg | 5-15 microns | 10+ years | Finer filtration, reduced backwashing |
| ZeoSand | ~75 kg | 3-5 microns | 5 years | Superior water clarity |
This Package Includes: 90 kg Grade 16/33 silica sand (pre-measured for optimal 250mm bed depth)
Signs Media Needs Replacing:
- Poor water clarity despite correct chemical balance
- Short filter cycles between backwashes
- Cloudy water returning to pool after filter cycle
- Channelling visible in filter bed
- Media more than 7 years old
Media Replacement Tips:
💡 When replacing sand, consider upgrading to glass media for finer filtration and longer service life
💡 Always use pool-grade filter media, never play sand or builder’s sand
💡 Maintain correct 250mm bed depth for optimal filtration performance
💎 Filtration Performance
| Performance Metric | Value |
|---|---|
| Filter Area | 0.20 m² |
| Bed Depth | 250mm |
| Standard Sand Filtration | 20-40 microns |
| With Glass Media | 5-15 microns |
| Maximum Flow Rate | 9.4 m³/h (157 lpm) |
| Filtration Velocity | 48 m³/hr/m² (residential rating) |
Micron Rating Guide:
| Rating | What It Captures |
|---|---|
| 40+ microns | Visible debris, leaves, large particles |
| 20-40 microns | Sand, dirt, visible suspended particles |
| 10-20 microns | Fine particles, some algae spores |
| 5-10 microns | Very fine particles, most algae, improved clarity |
| 3-5 microns | Ultra-fine particles, bacteria, exceptional clarity |
Performance Notes:
The Exotuf E500’s 250mm bed depth provides excellent depth filtration, trapping debris throughout the sand bed rather than just at the surface. This design extends filter cycles between backwashes whilst maintaining consistent water clarity. The hydraulically balanced lateral system ensures even water distribution for maximum media contact.
⚙️ Multiport Valve Positions & Functions
| Position | Function | When to Use |
|---|---|---|
| Filter | Normal filtration mode | Daily operation – water passes through sand bed |
| Backwash | Reverse flow cleans media | When pressure gauge reads high – run until sight glass clears |
| Rinse | Settles media after backwash | Always run for 30-60 seconds after backwashing |
| Waste | Bypass filter to drain | Vacuuming heavy debris, lowering water level |
| Recirculate | Bypass filter to pool | Circulating chemicals, heating without filtering |
| Closed | Stops all water flow | Pump maintenance, valve servicing |
⚠️ Important: Always stop the pump before changing valve positions to prevent damage to internal seals.
🎯 Ideal Applications
| Application | Pool Size | Suitability |
|---|---|---|
| 🏠 Small Residential Above-Ground | 15,000-35,000 L | ✅ Excellent |
| 🏠 Medium Residential Above-Ground | 35,000-56,500 L | ✅ Excellent |
| 🏠 Small Residential In-Ground | 25,000-45,000 L | ✅ Excellent |
| 🏠 Medium Residential In-Ground | 45,000-56,500 L | ✅ Very Good |
| 🏡 Holiday Home Pool | Up to 50,000 L | ✅ Ideal |
This System Is Ideal For:
- Small to medium residential swimming pools
- Above-ground pool installations
- Smaller in-ground pools and plunge pools
- Budget-conscious pool owners seeking quality equipment
- Replacement of ageing filter and pump systems
- New pool installations with space constraints
- Salt chlorinated pool systems
❓ Frequently Asked Questions
Q: What size pool will this filter handle?
A: This system is rated for pools up to 56,500 litres based on a 6-hour turnover. For optimal performance, we recommend pools between 25,000 and 55,000 litres. Larger pools up to approximately 75,000 litres can achieve acceptable 8-hour turnover.
Q: How often do I need to backwash?
A: Backwash when the pressure gauge reads approximately 0.5-0.7 bar above your clean filter baseline. This typically occurs every 1-2 weeks during the swimming season, though frequency varies based on pool usage and environmental debris.
Q: What filter media should I use?
A: This package includes 90 kg of grade 16/33 silica sand. When replacing media, you may use standard pool sand, or upgrade to glass media (~80 kg) for finer filtration down to 5-15 microns with longer service life.
Q: How long does the filter media last?
A: Silica sand typically lasts 5-7 years with proper care. Glass media can last 10+ years. Signs of worn media include reduced water clarity and shortened filter cycles.
Q: Is the pump suitable for salt chlorinated pools?
A: Yes, the Certikin Swimflo pump is manufactured from corrosion-resistant composite materials suitable for both standard chlorine and salt chlorinated pool systems.
Q: How does this compare to the 24″ model?
A: The 20″ E500 is ideal for pools up to 56,500 litres, whilst the 24″ E600 handles pools up to 81,000 litres. Choose based on your pool volume for optimal turnover rates.
Q: What pump maintenance is required?
A: Weekly strainer basket cleaning, monthly O-ring inspection and lubrication, and seasonal mechanical seal checks. The self-priming design minimises maintenance requirements.
Q: What warranty is included?
A: The Exotuf filter tank carries a 10-year warranty for residential installations. The multiport valve has a 2-year warranty, and the Swimflo pump includes a 2-year manufacturer warranty. Contact Parts4Tubs for full warranty terms.
Q: Can I install this myself?
A: Whilst DIY installation is possible for competent individuals, we recommend professional installation by a qualified pool technician to ensure optimal performance, safety compliance, and warranty validity.
Q: What electrical supply do I need?
A: The 0.75HP Swimflo pump requires a single-phase 220-240V supply. A dedicated RCD-protected circuit is recommended. All electrical work should be completed by a qualified electrician.
🏆 Why Choose the Certikin 20″ Exotuf & Swimflo Package
✅ Right-Sized Performance – Perfectly matched filter and pump for small to medium pools
✅ Superior Build Quality – Precision injection moulded tank rated amongst the strongest in its class
✅ Complete System – Everything required for installation: filter, pump, valve, media, and base
✅ 10-Year Tank Warranty – Comprehensive manufacturer backing for residential installations
✅ Energy Efficient – 0.75HP pump delivers excellent flow with lower running costs than larger models
✅ Compact Footprint – Smaller installation area ideal for tight plant room spaces
✅ Future-Proof Design – Compatible with glass media upgrades for enhanced filtration
✅ Salt Water Compatible – Suitable for modern salt chlorinated pool systems
✅ UK Climate Ready – Designed to withstand British weather conditions
🤝 Why Buy from Parts4Tubs
✅ UK-Based Company – Local support from pool equipment specialists
✅ Fast UK Delivery – Prompt dispatch to addresses throughout the UK
✅ Expert Technical Advice – Knowledgeable team for sizing and installation queries
✅ Competitive Pricing – Professional equipment at fair prices
✅ Full Warranty Support – Manufacturer warranty administered in the UK
✅ Easy Returns – 30-day returns policy for peace of mind
✅ Genuine Parts Available – Replacement seals, valves, and components in stock
✅ Complementary Products – Filter media, chemicals, and accessories available
🌟 Summary
The Certikin 20″ Exotuf Filter, Valve, Sand, 0.75HP Swimflo Pump & Base Package delivers reliable, efficient pool filtration in a compact, ready-to-install system. Featuring the robust Waterco Exotuf E500 filter with its industry-leading 10-year tank warranty, paired with the energy-efficient Certikin Swimflo pump, this package provides everything needed for crystal clear pool water.
Ideal for residential pools up to 56,500 litres, the system’s 3.5 bar pressure rating handles demanding applications whilst the 0.75HP pump keeps energy costs manageable. With all components included—filter tank, multiport valve, pressure gauge, 90 kg sand media, circulation pump, and mounting base—installation is straightforward for qualified technicians.
