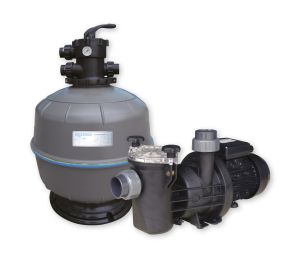

🌊 Certikin 24″ Exotuf Filter, Valve, Sand, 1HP Swimflo Pump & Base Complete Package

Professional-Grade Filtration System for Crystal Clear Pool Water

💧 Product Overview

The Certikin 24″ Exotuf Filter and 1HP Swimflo Pump Package delivers everything you need to establish reliable, efficient filtration for your swimming pool. This comprehensive system combines the precision-engineered Waterco Exotuf E600 sand filter with Certikin’s trusted Swimflo circulation pump, all mounted on a purpose-built base for straightforward installation.

Manufactured to exacting standards, the Exotuf E600 filter vessel is precision injection moulded for superior structural strength, making it one of the most robust domestic filters in its class. Pressure rated at 3.5 bar (350 kPa), this filter handles demanding pool environments including in-floor cleaning systems and high-powered pump configurations with ease.

The included Certikin Swimflo 1HP pump provides dependable water circulation with high hydraulic efficiency, self-priming capability, and quiet operation. Together with the pre-filled sand media, six-way multiport valve, pressure gauge, and mounting base, this package represents exceptional value for pool owners seeking professional-quality equipment.

Suitable for pools up to 81,000 litres with a 6-hour turnover, this system serves medium to large residential pools throughout the UK.

⭐ Key Features

✅ Exotuf E600 Filter Tank – Precision injection moulded for enhanced structural strength and long-term durability

✅ 3.5 Bar Pressure Rating – Engineered to withstand demanding pool systems including in-floor cleaning and high-powered pumps

✅ Six-Way Multiport Valve – Full control over filtration, backwash, rinse, waste, recirculate, and closed positions

✅ 1HP Swimflo Pump – High hydraulic efficiency with improved self-priming for reliable water circulation

✅ Complete Sand Media Included – Pre-measured sand charge eliminates guesswork during installation

✅ Integrated Pressure Gauge – Monitor filter condition at a glance to determine backwash requirements

✅ Sight Glass – Clear visual confirmation during backwash cycles

✅ Corrosion Resistant Construction – UV-stabilised materials suitable for outdoor installation

✅ Salt Chlorinator Compatible – Swimflo pump suitable for salt water pool systems

✅ Mounting Base Included – Stable platform for professional installation

✅ 360° Valve Orientation – Multiport valve clamp allows flexible positioning for any plumbing configuration

✅ 10-Year Tank Warranty – Comprehensive manufacturer warranty for residential installations

🔩 Technical Specifications

Specification	Value
Filter Type	Top Mount Sand Filter
Filter Model	Waterco Exotuf E600
Tank Diameter	600mm (24″)
Filter Area	0.28 m²
Maximum Flow Rate	226 lpm (13.56 m³/h)
Maximum Pool Capacity	81,000 litres (6-hour turnover)
Working Pressure	3.5 bar (350 kPa)
Tank Width	650mm
Tank Height	942mm
Inlet/Outlet Size	40mm (50mm valve available)
Tank Material	Precision Injection Moulded Thermoplastic
Sand Media Capacity	130 kg
Pump Model	Certikin Swimflo
Pump Power	1HP (0.74 kW)
Pump Voltage	Single Phase 220V
Pump Connections	1.5″ suction and delivery
Motor Protection	IP55 Rated
Valve Type	6-Way Multiport (Top Mount)
Certifications	CE Approved
Filter Tank Warranty	10 years (residential)
Valve Warranty	2 years
Pump Warranty	2 years

📏 Pool Sizing Guide

Sizing Principle: The filter flow rate should turn over the entire pool volume within 6-8 hours for optimal water clarity and hygiene.

Formula:

Required Flow Rate (m³/h) = Pool Volume (m³) ÷ Turnover Time (hours)

Pool Size Compatibility:

Pool Type	Volume Range	Suitability
🏊 Medium Above-Ground	30,000-50,000 L	✅ Excellent – optimal performance
🏊 Large Above-Ground	50,000-70,000 L	✅ Very Good – efficient turnover
🏠 Small In-Ground	Up to 50,000 L	✅ Excellent – premium performance
🏠 Medium In-Ground	50,000-81,000 L	✅ Good – designed capacity
🏠 Large In-Ground	81,000+ L	⚠️ Consider larger filter

This System Delivers:

📍 Maximum Flow Rate: 13.56 m³/h (226 lpm)

📍 Optimal Pool Size: Up to 81,000 litres

📍 6-Hour Turnover Capacity: 81,000 litres

📍 8-Hour Turnover Capacity: Up to 108,000 litres

---

🛠️ Installation Requirements

Plumbing Specifications:

Requirement	Specification
Filter Inlet Connection	40mm / 50mm
Filter Outlet Connection	40mm / 50mm
Pump Connections	1.5″ (38mm)
Valve Position	Top Mount
Union Connections	Quick connect barrel unions included

Physical Installation:

Requirement	Details
Base Surface	Solid, level concrete pad or stable platform
Clearance Above	Minimum 500mm for valve operation and maintenance
Clearance Around	Minimum 400mm for backwash hose and servicing
Location	Outdoor position sheltered from direct weather extremes preferred
Drainage	Access to suitable drain point for backwash water

Electrical Requirements:

Requirement	Details
Power Supply	Single Phase 220-240V
Circuit Protection	Dedicated RCD protected circuit recommended
Cable Entry	Weatherproof junction box

⚠️ Professional Installation: We recommend installation by a qualified pool technician to ensure optimal performance and warranty validity.

🔄 Maintenance Guide

Routine Maintenance Schedule:

Task	Frequency	How
Check pressure gauge	Weekly	Normal reading: 0.5-1.0 bar (clean filter baseline)
Backwash filter	When pressure rises 0.5-0.7 bar above baseline	Typically every 1-2 weeks
Rinse after backwash	After each backwash	Run rinse cycle for 30-60 seconds
Inspect pump strainer basket	Weekly	Remove debris, clean as required
Check pump lid O-ring	Monthly	Lubricate with silicone grease
Inspect valve seals	Seasonally	Replace if worn or cracked
Check sand level	Annually	Top up if media has settled
Full sand replacement	Every 5-7 years	Replace with 130kg grade 16/33 sand

Pressure Gauge Guide:

📊 Clean Filter Baseline: 0.5-1.0 bar

📊 Backwash Required: When pressure rises 0.5-0.7 bar above baseline

📊 Maximum Safe Pressure: 2.5 bar

⚠️ If pressure exceeds 2.5 bar, stop pump immediately and investigate cause.

Winterisation (UK Climate):

Proper winter preparation protects your investment from frost damage:

• Drain filter tank completely via drain plug
• Remove and store drain plug indoors
• Set multiport valve to “Winterise” position between settings (if applicable) or remove entirely for storage
• Drain pump housing and remove drain plugs
• Cover filter and pump or relocate to frost-free location
• Never leave water in filter or pump during freezing conditions

---

🪨 Filter Media Information

Compatible Media Types:

Media Type	Capacity	Filtration Rating	Typical Lifespan	Benefits
Silica Sand (16/33 grade)	130 kg	20-40 microns	5-7 years	Economical, proven performance
Filter Glass	118 kg	5-15 microns	10+ years	Finer filtration, reduced backwashing
Glass Pearl	144 kg	3-10 microns	10+ years	Superior clarity, eco-friendly



Signs Media Needs Replacing:

• Poor water clarity despite correct chemical balance
• Short filter cycles between backwashes (increased frequency)
• Cloudy water returning to pool after filter cycle
• Channelling visible in filter bed
• Media more than 7 years old

Media Replacement Tips:

💡 When replacing sand, consider upgrading to glass media for finer filtration and longer service life

💡 Always use pool-grade filter media, never play sand or builder’s sand

💡 Ensure correct fill level – overfilling reduces filtration efficiency

🔬 Filtration Performance

Performance Metric	Value
Filter Area	0.28 m²
Standard Sand Filtration	20-40 microns
With Glass Media	5-15 microns
Maximum Flow Rate	13.56 m³/h
Filtration Velocity	48 m³/hr/m² (residential rating)

Micron Rating Guide:

Rating	What It Captures
40+ microns	Visible debris, leaves, large particles
20-40 microns	Sand, dirt, visible suspended particles
10-20 microns	Fine particles, some algae spores
5-10 microns	Very fine particles, most algae, improved clarity
3-5 microns	Ultra-fine particles, bacteria, exceptional clarity

Performance Notes:

The Exotuf E600’s 0.28 m² filter area provides effective depth filtration, trapping debris within the sand bed whilst maintaining consistent flow rates. The hydraulically balanced lateral system ensures even water distribution during both filtration and backwash cycles, maximising media contact and cleaning efficiency.

---

⚙️ Multiport Valve Positions & Functions

Position	Function	When to Use
Filter	Normal filtration mode	Daily operation – water passes through sand bed
Backwash	Reverse flow cleans media	When pressure gauge reads high – run until sight glass clears
Rinse	Settles media after backwash	Always run for 30-60 seconds after backwashing
Waste	Bypass filter to drain	Vacuuming heavy debris, lowering water level
Recirculate	Bypass filter to pool	Circulating chemicals, heating without filtering
Closed	Stops all water flow	Pump maintenance, valve servicing

⚠️ Important: Always stop the pump before changing valve positions to prevent damage to internal seals.

---

🎯 Ideal Applications

Application	Pool Size	Suitability
🏠 Residential Above-Ground	30,000-70,000 L	✅ Excellent
🏠 Residential In-Ground	40,000-81,000 L	✅ Excellent
🏠 Large Family Pool	60,000-81,000 L	✅ Very Good
🧖 Pool with Spa	Combined up to 81,000 L	✅ Suitable
🏢 Small Commercial	Up to 50,000 L	⚠️ Check local regulations

This System Is Ideal For:

• Medium to large residential swimming pools
• Pools with in-floor cleaning systems
• Replacement of ageing filter and pump equipment
• New pool installations requiring reliable filtration
• Pool owners seeking professional-grade equipment
• Salt chlorinated pool systems

❓ Frequently Asked Questions

Q: What size pool will this filter handle?

A: This system is rated for pools up to 81,000 litres based on a 6-hour turnover. For optimal performance, we recommend pools between 40,000 and 80,000 litres. Larger pools up to approximately 108,000 litres can achieve acceptable 8-hour turnover.

Q: How often do I need to backwash?

A: Backwash when the pressure gauge reads approximately 0.5-0.7 bar above your clean filter baseline. This typically occurs every 1-2 weeks during the swimming season, though frequency varies based on pool usage and environmental debris.

Q: What filter media should I use?

A: This package includes 130 kg of grade 16/33 silica sand. When replacing media, you may use standard pool sand, or upgrade to glass media (118 kg) for finer filtration down to 5-15 microns with longer service life.

Q: How long does the filter media last?

A: Silica sand typically lasts 5-7 years with proper care. Glass media can last 10+ years. Signs of worn media include reduced water clarity and shortened filter cycles.

Q: Is the pump suitable for salt chlorinated pools?

A: Yes, the Certikin Swimflo pump is manufactured from corrosion-resistant materials suitable for both standard chlorine and salt chlorinated pool systems.

Q: What pump maintenance is required?

A: Weekly strainer basket cleaning, monthly O-ring inspection and lubrication, and seasonal mechanical seal checks. The self-priming design minimises maintenance requirements.

Q: What warranty is included?

A: The Exotuf filter tank carries a 10-year warranty for residential installations. The multiport valve has a 2-year warranty, and the Swimflo pump includes a 2-year manufacturer warranty. Contact Parts4Tubs for full warranty terms and conditions.

Q: Can I install this myself?

A: Whilst DIY installation is possible for competent individuals, we recommend professional installation by a qualified pool technician to ensure optimal performance, safety compliance, and warranty validity.

Q: What electrical supply do I need?

A: The 1HP Swimflo pump requires a single-phase 220-240V supply. A dedicated RCD-protected circuit is recommended. All electrical work should be completed by a qualified electrician.

Q: Is this suitable for in-floor cleaning systems?

A: Yes, the Exotuf E600’s 3.5 bar pressure rating makes it ideal for pools equipped with in-floor cleaning systems and high-powered pumps.

🏆 Why Choose the Certikin Exotuf & Swimflo Package

✅ Superior Build Quality – Precision injection moulded filter tank rated amongst the strongest in its class

✅ Complete System – Everything required for installation included: filter, pump, valve, media, and base

✅ 10-Year Tank Warranty – Comprehensive manufacturer backing for residential installations

✅ Proven Performance – Waterco Exotuf filters trusted by pool professionals worldwide

✅ Flexible Installation – 360° valve orientation adapts to any plumbing configuration

✅ Future-Proof Design – Compatible with glass media upgrades for enhanced filtration

✅ Energy Efficient Pump – High hydraulic efficiency reduces running costs

✅ Salt Water Compatible – Suitable for modern salt chlorinated pool systems

✅ UK Climate Ready – Designed to withstand British weather conditions

🤝 Why Buy from Parts4Tubs

✅ UK-Based Company – Local support from pool equipment specialists

✅ Fast UK Delivery – Prompt dispatch to addresses throughout the UK

✅ Expert Technical Advice – Knowledgeable team for sizing and installation queries

✅ Competitive Pricing – Professional equipment at fair prices

✅ Full Warranty Support – Manufacturer warranty administered in the UK

✅ Easy Returns – 30-day returns policy for peace of mind

✅ Genuine Parts Available – Replacement seals, valves, and components in stock

✅ Complementary Products – Filter media, chemicals, and accessories available

✨ Summary

The Certikin 24″ Exotuf Filter, Valve, Sand, 1HP Swimflo Pump & Base Package delivers professional-grade pool filtration in a comprehensive, ready-to-install system. Featuring the robust Waterco Exotuf E600 filter with its industry-leading 10-year tank warranty, paired with the efficient and reliable Certikin Swimflo pump, this package provides everything needed to maintain crystal clear pool water.

Suitable for residential pools up to 81,000 litres, the system’s 3.5 bar pressure rating handles demanding applications including in-floor cleaning systems. With all components included—filter tank, multiport valve, pressure gauge, 130 kg sand media, circulation pump, and mounting base—installation is straightforward for qualified technicians.
