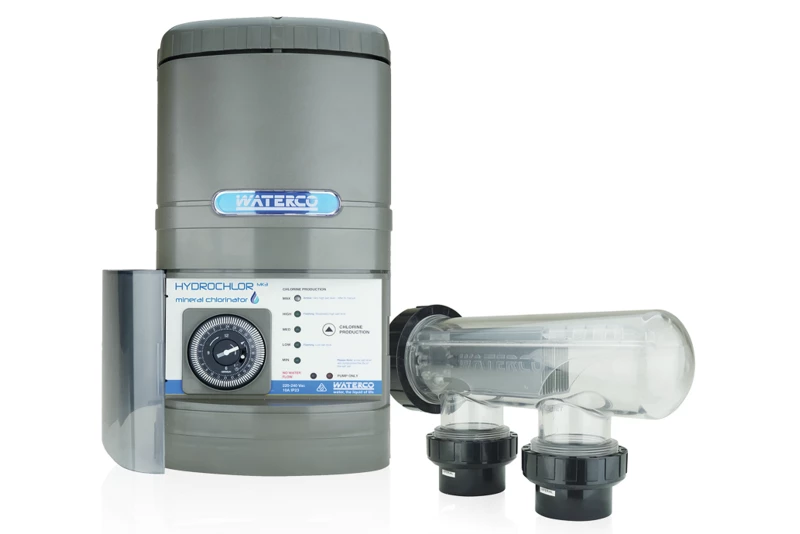

Waterco Hydrochlor MK3 Mineral Chlorinator – Power Pack for Mineral and Saltwater Pools

Overview

The Hydrochlor MK3 Power Pack serves as the advanced control unit for Waterco’s MK3 Mineral/Salt Chlorinator systems. Featuring energy-efficient switch‑mode technology, intuitive controls, and essential safety protections, it delivers reliable, automatic chlorination for swimming pools up to 100 m³ when paired with the appropriate cell.

 Key Features

• 50%+ Energy Savings
  Switch‑mode power design greatly reduces electricity usage while maintaining chlorine production.

• Auto-Cell Recognition
  Adjusts output based on the connected 20A or 30A cell for optimal performance.

• Salt-Level Protection
  Audible and visual alarms detect low/high salt (< 4,000 ppm or > 6,000 ppm); output is automatically limited if outside optimal range.

• Built-In Timer with Backup
  Easily set daily or weekly chlorination schedules. Supercapacitor backup holds the schedule for at least 150 hours during power outages.

• Self-Cleaning Chlorinator Support
  Enables polarity-reversal to reduce calcium build-up on cell electrodes—automatic operation.

• No-Flow Detection
  Automatically shuts off chlorine production and triggers an LED alert if water flow stops.

• Weather-Proof and Durable
  IP23-rated housing with UV-stable connectors and easy-to-use brass-pin cell plugs ensures outdoor reliability.

• Winter & Shock Modes
  Easy switch to reduce output in cooler months or boost output for pool shock/super chlorination.

Specifications

Power Pack (both 20A & 30A models):

• Input: 220–240 VAC, 50/60 Hz

• Max input power: 105 W (20A); 130 W (30A)

• DC Output: 5.4 A (20A); 6.0 A (30A)

• Max total current: 10 A; Pump outlet support: 8 A

• Cell Voltage: 21 V

• Dimensions: 423.5 × 136.5 × 280 mm; Weight ~4 kg

• Protection: IP23, compliant with AS3136 and EMC standards

Models & Capacity

Benefits

• Consistent Sanitization
  Automatically maintains ideal chlorine levels—reducing bacterial and algal risks.

• Comfort-Focused Water
  Mineral-enriched or salt-treated water is gentler on skin and eyes compared to traditional chlorine.

• Minimal Maintenance
  Self-cleaning cell reduces scaling, while LED alerts and timer simplify upkeep.

• Safe and Intelligent Design
  Integrated safeguards (no-flow detection, salt-level control, pump protection) ensure reliable operation.

• Eco-conscious Operation
  Energy-efficient design and optimized chlorination reduce electricity and chemical consumption.

Installation & Use

• Mounting: Install control unit near filter and cell, away from chemical storage. Pump outlet drives filtration pump only.

• Cell Placement: Position cell at end of filtration line, with proper gas trap and flow direction.

• Startup Sequence: Power the unit for ≥150 hours initially to charge backup capacitor.

• Water Requirements: Maintain pool salt/mineral level between 4,000–6,000 ppm.

Summary

The Waterco Hydrochlor MK3 Power Pack is a smart, energy-efficient, and versatile chlorination controller, designed to deliver precise, low-maintenance sanitization for pools up to 100 m³. With intelligent controls, long-term reliability, and compatibility with mineral and salt systems, it’s a superior upgrade for those seeking comfort, efficiency, and safety.

Document

• Waterco Hydrochlor Mk3 Mineral Chlorinator Brochure
• Waterco Hydrochlor Mk3 Mineral Chlorinator Manual
