Water Manifold Socket: The Heart of Your Hot Tub’s Circulation System

Introduction

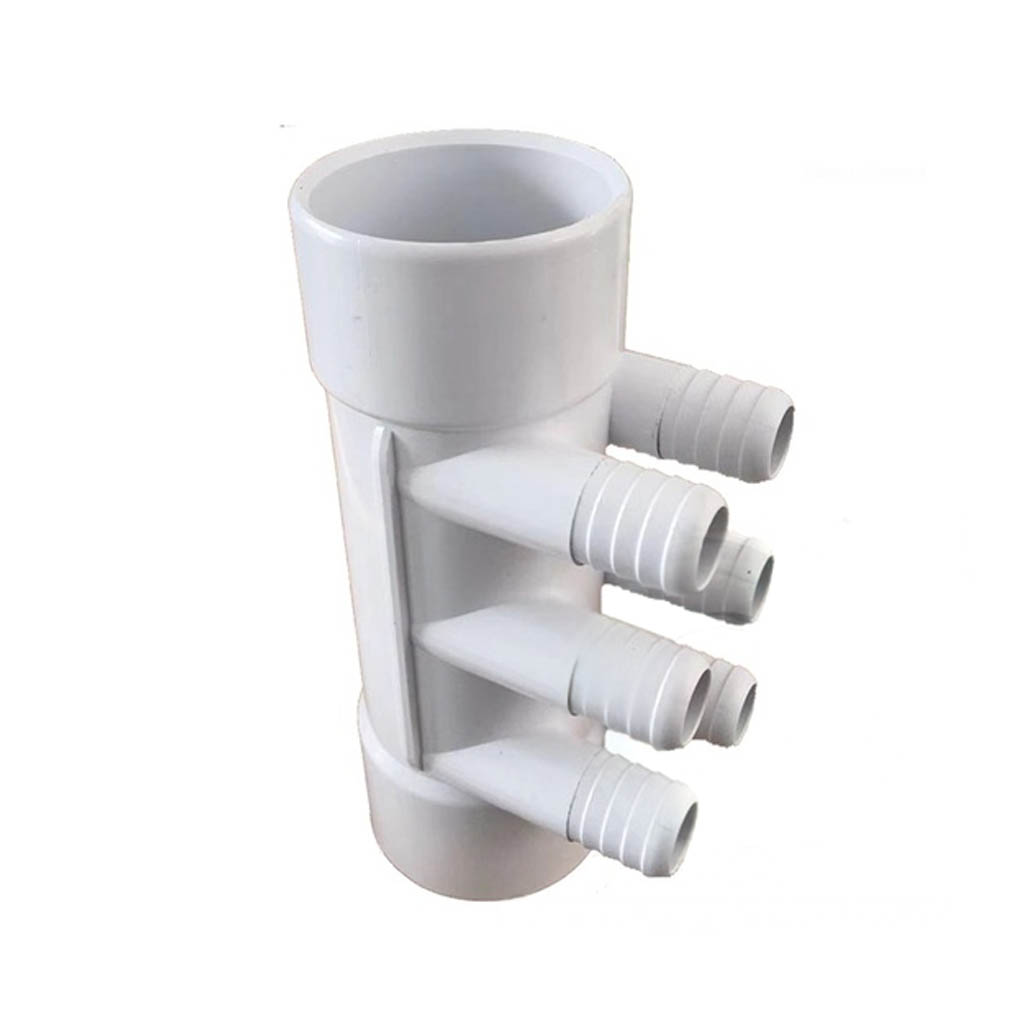

As a hot tub enthusiast and spare parts specialist, I’m excited to introduce you to the Water Manifold Socket 2″ x 3/4″ RB (6PT). This crucial component plays a vital role in your hot tub’s plumbing system, ensuring efficient water distribution to keep your spa running smoothly.

Product Overview

The Water Manifold Socket, manufactured by the reputable Las Water, is a high-quality plumbing fixture designed to optimize water flow in your hot tub. With its durable construction and precise specifications, this manifold socket is an essential part for maintaining or upgrading your spa’s circulation system.

Key Features

1. Versatile Compatibility: Works seamlessly with both 2-inch rigid and flexible rigid pipes, making it adaptable to various hot tub setups.
2. Multiple Outlets: Features six 3/4-inch reduced branches (RB), allowing for efficient water distribution to multiple jets.
3. Robust Construction: Made from high-grade materials to withstand the demands of hot tub environments.
4. Easy Installation: Designed for straightforward assembly with standard plumbing tools and materials.

Detailed Specifications

To help you understand if this Water Manifold Socket is the right fit for your hot tub, I’ve compiled a detailed specifications table:

Specification	Detail
Manufacturer	Las Water
Type	Water Manifold Socket
Main Body Size	2 inches Socket x 2 inches Socket
Outlet Size	3/4 inches (6 Reduced Branches)
Internal Diameter	70 mm
Outer Length	162 mm
Depth	95 mm
Material	High-grade PVC (assumed based on standard practice)

Installation Tips

When installing the Water Manifold Socket, I recommend following these steps for the best results:

1. Preparation: Clean all connecting pipes and the manifold socket with a quality plumbing cleaner.
2. Assembly: Use appropriate pipe cement to ensure a watertight seal.
3. Connection: For the main body, insert 2-inch pipes into the female sockets. For the outlets, push 3/4-inch flexible hoses inside the fittings.

Applications

This versatile manifold socket is ideal for hot tubs that use 3/4-inch flexible hose for water jet supply. It’s perfect for:

• Replacing worn-out manifolds
• Upgrading your hot tub’s plumbing system
• Custom hot tub builds
• Efficient water distribution to multiple jets

Why Choose This Water Manifold Socket?

1. Quality Assurance: Manufactured by Las Water, known for their reliable plumbing components.
2. Durability: Built to withstand the constant water flow and temperature fluctuations in hot tubs.
3. Efficient Design: Ensures even water distribution, enhancing your overall spa experience.
4. Versatility: Compatible with various pipe types, making it suitable for different hot tub models.

Conclusion

The Water Manifold Socket 2″ x 3/4″ RB (6PT) is more than just a plumbing component; it’s a key player in delivering the relaxing and invigorating experience you expect from your hot tub. With its robust construction, precise specifications, and versatile design, this manifold socket is an excellent choice for maintaining or upgrading your spa’s circulation system.

Remember, proper installation is crucial for optimal performance. If you’re unsure about any aspect of the installation process, don’t hesitate to consult with a professional plumber or hot tub technician.

Invest in the Water Manifold Socket today and take a step towards enhancing your hot tub’s performance and longevity!





USA Imperial is the Standard



All hot tubs and their fittings are designed for USA standard of Imperial pipe. Would you believe that for example, a European 2.5″ pipe is different from a USA 2.5″ pipe – well it is and there is just over 2mm difference and it makes a huge difference as it doesn’t fit!

You must make sure that you are using American standard sized pipe – always worth checking with your supplier before you purchase.

Can I convert Metric pipe to Imperial?



Yes, you can convert metric pipe to imperial, usually there is a socket connection that will do that. However, what I would preface that with is really, the only reason you would want to do that is say if you have a long run of pipe between your control room and your hot tub. You cant easily get imperial pipe supply but you have found say 75mm pipe that would do the job.

In this instance, it would work to convert it down at each end.

However, what you cannot do (technically you can but it is a real mess to do so) is convert all of the pipework to metric using adaptors. Generally, this just doesn’t work, costs loads in just adaptors alone and the amount of joints means you are going to have some leaks!

What rating of pipe do I need?



Pipe is rated to different pressures. You must use pressure rated pipe on your hot tub build as it is a pressurised system. In general, any pipe that is rated to 130 PSI or 9 BAR can be used on a hot tub build. This is often referred to as Class C. Likewise, Class E which is rated to 15 BAR or 218 PSI is also commonly found on hot tub builds.

Anything less than 130 PSI or 9 BAR should not be used – the pipes are not waste water pipes that are commonly found in hardware stores. They must be pressure rated and you will see this printed on the side of all the pipe so there will be no confusion.

What about Schedule 40 Pipe?



The schedule number on pipe correlates to the thickness of the wall on the pipe: as the number increases, the thicker the wall thickness is. Also, what is interesting is that while the schedule number can be the same on different sized pipes, the actual wall thickness will be different.

However, for our DIY Hot Tubs, we would only opt for schedule 40 – schedule 80 would be an overkill.

We also only use schedule 40 pipe if it is being buried and there is considerable weight on it. What I mean by this is that you need the physical strength of the pipe to stop it being crushed and cracked. In most cases, regular pressure rated pipe is just fine.

Should I use Rigid or Semi-Flexible Pipe?



When I built my own hot tub, I opted for semi-flexible as I though that it would be a little more forgiving. It is, however it is now my experience that the fact it is forgiving, and I use that in a loosest of terms as it is still pretty rigid pipe, it is more likely to leak.

The reason that it is more likely to leak is that you can “force” the joint when there is a little bit of give in the pipe. If you force the joint as I have said many times on this blog and on my YouTube Channel, you are going to have leaks – and it did!

For that reason, wherever possible today I recommend that you use rigid pipe. You have to make a good joint and it has to be accurate. It is forcing your workmanship which you will benefit from in the long run. Rigid pipe is the way forward for your DIY Hot Tub build.

Support your Pipework



If you pick up a length of pipe, 2m/6ft, there is not a lot of weight in it at all. However, if you fill that same pipe with water, cap it off each end and try to lift it, you will notice there is a huge weight increase. Water is heavy. If you have long runs of pipe, you must support them. Whether this is in ground and they should be laid correctly with a gravel base or if it is on your hot tub, they should be tied and pinned to the block work.

If you dont support your pipes and they fill with water, you can put strain on the joints that over time, will work their way loose and leak. It only takes a couple of minutes to tie your pipes and support them and it will save a whole bunch of time and money on repairs in the future by getting this right from the start.

Making the perfect joint with PVC pipe cement.



On this blog and on my YouTube Channel I talk a lot about making the correct joints and that a well made joint doesn’t leak. So, how do you make a well made joint?

1. Make sure when you cut the pipes you are cutting them at 90 degrees so they fit into the fittings correctly.
2. Make sure you remove any rough edges from your cuts
3. Ensure you are roughing up 3″ of the pipe with sand paper before you make the connection
4. Apply PVC Pipe Cement to the pipe and the connection
5. Twist the pipe or fitting as you are inserting it to prevent “channeling” which leads to leaks
6. Make sure the pipe goes all the way into the fitting (always a good idea to mark the ideal depth you want to get to)
7. Wipe off any excess pipe cement.
8. Allow to cure for 4 hours for full strength
