⚡ Vian Power 3kW 825 CZm8 Control Box

Control Box with Heater Tube — Versatile Spa Control for Retrofits and Upgrades

📋 Product Overview

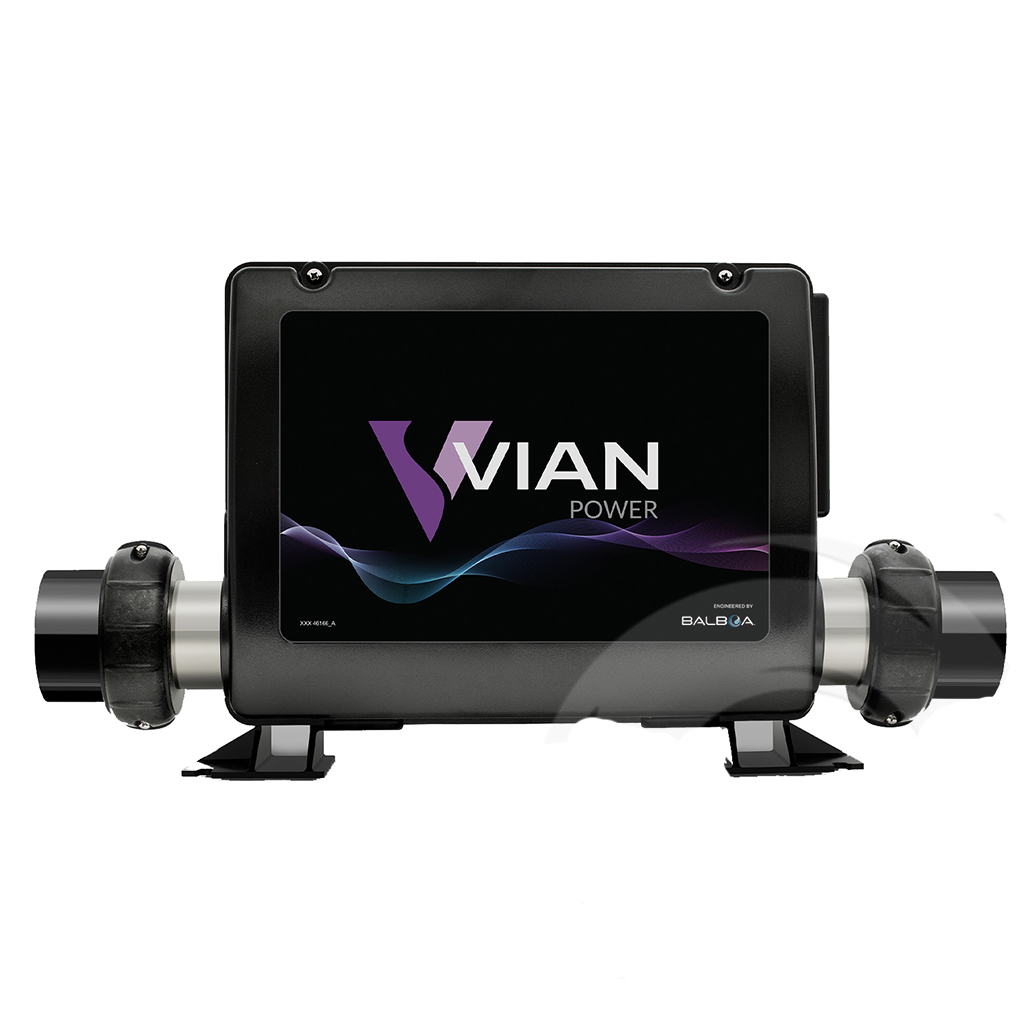

The Vian Power 3kW 825 CZm8 Control Box is a versatile spa control system designed specifically for retrofits and upgrades. Whether you’re replacing a faulty control box or upgrading an older spa system, this unit offers the flexibility to handle a wide range of configurations.

This control box supports everything from a simple single-speed pump with no air setup all the way up to a comprehensive three-pump system with circulation pump and blower. The integrated 3kW heater provides reliable water heating, while built-in support for ozone sanitation and 12V lighting rounds out its capabilities.

Installation is straightforward with 2-inch socket heater union sleeves and AMP cable connectors that plug directly into the PCB. The system operates on standard 230V AC, 50Hz UK power supply.

⭐ Key Features

Feature	Specification	Benefit
🌡️ 3kW Heater	Included with control box	Complete heating solution
💧 Flexible Pump Support	1 pump to 3 pumps + circ + blower	Suits any spa configuration
🫧 Ozone Ready	Supported	Enhanced water sanitation
💡 Lighting Output	1 × 12V	Integrated spa lighting
🔌 Easy Connections	2″ unions + AMP connectors	Simplified installation
⚡ UK Power	230V AC, 50Hz	Standard electrical supply

🔧 Technical Specifications

Product Information

Specification	Value
Brand	VIAN
Product Type	Control Box with Heater Tube
Model / Series	BP
Part Code	BX-VP610

Electrical Specifications

Specification	Value
Input Voltage	230V AC
Frequency	50Hz
Heater Output	3.0kW
Light Output	12V

Physical Specifications

Dimension	Value
Length	490 mm
Height	270 mm
Width	100 mm

Plumbing

Specification	Value
Heater Union Sleeves	2-inch socket
Plumbing Size	2″

💧 Pump Configurations

The Vian Power supports a wide range of pump setups:

Configuration	Supported
Minimum	1 single-speed pump, no air
Maximum	3 pumps + circulation pump + blower

This flexibility makes it suitable for:

• ✅ Simple single-pump spas
• ✅ Dual-pump hot tubs
• ✅ Multi-pump systems with dedicated circulation
• ✅ Full-featured spas with blower

🔌 Connection System

Connection	Type
Heater	2-inch socket union sleeves
Components	AMP cable connectors (plug into PCB)

🫧 Additional Features

Feature	Status
Ozone Output	✅ Supported
Light Output	✅ 1 unit, 12V

🎯 Ideal For

• ✅ Spa Retrofits — Replace older or failed control systems
• ✅ System Upgrades — Modernise your existing hot tub
• ✅ Flexible Installations — Single pump to multi-pump setups
• ✅ Trade Professionals — Versatile stock for various jobs

❓ Frequently Asked Questions

Q: Is the heater included? A: Yes — this control box includes an integrated 3kW heater.

Q: What pump configurations does this support? A: From 1 single-speed pump with no air, up to 3 pumps plus circulation pump and blower.

Q: What plumbing connections does it use? A: 2-inch socket heater union sleeves.

Q: What power supply is required? A: 230V AC, 50Hz — standard UK mains supply.

Q: Does this support ozone? A: Yes — ozone output is supported.

Q: What lighting output does it have? A: 1 unit at 12V.

Q: What are the dimensions? A: 490mm (L) × 270mm (H) × 100mm (W) including heater.

Q: Is a topside panel included? A: No — topside panel sold separately. Contact Parts4Tubs for compatible options.

📥 Documentation

📄 Vian Box Technical Sheet — Complete technical specifications

🏆 Why Choose the Vian Power 3kW 825 CZm8?

✅	Benefit
🌡️	3kW heater included — Complete heating solution
💧	Flexible pump support — 1 to 3 pumps + circ + blower
🫧	Ozone ready — Enhanced sanitation capability
💡	12V lighting — Integrated light output
🔌	Easy connections — 2″ unions and AMP connectors
⚡	UK compatible — 230V AC, 50Hz operation
🔧	Retrofit designed — Perfect for upgrades

🤝 Why Buy From Parts4Tubs?

✅	What You Get
🇬🇧	UK-Based Company — Local support and expertise
🚚	Fast UK Delivery — Get your parts quickly
💬	Expert Advice — Spa specialists ready to help
💷	Competitive Pricing — Great value on quality parts
🛡️	Full Warranty — Manufacturer-backed coverage
↩️	Easy Returns — 30-day hassle-free returns
🔧	Technical Support — Help with installation queries

✨ Summary

The Vian Power 3kW 825 CZm8 Control Box is designed for spa retrofits and upgrades, offering versatile pump support from 1 single-speed pump up to 3 pumps plus circulation pump and blower. The integrated 3kW heater, ozone support, and 12V lighting output provide a complete control solution. With 2-inch socket heater union sleeves and AMP cable connectors for easy installation, this 490 × 270 × 100mm unit operates on 230V AC, 50Hz — making it an ideal choice for spa system upgrades and replacements.
