💨 Tylö Steam Home 3/6/9 kW Steam Generator – Residential Steam Luxury Up to 24 m³

Bring the spa experience home with Swedish-engineered steam and flexible power to match any room

♨️ Product Overview

The Tylö Steam Home 3/6/9 kW brings professional-quality steam bathing into your home with a compact, versatile generator that adapts to your space. This single unit offers three power configurations—3 kW, 6 kW, or 9 kW—selected during installation to perfectly match your steam room size, from intimate shower enclosures to spacious home spa rooms.

Designed and manufactured in Sweden by Tylö, a company with over 60 years of wellness expertise, the Steam Home delivers the same thick, luxurious steam found in world-class spas. The compact wall-mounted design fits discretely in a utility cupboard, technical room, or any well-ventilated space outside your steam room, keeping the technology hidden while you enjoy pure relaxation.

The patented ‘divided output’ technology reduces energy consumption by up to 30% once your steam room reaches the desired temperature. Combined with standby mode, automatic flush functions, and built-in aromatherapy capability, this generator offers an intelligent, low-maintenance path to daily wellness. The flexible power supply supports both 220V single-phase and 380V three-phase connections, accommodating various home electrical configurations across the UK and Europe.

✨ Key Features

✅ Three-in-One Power Flexibility – Configurable as 3 kW, 6 kW, or 9 kW during installation to match any home steam room from 2-24 m³

✅ Compact Wall-Mounted Design – Slim 480 × 350 × 159 mm footprint fits in cupboards, utility rooms, and tight spaces

✅ Patented Divided Output Technology – Automatically reduces power by up to 30% when target temperature is reached

✅ Standby Mode – Energy-saving function minimises consumption during idle periods (requires Elite control panel)

✅ Built-in Aromatherapy Feature – Enhance your steam experience with essential oil infusion (requires Elite panel and fragrance pump)

✅ Automatic Flush System – Self-cleaning function adjustable to local water quality reduces maintenance

✅ Flexible Voltage Options – Supports 220V single-phase or 380V three-phase power supplies

✅ IP23 Protection Rating – Splash-resistant construction for safe installation near wet areas

✅ MultiSteam Compatible – Connect multiple units for larger installations or continuous operation

✅ Essential Steam Nozzle Included – Ready for immediate installation with standard steam outlet

✅ Stainless Steel Construction – Premium water tank and acid-resistant heating elements for durability

✅ Made in Sweden – Over 60 years of Tylö quality and engineering excellence

🔧 Technical Specifications

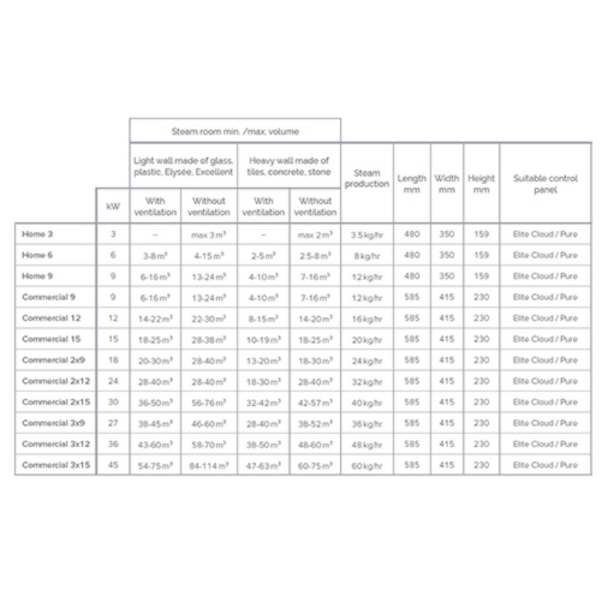

Specification	Home 3	Home 6	Home 9
Power Rating	3 kW	6 kW	9 kW
Steam Output	3.5 kg/hour	8 kg/hour	12 kg/hour
Room Capacity (Light Walls)	Max 3 m³ (no vent)	3-8 m³ (vent) / 4-15 m³ (no vent)	6-16 m³ (vent) / 13-24 m³ (no vent)
Room Capacity (Heavy Walls)	Max 2 m³ (no vent)	2-5 m³ (vent) / 2.5-8 m³ (no vent)	4-10 m³ (vent) / 7-16 m³ (no vent)

Specification	Value
Voltage Options	220V single-phase / 380V three-phase
Dimensions (L × W × H)	480 × 350 × 159 mm
Water Tank Material	Stainless steel
Heating Elements	Acid-resistant stainless steel tubular elements
IP Rating	IP23
Compatible Control Panels	Elite Cloud / Pure
Steam Nozzle	Essential (included)
Country of Manufacture	Sweden
Product Code	3366210120
Warranty	2 years + 3 years material warranty

⚠️ Power setting (3, 6, or 9 kW) is configured during installation based on wiring configuration. Consult a qualified electrician.

📐 Room Sizing Guide

Choosing Your Power Setting: The Steam Home’s power is set during electrical installation. Choose based on your room size and wall construction.

Room Capacity by Power Setting:

🔌 Home 3 (3 kW) – Compact Steam Showers

Wall Type	Capacity
Light walls (glass, acrylic)	Maximum 3 m³
Heavy walls (tiles, stone)	Maximum 2 m³

Ideal for: Single-person steam showers, compact en-suite installations

🔌 Home 6 (6 kW) – Standard Home Steam Rooms

Wall Type	With Ventilation	Without Ventilation
Light walls	3-8 m³	4-15 m³
Heavy walls	2-5 m³	2.5-8 m³

Ideal for: Typical home steam rooms, bathroom conversions, 2-person use

🔌 Home 9 (9 kW) – Larger Home Spas

Wall Type	With Ventilation	Without Ventilation
Light walls	6-16 m³	13-24 m³
Heavy walls	4-10 m³	7-16 m³

Ideal for: Dedicated home spa rooms, family steam rooms, premium installations

Adjustment Factors:

Condition	Adjustment
Glass walls/doors	Add 1 m³ per m² of glass
Natural stone walls	Add 20-30% to base volume
Poor insulation	Add 25% to calculated volume
High ceiling (above 2.4m)	Calculate additional volume

Worked Example:

📍 Example: Home Bathroom Steam Room

• Room dimensions: 1.8m × 1.5m × 2.2m
• Base volume: 5.94 m³
• Construction: Tiled walls (heavy)
• Glass door: 1.4 m² = +1.4 m³
• Total calculated: 7.34 m³
• Recommendation: ✅ Home 9 (9 kW) configuration is ideal (7-16 m³ for heavy walls, no vent)

💡 When in doubt, select the higher power setting for faster heat-up times and better steam density.

💷 Running Costs

Energy Rate Used: £0.245/kWh (UK average – verify current Ofgem rates)

Estimated Annual Running Costs by Power Setting:

Power Setting	Light Use (2×/week)	Regular Use (4×/week)	Heavy Use (Daily)
Home 3 (3 kW)	£38	£76	£134
Home 6 (6 kW)	£76	£153	£269
Home 9 (9 kW)	£115	£229	£403

Based on 30-minute sessions, ~100/200/350 hours per year respectively

Cost Calculation Formula:

Annual Cost = kW × Hours/Year × £0.245 × Utilisation Factor

Example (Home 6, Regular Use with Divided Output):
6 kW × 200 hours × £0.245 × 0.8 (energy savings) = £235

Per session estimate:
- Home 3: ~£0.25-£0.35 per 30-minute session
- Home 6: ~£0.50-£0.70 per 30-minute session
- Home 9: ~£0.75-£1.00 per 30-minute session

💡 The patented ‘divided output’ function and standby mode can reduce actual costs by up to 30%.

⚠️ Actual costs depend on usage patterns, session length, room insulation, and current energy rates.

⚡ Installation Requirements

Electrical Requirements:

Requirement	Specification
Voltage Options	220V single-phase OR 380V three-phase
Power Configuration	Set during installation (3, 6, or 9 kW)
Circuit Type	Dedicated circuit required
RCD Protection	Required

Location Requirements:

Requirement	Specification
Mounting	Horizontal wall-mounted
Installation location	Outside the steam room (cupboard, utility room, technical space)
Ventilation	Well-ventilated location required
Access	Maintenance access required

⚠️ IMPORTANT: Installation must be carried out by a qualified electrician
and plumber in accordance with BS 7671 (IET Wiring Regulations),
Water Supply Regulations, and local building codes.

The power output (3, 6, or 9 kW) is determined by the wiring configuration
during installation and cannot be easily changed afterwards.

---

💧 Water Requirements

Water Supply:

Requirement	Specification
Water type	Cold mains water
Connection size	Min. 12 mm internal diameter
Connection type	Flexible armoured hose recommended

Water Quality:

Condition	Recommendation
Soft water areas	Standard operation
Hard water areas	Water softener recommended
Very hard water (>14°dH)	Water softener essential

Drainage:

Requirement	Specification
Drain location	Must discharge outside the steam room
Auto-drain function	Yes – automatic emptying after use
Auto-flush function	Yes – configurable to water quality

💡 Regular descaling extends equipment life. Frequency depends on water hardness—see user manual for detailed schedule.

---

🛡️ Safety Features & Certifications

Built-in Safety Systems:

✅ Electronic temperature limiter (overheat protection)

✅ Automatic emptying after steam session

✅ Automatic flush cycle for limescale prevention

✅ Low water protection

✅ IP23 splash-proof rating

✅ Improved protection against stoppages

Quality & Standards:

✅ CE Marked

✅ IP23 Rated

✅ Made in Sweden

✅ Over 60 years of Tylö manufacturing expertise

✅ Acid-resistant stainless steel heating elements

✅ Stainless steel water tank

---

🏠 Ideal Applications

Application	Recommended Setting	Room Size	Notes
🚿 Steam Shower	Home 3 (3 kW)	Up to 3 m³	Single-person compact enclosures
🛁 En-Suite Steam Room	Home 6 (6 kW)	3-8 m³	Typical bathroom conversion
🧖 Home Spa Room	Home 9 (9 kW)	8-16 m³	Dedicated wellness space
👨‍👩‍👧 Family Steam Room	Home 9 (9 kW)	10-16 m³	Multi-person home installation
🏡 Garden Spa Building	Home 6/9 (6-9 kW)	4-16 m³	Outbuilding wellness suite
🏊 Pool House Steam	Home 9 (9 kW)	8-16 m³	Poolside steam facility

---

🎛️ Control Options & Accessories

Compatible Control Panels:

Panel	Features
Elite Cloud	WiFi connectivity, Wellaccess app control (iOS & Android), remote monitoring, standby mode, aromatherapy control
Pure	Essential controls with timer and temperature adjustment, elegant compact design

Note: Control panels are sold separately. Standby mode and aromatherapy require Elite panel.

Included with Generator:

✅ Essential Steam Nozzle – Standard steam outlet for immediate installation

Optional Accessories:

• Bahia Home Steam Outlet – Premium steam outlet with compartment for scent essences
• Fragrance Pump – For aromatherapy integration (requires Elite panel)
• Temperature/Humidity Sensor – For precise climate control
• Sync Cable – For MultiSteam configurations

---

🌿 Aromatherapy

✅ Aromatherapy Ready: Yes (requires Elite control panel and fragrance pump)

The Steam Home supports aromatherapy integration for a complete spa experience at home:

Option 1: Bahia Home Steam Outlet

• Premium upgrade from the included Essential nozzle
• Built-in compartment for scent essences
• Add a few drops before each session
• Simple, no additional equipment needed

Option 2: Fragrance Pump System

• Continuous essential oil delivery
• Precise control via Elite panel
• Professional-grade aromatherapy experience
• Compatible with Tylö fragrance concentrates

---

❓ Frequently Asked Questions

Q: Can I change the power setting after installation?

A: The power output (3, 6, or 9 kW) is determined by the electrical wiring configuration during installation. Changing it requires rewiring by a qualified electrician. It’s important to calculate your room size carefully and select the appropriate setting before installation.

Q: What’s the difference between Steam Home and Steam Commercial?

A: Both offer the same Tylö quality and features, but the Steam Home has a more compact chassis (480×350×159mm vs 585×415×230mm) designed for residential spaces. The Commercial range has a larger water tank for continuous high-demand use in public facilities. For home use, the Steam Home is the ideal choice.

Q: Do I need single-phase or three-phase power?

A: The Steam Home supports both 220V single-phase (common in UK homes) and 380V three-phase power. Most residential installations use single-phase. Your electrician can advise based on your existing electrical supply and the chosen power setting.

Q: What control panel should I choose?

A: The Pure panel offers essential controls for straightforward operation. The Elite Cloud adds WiFi connectivity, smartphone control via the Wellaccess app, standby mode, and aromatherapy integration. For the full smart home experience, choose Elite Cloud.

Q: Is a water softener necessary?

A: In hard water areas (common in much of England), a water softener is strongly recommended. It significantly extends equipment life by preventing limescale buildup on heating elements. The automatic flush system helps, but a softener provides better long-term protection.

Q: What warranty is provided?

A: The Steam Home comes with a 2-year warranty plus an additional 3-year material warranty, totalling 5 years of coverage for materials.

Q: How long does it take to produce steam?

A: Warm-up time depends on your room size and chosen power setting. Typically, expect steam within 10-20 minutes. Higher power settings heat faster for their respective room sizes.

Q: Can I install it myself?

A: No. Installation must be carried out by qualified professionals—a certified electrician for the electrical connection and a qualified plumber for water supply and drainage. This ensures safety, compliance with regulations, and protects your warranty.

Q: What’s included with the generator?

A: The Steam Home includes the Essential steam nozzle for immediate installation. Control panels, premium steam outlets (Bahia Home), and fragrance pumps are sold separately.

📥 Downloads & Resources

 Technical Datasheet – Full specifications and dimensional drawings

 Elite Cloud Installation Manual – Complete installation guide with wiring instructions

 Sense Pure/Elite Installation Guide – Heater installation when paired with Elite control

 Sense Elite Quick Start Guide – Quick reference for initial setup

🏆 Why Choose the Tylö Steam Home 3/6/9 kW

✅ Perfect for Home Use – Compact design engineered specifically for residential steam rooms

✅ Three Power Options in One – Choose 3, 6, or 9 kW during installation to match any room size

✅ Swedish Engineering Excellence – Over 60 years of Tylö quality, manufactured in Sweden

✅ Up to 30% Energy Savings – Patented divided output and standby mode minimise running costs

✅ Smart Home Ready – Elite Cloud panel offers app control and WiFi connectivity

✅ Low Maintenance – Automatic flush and drain functions reduce upkeep

✅ Aromatherapy Capable – Enhance your steam experience with essential oils

✅ Flexible Installation – Supports single-phase or three-phase power supplies

✅ Complete Package – Essential steam nozzle included for immediate installation

🤝 Why Buy From Parts4Tubs

✅ UK-based company with local support

✅ Fast UK delivery

✅ Expert advice from steam room specialists

✅ Competitive pricing

✅ Full warranty support

✅ Easy returns within 30 days

💫 Summary

The Tylö Steam Home 3/6/9 kW steam generator brings professional spa-quality steam into your home with Swedish-engineered excellence in a compact, versatile package. With three configurable power settings (3, 6, or 9 kW) covering rooms from 2-24 m³, it adapts perfectly to any home installation—from intimate steam showers to spacious family spa rooms. The patented divided output technology cuts energy consumption by up to 30%, while smart features including app control, aromatherapy, and automatic maintenance make daily wellness effortless. Backed by Tylö’s 60+ year reputation and a comprehensive 5-year warranty, plus Parts4Tubs expert UK support, order today for fast delivery and transform your home into a personal wellness retreat.
