🧖 Tylö Sense Sport 6 Sauna Heater – 6.6kW Power for 4-8m³ Saunas

Swedish-engineered efficiency meets intelligent design – perfect heat, every session.

♨️ Product Overview

The Tylö Sense Sport 6 is a compact yet powerful sauna heater from Sweden’s leading sauna manufacturer, delivering 6.6kW of efficient heating for sauna rooms between 4 and 8 cubic metres. Designed for both residential and small commercial applications, this heater combines Tylö’s renowned Swedish engineering heritage with modern energy-saving technology.

What sets the Sense Sport 6 apart is its patented Split Output technology, which automatically reduces power consumption by up to 30% once your desired temperature is reached. The integrated control panel with mechanical thermostat and timer eliminates the need for separate control units, whilst the ThermoSafe™ fibre-coated exterior minimises burn risk – making this an ideal choice for family saunas.

Whether you’re building a new home sauna, upgrading a garden cabin, or fitting out a small wellness space, the Sense Sport 6 delivers rapid heating, precise temperature control, and genuine Tylö quality at an accessible price point.

⭐ Key Features

✅ 6.6kW Power Output – Optimally sized for sauna rooms from 4 to 8 cubic metres, providing quick and efficient heating

✅ Split Output Technology – Tylö’s patented energy-saving system automatically reduces power by up to 30% once target temperature is reached

✅ ThermoSafe™ Coating – Fibre-coated outer shell significantly reduces surface temperature to minimise burn risk

✅ Built-in Control Panel – Integrated mechanical thermostat (40-110°C) and timer (up to 3 hours with 9-hour delay start) for straightforward operation

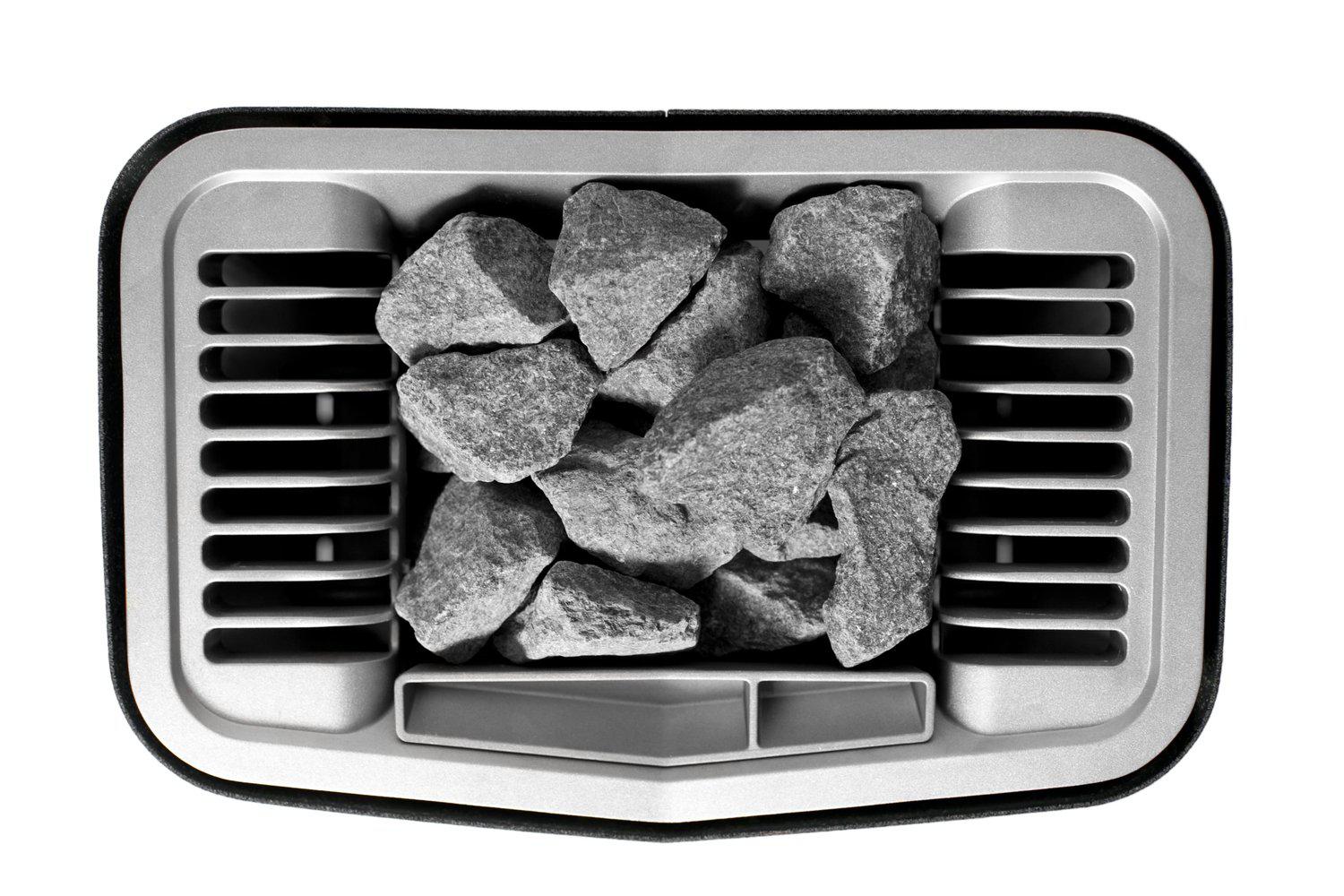

✅ 20kg Stone Capacity – Generous stone compartment delivers excellent heat storage and authentic löyly steam

✅ Twin Side Chambers – Dual ventilation design ensures faster, more even heat distribution throughout your sauna

✅ Removable Aromatherapy Compartment – Easy-to-clean fragrance holder for enhanced sauna experiences with essential oils

✅ Flexible Installation – Wall-mounted as standard with optional floor-standing legs available

✅ IPX4 Splash Protection – Rated for safe operation in humid sauna environments

✅ CE Certified – Fully compliant with European safety standards for complete peace of mind

🔧 Technical Specifications

Specification	Value
Model	Tylö Sense Sport 6
Power Rating	6.6 kW
Room Capacity	4 – 8 m³
Dimensions (H × W × D)	559 × 431 × 337 mm
Weight (heater only)	17 kg
Stone Capacity	20 kg (Ø 5-10 cm stones)
Thermostat Range	40 – 110°C
Timer Range	0 – 3 hours (with 0-9 hour pre-selection)
Control System	Built-in mechanical panel
Mounting Options	Wall-mounted (floor legs optional)
IP Rating	IPX4 (splash-proof)
Certifications	CE Marked
Country of Origin	Sweden

⚡ Electrical Requirements

Supply Type	Voltage	Amperage	Fuse	Cable Size
Single Phase	230-240V~	29A	32A	10mm²
Three Phase	230V 3~	17A	20A	4mm²
Three Phase	400-415V 3N~	10A	16A	1.5mm²

⚠️ Important: Professional installation by a qualified electrician is mandatory in accordance with BS 7671 (IET Wiring Regulations).

📏 Room Sizing Guide

The Tylö Sense Sport 6 at 6.6kW is designed for sauna rooms between 4 and 8 cubic metres. Use the following guidance to determine if this heater suits your space:

Basic Calculation

Calculate your sauna room volume: Length (m) × Width (m) × Height (m) = Volume (m³)

Adjustment Factors

Condition	Adjustment
Glass door or windows	Add 1.5 m³ per m² of glass
Uninsulated or log walls	Add 25-50% to calculated volume
Outdoor or barrel sauna	Add 25-30% to calculated volume
Masonry or brick walls	Add 1.2-2 m³ per m² of masonry
Ceiling height above 2.3m	Recalculate with actual height

📍 Worked Example

Sauna Room: 2.0m × 1.6m × 2.1m

• Base volume: 2.0 × 1.6 × 2.1 = 6.72 m³
• Glass door (0.7m × 1.9m = 1.33 m²): Add 2.0 m³
• Adjusted volume: 8.72 m³

💡 Recommendation: This room is at the upper limit for the Sense Sport 6. If your sauna has additional glass panels or poor insulation, consider the 8kW model instead.

💷 Running Costs

Current UK Electricity Rate: £0.2635/kWh (Ofgem Price Cap, Q4 2025)

Annual Cost Estimates

Usage Level	Sessions/Week	Hours/Year	Annual Cost
🏠 Light Use	2 sessions	150 hours	£261
🏠 Regular Use	4 sessions	300 hours	£522
🧖 Heavy Use	6 sessions	450 hours	£783

Calculation Formula

Annual Cost = Power (kW) × Hours/Year × Rate (£/kWh)

Example (Regular Use):
6.6 kW × 300 hours × £0.2635 = £522 per year

Per Session Cost

Typical 1.5-hour session: 6.6 kW × 1.5 hours × £0.2635 = £2.61

💡 Energy Saving Note: With Split Output technology engaged, actual running costs may be 20-30% lower once the sauna reaches operating temperature.

⚠️ Costs based on Ofgem Price Cap rates (October-December 2025). Actual costs depend on your energy tariff, usage patterns, and session duration.

🔌 Installation Requirements

Electrical Installation

Requirement	Specification
Supply Voltage	230-240V single phase or 400V three-phase
Circuit Type	Dedicated circuit (no shared loads)
Recommended Fuse	32A (single phase) or 16A (three-phase)
Cable Specification	Heat-resistant, run outside insulation
Disconnection	All-pole isolator switch required

Minimum Clearances (Standard Installation)

Position	Distance
Side walls	110 mm minimum
Ceiling	1030 mm minimum
Interior fittings/benches	100 mm minimum
Floor (wall-mounted)	100-270 mm
Floor (with legs)	100 mm

Minimum Clearances (Niche Installation)

Position	Distance
Side walls	200 mm minimum
Maximum niche depth	1000 mm
Ceiling	1030 mm minimum

Additional Requirements

• Minimum ceiling height: 1900 mm
• Inlet vent: Approx. 125 cm² directly beneath heater
• Outlet vent: Same size as inlet, positioned diagonally opposite (high on wall or ceiling)
• Cables: Must run outside heat insulation layer

⚠️ IMPORTANT: Installation must be carried out by a qualified electrician
in accordance with BS 7671 (IET Wiring Regulations) and local building codes.
Mechanical ventilation is not recommended as it may interfere with the
thermal protection system.

🛡️ Safety Features & Certifications

Built-in Safety Systems

✅ ThermoSafe™ Protective Coating – Fibre-coated exterior remains significantly cooler than traditional heaters

✅ Overheat Protection – Automatic thermal cut-out prevents dangerous temperature excursions

✅ Auto-Shutoff Timer – Maximum 3-hour operation prevents unattended running

✅ Temperature Monitoring – Built-in thermostat maintains safe, consistent temperatures

✅ Three Tubular Heating Elements – Tylö’s proprietary elements designed for longevity and reliability

Certifications

✅ CE Marked – Full compliance with European health and safety directives

✅ IPX4 Rated – Protected against water splashes from all directions

🎯 Ideal Applications

Application	Room Size	Typical Capacity	Suitability
🏠 Home Sauna	4-6 m³	2-3 people	Excellent – ideal primary use
🛖 Garden Sauna Cabin	4-7 m³	2-4 people	Excellent – account for heat loss
🪵 Compact Barrel Sauna	4-6 m³	2-4 people	Good – verify adjusted volume
🧖 Small Spa/Treatment Room	5-8 m³	2-4 people	Good – for light commercial use
🏋️ Gym/Fitness Facility	5-8 m³	3-4 people	Suitable – for smaller facilities

🪨 Sauna Stones

Specification	Detail
Stone Capacity	20 kg maximum
Recommended Stone Size	5-10 cm diameter
Stones Included	No – sold separately
Recommended Type	Vulcanite, Olivine Diabase, or quality sauna stones
Replacement Frequency	Every 1-2 years with regular use

💡 Tip: Quality sauna stones are essential for optimal heat storage and steam production. We recommend Tylö Vulcanite stones or equivalent premium-grade stones designed for electric sauna heaters.

🎛️ Control Options & Accessories

Built-in Control System

The Sense Sport 6 features an integrated control panel at the base of the unit:

• Thermostat dial: Adjustable temperature from 40°C to 110°C
• Timer dial: Up to 3 hours continuous operation with 0-9 hour delay start
• Panel position: Factory-fitted on left side; can be relocated to right side if required

Compatible Accessories

Accessory	Description
Floor Standing Legs	Black lacquered legs for floor-mounted installation
Sauna Stones (20kg)	Tylö Vulcanite or compatible premium stones
Safety Rail/Guard	Protective barrier for added safety around heater
Sauna Fragrances	Tylö-approved essential oils for aromatherapy

❓ Frequently Asked Questions

Q: What size room will this heater work for? A: The Tylö Sense Sport 6 (6.6kW) is designed for sauna rooms between 4 and 8 cubic metres. For rooms with glass doors, log walls, or outdoor installations, add 25-50% to your volume calculation and consider the 8kW model if you exceed 8m³.

Q: How long does it take to heat up? A: Typically 30-45 minutes to reach optimal temperature (70-80°C), depending on room size, insulation quality, and ambient temperature. The twin side chamber design promotes rapid, even heat distribution.

Q: What electrical supply do I need? A: The heater supports multiple configurations: 230-240V single phase (29A, 32A fuse), 230V three-phase (17A, 20A fuse), or 400V three-phase (10A, 16A fuse). A dedicated circuit and qualified electrician installation are required.

Q: Are sauna stones included? A: No, sauna stones are sold separately. The heater accommodates 20kg of stones with a diameter of 5-10cm. We recommend high-quality vulcanite or diabase stones.

Q: What is Split Output technology? A: Split Output is Tylö’s patented energy-saving feature that automatically reduces power consumption by up to 30% once your sauna reaches the desired temperature, maintaining heat efficiently whilst reducing running costs.

Q: Can I install this outdoors? A: The Sense Sport 6 can be installed in outdoor saunas such as garden cabins or barrel saunas, provided the sauna room itself is properly constructed and insulated. The heater must be protected from direct weather exposure.

Q: What warranty is provided? A: Please contact Parts4Tubs for full warranty terms and conditions applicable to your purchase.

📥 Downloads & Resources

📄 Installation Manual (PDF) – Complete installation guide with wiring diagrams and clearance specifications

📄 User Guide (PDF) – Operating instructions, maintenance guidelines, and safety information

📄 CE Certificate (PDF) – Official conformity documentation

📄 Test Report (PDF) – Technical testing and certification report

🏆 Why Choose the Tylö Sense Sport 6

✅ Swedish Engineering Excellence – Manufactured by Tylö, Sweden’s premier sauna brand with over 70 years of expertise

✅ Genuine Energy Savings – Split Output technology delivers measurable reductions in electricity consumption

✅ Enhanced Safety – ThermoSafe™ coating and comprehensive protection systems for family peace of mind

✅ Simple Operation – Built-in controls eliminate complexity – no separate panels or additional wiring required

✅ Compact Design – Ideal for smaller sauna spaces without compromising on heating performance

✅ Proven Reliability – Tylö’s proprietary heating elements are renowned for exceptional longevity

🤝 Why Buy from Parts4Tubs

✅ UK-Based Experts – Local support from genuine sauna and hot tub specialists

✅ Fast UK Delivery – Prompt dispatch and reliable delivery across the United Kingdom

✅ Technical Guidance – Expert advice on sizing, installation requirements, and accessories

✅ Competitive Pricing – Excellent value on genuine Tylö products

✅ Full Warranty Support – Comprehensive after-sales service and warranty handling

✅ Easy Returns – 30-day return policy for your peace of mind

✨ Summary

The Tylö Sense Sport 6 delivers 6.6kW of efficient, Swedish-engineered heating for sauna rooms from 4 to 8 cubic metres. Featuring Split Output energy-saving technology, ThermoSafe™ burn protection, and an integrated control panel, it’s the perfect choice for home saunas, garden cabins, and compact wellness spaces. With 20kg stone capacity, CE certification, and flexible wall or floor mounting options, the Sense Sport 6 combines Tylö quality with practical functionality. Backed by Parts4Tubs expert support and fast UK delivery – order today for authentic Scandinavian sauna performance.
