♨️ Tylö Fragrance Pump – Aromatherapy Module for Steam Generators

Transform Your Steam Room Into a Premium Wellness Sanctuary with Automated Scent Delivery

🧖 Product Overview

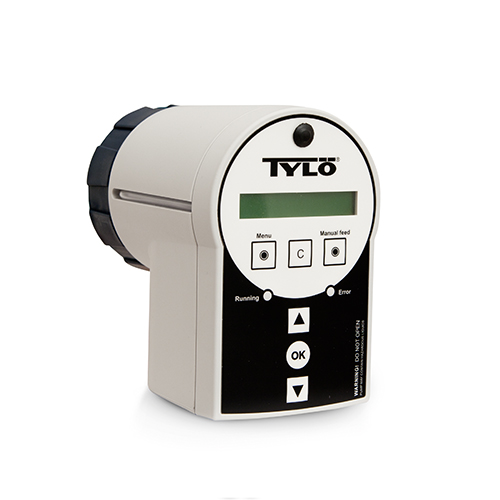

The Tylö Fragrance Pump is a professional-grade aromatherapy dispensing system designed to elevate your steam room experience to spa-quality levels. Manufactured in Sweden by TylöHelo, this precision-engineered accessory seamlessly integrates with Tylö Steam Home and Steam Commercial generators to deliver consistent, controllable fragrance throughout every steam session.

Connecting directly to your steam generator’s outlet pipe, the fragrance pump automatically infuses essential oils into the steam flow, creating an immersive aromatherapeutic environment. The built-in LCD control panel with intuitive button interface allows complete customisation of fragrance intensity and delivery timing, whilst LED indicators provide instant feedback on operating status and any fault conditions.

Whether you’re creating a relaxing eucalyptus retreat, an invigorating peppermint experience, or a calming lavender sanctuary, this system delivers reliable, hands-free aromatherapy that transforms ordinary steam bathing into an extraordinary wellness ritual.

✨ Key Features

✅ Precision Dispensing System – Delivers approximately 150 ml/min at 2 bar pressure for consistent, reliable fragrance distribution throughout your steam room

✅ LCD Control Panel – Clear display shows pump status, settings, and error messages with intuitive menu navigation for effortless operation

✅ Dual LED Indicators – Green “Running” LED confirms active operation, red “Error” LED alerts to any issues requiring attention

✅ Adjustable Pump Timing – Set dispensing duration from 0.1 to 9.9 seconds, or select continuous feed mode for maximum fragrance intensity

✅ Programmable Pause Intervals – Configure pause periods from 1 to 60 minutes between dispensing cycles to conserve fragrance and customise scent levels

✅ Integrated Thermostat Protection – Built-in +70°C thermostat ensures pump only operates when steam is actively flowing, preventing dry-run damage

✅ Elite Control Panel Integration – Fully compatible with Tylö Elite, Elite Cloud, and Elite Wi-Fi panels for seamless operation within your existing steam system

✅ Universal Power Compatibility – Primary input accepts 100-230VAC 50/60Hz, with secondary 24VDC 15W max output for safe, reliable operation

✅ Complete Installation Kit – Includes signal converter, thermostat with 3m cable, suction hose, feed hose, steam pipe connection, and adapter for smaller fragrance containers

⚙️ Technical Specifications

Specification	Value
Dispensing Capacity	Approx. 150 ml/min
Operating Pressure	2 bar
Primary Power Supply	100-230VAC 50/60Hz
Secondary Power Supply	24VDC, 15W maximum
Pump Dimensions (W×D×H)	80 × 90 × 100 mm
Pump Weight	Approx. 0.6 kg
Pump Time Range	0.1 – 9.9 seconds (or continuous)
Pause Time Range	1 – 60 minutes
Thermostat Cut-in Temperature	+70°C
Operating Temperature	Min. +5°C / Max. +50°C
Suction Hose	0.5m length, 8mm OD / 4mm ID
Feed Hose	3m length, 8mm OD / 2mm ID
Steam Pipe Connection	1/8″ thread
Fragrance Container Compatibility	Standard 5L, plus adapter for 10L or smaller
Compatible Control Panels	Elite, Elite Cloud, Elite Wi-Fi
Signal Converter	230VAC included

📐 Compatibility Guide

The Tylö Fragrance Pump is designed for use with specific Tylö steam equipment:

Compatible Steam Generators:

Generator Series	Models	Notes
🏠 Steam Home	3kW, 6kW, 9kW	Ideal for residential installations
🏢 Steam Commercial	12kW and higher	Professional/commercial applications

Required Control Panels:

Control Panel	Compatibility	Features
✅ Elite	Full integration	Manual and automatic control
✅ Elite Cloud	Full integration	Remote monitoring capability
✅ Elite Wi-Fi	Full integration	App-based control
❌ CC Series	Not compatible	Basic panels lack fragrance control
❌ TS Series	Not compatible	Basic panels lack fragrance control

⚠️ Important: The fragrance pump requires an Elite-series control panel. Basic CC or TS controls do not support fragrance dispenser integration.

💷 Running Costs

The Tylö Fragrance Pump operates on minimal electrical power, making it highly economical to run.

Electricity Consumption:

Component	Power	Cost Impact
Pump Unit	24VDC, 15W max	Negligible
Signal Converter	230VAC standby	Minimal

Fragrance Consumption Estimates:

Based on 150 ml/min dispensing rate:

Usage Pattern	Sessions/Week	Approximate Annual Fragrance Use
🏠 Light Use	2	15-25 litres
🏠 Regular Use	4	30-50 litres
🧖 Heavy Use	6+	50-75+ litres

💡 Tip: Adjust pump and pause times to optimise fragrance consumption. Shorter pump bursts with longer pauses can significantly reduce fragrance use whilst maintaining pleasant aromatherapy levels.

🔌 Installation Requirements

Location Requirements:

Requirement	Specification
Environment	Dry location only
Prohibited Areas	Not inside steam room or high-humidity spaces
Temperature Range	+5°C to +50°C
Access	Easy access for fragrance container replacement

Electrical Requirements:

Requirement	Specification
Power Supply	Standard wall outlet (100-230VAC)
Signal Connection	Via steam generator terminal block
Signal Converter	230VAC (included)

Steam Pipe Connection:

Component	Specification
Feed Hose Minimum Distance	10cm from steam pipe
Hose Maximum Length	1m vertical rise to steam pipe
Connection Thread	1/8″ to steam pipe
Orientation	Must prevent fragrance backflow to generator tank

Installation Components Included:

• ✅ Fragrance pump unit with LCD control panel
• ✅ Signal converter (230VAC) with 3m cable
• ✅ Thermostat (+70°C) with 3m cable
• ✅ Power supply unit
• ✅ Suction hose (yellow) – 0.5m
• ✅ Feed hose (green) – 3m
• ✅ Steam pipe snap connector (1/8″ thread)
• ✅ Adapter for 10L or smaller fragrance containers
• ✅ Cable tie for thermostat mounting
• ✅ Installation and user guide

⚠️ Important: Ensure fragrance cannot flow back into the steam generator tank. Position the connection point on the steam pipe correctly as shown in the installation manual.

---

🔒 Safety Features & Certifications

Built-in Safety Systems:

• ✅ Thermostat Protection – +70°C cut-in temperature ensures pump only activates when steam is flowing
• ✅ “No Steam” Detection – Automatic shutdown with display alert if steam pipe temperature drops below 70°C
• ✅ Dry-Run Prevention – Thermostat prevents pump operation without active steam flow
• ✅ Error Indication – Red LED and LCD display provide clear fault notifications
• ✅ Manual Override – Manual feed button allows testing and priming without automatic cycle

Environmental Compliance:

• ✅ RoHS Compliant – Restriction of Hazardous Substances directive compliant
• ✅ WEEE Compliant – Proper disposal at electrical/electronic recycling facilities required

---

🎯 Ideal Applications

Application	Setting	Benefits
🏠 Home Steam Room	Residential	Personal wellness sanctuary with customised aromatherapy
🧖 Private Spa	Home installation	Professional-quality fragrance delivery for luxury bathing
🏨 Hotel Wellness Centre	Commercial	Consistent guest experience with automated operation
💆 Day Spa	Commercial	Enhance treatment offerings with therapeutic scents
🏋️ Gym/Fitness Club	Commercial	Post-workout relaxation with invigorating aromatherapy
🏢 Corporate Wellness Suite	Commercial	Premium amenity for employee wellbeing programmes

---

💧 Compatible Fragrances

The Tylö Fragrance Pump is designed for use with Tylö concentrated fragrance oils, available in 5-litre containers.

Available Tylö Fragrance Concentrates:

Fragrance	Therapeutic Properties	Best For
🌿 Eucalyptus	Respiratory support, mental clarity	Post-workout recovery, cold relief
🌸 Lavender	Relaxation, stress relief	Evening sessions, sleep preparation
🍃 Peppermint	Invigoration, energy boost	Morning sessions, mental alertness
🍊 Citrus	Mood elevation, refreshment	Daytime use, uplifting atmosphere

⚠️ Important: Use only fragrance concentrates recommended by Tylö for optimal performance and equipment longevity.

---

🎛️ Control Panel Operation

Display Functions:

The LCD display provides real-time information including:

• Current pump status (running/paused/standby)
• Error messages and fault codes
• Menu navigation for settings adjustment
• Software version (displayed at power-up)

Control Buttons:

Button	Function
Menu	Access pump/pause time settings
▲ / ▼	Increase/decrease values in settings
OK	Confirm selections and settings
Cancel	Exit settings, return to main display
Manual Feed	Temporarily run pump while button is held

LED Indicators:

LED	Colour	Status
Running	Green (solid)	Pump actively dispensing
Running	Green (flashing)	Waiting for start signal from generator
Error	Red (flashing)	Fault detected or steam temperature too low

Factory Default Settings:

• Mode: Continuous Feed
• Settings are retained until manually changed
• Note: Settings may require re-adjustment after power interruption

---

❓ Frequently Asked Questions

Q: Which Tylö steam generators is this pump compatible with? A: The Fragrance Pump works with Tylö Steam Home (3-9kW) and Steam Commercial (12kW+) series. It requires an Elite-series control panel (Elite, Elite Cloud, or Elite Wi-Fi) and is not compatible with basic CC or TS controls.

Q: Where should the pump be installed? A: Install the pump in a dry location outside the steam room, with easy access for fragrance container replacement. Operating temperature must be between +5°C and +50°C. Never install inside the steam room or humid areas.

Q: Are fragrances included with the pump? A: No, fragrance concentrates are sold separately. Tylö recommends their 5-litre concentrated fragrance oils, available in eucalyptus, lavender, peppermint, and citrus varieties.

Q: How often do I need to refill the fragrance container? A: This depends on your usage settings and frequency. With typical residential use (4 sessions per week), a 5-litre container may last 1-3 months. Commercial installations with continuous operation will require more frequent refills.

Q: Can I adjust the fragrance intensity? A: Yes. The pump timing (0.1-9.9 seconds) and pause duration (1-60 minutes) are fully adjustable via the control panel, allowing precise control over fragrance concentration.

Q: What happens if the steam generator turns off mid-session? A: If steam flow stops and pipe temperature drops below 70°C, the pump automatically stops and displays “No Steam”. The pump will also complete its current cycle and shut down if the signal from the generator is lost.

Q: What maintenance is required? A: Regularly check fragrance levels and refill as needed. Verify pump operation periodically. Before transport, remove the pump from the fragrance container and run manually for a few seconds to clear residual liquid from hoses.

Q: What is the warranty period? A: Please contact Parts4Tubs for full warranty terms and conditions.

📥 Downloads & Resources

📄 Installation & User Guide – Complete installation instructions, wiring diagrams, and operating guide (multi-language)

⭐ Why Choose the Tylö Fragrance Pump

• ✅ Swedish Engineering Excellence – Manufactured by TylöHelo, a global leader with over 70 years in the sauna and steam industry
• ✅ Precision Control – Fully adjustable dispensing and pause times for customised aromatherapy experiences
• ✅ Intelligent Safety – Built-in thermostat prevents operation without active steam flow
• ✅ Easy Integration – Designed specifically for Tylö Elite-series control systems
• ✅ Complete Kit – All installation components included for straightforward setup
• ✅ Professional Results – Consistent, automated fragrance delivery eliminates manual dosing guesswork

🤝 Why Buy from Parts4Tubs

• ✅ UK-based company with local customer support
• ✅ Fast UK delivery on in-stock items
• ✅ Expert advice from sauna and steam specialists
• ✅ Competitive pricing on genuine Tylö products
• ✅ Full warranty support through authorised channels
• ✅ Easy returns within 30 days

✨ Summary

The Tylö Fragrance Pump delivers professional-grade aromatherapy automation for Tylö steam generators. With precision dispensing at approximately 150 ml/min, fully adjustable timing controls, and intelligent thermostat protection, it transforms your steam room into a premium wellness experience. Compatible with Elite-series control panels and both Steam Home and Steam Commercial generators, this Swedish-engineered system brings spa-quality fragrance delivery to residential and commercial installations alike. Complete installation kit included. Order today from Parts4Tubs for fast UK delivery and expert support.
