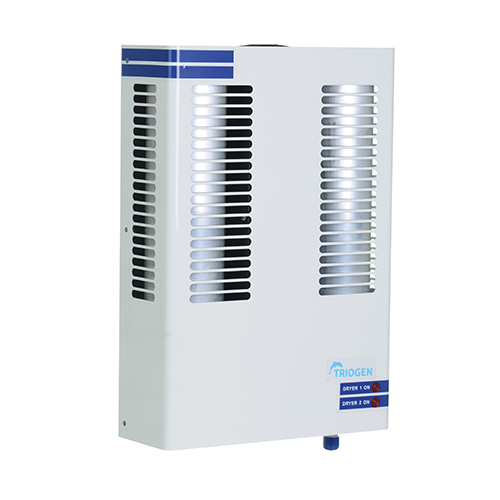

Triogen TAD.C1A Air Dryer
Compact Wall‑Mounted Corona Discharge Ozone Generator with Integrated Desiccant Air Drying
Overview
The Triogen TAD.C1A is a sophisticated yet compact ozone generation system tailored for indoor pools, spas, and wellness applications. It combines a corona discharge ozone generator with an internal desiccant air dryer, ensuring optimal ozone output by supplying moisture‑free air. Housed in a sturdy, wall‑mountable enclosure, the unit delivers high-performance water and air quality improvements, reducing irritation and enhancing swimmer comfort.
Key Features
-
Integrated Air Dryer
 Dual‑column desiccant dryer removes moisture before ozone generation—maintains consistent performance even in humid environments.
-
Corona Discharge Ozone Generator
 High-efficiency ozone production under vacuum conditions reduces chloramines and prevents “red eye,” skin, and respiratory irritation.
-
Compact & Wall-Mountable Design
 Total unit depth of just 110 mm minimizes plant room footprint.-
Generator: 155 × 440 × 110 mm, 4.4 kg
-
Dryer: 305 × 440 × 110 mm, 10 kg

-
-
Thermostatic Protection & Flow Monitoring
 Built‑in thermal cut-out and flow switch safeguard components and users against overheating and low air supply.
-
Durable Corona Modules
 Designed for 10+ years of reliable operation and compliant with EU ozone biocide regulations.
-
Energy‑Efficient Air‑Cooled Operation
 Eliminates the need for external chillers, maintaining optimum ozone productivity.
Technical Specifications
| Component | Dimensions (L × W × D) | Weight |
|---|---|---|
| Ozone Generator | 155 × 440 × 110 mm | 4.4 kg |
| Air Dryer | 305 × 440 × 110 mm | 10 kg |
-
Feed Gas Options: Normal atmospheric air or pre-dried air using the unit’s feeder.
-
Power Input: Standard 220–240 V, 50 Hz (110 V option available).
-
Compliance: ISO 9001‑certified, CE and UKCA marked.
Benefits
-
Superior Water & Air Quality
 Effectively breaks down chloramines, reducing odor and irritation, and keeping water visibly clean and fresh.
-
Consistent Ozone Output
 Integrated air dryer ensures steady ozone generation regardless of environmental humidity.
-
Easy Installation & Maintenance
 Compact, wall-mounted configuration and safety features simplify integration and upkeep.
-
Long-Term Reliability
 Durable corona modules and automated drying systems minimize maintenance, delivering years of stable performance.
Summary
The Triogen TAD.C1A Air Dryer is an advanced ozone system designed for indoor aquatic environments, seamlessly integrating ozone generation with air drying in a compact format. It offers efficient, low-maintenance, and durable performance—enhancing both pool water and air quality while ensuring swimmer comfort and safety.
