Triogen T2 System c/w TOG B2, Injector, Flowmeter & Water Trap

Compact Wall‑Mounted Vacuum‑Injected Ozone Disinfection System

Overview

The Triogen T2 System is an all-in-one ozone sanitation package engineered for private pools, hotels, and aquatic facilities. It features the TOG B2 corona discharge ozone generator, a water-powered venturi injector, flowmeter, and water trap. Operating under vacuum conditions, it delivers effective chloramine destruction, improved water clarity, and safer air quality—while minimizing chemical usage.

Key Components

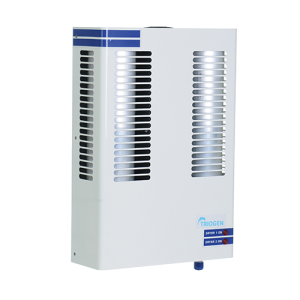

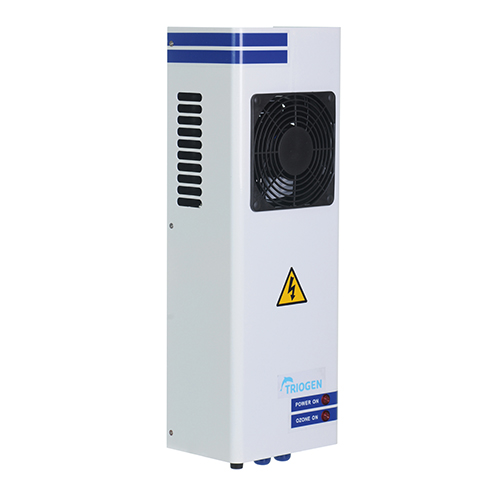

• TOG B2 Corona Discharge Ozone Generator
  Produces up to 2 g/h of ozone with reliable air-cooled operation and long-lasting ceramic modules.


• Venturi Injector & Water Booster Pump
  Creates a vacuum to draw ozone into the water stream—vacuum injection ensures operator safety.

• Inline Flowmeter (0–25 L/min)
  Verifies correct air intake for optimal ozone dosing.

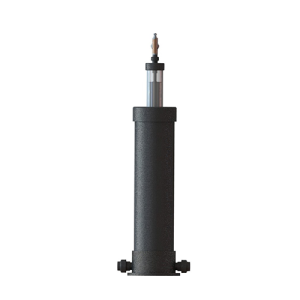

• Water Trap Assembly
  Mandatory safety device to prevent water ingress into the generator.

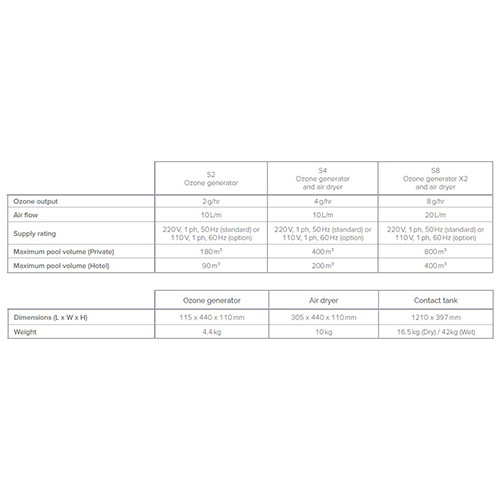

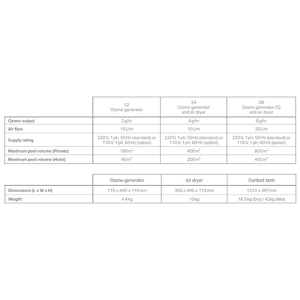

Specifications

• Ozone Output: 2 g/h


• Air Flow Rate: Approx. 10 L/min via injector


• Dimensions:

  • Generator: 155 × 440 × 110 mm (4.4 kg)

  • Total system: 0.43 m (L) × 0.53 m (W) × 0.19 m (H); ~7 kg

• Coverage: Suitable for residential/hotel pools up to ~180 m³


• Safety Features: Air-cooled, thermostatic protection, vacuum operation


Benefits

• Effective Chloramine Reduction: Enhances swimmer comfort by reducing skin, eye, and respiratory irritation.


• Water Clarity & Algae Control: Supports filtration and lowers chemical demand.

• Safe Vacuum Injection: Minimizes ozone exposure risk during operation and maintenance.

• Durable, Low-Maintenance Design: Long‑lasting modules (10+ years) and air-cooled enclosure for high-humidity environments.

Installation & Maintenance Tips

• Water Trap Usage: Always install the water trap — prevents backflow into the ozone generator.

• Injector Placement: Connect to pool return via booster pump — ensure proper vacuum.

• Professional Installation Recommended: Vacuum plumbing, sealing, and safety compliance critical.


Final Summary

The Triogen T2 System offers an effective, safe, and compact ozone disinfection solution for pools up to 180 m³. With integrated vacuum-injection, durable construction, and minimal maintenance needs, it ensures cleaner water, better air quality, and a healthier swimming environment.
