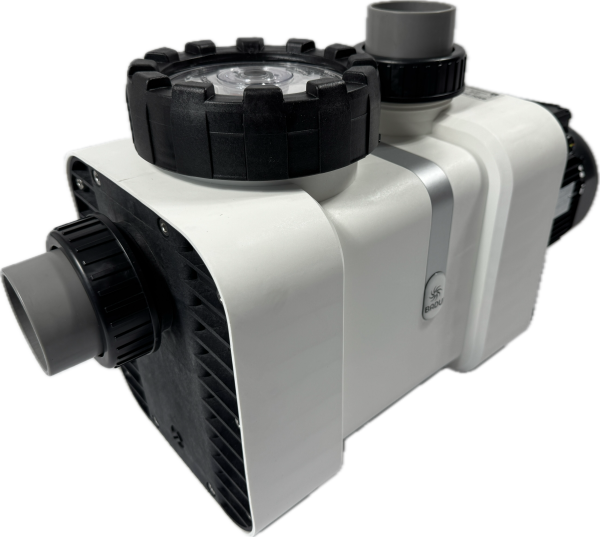

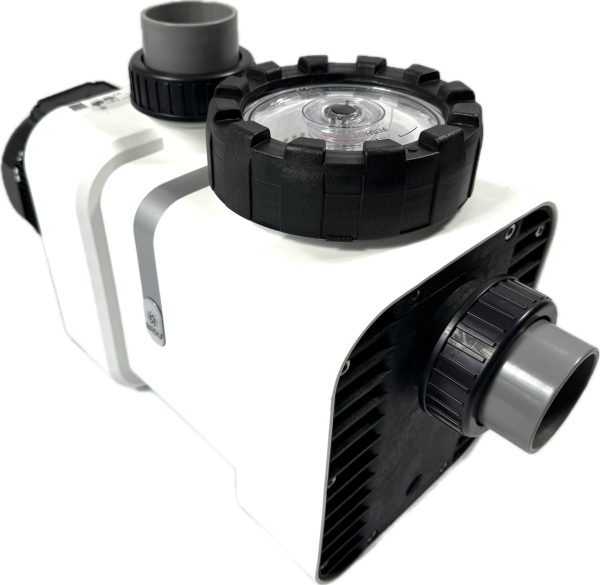

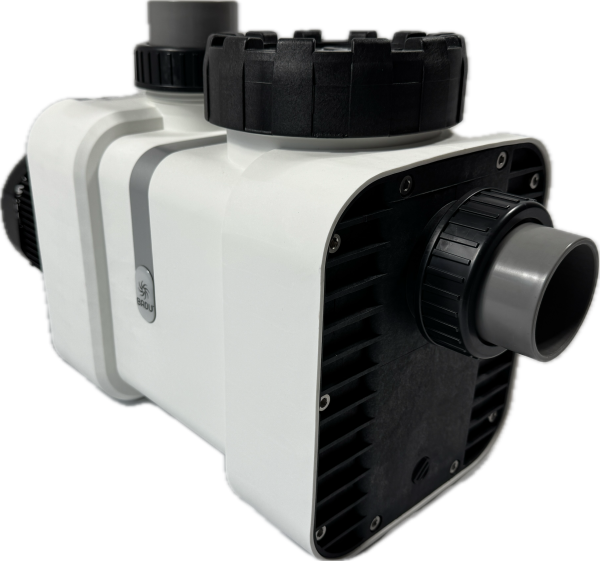

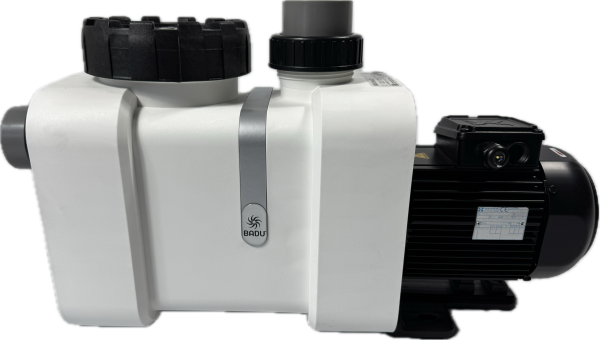

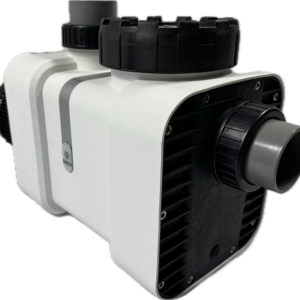

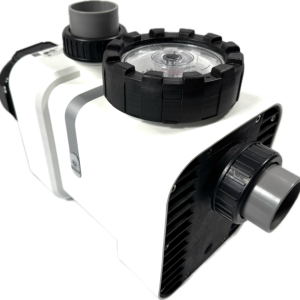

⚡ Speck BADU Delta 13 Pool Pump (0.45kW Single Phase) – German Engineering Excellence
⚡ Premium Self-Priming Filtration Pump with Whisper-Quiet Operation & High-Efficiency Hydraulics
📋 Product Overview
The Speck BADU Delta 13 represents the new high-class standard in the BADU Profi series, delivering exceptional performance with a wider performance range exclusively for specialist retailers. This 0.45kW single-phase pump combines whisper-quiet operation with remarkable energy efficiency through newly configured hydraulics.
At the heart of the Delta 13 lies a maintenance-free motor featuring high-performance ball bearings and a precision-machined stainless steel motor shaft. The innovative monoblock-type pump design with integrated strainer tank ensures complete electrical separation between the motor shaft and pool water – the motor/pump shaft has no contact with pool water whatsoever.
The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve, providing an additional layer of safety and extending component longevity. With a generous approximately 4-litre strainer tank capacity and the ability to install up to 3 metres above or below water level, the Delta 13 offers the flexibility and reliability that demanding installations require.
⭐ Key Features
✅ Maintenance-Free Motor Design – High-performance ball bearings and precision stainless steel motor shaft deliver years of trouble-free operation without routine servicing requirements
✅ Complete Electrical Separation – Motor/pump shaft has no contact with pool water, providing maximum safety through the bellow-type mechanical seal mounted on plastic shaft protector sleeve
✅ LED-Illuminated Transparent Lid – Built-in LED lighting in the transparent lid aids sight inspections, making basket checks quick and effortless
✅ Especially Quiet and Efficient – Newly configured hydraulics dramatically reduce operational noise while improving performance
✅ High-Efficiency Technology – Leads to higher flow rates with lower energy consumption compared to conventional designs
✅ Generous Strainer Capacity – Approximately 4-litre strainer tank with 2.2 × 2.2mm mesh basket extends intervals between cleaning
✅ Inset Drain Plugs – Recessed design avoids risk of breakage associated with protruding drain plugs on conventional pumps
✅ Monoblock Design – Integrated strainer tank for compact, reliable installation
✅ Flexible Installation – Can be installed maximum 3m above or below water level
✅ Durable Construction – Premium PP GF 30 materials and stainless steel components for long-term reliability
🔧 Technical Specifications
| Specification | Details |
|---|---|
| Model | BADU Delta 13 (Single Phase) |
| Product Code | 14 82 240 104 |
| Power Output (P1) | 0.45 kW |
| Rated Current | 3.00 A |
| Phase | Single |
| Voltage | 1~ 230V |
| Inlet/Outlet Connections | 50/50 mm |
| Total Length | 550 mm |
| Strainer Tank Capacity | Approximately 4 litres |
| Strainer Basket Mesh Size | Approximately 2.2 × 2.2 mm |
| Maximum Installation Height | 3m above water level |
| Maximum Installation Depth | 3m below water level |
🛠️ Materials Used
| Component | Material |
|---|---|
| Pump Casing | PP GF 30 |
| Intermediate Housing | PP GF 30 |
| Gland Housing | PP GF 30 |
| Unions/Glue Sockets | ABS/PVC-U |
| Diffuser | PP GF 30 |
| Impeller | PPE GF 30 |
| Strainer Basket | PP |
| Lid | PC, Transparent/PA 66 GF 30 |
| Mechanical Seal | Carbon/Ceramic/NBR |
| Screws | Stainless Steel |
💰 Usage Costs & Running Expenses
Understanding the true cost of pool ownership means looking beyond the purchase price. The BADU Delta 13’s efficient 0.45kW power consumption translates directly to lower electricity bills.
📊 Annual Running Cost Calculation
Base Data:
- UK electricity rate: £0.2635 per kWh (Ofgem Price Cap, Q4 2025)
- BADU Delta 13 power consumption: 0.45 kW (from manufacturer specifications)
🏊 Example 1: 6-Month Seasonal Use
Usage: 8 hours daily × 180 days = 1,440 hours/year
Calculation:
- ✅ Annual cost: 0.45 kW × 1,440 hrs × £0.2635 = £170.75
☀️ Example 2: Extended Season Use
Usage: 10 hours daily × 240 days = 2,400 hours/year
Calculation:
- ✅ Annual cost: 0.45 kW × 2,400 hrs × £0.2635 = £284.58
🏢 Example 3: Year-Round Operation
Usage: 8 hours daily × 365 days = 2,920 hours/year
Calculation:
- ✅ Annual cost: 0.45 kW × 2,920 hrs × £0.2635 = £346.35
⚡ Daily Running Cost Reference
| Daily Hours | Electricity Cost |
|---|---|
| 6 hours | £0.71 |
| 8 hours | £0.95 |
| 10 hours | £1.19 |
| 12 hours | £1.42 |
Calculation: Hours × 0.45 kW × £0.2635/kWh
🎯 Field of Application
🏊♂️ Swimming Pool Water Circulation
The BADU Delta 13 is designed specifically for swimming pool water circulation through a filter system. The self-priming capability and flexible installation height tolerance make it suitable for various plant room configurations.
🔄 Installation Flexibility
Above Water Level: The pump can be installed maximum 3m above the water level, making it suitable for plant rooms located above ground level or on upper floors.
Below Water Level: The pump can also be installed up to 3m below water level for installations where gravity-fed systems are preferred.
🛁 Heated Pool & Spa Applications
The robust PP GF 30 construction and stainless steel components provide durability in warm, humid environments. Complete electrical separation between motor and water ensures safety compliance.
💡 BADU Delta Series Comparison
The BADU Delta range offers models to suit different pool sizes and requirements:
| Model | Power (kW) | Inlet/Outlet | Phase Options | Total Length |
|---|---|---|---|---|
| Delta 9 | 0.30 | 50/50 mm | Single / Three | 550 mm |
| Delta 13 | 0.45 | 50/50 mm | Single / Three | 550 mm |
| Delta 17 | 0.55 | 63/63 mm | Single / Three | 572 mm |
| Delta 22 | 0.75 | 63/63 mm | Single / Three | 572 mm |
| Delta 28 | 1.00 | 63/63 mm | Single / Three | 684 mm (1ph) / 610 mm (3ph) |
📥 Downloads & Resources
Access comprehensive technical documentation for installation planning and ongoing reference:
📄 BADU Delta Technical Datasheet – Complete specifications for all Delta series models including dimensions, electrical data, materials list, and flow curves PDF
🎁 Why Buy From Parts4tubs?
🎯 Specialist Expertise – We focus exclusively on pool, spa, and hot tub equipment, bringing genuine product knowledge to every purchase
📦 UK Stock Availability – Items dispatched promptly from our UK warehouse for fast delivery
💬 Personal Service – You’re buying from real people who understand pool equipment, not a faceless online marketplace
🔧 Technical Support – We can advise on compatibility, sizing, and installation considerations before you buy
💳 Secure Checkout – Multiple payment options with full encryption and buyer protection
🚚 Reliable Delivery – Trusted courier partners ensure your equipment arrives safely and on time
✨ Competitive Pricing – Genuine savings on quality German-engineered equipment from Speck Pumpen
🏆 Why Choose the BADU Delta 13?
✅ German Engineering Pedigree – Speck Pumpen brings decades of precision pump manufacturing expertise to every product
✅ True Maintenance-Free Operation – High-performance ball bearings and stainless steel motor shaft eliminate routine servicing requirements
✅ Exceptional Build Quality – Premium materials throughout including PP GF 30 housings, stainless steel screws, and carbon/ceramic/NBR mechanical seals
✅ Especially Quiet and Efficient – Newly configured hydraulics deliver performance with reduced noise levels
✅ Practical Design Features – LED-lit transparent lid and inset drain plugs make operation genuinely easier
✅ Flexible Installation – Self-priming capability with ±3m height tolerance suits virtually any plant room configuration
✅ Complete Electrical Safety – Motor/pump shaft has no contact with pool water for maximum protection
✨ Summary
The Speck BADU Delta 13 represents the new high-class standard in the BADU Profi series, combining German engineering precision with practical features designed for everyday use. The maintenance-free motor with high-performance ball bearings and stainless steel shaft delivers reliable, quiet operation, while the innovative design ensures complete electrical separation between motor and pool water.
With LED-illuminated transparent lid for easy inspections, inset drain plugs to avoid breakage, and approximately 4-litre strainer capacity, every detail has been engineered for practical convenience. The 0.45kW power consumption and flexible installation options (up to 3m above or below water level) make this pump a versatile choice for residential pool filtration.
For pool owners who value quality German engineering and reliable performance, the BADU Delta 13 is the professional choice.
