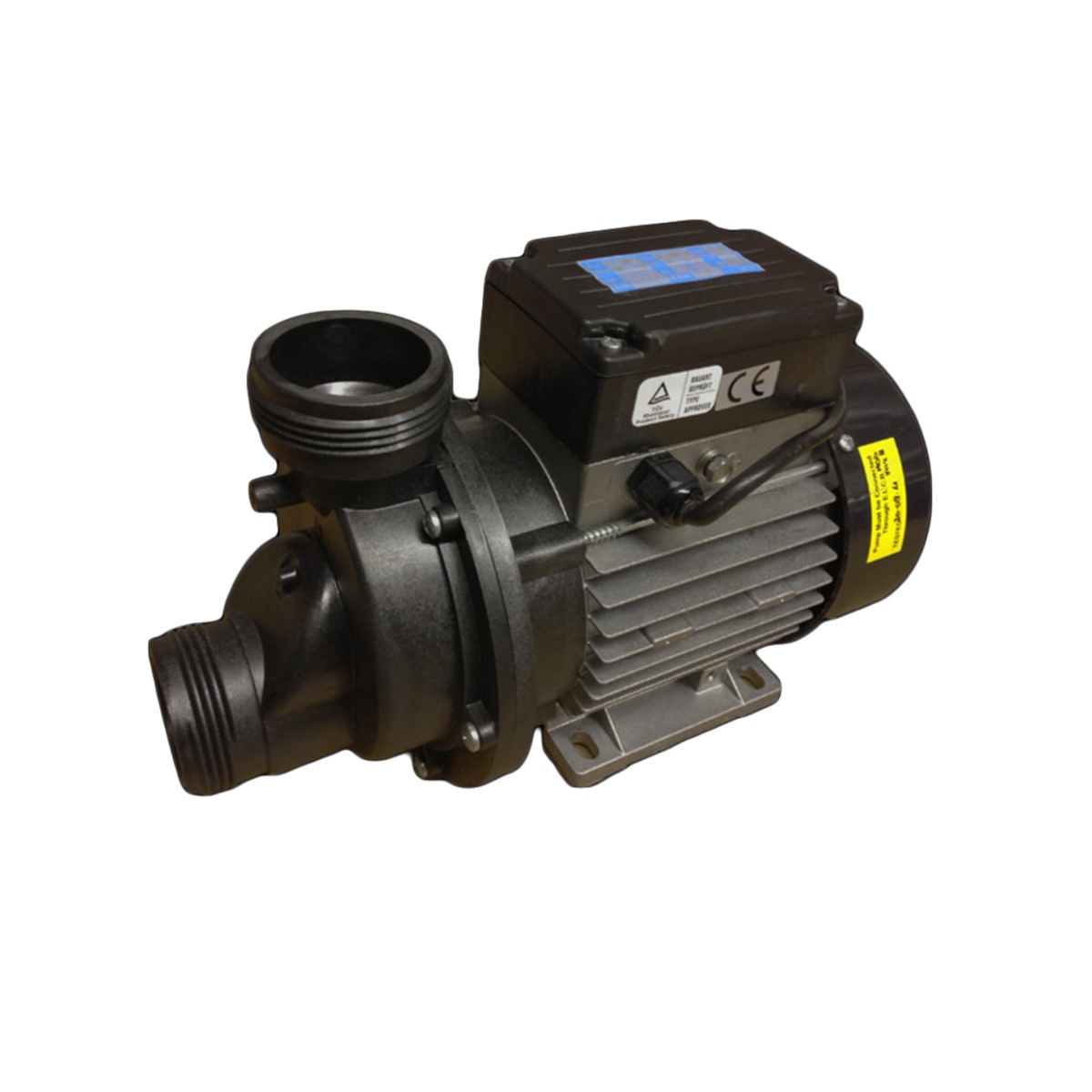

♨️ Spa-Tec Superflow Plus 1.0HP Whirlpool Bath Pump – Self-Drain Pneumatic

Reliable British performance for luxurious whirlpool bath hydrotherapy

💧 Product Overview

The Spa-Tec Superflow Plus 1.0HP is a medium-powered whirlpool bath pump designed specifically for domestic whirlpool bath systems throughout the UK. This self-draining circulation pump delivers 1.13kW of reliable performance, making it an ideal choice for mid-sized whirlpool bath installations requiring consistent water flow and powerful jet operation.

Manufactured by Spa-Tec, a trusted name in UK whirlpool bath components, the Superflow Plus features a distinctive wet end design that sets it apart from generic alternatives. The pump’s pneumatic activation via integrated air switch provides convenient bath-side control, allowing users to start and stop their whirlpool system with a simple touch.

Running at 2820 RPM, this single-speed pump delivers the consistent pressure needed to power multiple whirlpool jets whilst maintaining quiet operation. The self-draining design is essential for whirlpool bath applications, preventing water stagnation and ensuring hygienic operation between uses.

Part number CP64301, this pump serves as a direct replacement for existing Spa-Tec installations and is compatible with a wide range of UK whirlpool bath systems utilising the Superflow component range.

⭐ Key Features

✅ 1.0 Horsepower Motor – Delivers 1.13kW power output for reliable whirlpool jet performance in medium-sized baths

✅ Self-Draining Design – Automatically empties residual water after use, preventing bacterial growth and maintaining hygiene

✅ Pneumatic Air Switch Activation – Convenient touch-button operation built into bath surround for safe, water-isolated control

✅ 2820 RPM Single Speed – Consistent motor speed provides reliable, predictable jet pressure every time

✅ 220-240V / 50Hz UK Electrical – Designed specifically for British mains supply with standard UK voltage compatibility

✅ 3.9 Amp Draw – Moderate current consumption allows connection to standard domestic circuits

✅ 63mm Connection Diameter – Industry-standard fitting size compatible with Superflow plumbing systems

✅ 1.5″ Union Connections – Male buttress thread type for secure, leak-free plumbing connections

✅ Compact Dimensions – 340 x 150 x 205mm footprint fits easily into bath cabinet spaces

✅ Bare Wire Termination – Allows professional electricians to make direct hardwired connections

🔧 Technical Specifications

Specification	Value
Manufacturer	Spa-Tec
Model	Superflow Plus
Part Number (MPN)	CP64301
Pump Type	Whirlpool Bath / Circulation
Motor Power	1.0 HP
Power Output (P1)	1.13 kW
Speed Settings	Single Speed
Motor RPM	2820
Voltage	220-240 V
Frequency	50 Hz
Amperage	3.9 A
Activation Type	Pneumatic (Air Switch)
Drain Type	Self-Draining
Connection Diameter	63 mm
Union Connection	1.5″ (Inch)
Thread Type	Male – Buttress
Dimensions (L × W × H)	340 × 150 × 205 mm
Cord Type	Bare Wire
Spare Parts Available	No (Complete unit replacement)

⚡ Electrical Requirements

Electrical Specification	Requirement
Supply Voltage	220-240 V
Frequency	50 Hz
Phase	Single Phase
Full Load Amperage	3.9 A
Connection Type	Hardwired (Bare Wire)
Activation	Pneumatic Air Switch

⚠️ Important Electrical Safety Information

• RCD Protection – 30mA residual current device mandatory
• Equipotential Bonding – All metal components must be properly earthed
• IP Rated Enclosure – Junction boxes must be suitable for bathroom zones
• Isolation Switch – Accessible isolation point required outside bath zone
• Fixed Wiring – No plug and socket connections permitted in bathroom zones 0, 1, or 2

⚠️ Never attempt DIY electrical work on whirlpool bath systems. Water and electricity are a lethal combination.

🔄 Compatibility Guide

Connection Specifications

Connection Point	Specification
Thread Type	Male – Buttress
Connection Diameter	63 mm
Union Size	1.5″ (Inch)

This Pump Is Designed For:

📍 System Type: Spa-Tec Superflow whirlpool bath systems

📍 Connection: 63mm diameter with 1.5″ male buttress thread unions

📍 Activation: Pneumatic air button systems

📍 Drain Configuration: Self-draining installations

Compatible Systems:

This pump is specifically designed for whirlpool bath systems fitted with Spa-Tec Superflow components. The unique wet end design is recognisable and matches existing Superflow installations.

Replacement Compatibility:

• Direct replacement for older 1.0HP Superflow Plus pumps
• Part number CP64301
• Matches existing 63mm / 1.5″ plumbing configurations

Before Ordering – Check Your Existing Pump:

1. Connection size – Measure your current union diameter (should be 63mm / 1.5″)
2. Thread type – Verify male buttress thread configuration
3. Activation method – Confirm pneumatic air switch operation
4. Drain type – Check self-draining capability required
5. Physical space – Ensure 340 × 150 × 205mm will fit in cabinet

🛠️ Installation Requirements

Mounting Position

Requirement	Specification
Mounting Orientation	Horizontal
Surface	Solid, level base with vibration dampening
Ventilation Clearance	Minimum 50mm around motor for cooling
Access Space	150mm minimum for maintenance access
Location	Below bath water level (flooded suction design)

Plumbing Connections

Connection	Specification
Union Type	Male Buttress Thread
Connection Diameter	63 mm
Union Size	1.5″ (Inch)

Installation Notes

⚠️ Pump must be installed below bath water level – Self-draining design requires gravity feed for proper drainage

⚠️ Never run the pump dry – Causes immediate seal damage and motor overheating

⚠️ Ensure proper bonding to earth – All metal components must be equipotentially bonded

⚠️ Check air switch tubing – Pneumatic line must be free from kinks or blockages

⚠️ Use appropriate sealant – Thread sealant tape on all threaded connections

⚠️ Test before enclosing – Run pump and check for leaks before completing cabinet installation

Pneumatic Air Switch Installation

The pump features integrated pneumatic activation:

1. Air button mounts on bath surround above water level
2. Flexible tubing connects button to pump air switch
3. Tubing must be continuous with no joints or damage
4. Maximum tubing length typically 3 metres
5. Ensure tubing routing avoids heat sources and sharp bends

🔧 Maintenance Guide

Routine Maintenance Schedule

Task	Frequency	Notes
Visual leak inspection	Monthly	Check around seals and union connections
Union tightness check	Monthly	Hand-tighten only – do not over-tighten
Air button function test	Monthly	Press button and verify pump activation
Motor ventilation check	Quarterly	Ensure air vents free from dust and debris
Drain function verification	Quarterly	Confirm water drains completely after use
Professional electrical inspection	Annually	Check connections, earth continuity, RCD function

Operating Best Practices

💡 Run regularly – Operate whirlpool system at least weekly to prevent seal drying and bacterial growth

💡 Clean the bath – Use appropriate whirlpool bath cleaner monthly to prevent biofilm buildup

💡 Drain completely – Ensure self-drain function operates correctly after each use

💡 Monitor temperature – Avoid operating with excessively hot water (above 40°C) for extended periods

Warning Signs – When to Replace

Contact Parts4Tubs for replacement if you notice:

• ❌ Unusual noise – Grinding, screeching, or rattling sounds
• ❌ Water leaking from pump – Visible drips around seal area
• ❌ Reduced jet pressure – Noticeably weaker whirlpool action
• ❌ Motor trips breaker – Repeatedly cutting out on RCD
• ❌ Burning smell – Indicates motor winding failure
• ❌ Air button unresponsive – Pump fails to activate (check tubing first)
• ❌ Water not draining – Standing water indicates blocked drain path

Seal Information

Note: Spare parts are not separately available for this pump model. In the event of seal failure or internal component wear, complete pump replacement is required.

🛁 Ideal Applications

Application	Suitability	Notes
🛁 Domestic whirlpool bath	✅ Ideal	Primary design application
🛁 Medium bath systems (4-8 jets)	✅ Excellent	1.0HP provides adequate pressure
🛁 Spa-Tec component systems	✅ Direct fit	Designed for Superflow range
🛁 Retrofit/replacement	✅ Compatible	Matches existing CP64301 installations
♨️ Hot tub circulation	⚠️ Limited	Not designed for continuous duty hot tub use
♨️ Hot tub jet pump	❌ Not suitable	Insufficient power for hot tub jets

Power Sizing Guide

The 1.0HP Superflow Plus is rated for:

• Small to medium whirlpool baths – Standard domestic installations
• 4-8 jet configurations – Adequate flow distribution
• Self-draining systems – Designed for intermittent use with complete drainage

For larger whirlpool installations requiring more power, consider the Superflow Plus 1.3HP model.

❓ Frequently Asked Questions

Q: What horsepower is this pump? A: The Superflow Plus delivers 1.0HP motor power with 1.13kW electrical output, suitable for medium-sized whirlpool bath systems.

Q: Will this pump fit my whirlpool bath? A: This pump features 63mm connection diameter with 1.5″ male buttress thread unions. Check your existing pump connections match these specifications. It’s designed for Spa-Tec Superflow systems but may fit other configurations with matching plumbing.

Q: What voltage does this pump require? A: 220-240V at 50Hz – standard UK mains supply. All electrical installation must be performed by a qualified electrician with proper RCD protection.

Q: Is this a single or dual speed pump? A: Single speed only, running at 2820 RPM. This provides consistent jet pressure without speed variation controls.

Q: How does the pneumatic activation work? A: An air button mounted on your bath surround sends an air pulse through tubing to the pump’s integrated air switch. Pressing the button toggles the pump on and off without any electrical contact near the water.

Q: What is self-draining and why does it matter? A: Self-draining pumps automatically empty residual water when the system stops. This is essential for hygiene in whirlpool baths, preventing stagnant water and bacterial growth in the pump and pipework between uses.

Q: Can I use this in a hot tub? A: This pump is designed for intermittent whirlpool bath use, not continuous hot tub circulation. It lacks the duty rating and thermal protection required for 24/7 hot tub operation.

Q: What warranty is included? A: Manufacturer’s standard 1-year warranty. Extended warranty options may be available – contact Parts4Tubs for details.

Q: Are spare parts available? A: Individual spare parts are not available for this pump model. In the event of seal failure or internal component wear, complete pump replacement is recommended.

Q: My pump isn’t starting – what should I check? A: First verify the air button tubing isn’t kinked, disconnected, or damaged. Check the RCD hasn’t tripped. If the pneumatic system appears intact, the pump may require replacement.

🏆 Why Choose the Spa-Tec Superflow Plus 1.0HP

✅ Purpose-Built Design – Specifically engineered for UK whirlpool bath systems, not a generic adapted pump

✅ Proven Reliability – Spa-Tec components fitted to thousands of British whirlpool baths over many years

✅ Safe Pneumatic Activation – Air switch technology keeps electrical controls safely away from water

✅ Hygienic Self-Draining – Automatic drainage prevents standing water and bacterial growth

✅ UK Electrical Compatibility – Designed for 220-240V/50Hz British mains supply

✅ Compact Installation – 340 × 150 × 205mm footprint fits standard bath cabinet spaces

✅ Direct Replacement – Drop-in fit for existing Superflow Plus installations

✅ Manufacturer Warranty – Backed by standard warranty with extended options available

🤝 Why Buy from Parts4Tubs

✅ UK-Based Company – Local support from our expert team

✅ Fast UK Delivery – Quick dispatch to get your whirlpool bath running again

✅ Expert Technical Advice – Speak to specialists who understand whirlpool bath systems

✅ Competitive Pricing – Great value on genuine Spa-Tec components

✅ Full Warranty Support – We handle any warranty issues directly

✅ Easy Returns – Hassle-free 30-day return policy

✅ Compatibility Guidance – We’ll help ensure you order the correct pump

✨ Summary

The Spa-Tec Superflow Plus 1.0HP is a reliable, purpose-built whirlpool bath pump delivering 1.13kW of power for medium-sized domestic installations. Featuring self-draining capability, pneumatic air switch activation, and 63mm / 1.5″ union connections, this single-speed pump provides consistent jet performance with hygienic operation. Designed specifically for UK Spa-Tec Superflow systems, it serves as a direct replacement for existing CP64301 installations. Contact Parts4Tubs for expert advice and fast UK delivery.
