♨️ Harvia Spirit 6kW Electric Sauna Heater with Xenio WiFi Control – 5-8 m³ Capacity

Finnish-crafted elegance meets smart sauna technology for the ultimate home wellness experience

🧖 Product Overview

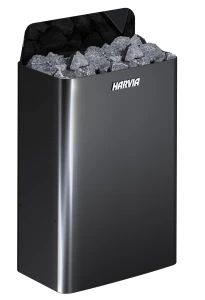

The Harvia Spirit SHSP60XEW is a beautifully designed 6kW electric sauna heater that brings authentic Finnish sauna tradition into your home with the convenience of modern WiFi control. Manufactured in Finland by Harvia—the world’s leading sauna heater manufacturer—this premium heater combines curved contemporary aesthetics with exceptional heating performance.

Designed for mid-sized sauna rooms between 5 and 8 cubic metres, the Spirit heater features an innovative open design that showcases rounded olivine diabase stones, creating a stunning natural centrepiece in your sauna. The integrated Harvia Xenio CX170 WiFi control panel allows you to preheat your sauna, adjust temperature, and manage settings directly from your smartphone using the MyHarvia mobile app.

With its unique air ventilation channel system, the Spirit delivers rapid, even heating whilst actively protecting your sauna’s wall structures from excessive heat. Whether you prefer traditional dry heat or steam-rich löyly sessions, this heater delivers consistently excellent results.

⭐ Key Features

✅ Finnish Manufacturing Excellence – Designed and manufactured in Finland by Harvia, the global leader in sauna equipment with over 70 years of expertise

✅ Elegant Curved Design – Contemporary black steel construction with distinctive curved profile that showcases rounded sauna stones for a natural, organic aesthetic

✅ Harvia Xenio WiFi Control Included – Digital touchscreen control panel with WiFi connectivity for smartphone operation via the MyHarvia app

✅ Innovative Air Ventilation System – Unique rear ventilation channel circulates cool air to protect wall structures whilst improving heat distribution throughout the sauna

✅ Dual Safety Sensor System – Two independent temperature sensors monitor both the heater and sauna room to prevent overheating

✅ Remote Start Protection – Integrated safety mechanism prevents activation if objects are placed on the heater, ensuring safe remote operation

✅ Rapid Heating Performance – Optimised heating element tunnel design accelerates warm-up times for quick sauna sessions

✅ IPX4 Water Protection Rating – Fully rated for wet sauna environments with steam/water splash protection

✅ CE Certified – Meets all European safety standards for electric sauna heaters

✅ Wall-Mounted Installation – Space-efficient wall mounting with included bracket keeps floor space clear

🔧 Technical Specifications

Specification	Value
Power Rating	6 kW
Voltage Options	400V 3N~ / 230V 1N~ / 230V 3~
Fuse Size	3 × 16 A (400V) / 25 A (230V single-phase)
Cable Requirements	5 × 1.5 mm² (400V) / 3 × 6 mm² (230V 1N~) / 4 × 1.5 mm² (230V 3~)
Room Capacity	5 – 8 m³
Dimensions (H × W × D)	687 × 385 × 334 mm
Weight	11 kg (heater only)
Stone Capacity	55 – 60 kg (rounded stones)
Heat-up Time	30 – 45 minutes (typical, depending on room size and insulation)
Thermostat Range	40 – 110 °C
Timer Range	Up to 12 hours with delay start
Mounting Type	Wall-mounted
IP Rating	IPX4 (splash-proof)
Certifications	CE
Control System	Harvia Xenio CX170 WiFi (included)
Warranty	3 years (heater)

📐 Room Sizing Guide

Basic Formula:

1 kW = approximately 1 - 1.5 m³ sauna room volume

Adjustment Factors:

Condition	Adjustment
Glass door/windows	+1.5 m³ per m² of glass
Uninsulated/log walls	+25-50% to volume
Outdoor/barrel sauna	+25-30% to volume
High ceiling (above 2.3m)	Add extra volume

Worked Example:

📍 Example Room: 2m × 1.6m × 2.1m
- Base volume: 6.72 m³
- Glass door (0.7m × 1.9m = 1.33 m²): +2.0 m³
- Total calculated: 8.72 m³
- This 6 kW heater: ✅ Suitable for 5-8 m³ (consider 9kW if glass door is large)

Recommended Room Dimensions for 6kW:

• Minimum room volume: 5 m³
• Maximum room volume: 8 m³ (well-insulated)
• Minimum ceiling height: 1900 mm

💷 Running Costs

Energy Rate Used: £0.28/kWh (Ofgem price cap Q1 2026 average – 27.69p/kWh rounded)

Cost Calculation:

Usage Level	Sessions/Week	Hours/Year	Annual Cost
🏠 Light Use	2	150	£252
🏠 Regular Use	4	300	£504
🧖 Heavy Use	6	450	£756

Calculation Formula:

Annual Cost = kW × Hours/Year × £0.28

Example (6 kW heater, Regular Use):
6 kW × 300 hours × £0.28 = £504 per year

Per session cost: Approximately £2.52 per 1.5 hour session
(6 kW × 1.5 hours × £0.28 = £2.52)

⚠️ Actual costs depend on usage patterns, session length, insulation quality, and current energy rates. The heater cycles on/off during operation, so actual consumption is typically 60-70% of maximum rated power.

⚡ Installation Requirements

Electrical Requirements:

Requirement	Specification
Voltage Options	400V 3N~ / 230V 1N~ / 230V 3~
Amperage (400V)	3 × 10 A
Amperage (230V single-phase)	25 A
Fuse Size (400V)	3 × 16 A
Cable Size (400V)	5 × 1.5 mm² (H07RN-F rubber-insulated)
Cable Size (230V 1N~)	3 × 6 mm² (H07RN-F rubber-insulated)
Cable Size (230V 3~)	4 × 1.5 mm² (H07RN-F rubber-insulated)
Dedicated Circuit	Required

Minimum Clearances:

Position	Distance
Front clearance	60 mm
Side walls	60 mm (80 mm recommended)
Back wall	0 mm (flush mounting permitted)
Ceiling	900 mm minimum
Floor height (mounting)	100 – 300 mm
Bench distance	500 mm recommended

Ventilation Requirements:

• Fresh air intake: Ø 50-100 mm positioned near heater (below or beside)
• Exhaust vent: Ø 100-200 mm positioned low on opposite wall
• Air should exchange 6 times per hour

Important Notes:

⚠️ Installation must be carried out by a qualified electrician in accordance with BS 7671 (IET Wiring Regulations) and local building codes.

⚠️ Do NOT use PVC-insulated cable for the heater connection due to thermal sensitivity. Use rubber-insulated H07RN-F or equivalent.

⚠️ Do NOT connect through an RCD/RCCB (residual current device).

🛡️ Safety Features & Certifications

Built-in Safety:

• ✅ Dual temperature sensor system – monitors both heater and room temperature
• ✅ Integrated top sensor – prevents activation when objects are placed on heater
• ✅ Overheat protection with automatic cut-off
• ✅ Timer-controlled operation (maximum continuous run time)
• ✅ Thermal fuse protection
• ✅ IPX4 splash-proof rating for wet sauna use

Certifications:

• ✅ CE Marked (European conformity)
• ✅ IPX4 Rated (water splash protection)
• ✅ Compliant with IEC/EN 60335-2-53 (electric sauna heater standard)

🎯 Ideal Applications

Application	Room Size	Typical Capacity	Notes
🏠 Home Sauna	5-8 m³	2-4 people	Perfect for residential installation
🛖 Garden Sauna Cabin	5-8 m³	2-4 people	Ideal for insulated outdoor saunas
🪵 Compact Barrel Sauna	5-7 m³	2-4 people	Excellent for small-medium barrels
🏨 Boutique Hotel/B&B	5-8 m³	2-4 guests	Professional quality for hospitality

🪨 Sauna Stones

• Stone Capacity: 55 – 60 kg
• Recommended Stone Size: Ø 5 – 10 cm diameter (rounded stones only)
• Stones Included: No – sold separately
• Recommended Type: Harvia Olivine Diabase R-991 rounded stones
• Quantity Required: 4 boxes of 15 kg stones recommended
• Replacement: Inspect annually, replace stones every 1-2 years with regular use

💡 Tip: The Spirit heater is designed specifically for rounded stones which create softer, longer-lasting steam when water flows down through the layers.

Add 60kg Harvia Rounded Olivine Diabase Stones

🎛️ Control Options & Accessories

Included Control System:

• Harvia Xenio CX170 WiFi – Digital touchscreen control with WiFi connectivity
• Temperature control: 40 – 110°C
• Timer function with delay start
• MyHarvia mobile app for remote control (iOS and Android)
• Compatible with door sensor for enhanced safety

Compatible Accessories:

• ✅ Safety Rail HSP3M – Stylish birch and stainless steel guard rail
• ✅ Embedding Flange HSP1 – For recessed wall installation
• ✅ Door Safety Switch – For enhanced remote operation safety
• ✅ LED Lighting – Atmosphere lighting integration

❓ Frequently Asked Questions

Q: What size room will this heater work for? A: This 6 kW heater is suitable for sauna rooms between 5 and 8 m³. For rooms with glass doors, large windows, or uninsulated walls, add 25-50% to your volume calculation. If your adjusted volume exceeds 8 m³, consider the 9 kW Spirit model instead.

Q: How long does it take to heat up? A: Typically 30-45 minutes to reach optimal bathing temperature (70-90°C), depending on room size, insulation quality, and starting temperature. The WiFi control allows you to preheat remotely so your sauna is ready when you arrive.

Q: What electrical supply do I need? A: The heater supports multiple supply options: 400V three-phase, 230V single-phase, or 230V three-phase. Most UK residential installations use 230V single-phase requiring a dedicated 25A circuit. Professional installation by a qualified electrician is required.

Q: Are sauna stones included? A: No, sauna stones are sold separately. This heater requires approximately 60 kg of rounded olivine diabase stones (5-10 cm diameter). We recommend Harvia R-991 stones available from Parts4Tubs.

Q: What is the warranty? A: The heater comes with a 3-year manufacturer warranty. Contact Parts4Tubs for full warranty terms and conditions.

Q: Can I install this outdoors? A: Yes, this heater can be installed in outdoor garden saunas, barrel saunas, and cabin saunas provided the sauna room is properly insulated and protected from direct weather exposure. Add 25-30% to your room volume calculation for outdoor installations.

Q: How does the WiFi control work? A: The included Harvia Xenio control connects to your home WiFi network. Download the free MyHarvia app to your smartphone, connect to the control panel, and you can preheat your sauna, adjust temperature, set timers, and monitor your sauna from anywhere.

Q: Is an RCD required? A: No – sauna heaters should NOT be connected through an RCD (residual current device) as the heating elements can cause nuisance tripping. A standard MCB (miniature circuit breaker) of the appropriate rating is required.

📥 Downloads & Resources

📄 Product Data Sheet – Full specifications and dimensions

📄 Installation Manual – Complete installation guide with wiring diagrams

📄 Product Leaflet (EN) – Features overview and technical information

🏆 Why Choose Harvia Spirit

• ✅ Finnish Heritage – Over 70 years of sauna expertise from the world’s leading manufacturer
• ✅ Award-Winning Design – Elegant curved aesthetic that transforms your sauna into a wellness sanctuary
• ✅ Smart Control – WiFi connectivity lets you start your sauna from your phone
• ✅ Advanced Safety – Dual sensors and integrated protection for peace of mind
• ✅ Efficient Heating – Innovative air ventilation technology protects your sauna while delivering consistent heat
• ✅ Quality Guaranteed – 3-year manufacturer warranty backed by global support network

🤝 Why Buy from Parts4Tubs

• ✅ UK-based company with local customer support
• ✅ Fast UK delivery on stock items
• ✅ Expert advice from sauna and spa specialists
• ✅ Competitive pricing on genuine Harvia products
• ✅ Full manufacturer warranty support
• ✅ Easy returns within 30 days
• ✅ Comprehensive spare parts availability

✨ Summary

The Harvia Spirit SHSP60XEW 6kW electric sauna heater delivers Finnish-quality heating performance with contemporary style and smart WiFi control for sauna rooms up to 8 m³. Featuring the elegant curved design that Harvia is renowned for, dual safety sensors, integrated Xenio WiFi control, and efficient air ventilation technology, this heater is the perfect choice for discerning home sauna enthusiasts who want both performance and aesthetics. Backed by Harvia’s 3-year warranty and Parts4Tubs expert UK support, order today for fast delivery and transform your sauna experience.
