SHCON170VKK | Harvia Control Panel, 3 – 17kW, Weekly
Professional Sauna Control with Weekly Programming
Product Overview

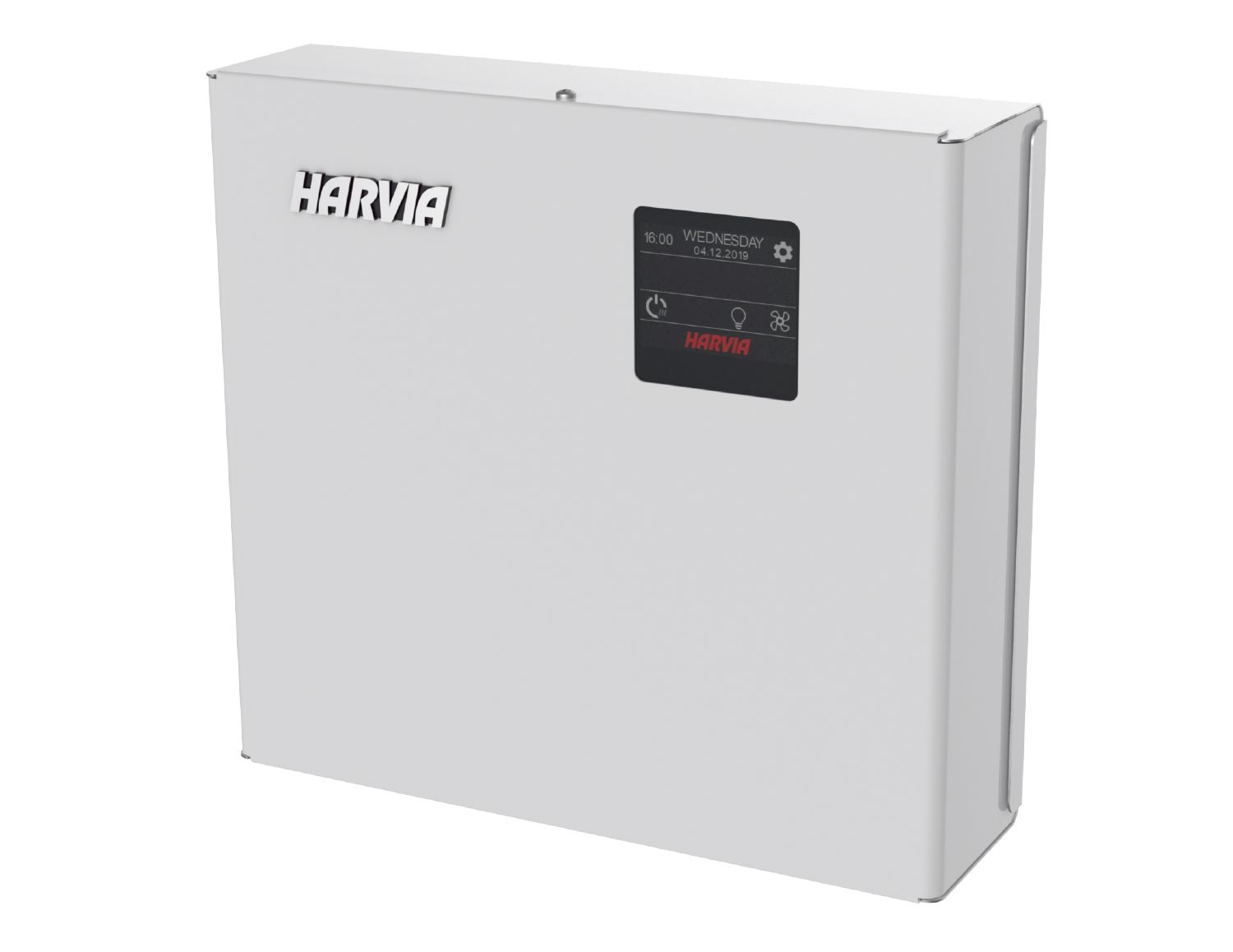

The Harvia SHCON170VKK Control Panel is a professional-grade control unit designed for electric sauna heaters up to 17 kW, or even more powerful units when paired with an additional power unit. Featuring a weekly timer, remote start capability, and eight programmable settings, this unit provides maximum convenience for spas, hotels, housing companies, and other commercial saunas.
This updated version of the trusted C150VKK offers more advanced features while maintaining ease of installation. Beyond heater management, it also controls lighting, electronic locks, and ventilation, ensuring complete environmental control for professional sauna facilities.
Technical Specifications
Feature | Details |
---|---|
Brand | Harvia |
Model / Code | SHCON170VKK |
Power Output | Up to 17 kW |
Control Type | Touch Panel / Manual Switches |
Programs | 8 Customizable Programs |
Temperature Range | 40 °C – 110 °C |
Operating Time (Family Sauna) | Max. 6 h |
Installation Location | Wall, Vertical Orientation |
Main Material | Steel |
Color | White |
Operating Voltage | 400 V~ 3N, 50–60 Hz, 3×25 A |
IP Rating | IPX4 |
Ambient Temperature Range | 5 °C – 50 °C |
Storage Temperature Range | 0 °C – 40 °C |
Control Panel Dimensions (HxWxD) | 55 × 240 × 20 mm |
Power Unit Dimensions (HxWxD) | 225 × 240 × 75 mm |
Recommended Installation Opening | 425 × 260 × 150 mm |
Sensor Cable Length | 5 m |
Weight | 1.6 kg |
Max. Light Connection Power | 100 W |
Max. Fan Connection Power | 100 W |
Benefits
-
Weekly timer and remote start for convenient automated sauna operation.
-
Controls heater, lighting, ventilation, and locks from a single unit.
-
Eight programmable modes tailored for different users or times.
-
Easy replacement for the classic C150VKK with improved functions.
-
Built for professional environments such as spas, hotels, and residential complexes.
-
Compact wall-mounted design for space-saving installation.
Why Choose This Control Panel?
The Harvia SHCON170VKK combines precision, durability, and intelligent automation. Its Smart control options make it an ideal solution for facilities needing reliable, user-friendly, and efficient sauna management.
Summary
The Harvia SHCON170VKK Sauna Control Panel delivers professional-grade control for saunas up to 17 kW. With weekly scheduling, remote start, and multifunctional management, it is a versatile and reliable choice for commercial saunas. Designed with durability and ease of use in mind, this unit ensures a hassle-free sauna experience for both operators and users.
