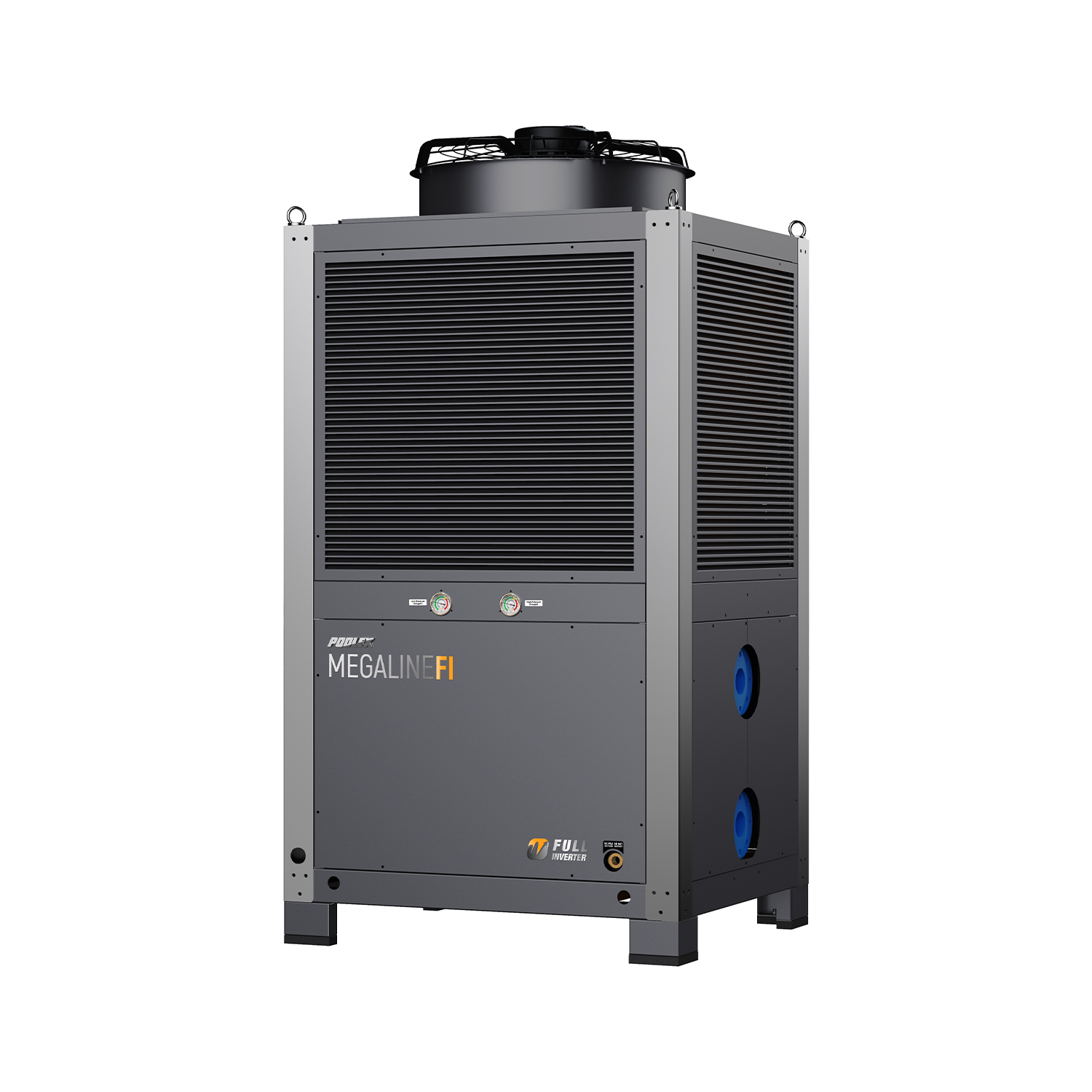

Poolex Megaline Fi 100 Commercial Full Inverter Heat Pump – 100kW Heating Capacity 🏊‍♂️

Transform Your Commercial Pool with Professional-Grade Heating Technology

The Poolex Megaline Fi 100 represents the pinnacle of commercial pool heating innovation. Engineered specifically for large public and private swimming facilities, this 100kW full inverter heat pump delivers exceptional efficiency, whisper-quiet operation, and year-round reliability – even in temperatures as low as -15°C.

With advanced Mitsubishi rotary inverter compressor technology, twisted titanium heat exchanger, and integrated WiFi control, the Megaline Fi 100 provides the perfect balance of power, efficiency, and intelligent automation for hotels, resorts, gyms, sports complexes, and municipal aquatic centers.

Key Features & Benefits 💡

Full Inverter Technology

The stepless DC inverter system continuously modulates compressor and fan speeds to match real-time heating demands. This intelligent adaptation ensures:

• Maximum energy efficiency with minimal power consumption
• Reduced wear on components for extended equipment lifespan
• Lower operating noise through optimized fan speeds
• Faster temperature recovery during peak usage periods

Commercial-Grade Construction

Every component is selected for durability in demanding commercial environments:

• Heavy-duty stainless steel frame (760kg unit weight)
• Powder-coated galvanised steel panels resistant to corrosion
• Large 75mm hydraulic connections for optimal flow rates
• Reinforced mounting system for stability

Intelligent Control System

The advanced control panel offers four preset operating modes:

• Heating Mode – Standard pool heating operation
• Cooling Mode – Active pool water cooling during hot weather
• Silence Mode – Reduced noise operation for noise-sensitive environments
• Auto Mode – Intelligent automatic switching between heating and cooling

Comprehensive Protection Systems

Multiple safety features protect your investment:

• High/low pressure switches with automatic shutdown
• Water flow sensor preventing dry operation
• Compressor overheat protection
• Advanced antifreeze system (dual protection modes)
• Phase protection for three-phase electrical supply

WiFi Connectivity & Remote Management

Built-in WiFi module connects to the Tuya Smart Life App, enabling:

• Real-time monitoring of water and ambient temperatures
• Remote temperature adjustment and mode selection
• Programmable time schedules (up to 2 daily programs)
• Operational alerts and fault notifications
• Multi-device control from a single app
• Compatible with Amazon Echo and Google Home voice control

Why Choose the Poolex Megaline Fi 100? ⭐

Unmatched Heating Power for Commercial Applications

With up to 135kW maximum heating capacity at optimal conditions (A26/W26), this heat pump is purpose-built for large-volume pools. The intelligent inverter technology automatically adjusts compressor and fan speeds to match your exact heating requirements, delivering only the energy needed while minimizing operating costs.

Industry-Leading Energy Efficiency

Achieve a remarkable COP of up to 13.59 at A26/W26 conditions, translating to over 80% energy savings compared to conventional heating systems. At standard operating conditions (A15/W26), the unit maintains an impressive COP of 7.58, ensuring cost-effective operation throughout the swimming season.

Built for Durability & Performance

• Stainless steel construction with powder-coated galvanised steel casing for superior corrosion resistance
• Twisted titanium heat exchanger designed for longevity in commercial environments
• Dual Mitsubishi rotary inverter compressors for reliable, efficient operation
• R32 refrigerant – environmentally friendly and more efficient than R410a

Whisper-Quiet Operation

The vertical airflow design minimizes noise while maintaining optimal air circulation. At just 54dB at 10 meters, the Megaline Fi 100 operates discreetly, ensuring minimal disruption to guests, athletes, or pool users.

Smart Control & Monitoring

Take complete control with the large touchscreen LCD panel featuring intuitive controls, or manage your heat pump remotely using the Smart Life App (iOS/Android). Monitor performance, adjust temperatures, set schedules, and receive real-time alerts from anywhere in the world.

Extended Season Operation

Unlike standard heat pumps, the Megaline Fi 100 operates efficiently down to -15°C ambient temperature, with automatic hot gas defrosting to ensure uninterrupted performance throughout winter months.

Complete Technical Specifications 📊

Performance Specifications

Operating Condition	Maximum Heating	Minimum Heating	Power Consumption	COP
A26/W26 (Air 26°C, Water 26°C, 80% Humidity)	135 kW	31.9 kW	19.3 ~ 2.3 kW	13.59 ~ 6.98
A15/W26 (Air 15°C, Water 26°C, 70% Humidity)	100 kW	23.6 kW	20.0 ~ 3.1 kW	7.58 ~ 4.99
A6/W26 (Air 6°C, Water 26°C)	90 kW	20.5 kW	22.6 ~ 3.5 kW	5.88 ~ 3.99
A35/W27 (Cooling Mode)	74 kW	18.1 kW	20.3 ~ 2.7 kW	EER 6.71 ~ 3.65

Electrical Specifications

Specification	Details
Power Supply	380-415V Three Phase, 50Hz
Maximum Power Consumption	29.8 kW
Maximum Current Draw	53 A
Recommended Circuit Breaker	60A D-Curve
Recommended Cable	RO2V 5 × 16mm² (for runs up to 10m)
Compressor Type	Mitsubishi Rotary Inverter (×2 units)
Compressor Protection	7-year warranty

Hydraulic Specifications

Specification	Details
Nominal Flow Rate	40 m³/h
Water Connection Size	75 mm
Pressure Loss	4.8 mCE
Minimum/Maximum Pressure	0.2 / 4.4 MPa
Heat Exchanger Type	Twisted Tech© Titanium Coil
Heat Exchanger Warranty	15 years (corrosion resistance)

Operating Parameters

Parameter	Range
Heating Temperature Range	15°C to 40°C
Cooling Temperature Range	8°C to 28°C
Ambient Operating Range	-15°C to 43°C
Refrigerant Type	R32 (4.5kg × 2 circuits)
Defrost Activation	Automatic hot gas defrost

Physical Specifications

Specification	Details
Dimensions (L × W × H)	2148 × 1076 × 2176 mm
Net Weight	760 kg
Casing Material	Stainless steel frame with powder-coated galvanised steel panels
Fan Type	DC brushless variable speed (×2 units)
Airflow Configuration	Vertical discharge

Acoustic Performance

Distance	Sound Pressure Level
At 1 meter	<74 dB(A)
At 4 meters	<62 dB(A)
At 10 meters	<54 dB(A)

📄 Technical Documentation & Downloads

Access comprehensive technical information, installation guides, and product specifications:

📥 Installation & User Manual (opens in new tab) Complete 39-page manual covering installation procedures, electrical connections, hydraulic setup, operation instructions, WiFi configuration, maintenance schedules, troubleshooting guides, and safety information. Essential reading for installers and facility managers.

📥 Technical Specification Sheet (opens in new tab) Detailed 2-page datasheet featuring performance tables, dimensional drawings, electrical requirements, COP ratings at various conditions, and comparison across the full Megaline Fi range (35/50/70/100kW models).

Pool Sizing & Capacity Guide 🏊

Recommended Pool Volumes

The Megaline Fi 100 is specifically designed for large commercial and public pool installations. Below are guideline recommendations based on typical operating conditions:

Pool Volume	Heat-Up Performance	Ideal Application
200-300 m³	Rapid heating, ideal for indoor pools	Hotel pools, boutique leisure centers
300-500 m³	Excellent performance, standard commercial use	Gym pools, sports clubs, therapy pools
500-800 m³	Recommended capacity range	Large hotel pools, leisure centers, competition pools
800-1000 m³	Maximum single-unit capacity	Olympic-size training pools, major aquatic facilities
1000+ m³	Multiple units recommended	Public aquatic centers, water parks, resort complexes

⚠️ Important Note: Pool heating requirements depend on multiple factors including climate, pool covering, desired temperature, usage patterns, and building insulation. For pools exceeding 800 m³, we recommend consulting with our technical team about multi-unit installations or the Megaline Fi 75/100 combined configuration.

Estimated Heat-Up Times ⏱️

Understanding how quickly your pool will heat is essential for operational planning. Below are estimated heat-up times based on the heat pump’s rated capacity and standard thermal calculations.

Heat-Up Time Calculation Formula

Time (hours) = (Pool Volume in m³ × Temperature Rise in °C × 1.16) ÷ Heat Pump kW Rating

Heat-Up Time Table – Standard Conditions (A15/W26)

Based on 100kW heating capacity at A15/W26 (typical mid-season conditions)

Pool Volume	5°C Rise	10°C Rise	15°C Rise	20°C Rise
200 m³	11.6 hrs	23.2 hrs	34.8 hrs	46.4 hrs
300 m³	17.4 hrs	34.8 hrs	52.2 hrs	69.6 hrs
400 m³	23.2 hrs	46.4 hrs	69.6 hrs	92.8 hrs
500 m³	29 hrs	58 hrs	87 hrs	116 hrs
600 m³	34.8 hrs	69.6 hrs	104.4 hrs	139.2 hrs
750 m³	43.5 hrs	87 hrs	130.5 hrs	174 hrs
1000 m³	58 hrs	116 hrs	174 hrs	232 hrs

Heat-Up Time Table – Optimal Conditions (A26/W26)

Based on 135kW maximum heating capacity at A26/W26 (summer conditions)

Pool Volume	5°C Rise	10°C Rise	15°C Rise	20°C Rise
200 m³	8.6 hrs	17.2 hrs	25.8 hrs	34.4 hrs
300 m³	12.9 hrs	25.8 hrs	38.7 hrs	51.6 hrs
400 m³	17.2 hrs	34.4 hrs	51.6 hrs	68.8 hrs
500 m³	21.5 hrs	43 hrs	64.5 hrs	86 hrs
600 m³	25.8 hrs	51.6 hrs	77.4 hrs	103.2 hrs
750 m³	32.2 hrs	64.5 hrs	96.7 hrs	129 hrs
1000 m³	43 hrs	86 hrs	129 hrs	172 hrs

⚠️ Disclaimer: These are theoretical estimates based on ideal conditions without heat loss. Actual heat-up times will vary based on ambient temperature, water temperature, pool covering, wind exposure, humidity, and thermal losses. Covered pools will heat significantly faster. For accurate sizing and performance predictions for your specific installation, please consult our technical team.

Real-World Performance Expectations

In typical commercial applications:

• Daily Temperature Maintenance: 1-2°C per day (covered pool)
• Initial Seasonal Heat-Up: 5-10 days for 15-20°C temperature rise
• Daily Operating Hours: 8-12 hours for temperature maintenance
• Peak Season Efficiency: Highest COP during summer months (A26/W26)
• Extended Season: Maintains heating capability down to -15°C ambient

Running Cost Comparison 💰

Annual Operating Cost Estimates

Comparison based on heating a 500m³ commercial pool (May-September season, covered pool)

Heating Method	Seasonal Energy Use	Cost per kWh	Estimated Annual Cost	Annual Savings
Electric Resistance Heater	45,000 kWh	£0.20	£9,000	Baseline
Gas Boiler (80% efficient)	35,000 kWh equivalent	£0.06	£6,750	£2,250
Poolex Megaline Fi 100	6,000 kWh	£0.20	£1,200	£7,800

Estimated Payback Period: 2-4 years depending on installation costs and usage patterns

These calculations are estimates based on average UK energy prices (2025) and typical commercial pool usage patterns. Actual costs will vary based on local energy rates, climate, pool covering, usage intensity, and operational hours.

Why the Megaline Fi 100 Saves Money

✅ COP Advantage: For every 1kW of electricity consumed, the heat pump delivers 7-13kW of heating energy (depending on conditions)

✅ Inverter Technology: Continuous modulation prevents energy waste from constant on/off cycling

✅ Extended Season Operation: No need for expensive backup heating systems in cooler months

✅ Reduced Maintenance: Fewer moving parts and intelligent protection systems minimize service costs

✅ Long Lifespan: Premium components with extended warranties (3/7/15 years) provide excellent return on investment

Installation Requirements & Clearances 🔧

Space Requirements

For optimal performance and serviceability, ensure adequate clearance:

• Front (Air Intake): Minimum 1000mm clear space – CRITICAL for air flow
• Sides: Minimum 1000mm each side for maintenance access
• Rear: Minimum 1000mm for service access
• Top (Air Discharge): Free air discharge – vertical clearance required, no obstructions

Foundation Requirements

✅ Level concrete pad capable of supporting 760kg minimum

✅ Vibration dampening recommended – Use mounting pads or anti-vibration feet

✅ Drainage provision – Condensate drainage must be accommodated

✅ Accessibility – Ensure forklift or crane access for installation and potential future service

Hydraulic Installation

• By-Pass Kit Required: Three-valve bypass assembly for flow regulation and isolation
• Flow Rate: Maintain 40 m³/h for optimal performance
• Water Quality: pH 6.9-8.0, clean filtration essential
• Treatment Systems: Must be installed AFTER the heat pump in the circuit
• Flexible Connections Recommended: Reduce vibration transmission to pipework

Electrical Installation

⚠️ Professional Installation Required – Three-phase electrical work must be performed by qualified electricians in compliance with local regulations

Required Components:

• 60A D-Curve circuit breaker (thermal-magnetic protection)
• 30mA differential switch (RCD) upstream
• RO2V 5 × 16mm² cable (for runs up to 10m)
• Phase sequence verification (incorrect phasing prevents compressor operation)
• Emergency stop button (mandatory for public installations)

Noise Considerations

While the Megaline Fi 100 operates quietly (54dB at 10m), consider:

• Orient air discharge away from noise-sensitive areas
• Avoid positioning near bedroom windows or quiet zones
• Consider acoustic screening if necessary for sensitive environments
• Silence Mode reduces noise further when maximum heating isn’t required

Operating Modes Explained 🎛️

Heating Mode 🔥

Standard pool heating operation. The heat pump automatically maintains your set temperature (15-40°C range). Compressor and fan speeds modulate continuously based on heating demand and ambient conditions.

Cooling Mode ❄️

Active pool water cooling during hot summer months (8-28°C range). Ideal for:

• Indoor pools with excessive solar gain
• Therapy pools requiring precise temperature control
• Training facilities where cooler water is preferred
• Hot climate installations

Silence Mode 🔇

Reduces fan speeds to minimize noise output while maintaining heating or cooling function. Perfect for:

• Night operation in residential areas
• Noise-sensitive environments (hotels, residential properties)
• Extended runtime with lower priority on rapid heating
• Situations where noise restrictions apply

Auto Mode 🤖

Intelligent automatic operation. The heat pump monitors water temperature and automatically switches between heating and cooling to maintain your setpoint perfectly. Ideal for:

• Facilities with minimal staff supervision
• Seasonal transition periods (spring/autumn)
• Indoor pools with variable thermal loads
• Installations prioritizing hands-off operation

Advanced Features & Technology 🚀

Dual Rotary Inverter Compressor System

Two Mitsubishi rotary inverter compressors work in tandem to provide:

• Stepless capacity modulation from 23.6kW to 100kW
• Redundancy for enhanced reliability
• Optimized efficiency across the full load range
• Extended component lifespan through reduced cycling

Twisted Titanium Heat Exchanger

The patented Twisted Tech© design provides:

• Maximum heat transfer surface area
• Superior corrosion resistance (15-year warranty)
• Optimized water flow with minimal pressure drop
• Built-in antifreeze protection system
• Compatibility with all water treatment systems (chlorine, salt, bromine)

DC Brushless Fan Motors

Variable-speed DC fan motors deliver:

• Precise airflow control matching heating demand
• Significant energy savings vs. fixed-speed fans
• Reduced acoustic output through speed modulation
• Enhanced reliability with fewer mechanical components

Electronic Expansion Valves (EEV)

Dual electronic expansion valves provide:

• Precise refrigerant flow control
• Optimized superheat for maximum efficiency
• Adaptation to varying load conditions
• Enhanced defrost performance in cold weather

Comprehensive Sensor Array

Multiple temperature sensors continuously monitor:

• Water inlet and outlet temperatures
• Ambient air temperature
• Compressor discharge temperatures (×2)
• Compressor suction temperatures (×2)
• Heat exchanger coil temperatures (×4)
• Evaporator fin temperatures (×2)

This extensive sensor network enables intelligent control and proactive fault detection.

Warranty & Support 🛡️

Industry-Leading Warranty Coverage

3-Year Comprehensive Warranty Complete parts and labour coverage on all components for three full years from installation date, providing peace of mind for your commercial investment.

7-Year Compressor Warranty The premium Mitsubishi rotary inverter compressors are backed by an exceptional 7-year warranty, reflecting the quality and reliability of these critical components.

15-Year Heat Exchanger Warranty The twisted titanium heat exchanger is warranted against corrosion for 15 years (parts only after year 3), demonstrating confidence in the durability of this crucial component.

What’s Covered

✅ Manufacturing defects in materials and workmanship ✅ Component failures under normal operating conditions ✅ Labour costs for warranty repairs (years 1-3) ✅ Replacement parts for warranted components

Warranty Requirements

To maintain warranty validity:

• Professional installation by qualified technician
• Product registration completed online
• Annual maintenance performed by authorized service provider
• Proper water chemistry maintained (pH 6.9-8.0)
• Winterization procedures followed in freezing climates

Frequently Asked Questions ❓

What size pool can the Megaline Fi 100 heat?

The Megaline Fi 100 is designed for large commercial pools typically ranging from 500m³ to 1000m³. For pools below 500m³, consider the smaller Megaline Fi 50 or Fi 75 models for better efficiency. Pools exceeding 1000m³ may benefit from multiple units or a custom design consultation with our technical team.

How long does it take to heat my pool?

Heat-up time depends on pool volume, desired temperature rise, ambient conditions, and whether the pool is covered. As a general guideline, expect 1-2°C temperature rise per day under typical operating conditions. For a 500m³ pool requiring a 10°C temperature increase, allow approximately 5-7 days with the pool covered, or 7-10 days uncovered. See our heat-up time tables above for detailed estimates.

Can this heat pump work in winter?

Absolutely! The Megaline Fi 100 operates efficiently down to -15°C ambient temperature with automatic hot gas defrosting. This extended operating range makes it suitable for year-round use in most climates, including indoor pools in cold regions and extended-season outdoor pools. The dual antifreeze protection system safeguards against frost damage during standby periods.

Is the heat pump noisy?

The Megaline Fi 100 is exceptionally quiet for its capacity, measuring just 54dB(A) at 10 meters – comparable to moderate rainfall or a quiet office environment. The vertical airflow design and variable-speed DC fans minimize noise, and the dedicated Silence Mode reduces sound output further when maximum heating isn’t required. This makes it suitable for noise-sensitive environments including hotels and residential areas.

What are the electrical requirements?

The unit requires a 380-415V three-phase electrical supply with a 60A D-Curve circuit breaker and 30mA RCD protection upstream. The recommended cable is RO2V 5 × 16mm² for runs up to 10 meters (consult an electrician for longer runs). Maximum current draw is 53A, and maximum power consumption is 29.8kW. Professional three-phase electrical installation is mandatory.

Can I control it remotely?

Yes! Built-in WiFi connectivity enables remote control via the Smart Life App (Tuya Smart) for iOS and Android devices. You can monitor temperatures, adjust settings, create schedules, and receive operational alerts from anywhere with internet access. The system is also compatible with Amazon Echo and Google Home for voice control integration.

What maintenance is required?

The Megaline Fi 100 requires minimal routine maintenance:

• Monthly: Check pressure gauge (should read >80 PSI when off), verify water flow, clean pool filter
• Quarterly: Clean evaporator fins with soft brush and vacuum, check for debris
• Annually: Professional service including refrigerant level check, electrical connections inspection, sensor calibration, and comprehensive safety check

Regular maintenance ensures optimal efficiency, extends equipment life, and maintains warranty coverage.

Is it compatible with salt chlorinator systems?

Yes, the twisted titanium heat exchanger is specifically designed for compatibility with all water treatment systems including salt chlorinators, chlorine dosing, bromine systems, and UV sterilization. The titanium construction provides exceptional corrosion resistance. Important: Treatment systems must be installed AFTER the heat pump in the hydraulic circuit to prevent chemical damage.

Can it cool my pool water?

Yes! The Megaline Fi 100 features a dedicated cooling mode capable of actively reducing water temperature (8-28°C range) with a maximum cooling capacity of 74kW. This is particularly valuable for indoor pools with excessive solar gain, therapy pools requiring precise temperature control, or hot climate installations where cooler water is preferred during summer months.

What’s the difference between Inverter and On/Off heat pumps?

Traditional on/off heat pumps operate at fixed capacity – they’re either running at 100% or switched off completely. Inverter technology continuously modulates compressor and fan speeds (23.6kW to 100kW range) to match the exact heating demand at any given moment. This provides:

• Higher efficiency: Average COP improvement of 20-30%
• Faster heating: Can operate at maximum capacity when needed
• Lower noise: Runs at reduced speeds for quieter operation
• Longer lifespan: Less mechanical stress from constant cycling
• Better comfort: More stable water temperature control

How much will it cost to run?

Operating costs depend on your local electricity rates, climate, pool covering, desired temperature, and usage patterns. Based on typical UK commercial installations (covered 500m³ pool, May-September season), expect approximately £1,200-£1,800 annually at current electricity rates (£0.20/kWh). This represents 80%+ savings compared to electric resistance heating or 60-70% savings versus gas boilers. The exceptional COP of 7-13 means you receive 7-13 times more heating energy than the electricity consumed.

Do I need a pool cover?

While not mandatory, a pool cover dramatically improves efficiency and reduces operating costs by minimizing heat loss through evaporation, convection, and radiation. A covered pool can:

• Heat 50-70% faster than an uncovered pool
• Reduce heat pump running time by 40-60%
• Lower annual energy consumption by up to 70%
• Maintain temperature overnight without the heat pump running

For commercial installations, we strongly recommend automatic slatted covers or bubble blankets for optimal return on investment.

Ideal Applications 🏢

The Poolex Megaline Fi 100 is engineered for demanding commercial and public pool applications:

✅ Hotels & Resorts – Large hotel pools, resort swimming facilities, spa pools

✅ Leisure & Fitness Centers – Gym pools, health club facilities, wellness centers

✅ Sports Complexes – Competition pools, training facilities, athletic centers

✅ Municipal Facilities – Public swimming pools, community aquatic centers, recreation centers

✅ Educational Institutions – University pools, school swimming facilities, training centers

✅ Therapy & Rehabilitation – Hydrotherapy pools, rehabilitation centers, medical facilities

✅ Holiday Parks & Campgrounds – Large communal pools, resort pools, water recreation facilities

What’s Included 📦

Standard Package Includes:

• Poolex Megaline Fi 100 Heat Pump (fully assembled)
• Large Touchscreen LCD Control Panel (installed)
• Built-in WiFi Module (pre-configured)
• Pressure Gauge (installed)
• Water Flow Switch (installed)
• Installation & User Manual
• Technical Specification Sheet
• Warranty Registration Card

Required for Installation (Not Included):

• Three-valve By-Pass kit with valves
• PVC hydraulic piping and fittings (75mm)
• Electrical cable RO2V 5 × 16mm²
• 60A circuit breaker and 30mA RCD
• Condensate drainage kit
• Mounting pads or vibration dampeners (recommended)
• Professional installation labour

Technical Support & Resources 🛠️

Need Expert Guidance?

Our technical team is ready to assist with:

• Pool sizing calculations and heat pump selection
• Installation planning and site assessments
• Hydraulic and electrical design consultation
• Multi-unit configurations for large facilities
• Performance optimization recommendations
• Troubleshooting and technical support

Professional Installation Required

The Megaline Fi 100 is a commercial-grade system requiring professional installation by qualified technicians experienced with:

• Three-phase electrical systems and commercial power distribution
• Large-scale hydraulic design and pool equipment integration
• Refrigeration systems and R32 handling regulations
• Commercial building codes and safety compliance
• Heat pump commissioning and performance verification

Warranty Validation: Professional installation by a qualified technician is required for warranty coverage.

Environmental Credentials 🌍

R32 Refrigerant – The Greener Choice

The Megaline Fi 100 uses R32 refrigerant, offering significant environmental benefits over older refrigerants:

✅ Lower Global Warming Potential (GWP): R32 has a GWP of 675 vs. 2088 for R410a – a 68% reduction in climate impact

✅ Higher Efficiency: R32’s superior thermodynamic properties improve heat transfer and reduce energy consumption

✅ Single Component: Unlike blended refrigerants, R32 is a single-component fluid making recovery and recycling simpler

✅ Less Charge Required: Approximately 30% less refrigerant needed compared to R410a systems

Energy Efficiency = Environmental Responsibility

With COP ratings of 7-13, the Megaline Fi 100 delivers exceptional energy efficiency:

• Reduced CO₂ Emissions: 80% less carbon footprint compared to electric resistance heating
• Renewable Energy Compatible: Works efficiently with solar PV systems
• Long Service Life: Quality construction and components minimize replacement frequency
• Recyclable Materials: Stainless steel and aluminum components are fully recyclable at end of life

Ordering Information & Next Steps 📞

Product Reference: PC-MLP 1003N

Ready to Transform Your Pool Heating?

The Poolex Megaline Fi 100 represents a significant investment in energy-efficient, reliable, and intelligent commercial pool heating. To ensure optimal performance and satisfaction:

1. Verify Your Requirements

• Confirm pool volume and typical operating temperatures
• Assess available space for installation (clearances)
• Verify three-phase electrical supply availability
• Review local planning and building regulations

2. Consult Our Technical Team Contact our specialists for:

• Professional sizing calculations
• Site-specific performance predictions
• Installation planning assistance
• Custom quotations and system design

3. Professional Installation Engage a qualified installer experienced with:

• Commercial three-phase electrical work
• Large-scale pool equipment integration
• R32 refrigerant systems
• Local codes and regulations

Summary – Your Commercial Pool Heating Solution ⭐

The Poolex Megaline Fi 100 delivers everything commercial pool operators demand:

✅ Powerful: 100-135kW heating capacity for large pools up to 1000m³

✅ Efficient: COP up to 13.59 delivers 80%+ energy savings

✅ Reliable: Premium Mitsubishi compressors with 7-year warranty

✅ Durable: Stainless steel construction and 15-year heat exchanger warranty

✅ Intelligent: WiFi control with Smart Life App integration

✅ Quiet: Just 54dB at 10m – suitable for noise-sensitive environments

✅ Versatile: Heating and cooling modes with extended -15°C operation

✅ Professional: Purpose-built for commercial applications with comprehensive support

Transform your facility with the most advanced commercial pool heat pump available. The Megaline Fi 100 combines cutting-edge inverter technology, premium components, and intelligent control to deliver unmatched performance, efficiency, and reliability for demanding commercial installations.
