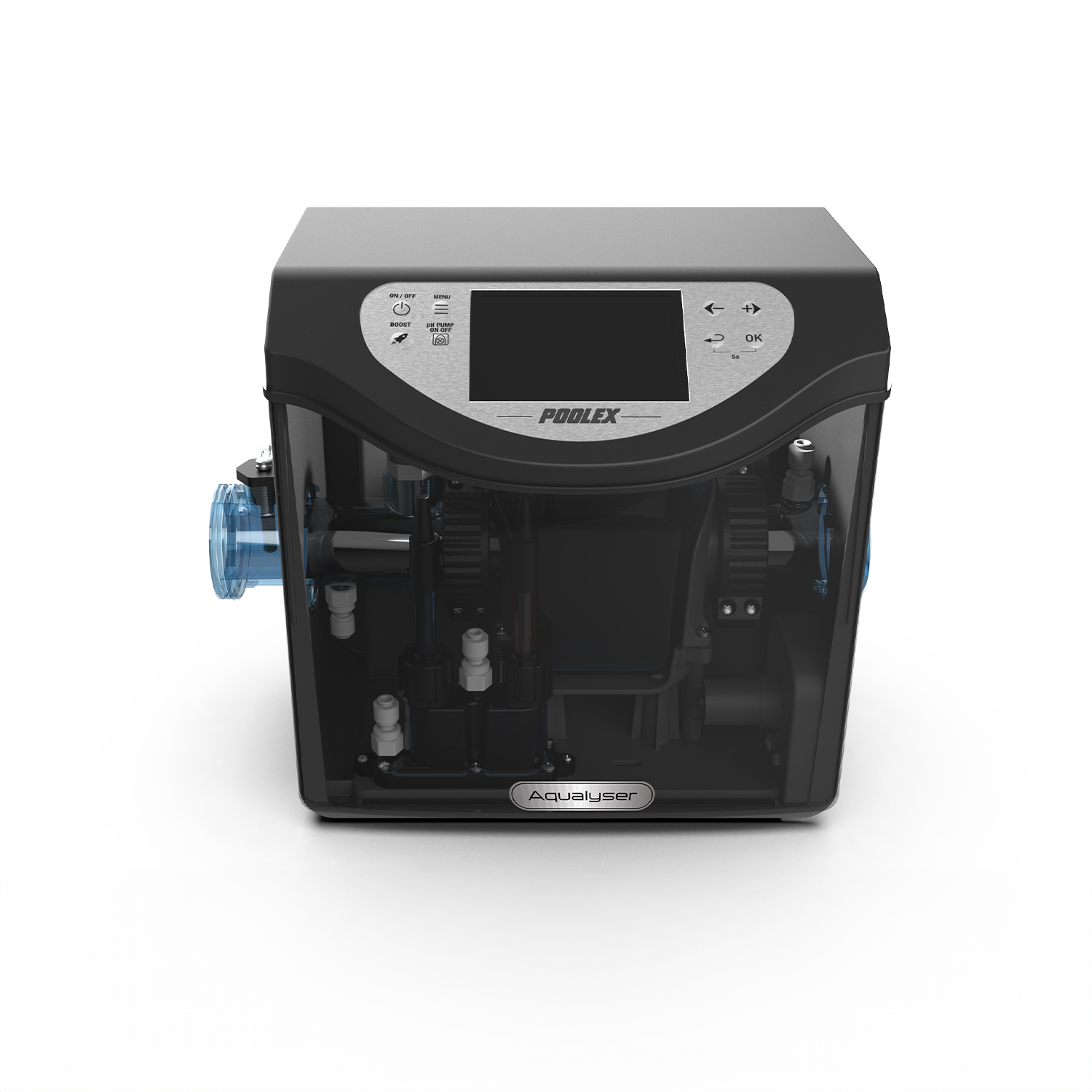

🌊 Poolex Aqualyser Total Combined Salt Electrolyser with Wi-Fi Controls

Smart, automated and effortless pool care with integrated pH regulation, ORP control, and remote smartphone monitoring

💧 Product Overview

The Poolex Aqualyser Total is a new-generation combined salt electrolyser designed to transform pool maintenance into an effortless experience. Imagine enjoying consistently clean, healthy water without ever worrying about chlorine or pH levels – the Aqualyser handles everything automatically.

This intelligent system combines salt chlorination, pH regulation, and ORP (Redox) control in one compact unit. Equipped with integrated Redox and pH probes, it continuously monitors your pool’s water quality and automatically adjusts chlorine production and pH levels according to actual needs – not just timers or guesswork.

With Wi-Fi connectivity and the Poolex App, controlling your pool becomes accessible from anywhere. Monitor real-time data, adjust settings, and receive alerts whether you’re at home or away. The Cloud Poolex compatibility saves and synchronises your pool data for precise tracking, whilst the OTA (Over-The-Air) system provides remote software updates to ensure optimal operation.

Compatible with pools up to 80 cubic metres and producing up to 20 g/h of chlorine, the Aqualyser Total delivers professional-grade water treatment with minimal effort. The durable 10,000-hour titanium cell and 5-year housing warranty ensure years of reliable, trouble-free operation.

⭐ Key Features

✅ Automated Control – Integrated pH and Redox probes continuously monitor and automatically adjust water chemistry

✅ Combined System – Electrolyser + pH Pump + ORP Controller in one compact unit

✅ Pools up to 80m³ – Powerful chlorine production up to 20 g/h with adjustable output settings

✅ Wi-Fi Connected – Remote control and monitoring via the intuitive Poolex App

✅ Cloud & OTA Updates – Cloud Poolex data synchronisation and Over-The-Air software updates

✅ Multiple Operating Modes – ORP, Timer, Manual, and pH Minus modes for complete flexibility

✅ Continues Without Probes – Operates in manual or timer mode even when probes need replacement

✅ Self-Cleaning Cell – Adjustable polarity reversal (4/6/8 hours) reduces scaling and extends cell life

✅ Energy Efficient – Only 5W standby power consumption

✅ Complete Monitoring – Temperature, flow, salt level, and water quality sensors

✅ Historical Data – Graphical tracking of ORP, pH, energy, salt, and temperature

✅ 5-Year Warranty – Housing warranty plus 10,000-hour titanium cell guarantee

⚙️ Technical Specifications

Specification	Value
Pool Volume	Up to 80 m³
Chlorine Production	20 g/h maximum
Chlorine Output Settings	Adjustable: 4, 8, 12, 16, 20 g/h
pH Pump Flow Rate	0.2 L/min
Maximum Power	150 W
Standby Power	5 W
Water Connection	D50 mm (to glue)
Polarity Reversal	Yes – Adjustable: 4 / 6 / 8 hours
Salinity Range	2.7 – 5 ppm
Probes & Sensors	Redox (ORP), pH, Temperature, Flow
Operating Modes	ORP / Timer / Manual / pH Minus
Connectivity	Wi-Fi – Poolex App
Pump Relay Control	Yes (dry contact)
Alarms	Error alerts (sound can be deactivated)
Historical Data	Graphical: ORP, pH, Energy, Salt, Temperature
PoolTerre Earthing	Yes – connect to stake <20 ohms
Analysis Chamber	Yes (included)
Control Unit Dimensions	310 × 200 mm
Titanium Cell Life	10,000 hours
Warranty	5 years housing + 10,000h cell

🔌 Electrical Requirements

Electrical Specification	Requirement
Maximum Power	150 W
Standby Power	5 W
Connectivity	Wi-Fi (2.4 GHz)
Relay Control	Dry contact for pump control
Earthing	PoolTerre to stake <20 ohms

⚠️ IMPORTANT SAFETY NOTICE:

All electrical installation must be carried out by a qualified
electrician in accordance with UK wiring regulations (BS 7671).

Ensure proper earthing connection (PoolTerre) to a ground stake
with resistance less than 20 ohms. The device should be protected
by an RCD with nominal operating residual current not exceeding 30mA.

🔄 Combined System – Three Functions in One

The Poolex Aqualyser Total combines three essential pool treatment functions:

1. Salt Electrolyser

Feature	Specification
Technology	Titanium electrode cell
Production	Up to 20 g/h chlorine
Adjustable Output	4, 8, 12, 16, 20 g/h
Self-Cleaning	Polarity reversal (4/6/8h)
Cell Life	10,000 hours

2. pH Regulation Pump

Feature	Specification
Flow Rate	0.2 L/min
Control	Automatic via pH probe
Mode	pH Minus dosing
Target	Maintains optimal pH balance

3. ORP (Redox) Controller

Feature	Specification
Monitoring	Continuous Redox measurement
Control	Automatic chlorine adjustment
Display	Real-time ORP readings
History	Graphical data tracking

📱 Smart Control & Connectivity

Poolex App Features

The free Poolex App provides complete control from your smartphone:

📊 Real-Time Monitoring – View ORP, pH, temperature, and salt levels instantly

⚡ Remote Control – Adjust settings and modes from anywhere

📈 Historical Data – Graphical charts showing water quality trends over time

🔔 Alerts & Notifications – Receive error alerts and maintenance reminders

⚙️ Mode Selection – Switch between ORP, Timer, Manual, and pH Minus modes

🔄 Software Updates – OTA (Over-The-Air) updates keep your system current

☁️ Cloud Sync – Cloud Poolex saves and synchronises your pool data

Available on: Apple App Store & Google Play

Connectivity Features

Feature	Description
Wi-Fi	2.4 GHz wireless connection
Cloud Poolex	Data backup and synchronisation
OTA Updates	Remote software updates
Pump Relay	Dry contact control for filtration pump

🎛️ Operating Modes

The Aqualyser Total offers four operating modes for complete flexibility:

Mode	Description	Best For
ORP Mode	Automatic chlorine production based on Redox readings	Daily automated operation
Timer Mode	Chlorine production based on set schedule	When probes need replacement
Manual Mode	Direct control of chlorine output	Testing or specific needs
pH Minus	Automatic pH acid dosing	Maintaining water balance

Continuous Operation Guarantee

Even when probes reach end of life and need replacement, the electrolyser continues operating in Timer or Manual mode. This provides greater flexibility and peace of mind – your pool stays sanitised while you arrange probe replacement.

💧 Water Chemistry Guide

For optimal Poolex Aqualyser performance, maintain these parameters:

Parameter	Recommended Level	Notes
Salt Concentration	2.7 – 5 ppm (g/L)	Check with test strips
Free Chlorine	1.0 – 3.0 ppm	Automatically maintained
pH Level	7.2 – 7.6	Auto-regulated by pH pump
ORP (Redox)	650 – 750 mV	Monitored continuously
Total Alkalinity	80 – 120 ppm	Manual adjustment
Water Hardness	200 – 400 ppm	Check periodically

💡 Getting Started: Add pool salt to achieve 3-4 g/L concentration. Run filtration for 24 hours to dissolve salt completely before activating the electrolyser.

🛠️ Installation Overview

What’s Included

• Electrolyser unit with titanium cell
• Redox (ORP) probe
• pH probe
• pH dosing pump
• Analysis chamber
• Connection fittings (D50mm)
• User manual

Installation Requirements

Requirement	Specification
Water Connection	D50 mm (to glue)
Location	After filter, before heater
Orientation	Horizontal pipe section
Earthing	PoolTerre to stake <20 ohms
Access	Allow space for maintenance

Available Versions

Version	Description
Total	Complete integrated unit
Flex	Flexible installation options

🔧 Maintenance Guide

Routine Maintenance

Task	Frequency	Notes
Check salt level	Monthly	Maintain 2.7-5 ppm
Clean cell	As needed	Inspect for scale build-up
Calibrate pH probe	Every 3-6 months	Use calibration solution
Calibrate ORP probe	Every 3-6 months	Use calibration solution
Check connections	Quarterly	Ensure no leaks
Review app data	Weekly	Monitor trends

Self-Cleaning Function

The automatic polarity reversal system (configurable at 4, 6, or 8-hour intervals) helps prevent calcium scale build-up on the titanium electrodes, extending cell life and maintaining optimal chlorine production.

Probe Replacement

Probe	Expected Life	Notes
pH Probe	1-2 years	Replace when readings drift
ORP Probe	1-2 years	Replace when readings drift

💡 Note: The system continues operating in Timer or Manual mode when probes need replacement.

🎯 Ideal Applications

Application	Suitability	Notes
🏊 Residential Pools	✅ Excellent	Up to 80 m³
🏠 Family Pools	✅ Excellent	Automated care, safe water
🏡 Holiday Homes	✅ Excellent	Remote monitoring via app
🏨 Holiday Lets	✅ Excellent	Low maintenance between guests
🏊 Indoor Pools	✅ Excellent	Precise pH control
🏊 Outdoor Pools	✅ Excellent	Automatic adjustment to conditions
♨️ Swim Spas	✅ Good	Check volume compatibility

❓ Frequently Asked Questions

Q: What pool size is this electrolyser suitable for? A: The Poolex Aqualyser Total is designed for pools up to 80 cubic metres. Chlorine output can be adjusted (4, 8, 12, 16, or 20 g/h) to match your pool size.

Q: What salt concentration is required? A: The system operates with salt levels between 2.7 and 5 ppm (g/L). This is significantly lower than seawater (approximately 35 g/L), so you won’t taste the salt.

Q: What happens if a probe fails? A: The electrolyser continues operating in Timer or Manual mode even when probes need replacement, ensuring continuous pool sanitation whilst you arrange new probes.

Q: Can I control this remotely? A: Yes, the free Poolex App (iOS and Android) provides complete remote control and monitoring via Wi-Fi. You can adjust settings, view real-time data, and receive alerts from anywhere.

Q: What does the pH pump do? A: The integrated pH pump automatically doses pH reducer (acid) to maintain optimal pH balance. This works in conjunction with the pH probe for fully automated control.

Q: How long does the titanium cell last? A: The cell is rated for 10,000 hours of operation. With typical seasonal use, this equates to many years of service.

Q: What warranty is provided? A: 5-year warranty on the housing, plus the titanium cell is guaranteed for 10,000 hours (excluding wear parts like probes).

Q: Does it need an internet connection to work? A: No, the electrolyser operates independently. Wi-Fi is only needed for remote monitoring and control via the app.

Q: What is polarity reversal? A: The system automatically reverses the electrical polarity of the cell (every 4, 6, or 8 hours – configurable) to prevent calcium scale build-up on the electrodes.

Q: What is the PoolTerre earthing requirement? A: The system should be connected to a ground stake with resistance less than 20 ohms for proper electrical safety.

📥 Downloads & Resources

📄 Technical Datasheet – Complete specifications

📱 Poolex App – Available on Apple App Store and Google Play

🏆 Why Choose Poolex Aqualyser Total

Advantage	Benefit To You
🔄 Combined System	Electrolyser + pH pump + ORP controller in one unit
📱 Wi-Fi Connected	Remote control and monitoring from anywhere
🤖 Fully Automated	Set and forget – automatic chlorine and pH control
📊 Real-Time Data	Continuous monitoring of all water parameters
☁️ Cloud & OTA	Data backup and automatic software updates
🔧 Flexible Modes	ORP, Timer, Manual, and pH Minus options
⚡ Energy Efficient	Only 5W standby power consumption
🛡️ Reliable	Continues operating even when probes need replacement
⏱️ Long-Life Cell	10,000-hour titanium cell with self-cleaning
📋 5-Year Warranty	Peace of mind with extended coverage

🤝 Why Buy from Parts4Tubs

✅ UK-Based Expertise – Local support from pool and spa specialists

✅ Fast UK Delivery – Quick dispatch to get your equipment installed sooner

✅ Technical Advice – Knowledgeable team for installation and compatibility questions

✅ Competitive Pricing – Great value on professional-grade equipment

✅ Full Product Support – We stand behind every product we sell

✅ In Stock – Ready for immediate dispatch

✨ Summary

The Poolex Aqualyser Total is a complete pool management solution that combines salt chlorination, pH regulation, and ORP control in one intelligent, connected unit. Designed for pools up to 80 cubic metres, it delivers up to 20 g/h chlorine production with fully automated water chemistry management.

With Wi-Fi connectivity and the Poolex App, you can monitor and control your pool from anywhere. The integrated pH and Redox probes ensure continuous, precise adjustment of water chemistry, whilst multiple operating modes provide flexibility for any situation. Even when probes need replacement, the system continues operating in Timer or Manual mode.

Built with a 10,000-hour titanium cell, self-cleaning polarity reversal, and backed by a 5-year housing warranty, the Aqualyser Total delivers years of reliable, hassle-free pool care. Energy-efficient with just 5W standby power, it’s the smart choice for pool owners who want clean, safe water with minimal effort.

Order today and transform your pool maintenance into an effortless experience.
