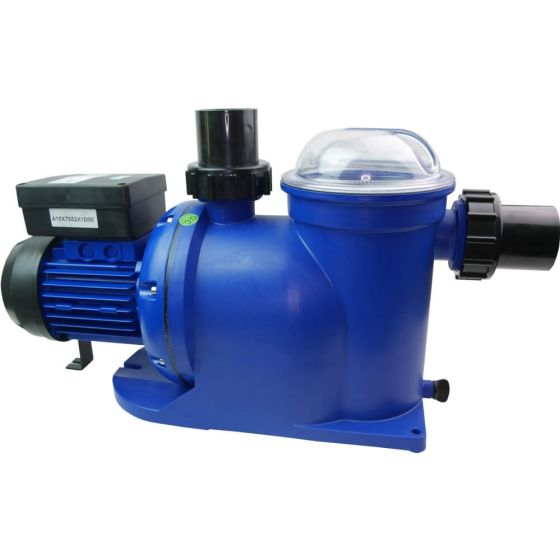

💧 Plastica AG Pump 0.33hp 0.25kW Single Phase (AG10-2DC)

Whisper-Quiet, Energy-Efficient Circulation for Above-Ground Pools, Spas & Water Features

📋 Product Overview

The Plastica AG Pump 0.33hp 0.25kW is a compact, self-priming circulation pump engineered specifically for residential above-ground pools, hot tubs, garden ponds, and decorative water features. As the “baby brother” to Plastica’s renowned Argonaut series, this pump delivers the same exceptional build quality and reliability in a smaller, more energy-efficient package.

Manufactured by Plastica Limited – the UK’s leading independent swimming pool manufacturer and distributor – this pump features a glass-filled polypropylene body with exceptional chemical resistance, making it equally suitable for chlorinated, brominated, and saltwater systems. The IP55-rated motor ensures reliable operation in demanding outdoor environments, while the whisper-quiet 55dB noise rating means it won’t disturb your peaceful garden setting.

With TÜV certification to EN60335-1 and EN60335-2-41 safety standards, you’re investing in a pump that meets the highest European quality benchmarks.

⭐ Key Features

✅ 0.33 HP Motor (0.25kW Output) – Delivers reliable circulation for small to medium pools up to 40m³ with minimal energy consumption

✅ Self-Priming to 1.8 Metres – Flexible installation options without needing the pump below water level, simplifying setup and maintenance access

✅ Whisper-Quiet 55dB Operation – Quieter than a normal conversation, ideal for residential gardens where noise matters

✅ Glass-Filled Polypropylene Construction – Superior chemical resistance protects against chlorine, bromine, iodine, and high salt concentrations

✅ AISI 316 Stainless Steel Shaft & Carbon/Ceramic Seal – Marine-grade components ensure long-term durability even in aggressive saltwater environments

✅ IP55 Rated Motor with Class F Insulation – Protected against dust ingress and water jets for reliable outdoor operation in all weather conditions

✅ 1.65 Litre Strainer Basket with Clear Lid – Large capacity reduces cleaning frequency; transparent lid allows quick visual inspection without opening

✅ Universal 50mm/1.5″ ABS Unions – Adjustable solvent weld connections fit both metric and imperial pipework for hassle-free installation

✅ Maximum Flow Rate 183 LPM / 10.98 m³/hr – Ample capacity for effective filtration and water circulation

✅ TÜV Certified (EN60335-1 / EN60335-2-41) – Independently verified to meet stringent European safety and performance standards

🔧 Technical Specifications

Parameter	Specification
Model	AG10-2DC
Motor Power (HP)	0.33 HP
Power Output (P2)	0.25 kW
Power Input (P1)	0.36 kW
Voltage	230V / 50Hz (Single Phase)
Maximum Head	10 metres
Maximum Flow Rate	183 LPM (10.98 m³/hr)
Body Material	Glass-filled blue polypropylene
Motor Housing	Aluminium
Shaft Material	High-grade stainless steel
Mechanical Seal	AISI 316 carbon/ceramic
Motor Protection	IP55 rated
Motor Insulation	Class F
Self-Priming Capability	Up to 1.8 metres suction lift
Connections	2¼″ BSP thread ports; 50mm/1.5″ ABS unions
Cable Gland	PG11
Strainer Basket Capacity	1.65 litres
Noise Level	55 dB(A)
Maximum Ambient Temperature	40°C

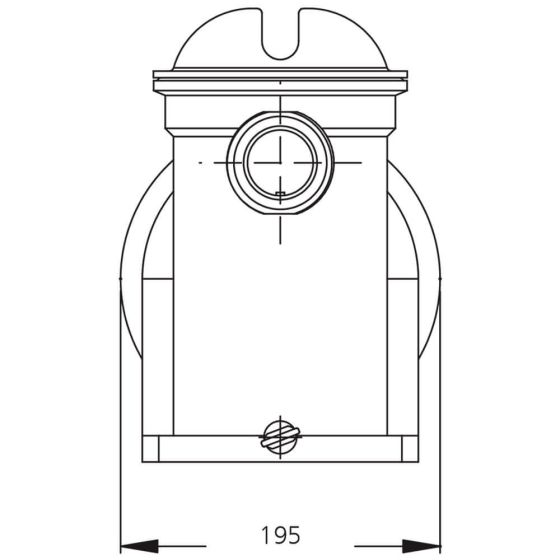

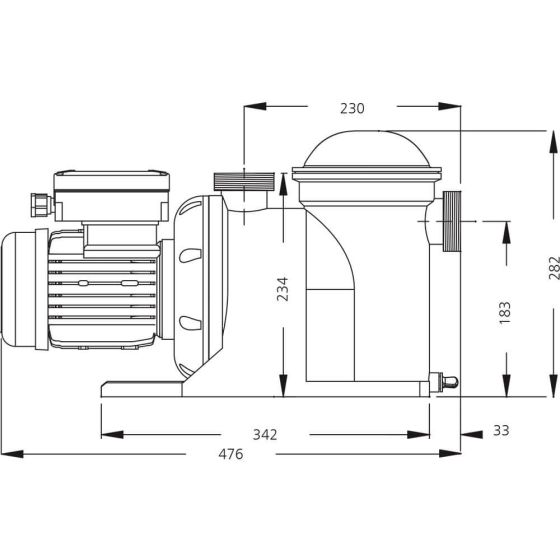

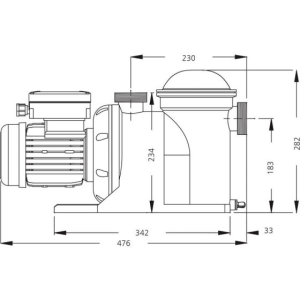

Dimensions (L × W × H)	476mm × 234mm × 282mm
Certification	TÜV (EN60335-1 / EN60335-2-41)

💰 Usage Costs & Running Expenses

Running a pool pump efficiently is essential for keeping operating costs manageable. The Plastica AG Pump 0.33hp is designed with energy efficiency in mind, featuring a modest 0.36kW power input that translates to genuinely affordable running costs.

📊 Annual Running Cost Calculation

Base Parameters:

• Power Input: 0.36 kW
• UK Electricity Rate: £0.2635 per kWh (Ofgem Price Cap, Q4 2025)

🏊 Scenario 1: Seasonal Above-Ground Pool (6 months)

Typical usage for a summer-only above-ground pool:

Factor	Value
Daily Runtime	6 hours
Season Length	180 days (April – September)
Annual Hours	1,080 hours
Energy Consumed	0.36 kW × 1,080 hrs = 388.8 kWh
✅ Annual Running Cost	388.8 × £0.2635 = £102.45

💵 That’s just £17.08 per month during the swimming season!

🛁 Scenario 2: Year-Round Hot Tub/Spa Circulation

For continuous filtration cycles in a hot tub or spa:

Factor	Value
Daily Runtime	4 hours (2 × 2-hour cycles)
Annual Days	365 days
Annual Hours	1,460 hours
Energy Consumed	0.36 kW × 1,460 hrs = 525.6 kWh
✅ Annual Running Cost	525.6 × £0.2635 = £138.50

💵 Just £11.54 per month for year-round spa circulation

🌊 Scenario 3: Garden Pond/Water Feature

Decorative water features typically run longer hours for visual effect:

Factor	Value
Daily Runtime	10 hours (daylight hours)
Season Length	240 days (March – October)
Annual Hours	2,400 hours
Energy Consumed	0.36 kW × 2,400 hrs = 864 kWh
✅ Annual Running Cost	864 × £0.2635 = £227.67

💵 Under £1 per day for stunning water movement all season

⚡ Energy Efficiency Comparison

How does the AG10-2DC compare to larger alternatives?

Pump Model	Power Input	Annual Cost*	Difference
✅ Plastica AG10 (0.33hp)	0.36 kW	£102.45	—
Plastica AG14 (0.50hp)	0.49 kW	£139.55	+£37.10
Plastica AG16 (0.66hp)	0.67 kW	£190.82	+£88.37
❌ Typical 0.75hp pump	0.75 kW	£213.60	+£111.15

*Based on 1,080 hours/year seasonal use at £0.2635/kWh

💰 Choosing the correctly-sized AG10 over an oversized 0.75hp pump saves over £110 annually!

🎯 Real World Applications

🏊 Above-Ground Swimming Pools

The AG10-2DC is perfectly matched to above-ground pools up to 40m³ (approximately 15ft × 30ft oval or 18ft round). Its self-priming capability to 1.8 metres means you can position the pump at deck level rather than below the waterline, making maintenance and winterisation significantly easier. The quiet 55dB operation won’t disturb neighbours during evening filtration cycles.

🛁 Hot Tubs & Portable Spas

Ideal as a replacement circulation pump for hot tubs and portable spas where a dedicated low-energy circulation pump is needed. The high chemical resistance handles the elevated sanitiser levels typical in warm spa water, while the compact dimensions fit easily into standard equipment bays.

🌊 Garden Ponds & Koi Systems

The gentle but effective flow rate makes this pump excellent for garden ponds and koi systems where you need reliable circulation without creating excessive turbulence. The transparent strainer lid allows quick visual checks for debris before it reaches the filter, protecting your investment in aquatic life.

🔄 Water Features & Fountains

Powering decorative fountains, waterfalls, and water features, the AG10 delivers consistent flow with minimal noise. The corrosion-resistant construction handles the mineral deposits and algae common in ornamental water systems, while the large strainer basket captures leaves and debris before they cause blockages.

🏠 Residential Pool Upgrades

An excellent upgrade from aging, inefficient pumps where pool size allows. If your current pump is oversized for your actual pool volume, replacing it with the correctly-sized AG10 can deliver immediate energy savings while maintaining effective filtration.

💡 Cost Savings Examples

📍 Scenario: Replacing an Oversized 0.75hp Pump

Many older above-ground pools were supplied with pumps larger than necessary. Replacing a typical 0.75hp pump (0.75kW input) with the correctly-sized AG10:

Factor	Old 0.75hp Pump	✅ New AG10
Power Input	0.75 kW	0.36 kW
Daily Cost (6 hrs)	£1.19	£0.57
Seasonal Cost (180 days)	£213.60	£102.45
Annual Saving	—	💵 £111.15

📈 3-Year Savings: £333.45

⏱ Typical payback period on pump investment: Under 2 seasons

📍 Scenario: Upgrading from an Inefficient Single-Speed Pump

Older single-speed pumps without modern efficiency ratings often consume more power for equivalent flow:

Factor	Older 0.5hp Pump (est. 0.55kW)	✅ New AG10
Power Input	~0.55 kW	0.36 kW
Seasonal Cost (1,080 hrs)	£156.76	£102.45
Annual Saving	—	💵 £54.31

📈 5-Year Savings: £271.55

📍 Scenario: Hot Tub Circulation Pump Replacement

Replacing a failed circulation pump with the energy-efficient AG10:

Factor	Typical Replacement	✅ Plastica AG10
Power Input	~0.50 kW	0.36 kW
Annual Cost (1,460 hrs)	£192.34	£138.50
Annual Saving	—	💵 £53.84

💰 The AG10 pays back the efficiency difference within 3-4 years while providing superior build quality and longer service life.

📥 Downloads & Resources

📄 Installation & User Manual – Complete installation instructions, electrical requirements, priming procedures, winterisation guide, and troubleshooting (PDF) Download: Plastica AG Pump Instructions

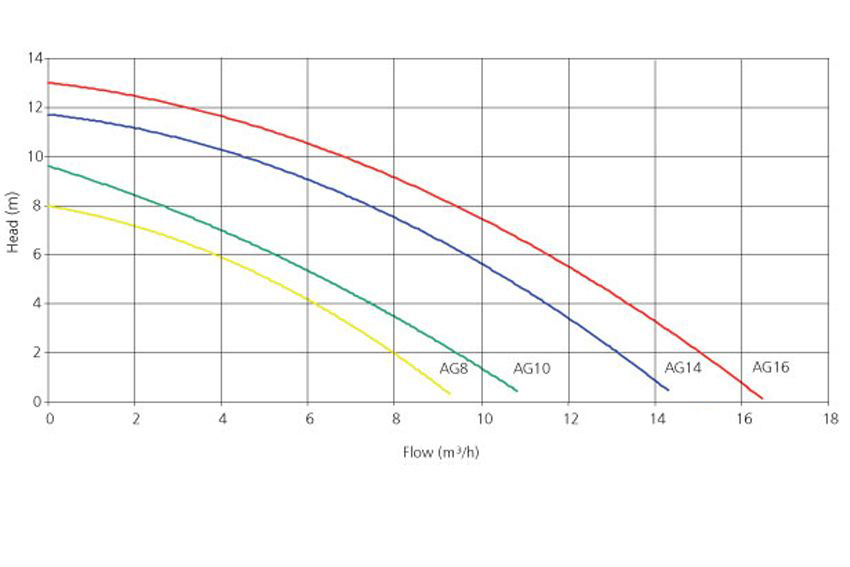

📄 Product Leaflet & Performance Curves – Technical specifications, dimensional drawings, and pump performance curves showing head vs. flow rate (PDF) Download: Plastica AG Pump Leaflet

🛒 Why Buy From Parts4Tubs?

✅ Genuine Manufacturer Stock – Authentic Plastica products with full manufacturer warranty and UK-based support

✅ Expert Technical Advice – Our team understands pool and spa equipment inside out, helping you choose the right pump for your application

✅ Fast UK Delivery – Quick dispatch to get your pool or spa back up and running without extended downtime

✅ Competitive Pricing – Trade and retail pricing that delivers genuine value without compromising on quality

✅ Comprehensive Spares Support – Full range of replacement parts including seals, impellers, strainer baskets, and O-rings for long-term serviceability

✅ Hassle-Free Returns – Straightforward returns policy if the product isn’t right for your needs

✨ Summary

The Plastica AG Pump 0.33hp 0.25kW represents the ideal balance of performance, efficiency, and reliability for residential pool and water feature applications. With running costs from just £102 per season, whisper-quiet 55dB operation, and the build quality you’d expect from the UK’s leading pool equipment manufacturer, this pump delivers outstanding long-term value. Whether you’re setting up a new above-ground pool, replacing a tired circulation pump, or powering a beautiful water feature, the AG10-2DC is engineered to perform season after season.
