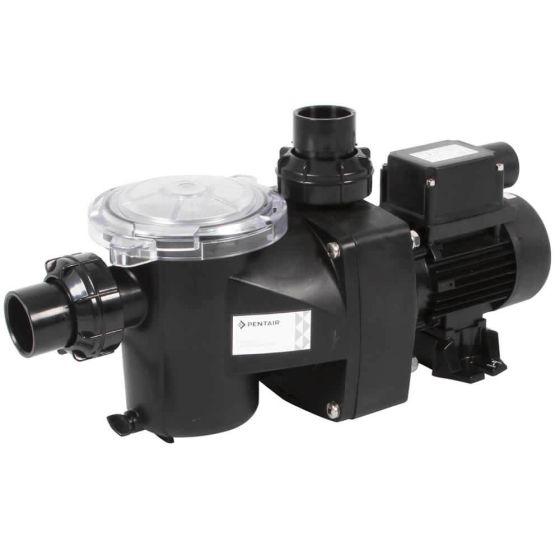

💧 Pentair FreeFlo Pump 0.75HP 0.55kW Single Phase – Quiet, Durable Pool Circulation Pump

The Pentair FreeFlo 0.75HP Single Phase Pump delivers reliable, whisper-quiet performance for above-ground and small in-ground swimming pools. Engineered with Pentair’s proven expertise, this pump combines a heavy-duty motor, thick-walled construction, and precision hydraulics to provide years of dependable water circulation.

Perfect for pool owners who demand:

• ✅ Quiet operation – Mono-block design minimizes vibration and noise
• ✅ Easy maintenance – Transparent lid with large self-aligning basket
• ✅ Energy efficiency – 0.55kW motor reduces running costs
• ✅ Durability – IP55-rated motor withstands demanding conditions
• ✅ Simple installation – Direct drop-in replacement for Swimmey Pump series

🌟 Key Features & Benefits

Designed for Quiet, Efficient Performance

Mono-Block Housing Design The integrated mono-block construction significantly reduces vibration and operational noise, making this pump ideal for residential installations where quiet operation matters.

Transparent See-Through Lid The innovative Cam and Ramp™ lid allows instant visual inspection of the strainer basket without removing the cover. Check debris levels at a glance and perform quick cleaning when needed.

Large Self-Aligning Basket The heavy-duty HDPE basket holds more debris than standard designs, reducing cleaning frequency. The self-aligning feature ensures proper seating every time.

IP55-Rated Motor Protection The thermally protected Totally Enclosed Fan Covered (TEFC) motor is rated to IP55 standards, providing excellent protection against dust and water ingress for long-term reliability.

Flexible Installation Options

• 50mm swivel union fittings provide secure, leak-free connections with easy assembly
• 90° rotatable discharge port offers configuration flexibility
• Compact footprint fits tight equipment spaces
• Additional drain plug simplifies winterization and maintenance

Direct Swimmey Pump Replacement Upgrade your existing Swimmey pump without re-plumbing. The FreeFlo is specifically designed as a drop-in replacement, saving installation time and costs.

📊 Complete Technical Specifications

Specification	Detail
Brand	Pentair
Model	FreeFlo FFL-071
Power Type	Single Phase
Horsepower	0.75 HP (3/4 HP)
Power Rating	0.55 kW (550W)
Voltage	220-240V
Frequency	50Hz
Motor Rating	IP55
Motor Type	TEFC (Totally Enclosed Fan Covered)
Thermal Protection	Yes, built-in
Pump Type	Self-priming centrifugal
Suction/Discharge	50mm ID (Inner Diameter)
Connection Type	Swivel Union Fittings
Discharge Configuration	90° Rotatable
Basket Material	Heavy-duty HDPE
Body Material	Thick-walled composite
Cooling Type	Air-cooled
Noise Level	Low (mono-block design)
Priming	Self-priming with prefilter
Maximum Head	Approximately 11 metres
Flow Rate Range	0-14 m³/hr (dependent on head pressure)
Power Cord Length	1.5m (5 feet)
Warranty	3-year limited warranty

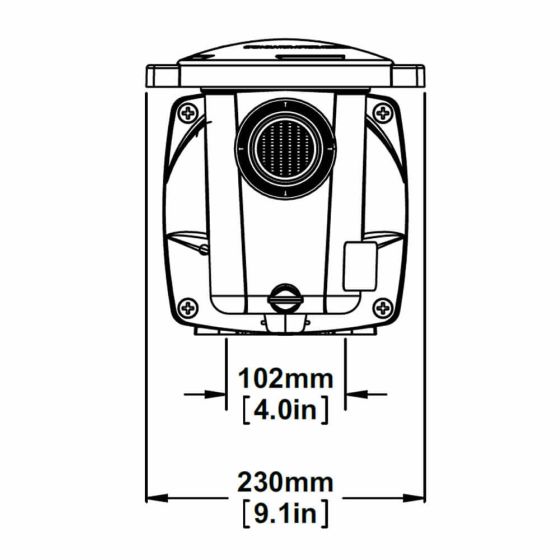

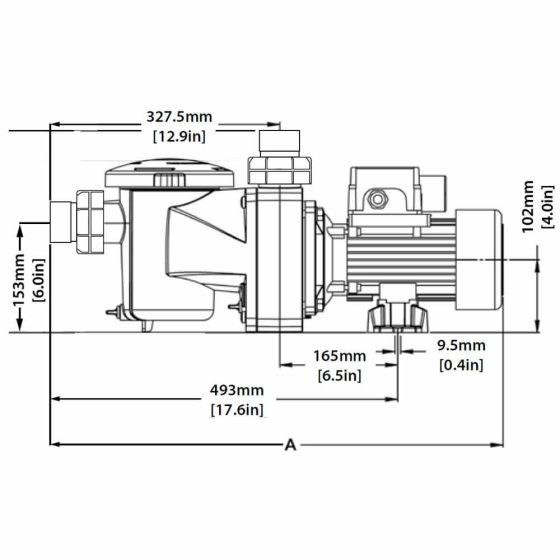

Pump Dimensions

Dimension	Measurement
Total Length (A)	607mm (23.9 inches)
Body Height	242mm (9.5 inches)
Body Width	165mm (6.5 inches)
Motor Height	282.5mm (11.1 inches)
Motor Diameter	153mm (6.0 inches)
Base Width	327.5mm (12.9 inches)
Total Footprint Depth	448mm (17.6 inches)

💧 Suitable Pool Sizes & Applications

Recommended Pool Volumes

The Pentair FreeFlo 0.75HP pump is ideally suited for:

Pool Type	Volume Range	Typical Size
Above-Ground Pools	15,000 – 40,000 litres	Up to 5m diameter
Small In-Ground Pools	20,000 – 50,000 litres	Up to 8m x 4m
Plunge Pools	10,000 – 25,000 litres	4m x 3m typical
Hot Tubs & Spas	2,000 – 5,000 litres	Most residential models

Perfect Applications

✅ Filtration Systems – Maintains crystal-clear water through efficient circulation ✅ Heating Systems – Compatible with pool heaters and heat pumps ✅ Chlorination Systems – Works with saltwater chlorinators and chemical feeders ✅ Water Features – Adequate flow for small fountains and waterfalls ✅ Upgrade Replacement – Direct Swimmey pump replacement

⏱ Pool Turnover & Circulation Guidelines

For optimal water quality, your pool should complete a full turnover (entire pool volume filtered) every 6-8 hours during swimming season.

Estimated Circulation Performance

Example Turnover Times (approximate, based on typical system resistance):

Pool Volume	Flow Rate @ 5m Head	Complete Turnover Time
20,000 litres	~9 m³/hr	~2.2 hours
30,000 litres	~9 m³/hr	~3.3 hours
40,000 litres	~9 m³/hr	~4.4 hours
50,000 litres	~9 m³/hr	~5.5 hours

⚠️ Note: Actual performance depends on plumbing configuration, filter type, total head height, and system resistance. These are estimates for planning purposes.

💰 Energy Efficiency & Running Costs

Power Consumption

At 0.55kW (550W) power draw, the FreeFlo 0.75HP pump offers efficient operation for small to medium pools:

Estimated Running Costs (based on UK average electricity rate of £0.25/kWh):

Daily Run Time	Daily Cost	Monthly Cost	Annual Cost (6-month season)
4 hours/day	£0.55	£16.50	£99.00
6 hours/day	£0.83	£24.75	£148.50
8 hours/day	£1.10	£33.00	£198.00
12 hours/day	£1.65	£49.50	£297.00

💡 Energy Saving Tips:

• Run the pump during off-peak hours if you have a time-of-use tariff
• Install a timer to automate optimal run times
• Reduce run time during periods of low pool usage
• Keep the strainer basket clean to maintain efficiency
• Ensure proper sizing for your pool to avoid over-circulation

🔧 Installation Requirements

Electrical Requirements

⚡ Critical Safety Information:

• Voltage: 220-240V single phase AC
• RCD Protection Required: 30mA maximum rated residual current device (GFCI)
• Dedicated Circuit: Must be on a separate circuit (no other appliances)
• Professional Installation: Electrical connection must be performed by a qualified electrician
• Grounding: Motor must be permanently grounded
• Power Cord: 1.5m (5 feet) supplied cord

Voltage Tolerance: The pump motor must receive voltage within 6% above or 10% below the nameplate rating, or it may overheat, causing thermal overload tripping and reduced component life.

Placement & Positioning

Minimum Clearances:

• ⚠️ 1.5 metres (5 feet) minimum distance from pool interior walls
• Adequate ventilation space around motor housing
• Level, solid foundation to prevent flooding
• Protected location (avoid direct sunlight and rain)
• Accessible for routine maintenance

Plumbing Recommendations:

• Use 50mm (2-inch) or larger suction piping
• Keep suction line as short and direct as possible
• Maintain continuous downward slope to prevent air pockets
• Ensure all suction connections are airtight
• Install a non-return valve after the pump (strongly recommended)
• Independently support pipes near pump to reduce strain
• Size all piping adequately and minimize elbows

Maximum Suction Lift: This pump can handle a maximum suction lift of 1.8 metres (6 feet) from water surface to pump inlet.

🔇 Noise Specifications

Ultra-Quiet Mono-Block Design

The FreeFlo’s integrated mono-block construction significantly reduces operational noise compared to traditional two-piece pump designs.

What to Expect:

• ✅ Significantly quieter than standard pool pumps
• ✅ Minimal vibration transfer to surrounding structures
• ✅ Suitable for noise-sensitive residential areas
• ✅ Won’t disturb outdoor relaxation or nearby neighbours

💡 While specific decibel ratings vary by installation conditions, users consistently report the FreeFlo as one of the quietest pumps in its class, making it ideal for gardens, patios, and residential settings.

🛠 Maintenance & Care

Routine Maintenance Schedule

Weekly:

• ✓ Visual inspection of strainer basket through transparent lid
• ✓ Check for leaves, debris, and foreign objects
• ✓ Monitor water flow and system pressure

As Needed (typically every 1-2 weeks):

• ✓ Clean strainer basket
• ✓ Check and clean filter system
• ✓ Inspect for leaks around unions and seals

Monthly:

• ✓ Lubricate O-rings with silicone-based lubricant
• ✓ Check motor ventilation openings for blockages
• ✓ Verify all union connections are secure

Annually:

• ✓ Professional service inspection
• ✓ Replace O-rings and seals as needed
• ✓ Check motor electrical connections

Cleaning the Strainer Basket

A dirty strainer basket reduces pump efficiency and can cause motor stress. Clean regularly:

1. Turn off motor and relieve system pressure
2. Turn strainer pot lid counter-clockwise to open
3. Remove and empty basket into trash
4. Rinse basket thoroughly
5. Check for cracks (replace if damaged)
6. Refill strainer pot and volute with water
7. Clean O-ring and apply silicone lubricant
8. Replace lid and turn clockwise until handle locks (hand tight only)
9. Open filter air relief valve
10. Restart pump and bleed air from system

❄️ Winterization & Frost Protection

⚠️ CRITICAL: Freeze damage is NOT covered under warranty.

If temperatures drop below 2°C (35°F), follow these winterization steps:

1. Shut off electrical power at the circuit breaker
2. Remove drain plugs (two thumb-twist plugs on housing, one on strainer pot)
3. Remove O-rings and store with plugs in pump basket
4. Drain all water from pump body and strainer
5. Cover motor with breathable cover (protect from rain, snow, ice)
6. Never wrap motor in plastic (causes condensation and rust)
7. Store drain plugs and O-rings in strainer basket for spring

Spring Start-Up:

• Reinstall all drain plugs and O-rings
• Follow normal priming procedure
• Check all seals before starting

🚨 Safety Information

Suction Entrapment Prevention

⚠️ WARNING: This pump produces high suction levels that can cause serious injury or death.

CRITICAL SAFETY REQUIREMENTS:

• ✓ Use minimum of two drains per pump in pools and spas
• ✓ Install properly certified anti-entrapment drain covers
• ✓ Space drain covers at least 1 metre apart
• ✓ Regularly inspect drain covers for cracks or damage
• ✓ Immediately close pool if drain cover is loose, cracked, or missing
• ✓ Install a Safety Vacuum Release System (SVRS) or automatic shut-off
• ✓ Mark the emergency shut-off switch location clearly
• ✓ Never allow use of pool with missing or damaged drain covers

Electrical Safety

⚡ DANGER: Risk of electrical shock or electrocution.

• ✓ Always disconnect power at circuit breaker before servicing
• ✓ Never use extension cords
• ✓ Install RCD (30mA maximum) protection
• ✓ Keep motor dry and protected from moisture
• ✓ Have qualified electrician inspect if motor gets wet
• ✓ Never operate if motor has been flooded

Pressure Hazard

Stand clear during start-up. Pool circulation systems operate under high pressure. Pressurized air can cause violent separation of pump components, causing severe injury or death.

ALWAYS:

• ✓ Fully open air relief valve before starting
• ✓ Stand clear of all equipment during start-up
• ✓ Ensure all valves are in open position
• ✓ Bleed air completely before closing relief valve

📄 Downloads & Technical Documentation

Complete Installation & Owner Manuals:

📄 FreeFlo Pump Installation Manual (opens in new tab) Complete 32-page installation guide covering safety warnings, electrical requirements, installation procedures, operation instructions, maintenance schedules, troubleshooting, and winterization procedures. Available in English, German, Dutch, French, Spanish, and Italian.

📄 FreeFlo Pump Technical Datasheet (opens in new tab) Comprehensive technical specifications, performance curves, dimensional drawings, model comparison chart, and complete FreeFlo range overview. Includes detailed performance graphs for all FreeFlo models from 0.25kW to 1.1kW.

💡 What’s Inside the Manual:

• Full safety and installation instructions (multiple languages)
• Wiring diagrams and electrical specifications
• Plumbing layout recommendations
• Step-by-step priming and start-up procedures
• Detailed maintenance schedules
• Winterization and frost protection procedures
• Complete troubleshooting guide
• Spare parts illustrations
• 3-year warranty information

🔍 Troubleshooting Common Issues

Pump Won’t Prime (Too Much Air)

Possible Causes & Solutions:

• ✓ Check suction piping for air leaks
• ✓ Inspect valve glands on suction gate valves
• ✓ Ensure strainer pot lid O-ring is properly seated
• ✓ Check union O-ring is intact and in place
• ✓ Verify diffuser nose O-ring is intact
• ✓ Check water level (skimmer may be drawing air)

Pump Won’t Prime (Insufficient Water)

Possible Causes & Solutions:

• ✓ Fill strainer pot and volute completely with water
• ✓ Ensure suction valve is open and functioning
• ✓ Check water level covers skimmer opening
• ✓ Verify no blockages in suction line

Reduced Flow or Pressure

Possible Causes & Solutions:

• ✓ Clean clogged strainer basket
• ✓ Check for debris in impeller
• ✓ Inspect for air pockets or leaks in suction line
• ✓ Clean or backwash filter
• ✓ Check for closed or partially closed valves

Motor Won’t Start

Possible Causes & Solutions:

• ✓ Check power supply and circuit breaker
• ✓ Verify RCD hasn’t tripped
• ✓ Inspect for correct voltage supply
• ✓ Check thermal overload hasn’t tripped (allow to cool)

For persistent issues, consult the full troubleshooting section in the installation manual or contact a qualified pool service professional.

❓ Frequently Asked Questions

Q: What size pool is this pump suitable for? A: The FreeFlo 0.75HP is ideal for above-ground pools up to 40,000 litres and small in-ground pools up to 50,000 litres. It’s also perfect for hot tubs, spas, and plunge pools.

Q: Is this pump really quieter than standard pool pumps? A: Yes! The mono-block design significantly reduces vibration and noise compared to traditional two-piece pumps. Users report it’s one of the quietest pumps available in this power range.

Q: Can I install this pump myself? A: While plumbing connections are straightforward for DIYers, electrical connections must be performed by a qualified electrician to ensure safety and code compliance. The pump also requires RCD protection.

Q: Will this replace my old Swimmey pump? A: Absolutely! The FreeFlo is specifically designed as a direct drop-in replacement for Swimmey Pump series models, meaning no re-plumbing is required.

Q: How often should I clean the strainer basket? A: Inspect weekly through the transparent lid. Clean when you notice debris accumulation or reduced flow. Frequency depends on pool usage and surrounding vegetation—typically every 1-2 weeks during swimming season.

Q: What’s the difference between 0.75HP and 0.55kW? A: These refer to the same motor power expressed in different units. 0.75HP (horsepower) is the imperial measurement, while 0.55kW (kilowatts) is the metric equivalent. It’s the same pump.

Q: How long should I run the pump each day? A: For optimal water quality, run the pump long enough to turn over your entire pool volume at least once daily. For most pools in this range, 6-8 hours per day is sufficient. Adjust based on pool usage, weather, and water clarity.

Q: Does this pump work with saltwater chlorinator systems? A: Yes, the FreeFlo is compatible with saltwater chlorination systems. The composite body and quality seals withstand salt exposure.

Q: What maintenance does the pump require? A: Regular maintenance is simple: clean the strainer basket as needed, lubricate O-rings with silicone lubricant, and check for leaks. See the full maintenance schedule above for details.

Q: Is the pump covered by warranty? A: Yes, Pentair provides a 3-year limited warranty on the FreeFlo pump. Refer to the installation manual for complete warranty terms and conditions.

Q: Can this pump handle chemicals and chlorine? A: Yes, the FreeFlo is designed for use with all standard pool chemicals. The thick-walled composite body and quality seals resist chemical degradation.

Q: Will this pump work with my existing filter? A: The FreeFlo uses standard 50mm (2-inch) connections and works with most pool filters. Ensure your filter is appropriately sized for the pump’s flow rate.

✅ Why Choose the Pentair FreeFlo 0.75HP Pump?

Proven Pentair Engineering

Pentair has been the global leader in pool equipment for decades. The FreeFlo pump embodies their commitment to quality, innovation, and customer satisfaction.

Key Advantages:

🔇 Quietest in Class – Mono-block design for peaceful operation 💪 Built to Last – Heavy-duty construction and IP55 motor protection 💡 Easy Maintenance – Transparent lid and large basket 🔄 Direct Replacement – Swimmey pump compatibility saves installation costs ⚡ Energy Efficient – 0.55kW motor reduces running costs 🛡️ 3-Year Warranty – Protected by Pentair’s comprehensive warranty 🌍 European Quality – Designed and tested to EN standards

Perfect for UK Pool Owners

• ✓ Single phase 230-240V UK standard voltage
• ✓ 50Hz frequency for UK power supply
• ✓ Meets all UK electrical and safety standards
• ✓ Suitable for British weather conditions
• ✓ Proven reliability in UK installations

📦 What’s Included

• ✓ Pentair FreeFlo 0.75HP pump unit
• ✓ Pre-installed strainer basket
• ✓ 50mm swivel union fittings
• ✓ Drain plugs and O-rings
• ✓ 1.5m power cord (UK plug)
• ✓ Installation and owner’s manual
• ✓ 3-year limited warranty documentation

Not Included (sold separately):

• Plumbing fittings and unions
• Electrical RCD protection device
• Timer or automation controller
• Non-return valve (highly recommended)

🌟 Customer Benefits Summary

Choose the Pentair FreeFlo 0.75HP for:

Benefit	Why It Matters
Quiet Operation	Enjoy your garden without pump noise disturbance
Energy Efficiency	Lower electricity bills with 0.55kW consumption
Easy Inspection	Transparent lid shows basket condition at a glance
Quick Maintenance	Large basket holds more debris, clean less often
Reliable Performance	IP55 motor withstands UK weather conditions
Simple Upgrade	Direct Swimmey replacement saves installation costs
Peace of Mind	3-year Pentair warranty backs your investment
Compact Footprint	Fits in tight equipment spaces
Flexible Installation	Rotatable discharge and swivel unions
Professional Quality	Pentair engineering trusted worldwide

📞 Need Help Choosing?

Still unsure if this pump is right for your pool? Consider these factors:

✅ Choose this pump if:

• Your pool volume is 15,000-50,000 litres
• You have an above-ground or small in-ground pool
• You need to replace a Swimmey pump
• Quiet operation is important
• You want proven Pentair reliability

❌ Consider a different model if:

• Your pool exceeds 50,000 litres (consider the 1.1kW FreeFlo)
• You need a 3-phase industrial pump
• You require very high flow rates
• You have a commercial installation

🛒 Complete Your Pool System

Recommended Accessories (sold separately):

• Pool Timer – Automate pump operation for efficiency
• Non-Return Valve – Prevents backflow and impeller unwinding
• Pressure Gauge – Monitor system pressure for filter cleaning
• Unions & Fittings – Quality plumbing connections
• Filter System – Pair with appropriate sand, cartridge, or DE filter
• Heater/Heat Pump – Compatible with pool heating systems

🏆 Pentair Quality Guarantee

As part of the Pentair family of products, the FreeFlo pump is backed by:

• ✓ Global leader in pool and water technology
• ✓ Decades of innovation and engineering excellence
• ✓ Rigorous testing to EN safety standards
• ✓ 3-year limited warranty on materials and workmanship
• ✓ Worldwide support network
• ✓ Genuine spare parts availability
• ✓ Comprehensive documentation in multiple languages

📋 Technical Compliance & Standards

Meets/Exceeds:

• ✓ EN60335-1 (Household electrical appliances – Safety)
• ✓ EN60335-2-41 (Particular requirements for pumps)
• ✓ EU Directive 2006/42/EC (Machinery Directive)
• ✓ IP55 motor protection rating
• ✓ CE marked for European conformity
• ✓ RoHS compliant

🎯 Perfect Pool Water Made Simple

The Pentair FreeFlo 0.75HP pump is your reliable partner for crystal-clear pool water. Whether you’re upgrading an old Swimmey pump or building a new pool system, this quiet, efficient, and durable pump delivers the performance you need at a price that makes sense.

Key Takeaways:

• 🔇 Ultra-quiet mono-block design won’t disturb your peace
• 💪 Heavy-duty construction for years of reliable service
• 💡 Easy maintenance with transparent lid and large basket
• ⚡ Energy-efficient 0.55kW motor reduces running costs
• 🛡️ Protected by Pentair’s 3-year limited warranty
• 🔄 Direct drop-in Swimmey pump replacement

Order your Pentair FreeFlo 0.75HP pump today and experience the difference that professional-quality equipment makes in maintaining a beautiful, inviting pool all season long.
