Balboa GS100 2.0kW Control Pack with TS-VL201 Topside: Elevate Your Hot Tub Experience

Product Overview

As an experienced hot tub enthusiast and parts supplier, I’m excited to introduce you to the Balboa GS100 2.0kW Control Pack paired with the TS-VL201 topside control. This powerful combination is designed to breathe new life into your hot tub, offering a perfect blend of performance, reliability, and user-friendly operation.

Why Choose the Balboa GS100 2.0kW Control Pack?

The Balboa GS100 is the heart of your hot tub’s operation. Its sleek black design isn’t just about looks – it’s a testament to Balboa’s commitment to constant innovation. This control pack is ideal for those looking to upgrade their existing system or for new installations requiring a dependable, efficient control solution.

Key Features:

1. Efficient Heating: The included 2.0kW heater ensures your hot tub reaches and maintains the perfect temperature quickly and efficiently.
2. Dual Speed Pump Control: Manage your pump’s performance with precision, balancing power and energy efficiency.
3. M7 Technology: Advanced sensors within the control box eliminate the need for external sensors and flow switches, simplifying installation and maintenance.
4. Versatile Compatibility: Designed to work seamlessly with a wide range of hot tub setups, making it perfect for retrofits and upgrades.
5. Compact Design: With its space-saving dimensions, it’s an ideal fit for various hot tub configurations.

TS-VL201 Topside Control: Your Gateway to Relaxation

The included Balboa Mini Oval LCD 3 Button topside control puts the power of your hot tub at your fingertips. Its intuitive interface allows for easy adjustment of jets, temperature, and lighting, ensuring your hot tub experience is always just how you like it.

Installation and Compatibility

While this control pack is designed for easy installation, I always recommend consulting with a qualified electrician to ensure proper setup, especially when it comes to electrical connections. The system’s versatility shines through its compatibility with 1.5-inch socket heater union sleeves and plug-on amp cables for component operation.

Specifications Table

Documentation

• cutout template
• VL series
• Balboa GS100 tech sheet
• gs100 operation guide
• heater element

What’s Included in the Pack

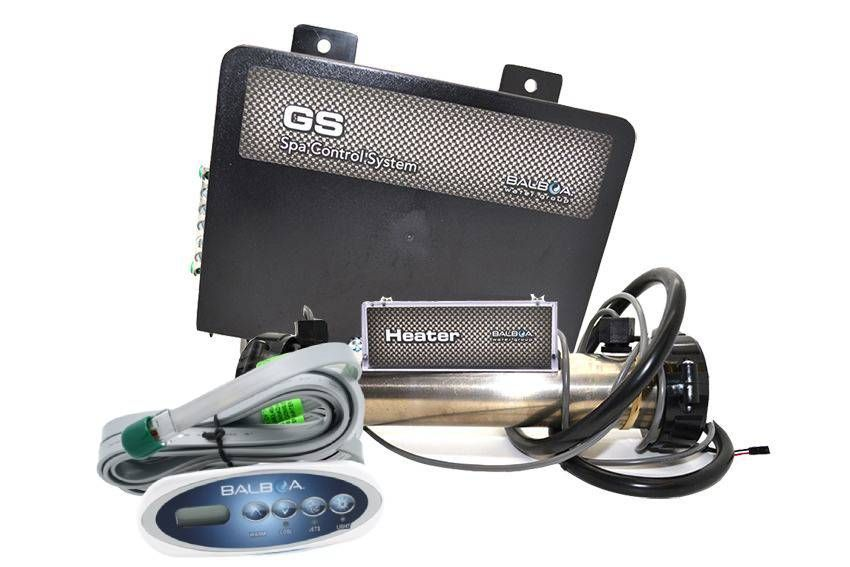

• 1 x Balboa GS100 Control System (new style, black)
• 1 x Balboa Mini Oval LCD 3 Button Topside Control
• 1 x Balboa 2.0KW Heater M7 (Specifically for new GS100)

Perfect for Entry-Level Systems

With its 2.0kW heating capacity, this system is an excellent choice for entry-level setups or for those looking to optimize their energy usage. The heater draws only around 8.5 amps, potentially allowing for operation from a standard domestic 13amp supply when properly configured.

Alternative Part Numbers

Balboa 2 kW : 58350
Balboa 3 kW : 58351
Wellis 3 kW : ACM0713
Dream Maker Spas : 405011

A Note on Installation

While this control pack is designed for straightforward integration, please remember that proper installation is crucial for both safety and optimal performance. Always consult with a qualified electrician before proceeding with any electrical work or system upgrades.

Cables and Additional Components

Please note that connecting cables are not included with this package. This allows you the flexibility to choose the appropriate cable lengths for your specific setup, ensuring a clean and efficient installation.

By choosing the Balboa GS100 2.0kW Control Pack with TS-VL201 topside, you’re investing in a reliable, efficient, and user-friendly solution for your hot tub. It’s the perfect way to enhance your relaxation experience and ensure your hot tub runs smoothly for years to come.

Hot Tub Wiring – Configuring a Balboa BP7 Spa Control 4.0kW Spa Pack

If you are using a basic setup, and by basic I mean a regular dual speed hot tub pump with a single speed blower, out of the box, your Balboa pack is likely to work without any additional configuration. However, if you are not using a separate circulation pump, the chances are you will need to “configure” the pack using the details below.

On the underside of the Spa Pack covers, you will see a circuit diagram that looks something like this.

Firstly, you need to work through the setup table at the bottom on the left hand side and work out which setup number you need. For example, a 2 speed pump and a single speed blower will need setup #12.

Next, you need to change the DIP switch settings to match your setup. Once you have the right combination of DIP switches, using the topside control you should do the following to change the pack’s setup mode to #12.

To go into the low levels follow the following steps please.

1. Turn tub off.
2. DIP switch 1 move to ON.
3. Turn tub on
4. On the top side control, Press “WARM” twice
5. Press “LIGHT”
6. Press “WARM”
7. Then use “WARM” to move down to the low levels until you get on the set up number you need.
8. Turn off tub
9. DIP switch one back to OFF
10. Turn on tub

Getting the right setup and config is important for the pack to function correctly and the buttons on the top side to do what you expect them to.

Balboa DIP Switches Explained

Most of the Balboa Spa Packs have a set of DIP switches that can seem a little confusing in the setup. In the most basic form, you are telling the Spa Pack how many pumps or blowers you have connected and how many it should allow to run before it turns off the heater (or let them all run at once). The reason for this is if you are limiting the amount of current the pack can draw. You are also telling the pack wither you need additional cool down times if you are using an gas/propane/ASHP additional heater. This to stop the kettling effect you can get in the heaters.

Check the circuit diagram that is on the inside of your Balboa pack and do not just copy the settings I explain below as they may be in a different order. The “logic” behind them is the same so just check what each of the DIP switches says it does.

Fixed-fuction DIP Switches

A1 Test Mode (normally Off).

A2 In “ON” position, add one high-speed pump (or blower) with Heater. (If you have 1 pump and NO blower use this)

A3 In “ON” position, add two high-speed pumps (or 1 HS Pump and Blower) with Heater. (If you have a pump and a blower use this)

A4 In “ON” position, add four high-speed pumps (or 3 HS Pumps and Blower) with Heater. (If you have two or three pumps and a blower use this)

You should only enable one of the A2, A3 or A4. You can use them in combinations, but it is easier just to use one.

A5 In “ON” position, enables Special Amperage Rule B.  In “OFF” position, enables Special Amperage Rule A.

Special Amperage Rule A No Limitation (if you are not sure, set it to this. Worst case, your electric will trip if you don’t have enough current available)

Special Amperage Rule B 2 High Speed Pump Maximum, in Setups 1 – 9 1 High Speed Pump Maximum, and also Blower turns off with 1 High Speed Pump, in Setups 10 – 18 (avoid this if you can)

A6 Persistent memory reset (Used when the spa is powering up to restore factory settings as determined by software configuration).

A2, A3, and A4 work in combination to determine the number of high-speed devices and blowers that can run before the heat is disabled. i.e. A2 and A3 in the ON position and A4 in the OFF position will allow the heater to operate with up to 3 high‑speed pumps (or two HS Pumps and Blower) running at the same time. Heat is disabled when the fourth high-speed pump or blower is turned on.

Note: A2/A3/A4 all off = No heat with any high-speed pump or blower.

Assignable DIP Switches

A7 In “ON” position, enables a 5-minute cooldown for some gas heaters (Cooling Time B). In “OFF” position, enables a 1-minute cooldown for electric heaters (Cooling Time A).
