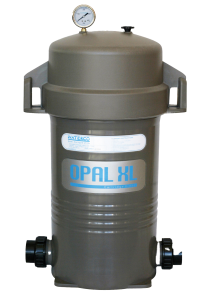

Opal XL Cartridge Filter 270 – Superior Filtration for Your Hot Tub

Introduction

As a retailer of hot tub spare parts, I’m excited to introduce you to the Opal XL Cartridge Filter 270. This high-capacity filter is designed to provide exceptional water clarity while minimizing maintenance for your hot tub or spa. With its impressive 270 ft² filtration area, it’s an excellent choice for those seeking powerful and efficient water filtration.

Key Features

Massive Filter Cartridge

The Opal XL 270 houses an extra-large 270 ft² pleated filter cartridge, maximizing dirt-holding capacity and significantly reducing the frequency of filter cleanings.

Durable Construction

Constructed from high-impact polypropylene, this filter is built to withstand the demands of regular hot tub use and harsh environments.

User-Friendly Maintenance

The screw-down lid design requires no clamps or tools, allowing for quick and easy cartridge removal and replacement.

Optimized Flow

Equipped with 2″ / 63mm inlet and outlet ports, the Opal XL 270 ensures maximum flow and minimal back pressure, enhancing overall system efficiency.

Technical Specifications

Feature	Specification
Model	OP270
Filter Area	270 ft²
Construction Material	High-impact polypropylene
Inlet/Outlet Size	2″ / 63mm
Maximum Operating Pressure	350 kPa (50.8 psi)

Installation Guidelines

1. Position the filter on a flat, level surface, aligning it with your pump.
2. Use Teflon tape on the pressure gauge thread before installation for a proper seal.
3. Connect the pump outlet to the filter’s clearly marked inlet port.
4. Use the supplied half barrel unions and tails for inlet and outlet connections.
5. Allow glue on PVC pipe connections to set for 24 hours before system commissioning.
6. Consider bolting the filter to the floor to prevent movement during operation.

Maintenance Procedures

1. Monitor the pressure gauge regularly. Clean the filter when pressure increases by 50 kPa above the normal operating pressure.
2. To clean, remove the cartridge and thoroughly rinse with a garden hose, ensuring to clean between the pleats.
3. For deep cleaning, soak the cartridge overnight in a suitable cartridge cleaning compound.
4. Replace the cartridge if cleaning doesn’t restore proper function.
5. Clean the filter at least once every 12 months, regardless of use.

Benefits of the Opal XL 270

1. Exceptional Water Quality: The large filter area captures more debris, resulting in crystal-clear water.
2. Reduced Maintenance: Extended periods between cleanings save you time and effort.
3. Water Conservation: Less frequent cleaning means significant water savings over time.
4. Energy Efficiency: Optimized flow design reduces pump strain and energy consumption.
5. Durability: High-quality construction ensures a long service life.
6. Versatility: Ideal for both hot tubs and small to medium-sized pools.

Troubleshooting Tips

If you encounter issues such as unclear water or low flow:

• Check and clean strainer baskets
• Inspect for air leaks on the suction side
• Ensure proper chemical balance in the water
• Verify pump operation and flow rate
• Clean or replace the filter cartridge if necessary

Conclusion

The Opal XL Cartridge Filter 270 offers an unparalleled combination of filtration capacity and user-friendly design. Its massive 270 ft² filter area, durable construction, and easy maintenance make it an ideal choice for hot tub owners seeking superior water quality with minimal effort. Upgrade your filtration system today and enjoy exceptionally clean, clear water with the convenience of reduced maintenance
