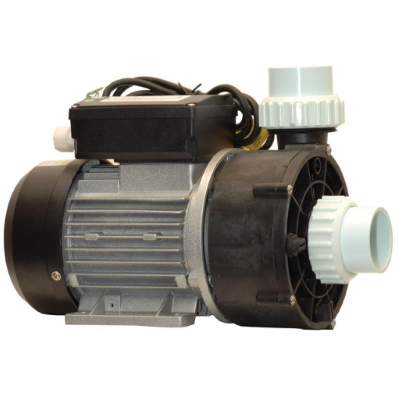

💡 LX WTC50M Superior Spec Circulation Pump – 0.33 HP Quiet Operation

Whisper-Quiet 24-Hour Filtration – Superior Wellness OEM Specification

♨️ Product Overview

The LX WTC50M Superior Spec is a whisper-quiet 0.33 HP single-speed circulation pump specifically designed for continuous operation in hot tubs and spas. Its low-speed, quiet performance makes it perfectly suited for 24-hour filtration systems where silent background operation is essential.

‘Superior Spa Spec’ means this circulation pump has no air switch fitted inside, making it ideal for spas controlled by electronic control systems that don’t require manual air switch operation. This is the OEM specification used in Superior Wellness hot tubs.

Delivering 0.25 kW of efficient circulation power whilst drawing only 1 amp, the WTC50M runs at a quiet 1,400 RPM – significantly slower than standard circulation pumps – providing excellent water movement with minimal noise. With a maximum flow rate of 240 L/min and 3.8-metre head pressure, this compact unit ensures effective filtration circulation without disturbing spa users.

Featuring a centre suction design with self-draining capability, this pump automatically drains when the motor shuts off, protecting both the pump and your system from potential damage. The thermally protected motor with 7µF capacitor ensures reliable, long-lasting continuous operation.

✨ Key Features

✅ 0.33 HP Motor Power – Delivers 0.25 kW of efficient circulation power

✅ Whisper-Quiet 1,400 RPM – Low-speed motor for silent 24-hour operation

✅ Ultra-Low Power Consumption – Only 1 amp draw for economical continuous running

✅ No Air Switch – Superior Spec version for electronic control systems

✅ High Flow Rate – 240 L/min maximum flow for effective filtration

✅ Centre Suction Design – Self-draining capability protects system

✅ Compact Dimensions – Space-saving 290 × 160 × 200 mm footprint

✅ 1.5″ Plumbing Connections – Universal suction and discharge ports

✅ Thermal Motor Protection – Built-in protection for continuous duty

✅ 7µF Capacitor – Ensures reliable motor starting

✅ Superior Wellness OEM – Original equipment specification

🔧 Technical Specifications

Specification	Value
Pump Type	Circulation Pump
Motor Power	0.33 HP / 0.25 kW
Speed Settings	Single Speed
Flow Rate (Maximum)	240 L/min
Maximum Head	3.8 m
Amperage	1.0 A
Motor Speed	1,400 RPM
Wet End Configuration	1.5 inch Centre Suction
Discharge Port	1.5 inch
Suction Port	1.5 inch
Port Position	Centre Suction
Dimensions (L × W × H)	290 × 160 × 200 mm
Capacitor	7 µF
Air Switch	No (Superior Spec)
Thermal Protection	Built-in
OEM	Superior Wellness

⚡ Electrical Requirements

Electrical Specification	Requirement
Full Load Amperage	1.0 A
Motor Power	0.25 kW
Capacitor Rating	7 µF
Motor Protection	Thermally protected

⚠️ IMPORTANT ELECTRICAL SAFETY NOTICE:

All electrical work must be carried out by a qualified electrician in accordance with UK wiring regulations (BS 7671). Hot tubs and spas require RCD protection (30mA) for safety. Never attempt electrical installation yourself unless you are a qualified professional. Incorrect installation may invalidate warranty and poses serious safety risks.

🔗 Compatibility Guide

Plumbing Specifications

Connection	Size
Suction Port	1.5 inch
Discharge Port	1.5 inch
Wet End Style	Centre Suction

This Pump Features:

📍 Wet End: 1.5 inch centre suction
📍 Discharge: 1.5 inch
📍 Suction: 1.5 inch
📍 Design: Self-draining capability
📍 Air Switch: None (Superior Spec)

OEM Compatibility:

✅ Superior Wellness hot tubs (original equipment)
✅ Spas with electronic control systems (no air switch required)

Important Note:

⚠️ This is the “Superior Spec” version with NO air switch fitted inside. If your spa requires an internal air switch for manual operation, you will need a different pump model. This version is designed for spas controlled by electronic PCBs.

🛠️ Installation Requirements

Mounting Specifications

Requirement	Specification
Mounting Position	Horizontal
Base	Solid, level, vibration-dampening surface
Ventilation	Adequate clearance for motor cooling
Access	Sufficient space for maintenance

Plumbing Connections

Connection	Size
Suction	1.5 inch
Discharge	1.5 inch

Installation Notes

⚠️ This pump has NO air switch – ensure your spa control system can operate without one

⚠️ Centre suction design – note the plumbing orientation

⚠️ Pump must be installed below water level (flooded suction) to ensure proper priming

⚠️ Never run the pump dry – this causes seal damage and potential motor failure

⚠️ Ensure proper electrical bonding to earth in accordance with BS 7671

⚠️ Centre suction design allows self-draining when motor is switched off

---

🔧 Maintenance Guide

Routine Maintenance Schedule

Task	Frequency	Notes
Check for leaks	Monthly	Inspect around seal and union connections
Inspect unions	Monthly	Tighten if necessary
Clean strainer/filter	As needed	Remove debris to maintain flow rate
Check amperage draw	Annually	Should match 1.0A rating
Inspect motor vents	Quarterly	Keep clear of debris
Check mounting bolts	Quarterly	Tighten if loose
Listen for noise changes	Ongoing	Quiet pump should remain quiet

Warning Signs – Replace Pump If:

⚠️ Unusual noise from previously quiet pump
⚠️ Water leaking from the seal area
⚠️ Motor trips the circuit breaker repeatedly
⚠️ Significantly reduced water flow
⚠️ Motor overheating or shutting down on thermal protection

---

🛁 Ideal Applications

Application	Suitability	Notes
♨️ 24-Hour Filtration	Excellent	Designed for continuous quiet operation
♨️ Spa Circulation	Excellent	240 L/min for effective water movement
♨️ Heater Circulation	Good	Maintains water flow through heater
♨️ Superior Wellness Spas	Excellent	OEM replacement specification

---

❓ Frequently Asked Questions

Q: What horsepower is the LX WTC50M pump?

A: The LX WTC50M is a 0.33 HP (0.25 kW) circulation pump with a quiet single-speed motor running at just 1,400 RPM.

Q: Why does this pump have no air switch?

A: This is the “Superior Spec” version designed for spas controlled by electronic control systems (PCBs) that don’t require manual air switch operation. It’s the OEM specification for Superior Wellness hot tubs.

Q: Is this pump really quiet?

A: Yes, the WTC50M runs at only 1,400 RPM – significantly slower than standard circulation pumps that typically run at 2,900 RPM. This low-speed operation makes it ideal for 24-hour filtration systems where quiet background operation is essential.

Q: What is the amperage draw?

A: The WTC50M draws only 1 amp, making it highly economical for continuous 24-hour operation.

Q: What is the maximum flow rate?

A: The WTC50M delivers a maximum flow rate of 240 litres per minute with a maximum head of 3.8 metres.

Q: What size are the plumbing connections?

A: Both suction and discharge ports are 1.5 inches. The pump features a centre suction configuration with self-draining capability.

Q: Is this pump self-draining?

A: Yes, the centre suction design allows the pump to self-drain when the motor is switched off, protecting the system from potential damage.

Q: Can I use this to replace a pump with an air switch?

A: Only if your spa control system can operate without an air switch. If you need manual air switch control, you’ll need a different pump model with an internal air switch.

Q: What is the difference between WTC50M and WTC100?

A: The WTC50M is a quieter, lower-power pump (0.33 HP, 1A, 1,400 RPM) designed for continuous circulation, whilst the WTC100 is more powerful (1.0 HP, 3.8A) for higher flow requirements. The WTC50M also has no air switch (Superior Spec).

🏆 Why Choose the LX WTC50M Superior Spec

✅ Whisper-Quiet Operation – 1,400 RPM for silent 24-hour running

✅ Ultra Energy Efficient – Only 1A for economical continuous operation

✅ High Flow Performance – 240 L/min with 3.8m head pressure

✅ Superior Wellness OEM – Original equipment specification

✅ Centre Suction Design – Self-draining capability

✅ Compact Dimensions – 290 × 160 × 200 mm fits tight spaces

✅ Thermally Protected – Built-in motor protection with 7µF capacitor

✅ No Air Switch – Ideal for electronic control systems

🤝 Why Buy From Parts4Tubs

✅ UK-Based Company – Local support from knowledgeable spa specialists

✅ Fast UK Delivery – Quick despatch to get your spa running again

✅ Expert Advice – Our team can help with compatibility questions

✅ Competitive Pricing – Trade-quality parts at fair prices

✅ Full Warranty Support – Comprehensive warranty backing

✅ Easy Returns – Hassle-free returns within 30 days if unused

✅ Replacement Parts Available – Seals, capacitors, and spares in stock

⭐ Summary

The LX WTC50M Superior Spec is a whisper-quiet 0.33 HP circulation pump delivering 240 L/min flow rate with 3.8m head pressure, specifically designed for continuous 24-hour filtration in hot tubs and spas. Running at just 1,400 RPM and drawing only 1 amp, it features 1.5-inch plumbing connections, centre suction self-draining design, thermal motor protection with 7µF capacitor, and compact 290 × 160 × 200 mm dimensions. This Superior Spec version has no internal air switch, making it ideal for spas with electronic control systems. OEM specification for Superior Wellness hot tubs. Order from Parts4Tubs for fast UK delivery and expert support.
