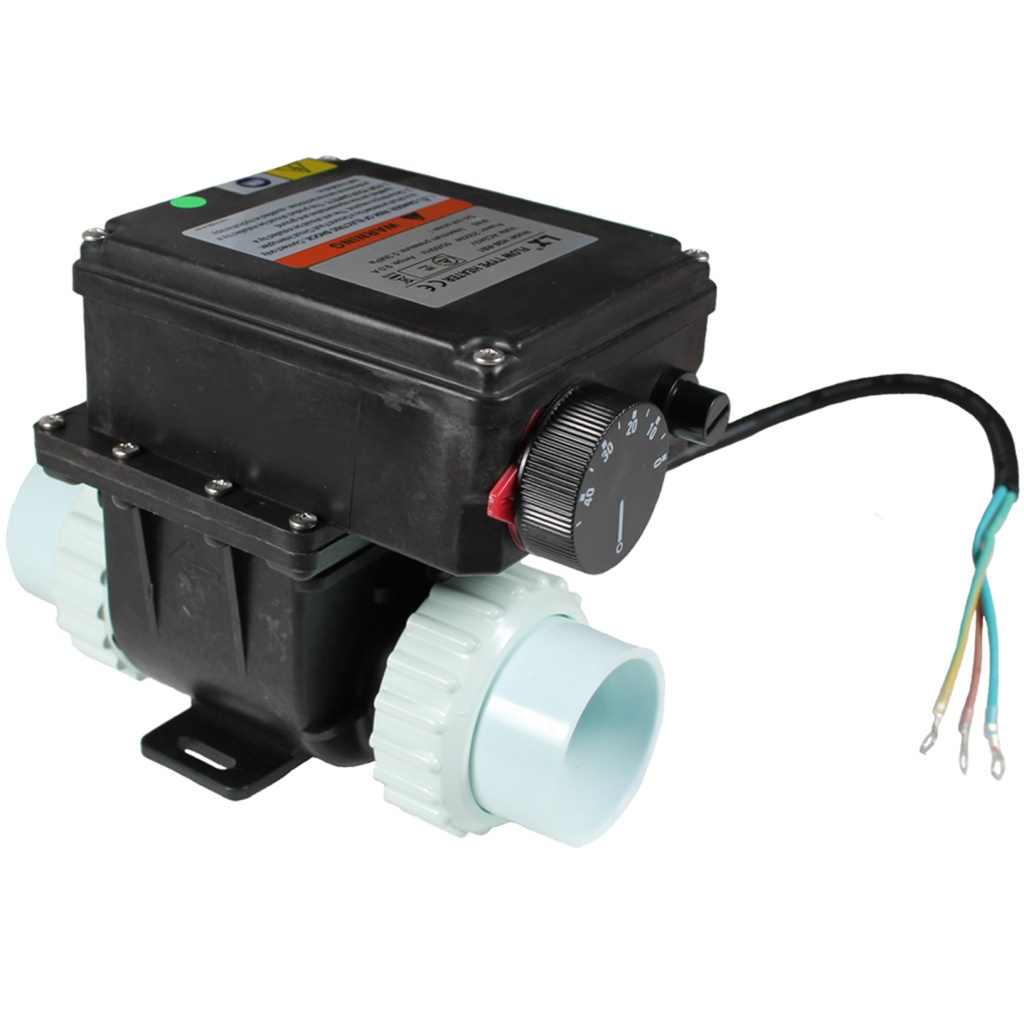

LX H20-RS1 2.0KW Heater: Your Solution for Efficient Hot Tub Heating

Introduction

As a dedicated supplier of hot tub spare parts, I’m excited to introduce you to the LX H20-RS1 2.0KW heater with thermoregulator. This high-quality heating unit is designed to keep your hot tub at the perfect temperature, ensuring a relaxing and comfortable experience every time you step in.

Product Overview

The LX H20-RS1 is a versatile and reliable heater assembly that’s compatible with most Chinese spas and can also be used as a remote heater for custom projects. With its built-in thermoregulator and robust construction, this heater offers precise temperature control and long-lasting performance.

Key Features

• 2.0KW heating power for efficient water heating
• Built-in thermoregulator for precise temperature control
• Compatible with a wide range of hot tubs and spa systems
• Easy installation with 1.5-inch white plastic female socket connections
• IPX5 rated for water resistance
• CE approved for safety and quality assurance

Detailed Specifications

To help you understand the capabilities of the LX H20-RS1 heater, I’ve compiled a comprehensive specifications table:

Specification	Detail
Type of Product	Heater assembly
Manufacturer	LX
Power	2.0KW
Voltage	240VAC
Frequency	50/60 Hz
Current	9.0 Amps
Sensor Compatibility	Built-in sensor
Material	Plastic
Connections	1.5 inch white plastic female sockets
Length	170mm
Diameter	50mm
Between Terminals	120mm
Overall Length	340mm
Safety Features	High-limit thermal cutout built-in
Water Resistance Rating	IPX5
Certifications	CE approved

Installation and Compatibility

The LX H20-RS1 heater is designed for easy integration into your existing hot tub system. It’s compatible with most Chinese spas, often requiring only a minor plumbing adjustment. For those working on custom projects, this unit can serve as an excellent remote heater option.

Plumbing Requirements

To ensure optimal performance, the heater requires proper water flow. The built-in pressure switch operates the unit, so it’s crucial to have sufficient back pressure in your plumbing system. If you’re running the heater with a direct connection to a large outlet without bends, you may need to adjust your setup to create the necessary pressure for proper operation.

Temperature Control

One of the standout features of the LX H20-RS1 is its integrated thermoregulator. Located on the side of the module, this control allows you to easily adjust and maintain your desired water temperature. The built-in sensor works in tandem with the thermoregulator to provide accurate and consistent heating.

Safety Features

Your safety is a top priority, which is why the LX H20-RS1 comes equipped with a high-limit thermal cutout. This essential safety feature prevents overheating, giving you peace of mind while you enjoy your hot tub.

Quality and Durability

The LX H20-RS1 is built to last. Its plastic construction offers excellent durability and resistance to the harsh conditions often found in hot tub environments. The IPX5 water resistance rating ensures that the unit can withstand jets of water from any direction, making it suitable for use in your spa system.

Conclusion

The LX H20-RS1 2.0KW heater with thermoregulator is a reliable, efficient, and versatile heating solution for your hot tub. Its combination of powerful heating capacity, precise temperature control, and robust safety features make it an excellent choice for maintaining the perfect hot tub experience.

Whether you’re replacing an old heater or working on a custom spa project, the LX H20-RS1 is designed to meet your needs. With its easy installation and compatibility with a wide range of systems, you’ll have your hot tub up and running at the ideal temperature in no time.

What is a flow thru hot tub heater?

A flow-through hot tub heater is a vital component designed to efficiently heat the water in your hot tub. Unlike traditional immersion heaters that are immersed directly in the water, a flow-through heater operates by heating the water as it passes through a heating element. This design offers several advantages, making it a popular choice among hot tub owners seeking effective and reliable heating solutions.

At parts4tubs.com, your premier online superstore for all things hot tub-related, including top-quality flow-through heaters, we understand the importance of a well-functioning heater in maintaining the optimal temperature of your hot tub. As a dedicated hot tub design consultant, I'm here to guide you through the process of selecting the right flow-through heater that suits your specific needs.

Flow-through heaters offer rapid heating capabilities, ensuring your hot tub reaches your desired temperature swiftly. Their design minimizes the risk of mineral buildup, which can often plague immersion heaters, thus contributing to their longevity and consistent performance. Furthermore, their efficient operation helps to keep energy costs in check, providing both comfort and cost-effectiveness.

With my expertise as a hot tub design consultant and the wide range of flow-through heaters available at parts4tubs.com, you can confidently choose the perfect heating solution to enhance your hot tub experience. Whether you're a seasoned hot tub enthusiast or a newcomer to the world of relaxation, our selection of flow-through heaters will ensure your hot tub is always ready for your enjoyment.

How does a flow thru hot tub heater work?

A flow-through hot tub heater operates on a simple yet effective principle: it heats the water as it flows through a heating element before returning it to the hot tub. This design ensures that the water is continuously heated to the desired temperature, providing a comfortable and enjoyable soaking experience. Let's delve into how a flow-through heater works:

1. Water Circulation: The hot tub's pump is responsible for circulating water through the heating system. As you turn on the hot tub, the pump draws in water from the tub and sends it through the plumbing system.
2. Heating Element: Inside the flow-through heater, there is a heating element made from materials like stainless steel or titanium. This element is designed to withstand the hot and corrosive environment of the hot tub.
3. Temperature Control: The heating element is connected to a control system that regulates the temperature of the water. You can set the desired temperature on the hot tub's control panel, and the system will maintain that temperature by adjusting the heating element's operation.
4. Water Flow: As the water flows through the heating element, it comes into direct contact with it. The element's electrical resistance generates heat, raising the water temperature.
5. Heat Exchange: The heat generated by the heating element is transferred to the water. This process is highly efficient, ensuring that the water is heated quickly and effectively.
6. Return to the Tub: Once the water has been heated to the desired temperature, it is returned to the hot tub through the jets or other outlets. The continuous circulation of heated water maintains a consistent and comfortable temperature throughout the hot tub.
7. Monitoring and Safety: Flow-through heaters are equipped with safety features to prevent overheating. If the water temperature rises too high or if there's a malfunction, the system will shut off automatically to ensure your safety.

One of the notable benefits of a flow-through heater is its ability to rapidly heat the water. Since the heating element is in direct contact with the flowing water, there is minimal heat loss, leading to efficient and effective heating. Additionally, flow-through heaters are less prone to scale buildup compared to immersion heaters, which can extend the lifespan of the heater and reduce maintenance requirements.

When it comes to finding the right flow-through heater for your hot tub, parts4tubs.com, your trusted online source for hot tub components, offers a variety of options to suit your needs. As a hot tub design consultant, I'm here to assist you in selecting the perfect flow-through heater to enhance your hot tub experience.

What are the advantages of a flow thru hot tub heater?

flow-through hot tub heater, also known as a flow-thru heater, offers several distinct advantages that make it a popular choice for heating hot tubs. Here are some key benefits:

1. Efficiency: Flow-through heaters are known for their high efficiency in heating water. The direct contact between the water and the heating element ensures rapid and effective heat transfer, minimizing energy wastage and reducing heating times. This efficiency translates to lower operating costs over time.
2. Consistent Temperature: Flow-thru heaters provide precise temperature control, maintaining a consistent water temperature throughout your hot tub. This ensures a comfortable and enjoyable soaking experience every time you use your hot tub.
3. Minimal Heat Loss: The design of a flow-through heater minimizes heat loss during the heating process. Since the water flows directly over the heating element, there is little opportunity for heat to dissipate before it reaches the tub. This results in quicker heating and less energy consumption.
4. Reduced Scale Buildup: Flow-through heaters are less susceptible to scale buildup compared to immersion heaters. This is because the flowing water helps prevent mineral deposits from accumulating on the heating element. Reduced scale buildup prolongs the lifespan of the heater and reduces the need for frequent maintenance.
5. Compatibility: Flow-thru heaters are versatile and compatible with various hot tub models and configurations. They can be integrated into most hot tub systems, making them a convenient choice for both new installations and replacements.
6. Reliability: Flow-through heaters are known for their durability and longevity. The heating element is constructed from materials that can withstand the hot and humid conditions of a hot tub environment. This durability ensures a reliable and consistent heating performance over time.
7. Safety: Most flow-thru heaters are equipped with safety features, such as automatic shut-off mechanisms to prevent overheating. These safety measures provide peace of mind while using your hot tub.
8. Ease of Installation and Replacement: Installing or replacing a flow-through heater is often straightforward, especially when compared to more complex heating systems. This makes maintenance and repairs relatively hassle-free.
9. Compact Design: Flow-thru heaters have a compact and space-efficient design, which can be particularly advantageous for hot tubs with limited installation space.
10. Customization: Many flow-thru heaters offer customizable temperature settings, allowing you to adjust the water temperature to your preferences.

Overall, a flow-through hot tub heater offers a combination of efficiency, reliability, and ease of use that makes it a popular choice among hot tub owners. As a leading online supplier of hot tub components, parts4tubs.com is committed to providing a wide range of flow-through heaters and related parts to enhance your hot tub experience.



How do I replace a flow thru hot tub heater?

Replacing a flow-through hot tub heater involves several steps. While the process can vary slightly depending on your specific hot tub model and the heater design, here's a general guide to help you through the replacement process:

1. Safety First: Before you begin, make sure the power to the hot tub is completely turned off. This is crucial to prevent electrical hazards.
2. Gather Tools and Materials: Collect the necessary tools and materials for the replacement, including a screwdriver, wrenches, replacement flow-through heater, gaskets, and any other components specific to your hot tub model.
3. Drain the Hot Tub: Ensure the hot tub is completely drained before proceeding. Follow the manufacturer's instructions for draining your hot tub.
4. Access the Heater Compartment: Locate the heater compartment in your hot tub. This is typically located near the equipment area. Depending on your hot tub model, you may need to remove access panels or covers to reach the heater.
5. Disconnect Electrical Connections: Carefully disconnect the electrical connections from the existing heater. This includes disconnecting any wiring or plugs that are connected to the heater terminals.
6. Disconnect Water Lines: Next, disconnect the water inlet and outlet connections from the heater. You might need to use wrenches to loosen and remove any fittings.
7. Remove the Old Heater: Unscrew or detach any mounting brackets or fasteners securing the old heater to the hot tub. Carefully slide out the old heater from its compartment.
8. Prepare the New Heater: Before installing the new flow-through heater, ensure that it is the correct size and type for your hot tub. If necessary, attach any necessary fittings, gaskets, or adapters to the new heater.
9. Install the New Heater: Carefully slide the new heater into the compartment, aligning it with the mounting brackets or fasteners. Make sure the electrical connections match the appropriate terminals on the new heater.
10. Reconnect Water Lines: Attach the water inlet and outlet connections to the new heater. Use wrenches to tighten the fittings securely, ensuring there are no leaks.
11. Reconnect Electrical Connections: Carefully reconnect the electrical connections, ensuring that the wiring is securely attached and properly connected to the corresponding terminals. Double-check the connections to ensure they are tight and properly insulated.
12. Secure the Heater: Fasten the new heater in place using the provided brackets or fasteners. Make sure it is stable and properly aligned.
13. Test for Leaks: Before filling the hot tub, turn on the power and run the hot tub briefly to check for any water leaks around the new heater connections.
14. Fill and Test: Once you're confident there are no leaks, fill the hot tub with water and test the new heater. Monitor the water temperature to ensure it is heating properly.
15. Replace Access Panels: Once you're satisfied with the heater's performance, replace any access panels or covers that were removed.
16. Final Checks: Perform a final inspection to ensure everything is properly connected, secure, and functioning as expected.
17. Turn on Power: Restore power to the hot tub and set the desired temperature. Your new flow-through heater should now be ready to provide efficient and reliable heating for your hot tub.

What is an alternative to a flow thru hot tub heater?

An alternative to a flow-through hot tub heater is an immersion heater. Immersion heaters are also known as submersible heaters or electric heaters. Unlike flow-through heaters, which heat the water as it passes through a heating element, immersion heaters are placed directly into the hot tub water and heat it from within. Here's a brief overview of immersion heaters and their benefits:

Immersion Heater:

An immersion heater consists of a heating element encased in a protective sheath. The heater is designed to be submerged directly in the hot tub water. When connected to a power source, the heating element heats up, transferring heat to the water and raising its temperature.

Benefits of Immersion Heaters:

1. Ease of Installation: Immersion heaters are relatively easy to install. They do not require complex plumbing connections like flow-through heaters, making them a convenient option for retrofitting or replacing a heater.
2. Cost-Effective: Immersion heaters are often more affordable than flow-through heaters. They have a simpler design and do not require additional plumbing components.
3. Versatility: Immersion heaters can be used in a variety of hot tub sizes and configurations. They are available in different wattages to suit your specific heating needs.
4. Maintenance: Immersion heaters are generally easy to maintain. They can be removed from the water for cleaning and maintenance, and replacement is straightforward if needed.
5. Energy Efficiency: Immersion heaters can be efficient in terms of energy usage, as they directly heat the water without the heat loss associated with some flow-through heaters.

Considerations:

While immersion heaters offer several advantages, there are some factors to consider:

1. Space: Immersion heaters take up space within the hot tub, which could affect seating arrangements or water circulation.
2. Heating Time: Immersion heaters might take longer to heat the entire hot tub compared to flow-through heaters, which can impact your overall heating efficiency.
3. Safety: Proper placement and installation of the immersion heater are crucial to prevent contact with bathers and ensure safe operation.

Ultimately, the choice between a flow-through heater and an immersion heater depends on your specific needs, hot tub setup, and preferences.
