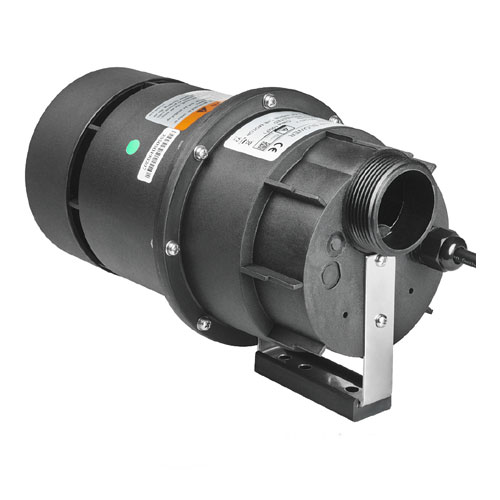

💨 LX AP200-V2 0.25 HP Spa Air Blower – 200W Double Impeller Design

Whisper-quiet, ultra-reliable air blower delivering gentle yet invigorating bubble massage for effortless spa relaxation 🫧

📋 Product Overview

The LX AP200-V2 is a compact, high-performance 200W (0.25 HP) air blower engineered specifically for hot tubs, whirlpool baths, and small spa systems. Featuring LX’s advanced double impeller (V2) design, this blower produces a softer, more comfortable airflow with significantly reduced high-frequency noise compared to single impeller alternatives.

Built with a reinforced, high-temperature resistant ABS housing and powered by a dedicated low-noise excitation motor, the AP200-V2 delivers exceptional durability and consistent performance. The internal thermal protection system safeguards the motor from overheating, whilst the standard 1″ threaded union connection ensures hassle-free installation and replacement compatibility.

Backed by CE, TÜV, 3C, and RoHS certifications, this blower is trusted by spa manufacturers worldwide and represents the perfect balance of performance, reliability, and value for residential spa applications.

⭐ Key Features

• ✅ Double Impeller Design (V2) – Two-stage impeller technology produces softer, more comfortable bubble airflow with dramatically reduced high-frequency noise for a superior massage experience
• ✅ Quiet Operation Under 63 dB – Low-noise excitation motor with optimised airflow dynamics ensures peaceful spa sessions without disruptive noise
• ✅ Dedicated Thermal Protection – VDE/UL approved thermal protector (T.I. USA) with internal fuse (2.0A at 230V) safeguards the motor from overheating and extends operational lifespan
• ✅ Class F Insulation Rating – Premium motor insulation rated for temperatures up to 155°C, ensuring long-term reliability in demanding spa environments
• ✅ High-Quality Carbon Brushes – Imported carbon brush material rated for ≥1,000 hours continuous duty, minimising maintenance requirements
• ✅ Reinforced ABS Housing – High-strength, high-temperature resistant engineering plastic construction withstands the rigours of spa cabinet environments
• ✅ Plug-and-Play Installation – Standard 1″ threaded union (32-33.5mm) and 1.5m cable with AMP-style connector for straightforward replacement and upgrade applications
• ✅ Multi-Certification Compliance – CE, TÜV, 3C, and RoHS certified for peace of mind across European and international markets
• ✅ Compact Lightweight Design – At just 2kg with dimensions of 290 × 155 × 175mm, fits easily within most spa cabinet configurations

🔧 Technical Specifications

Specification	Details
Brand	LX Whirlpool
Model	AP200-V2
Product Type	Spa Air Blower
Motor Power	200W (0.25 HP)
Voltage	220-240V
Frequency	50/60 Hz
Current Draw	1.2A
Maximum Air Pressure	0.8m (0.006 MPa)
Air Volume	0.8 – 1.3 m³/min
Noise Level	<63 dB(A)
Recommended Jet Capacity	6-12 jets
Recommended Water Depth	0.3m
Impeller Type	Double Impeller (V2)
Housing Material	Reinforced High-Temperature ABS Plastic
Motor Insulation	Class F
Thermal Protection	T.I. USA (VDE/UL Approved)
Internal Fuse	2.0A (230V) / 3.0A (110V)
Carbon Brush Life	≥1,000 hours continuous duty
Union Connection	1″ Threaded (32-33.5mm OD)
Cable Length	1.5m
Connector Type	AMP-style plug (adapters available)
Dimensions (L × W × H)	290 × 155 × 175mm
Weight	2kg
Certifications	CE, TÜV, 3C, RoHS
Suitable For	Hot Tubs, Whirlpool Baths, Small Spas

🎯 Real World Applications

🛁 Hot Tub & Spa Enhancement

The AP200-V2 is perfectly suited for residential hot tubs and portable spas requiring gentle, invigorating bubble massage. With capacity for 6-12 air jets, it’s ideal for 2-4 person hot tubs where relaxation is the priority. The quiet operation under 63 dB makes it particularly well-suited for evening use when minimal noise disturbance is essential.

💆 Whirlpool Bath Systems

Designed as a direct fit for hydromassage bathtub applications, the AP200-V2 delivers consistent, therapeutic airflow for luxurious bathroom installations. The compact footprint and lightweight construction make it easy to integrate into bathroom cabinets or utility spaces, whilst the low power consumption keeps running costs minimal.

🔄 Blower Replacement & Upgrade

The universal 1″ threaded union and standard AMP connector make the AP200-V2 an excellent replacement for worn, noisy, or failed blowers in existing spa installations. Compatible with most Chinese-manufactured spas and many European brands, it’s a cost-effective solution for restoring bubble massage functionality with improved performance and reduced noise levels.

🏠 Residential Wellness Installations

For homeowners creating dedicated wellness spaces, the AP200-V2 provides reliable, maintenance-free operation for daily use. The thermal protection and Class F insulation ensure safe, long-lasting performance, whilst the multiple safety certifications provide assurance for domestic installations.

🏢 Small Commercial Applications

Whilst primarily designed for residential use, the AP200-V2 can serve light-duty commercial applications in bed & breakfasts, holiday lets, and boutique wellness facilities where usage is moderate and the jet count requirement is within the 6-12 jet specification.

🛠️ Installation Considerations

⚠️ Professional Installation Recommended

For safety and warranty compliance, professional installation by a qualified technician is strongly advised.

⚡ Electrical Requirements

• Supply Voltage: 220-240V AC
• Frequency: 50/60 Hz (universal)
• Current Draw: 1.2A
• Grounding: The air blower must be properly grounded to prevent electrical shock or injury

🔧 Mounting & Positioning

• Orientation: Designed for horizontal installation within spa cabinet
• Location: Install inside spa cabinet, within 2m of the spa
• Ventilation: Ensure adequate airflow around the blower for motor cooling
• Access: Position for easy access for future maintenance

🔌 Connection Details

• Union Size: 1″ threaded (32-33.5mm OD)
• Cable Length: 1.5m with AMP-style connector
• Adapter Options: Mini J&J adapters available separately if required

⚠️ Critical Safety Notes

• Do NOT operate blower immediately after gluing unions – PVC glue fumes entering the blower can cause explosion if motor is started. Either connect the blower while already running, or wait at least 1 hour for fumes to dissipate
• Check one-way valves – If replacing a failed blower due to water ingress, verify the air line check valve is functioning correctly before installing the new unit
• Do NOT block outlet – Operating with a blocked outlet will cause air temperature to rise rapidly, creating a scald risk
• Cut power before inspection – Always disconnect electrical supply before any maintenance or inspection

🏆 Why Choose the LX AP200-V2

• ✅ Superior Double Impeller Technology – The V2 designation indicates LX’s advanced two-stage impeller design, delivering softer airflow with significantly reduced high-frequency noise compared to single impeller (V1) alternatives
• ✅ Proven Brand Reliability – LX Whirlpool (Guangdong LX Pump Co., Ltd.) is one of China’s largest manufacturers of spa pumps and blowers, supplying major hot tub brands worldwide with annual production capacity exceeding 2 million units
• ✅ Comprehensive Safety Certification – CE, TÜV, 3C, and RoHS certifications provide confidence for UK, European, and international installations
• ✅ Extended Motor Life – Class F insulation, VDE/UL approved thermal protection, and high-quality imported carbon brushes (≥1,000 hours continuous duty) ensure exceptional longevity
• ✅ Universal Compatibility – Standard 1″ union and AMP connector ensure compatibility with most portable spa brands including those using Balboa, Aeware in.ye, and similar control systems
• ✅ Energy Efficient Operation – At just 200W and 1.2A current draw, the AP200-V2 minimises ongoing running costs whilst delivering excellent bubble performance

🤝 Why Buy From Parts4Tubs?

• ✅ UK-Based Specialist Supplier – Dedicated expertise in spa and hot tub components with deep product knowledge
• ✅ Expert Technical Advice – Our team can help you confirm compatibility and answer installation questions
• ✅ Fast UK Delivery – In-stock items dispatched promptly for quick turnaround
• ✅ Competitive Pricing – Great value on genuine quality components
• ✅ Genuine Manufacturer Parts – Authentic LX Whirlpool products, not grey market alternatives
• ✅ Dedicated Customer Support – Responsive assistance before, during, and after your purchase
• ✅ Secure Online Ordering – Safe, encrypted transactions for peace of mind
• ✅ Easy Returns Policy – Hassle-free returns if the product isn’t right for your application

✨ Summary

The LX AP200-V2 delivers the perfect combination of quiet operation, reliable performance, and exceptional value for residential hot tub and whirlpool bath applications. With its advanced double impeller design, comprehensive safety features, and proven durability, this 200W air blower is the ideal choice for enhancing your spa experience or replacing a worn blower. Backed by CE, TÜV, and RoHS certification, it’s a quality component you can trust. Order yours today and transform your spa’s bubble massage performance.
