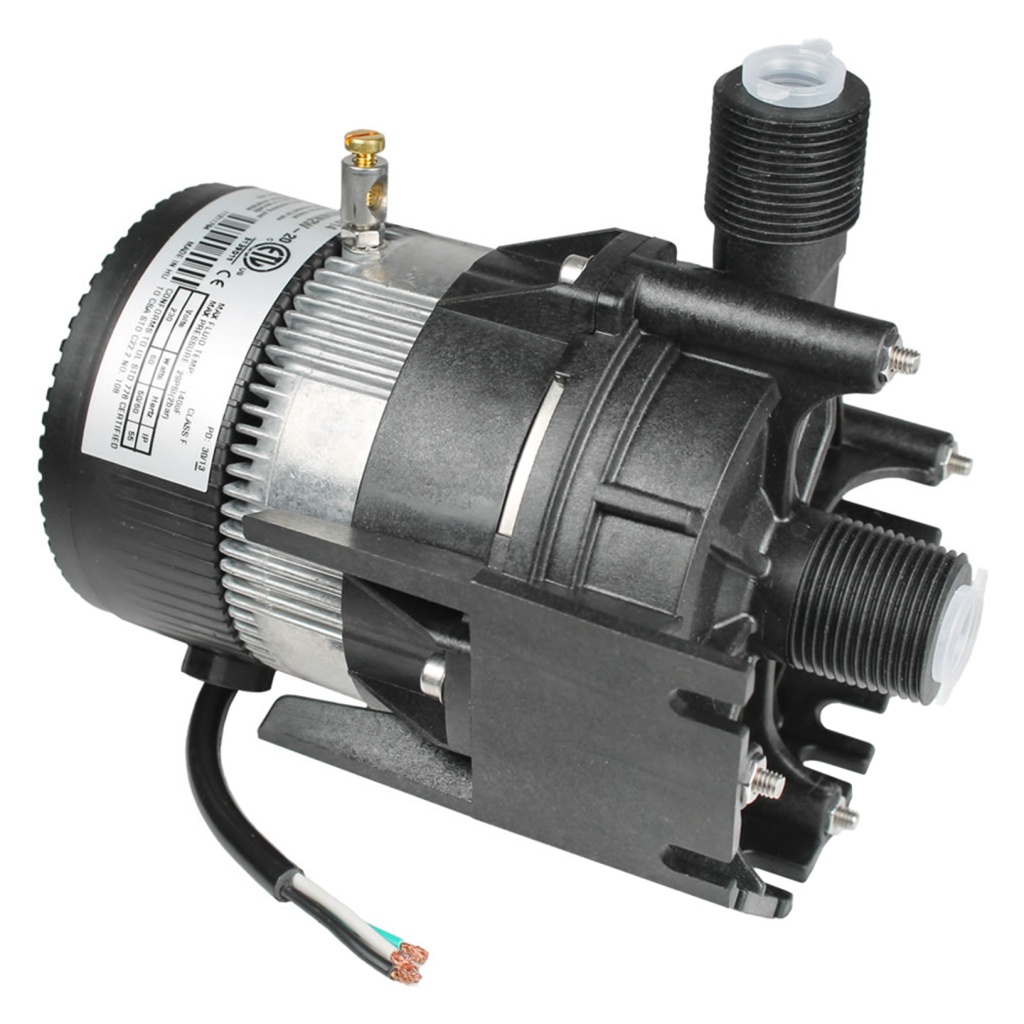

🔌 Laing E10 Fixed Speed Circulation Pump – 3/4″ Threaded Barb

Name: Laing E10 Fixed Speed Circulation Pump - 3/4" Threaded Barb
SKU: PC-LG128
Availability: InStock

Seal-less spherical motor technology for reliable continuous spa circulation

💧 Product Overview

The Laing E10 Fixed Speed Pump with ¾-inch threaded barb connections is a compact circulation pump designed for continuous operation in spas and hot tubs, providing efficient water flow with low energy consumption. Drawing just 0.7A and consuming only 0.06 kW, this pump is engineered for economical 24/7 operation.

The Laing E10 utilises an innovative electronically commutated spherical motor, which is completely shaftless, seal-less, and leak-proof. This revolutionary design eliminates the most common failure points found in traditional circulation pumps, delivering exceptional reliability over the pump’s lifetime. The open-face impeller provides excellent resistance to clogging from debris.

Operating at 4,000 RPM within an ultra-compact body (152mm × 110mm × 124mm), this pump is commonly used across many popular spa brands including Dimension 1, LA Spa, Iberspa, Saratoga, Canadian Spa, Hot Spring, Spa in a Box, Sundance, and Spring Spa. The ¾-inch threaded barb connections provide secure, leak-free plumbing integration.

✨ Key Features

✅ Spherical Motor Technology – Electronically commutated motor for superior efficiency and reliability

✅ Seal-Less Design – No mechanical seals means no seal failures or leaks

✅ Shaftless Construction – Eliminates shaft seal wear, the most common pump failure

✅ Leak-Proof – Innovative design prevents water ingress to motor

✅ Ultra-Low Power – Just 0.06 kW / 0.7A for economical 24/7 operation

✅ Open-Face Impeller – Resists clogging from debris for reliable performance

✅ Compact Size – Tiny footprint at 152mm × 110mm × 124mm

✅ High Speed – 4,000 RPM for effective water circulation

✅ ¾-Inch Threaded Barb – Secure threaded connection for leak-free installation

✅ Multi-Brand Compatible – Fits many popular spa brands

🔩 Technical Specifications

Specification	Value
Pump Type	Circulation Pump – Fixed Speed
Brand	Laing
Model	E10
Motor Power	0.08 HP (0.06 kW)
Speed Settings	Single Speed (Fixed)
Motor Speed	4,000 RPM
Amperage	0.7 A
Motor Type	Electronically Commutated Spherical Motor
Impeller Type	Open-Face
Seal Type	Seal-Less (No mechanical seal)
Plumbing Size	¾ inch (3/4″)
Connection Type	Threaded Barb
Length	152 mm
Width	110 mm
Height	124 mm

⚡ Electrical Requirements

Electrical Specification	Requirement
Power Output	0.06 kW (0.08 HP)
Full Load Amps	0.7 A
Motor Speed	4,000 RPM
Motor Type	Electronically Commutated

⚠️ IMPORTANT ELECTRICAL SAFETY:

All electrical work must be carried out by a qualified electrician in accordance with UK wiring regulations (BS 7671). Hot tubs require RCD protection (30mA). Ensure proper earthing and bonding of all electrical components.

🔗 Compatibility Guide

This Pump Specifications:

📍 Model: Laing E10 📍 Connection: ¾ inch (3/4″) Threaded Barb 📍 Power: 0.06 kW / 0.7A 📍 Motor: Spherical, Shaftless, Seal-less

Compatible Spa Brands:

This pump is commonly used in the following spa brands:

Dimension 1
LA Spa
Iberspa
Saratoga
Canadian Spa
Hot Spring
Spa in a Box
Sundance
Spring Spa

Connection Note:

The ¾-inch threaded barb connections provide a secure, threaded fitting for reliable plumbing integration with appropriate hose.

⚙️ Installation Requirements

Pump Dimensions:

Dimension	Measurement
Length	152 mm
Width	110 mm
Height	124 mm

Plumbing Connections:

Connection	Size	Type
Inlet	¾ inch	Threaded Barb
Outlet	¾ inch	Threaded Barb

Installation Notes:

⚠️ Use appropriate flexible hose with secure hose clamps on barb fittings

⚠️ Threaded connections should be hand-tightened plus a quarter turn

⚠️ Pump must be installed below water level (flooded suction) to ensure proper priming

⚠️ Never run the pump dry

⚠️ Ensure proper electrical bonding to earth

💡 Ultra-compact design fits in tight equipment bays

💡 Seal-less design means no seal replacement required

💡 Position pump for easy access in case of service

🛠️ Maintenance Guide

Routine Maintenance:

Task	Frequency	Notes
Check for leaks	Monthly	Inspect threaded barb connections
Inspect hose clamps	Monthly	Tighten if necessary
Check impeller	As needed	Open-face design resists clogging
Verify pump operation	Weekly	Ensure pump is running when expected
Check water flow	Monthly	Verify adequate circulation

Advantages of Seal-Less Design:

The Laing E10’s seal-less, shaftless design offers significant maintenance advantages:

No mechanical seal to wear out or leak
No shaft seal replacement required
Leak-proof construction
Reduced maintenance costs over pump lifetime

Warning Signs – Consider Replacement If:

Unusual noise or vibration
Motor fails to start
Noticeably reduced water flow
Motor overheating
Pump trips the circuit breaker

🎯 Ideal Applications

Application	Suitability	Notes
♨️ Hot Tub Circulation	Yes	Primary application for 24/7 circulation
♨️ Spa Filtration Loop	Yes	Continuous filtration and heating
♨️ Multi-Brand Spas	Yes	Compatible with many popular brands
♨️ Energy-Conscious Spas	Yes	Ultra-low 0.7A / 0.06 kW consumption
♨️ Compact Installations	Yes	Small 152mm × 110mm × 124mm footprint
♨️ Replacement Pump	Yes	Direct replacement for E10 equipped spas

❓ Frequently Asked Questions

Q: What horsepower is this pump? A: The Laing E10 is rated at 0.08 HP (0.06 kW), designed for efficient continuous circulation rather than high-power jet operation.

Q: What is the difference between this and the 1″ Smooth Barb version? A: The only difference is the plumbing connection. This version has ¾-inch threaded barb connections, whilst the other version has 1-inch smooth barb connections. Check your existing plumbing to determine which size you need.

Q: What makes the Laing E10 different from other circulation pumps? A: The E10 uses an electronically commutated spherical motor that is completely shaftless, seal-less, and leak-proof. This eliminates mechanical seal failures, which are the most common cause of pump replacement.

Q: What size are the plumbing connections? A: The pump uses ¾-inch (3/4″) threaded barb connections, requiring appropriate hose and hose clamps for installation.

Q: How much electricity does this pump use? A: The E10 draws only 0.7A at 0.06 kW, making it extremely economical to run 24 hours a day.

Q: What spa brands use this pump? A: The Laing E10 is commonly found in Dimension 1, LA Spa, Iberspa, Saratoga, Canadian Spa, Hot Spring, Spa in a Box, Sundance, and Spring Spa.

Q: Does this pump have a mechanical seal? A: No, the E10 features a seal-less design. The spherical motor technology eliminates the need for traditional mechanical seals, removing the most common failure point.

Q: What is an open-face impeller? A: An open-face impeller design provides better resistance to clogging from debris compared to enclosed impeller designs, improving reliability in continuous operation.

Q: How fast does the motor run? A: The E10 operates at 4,000 RPM for effective water circulation.

Q: Is this pump suitable for continuous 24/7 operation? A: Yes, the Laing E10 is specifically designed for continuous operation in spa circulation systems.

Q: How do I know if my E10 pump needs replacing? A: Signs include the motor failing to start, unusual noises, reduced water flow, or the pump tripping the circuit breaker.

🏆 Why Choose the Laing E10 Circulation Pump (¾” Threaded Barb)

✅ Revolutionary Design – Seal-less, shaftless, leak-proof spherical motor technology

✅ Ultra-Efficient – Just 0.7A / 0.06 kW for minimal running costs

✅ Highly Reliable – No mechanical seals to fail or replace

✅ Clog Resistant – Open-face impeller design handles debris

✅ Ultra-Compact – Tiny 152mm × 110mm × 124mm footprint

✅ Secure Connection – Threaded barb fittings for leak-free installation

✅ Proven Compatibility – Used by major spa brands worldwide

✅ Built for 24/7 – Designed for continuous circulation operation

🤝 Why Buy From Parts4Tubs

✅ UK-based company with expert local support

✅ Fast UK delivery options available

✅ Knowledgeable advice from spa industry specialists

✅ Competitive pricing

✅ Full warranty support

✅ Compatible hoses and fittings available

✅ Easy returns within 30 days

✨ Summary

The Laing E10 Fixed Speed Circulation Pump (¾-inch Threaded Barb) is a compact, highly efficient circulation pump designed for continuous 24/7 operation in spas and hot tubs. Featuring innovative electronically commutated spherical motor technology, the E10 is completely shaftless, seal-less, and leak-proof, eliminating the most common pump failure points. Drawing just 0.7A at 0.06 kW (0.08 HP) and operating at 4,000 RPM, this ultra-compact pump (152mm × 110mm × 124mm) provides efficient water flow with minimal energy consumption. The open-face impeller resists clogging from debris. Compatible with many popular spa brands including Dimension 1, LA Spa, Iberspa, Saratoga, Canadian Spa, Hot Spring, Spa in a Box, Sundance, and Spring Spa. Features ¾-inch threaded barb connections for secure plumbing installation.

Showing 1 – 6 of 6 results Showing all 6 results Showing the single result No results found


	1.5 inch Union O-Ring	£1.55 Max: 63 Min: 1 Step: 1 Add to cart
	2 inch Union O-Ring	£1.55 Max: 100 Min: 1 Step: 1 Add to cart
	2 to 1.5 inch Threaded Union Adapter	£7.27 Max: 54 Min: 1 Step: 1 Add to cart
	2.5 inch Union O-Ring	£1.55 Max: 100 Min: 1 Step: 1 Add to cart
	2.5 inch Waterway Union with 2 inch Tailpiece	£9.69 Max: 38 Min: 1 Step: 1 Add to cart
	4 pin Amp cord (Dual Speed Pump)	£18.06 Max: 6 Min: 1 Step: 1 Add to cart

The hot tub industry doesnt make it easy for you when you are trying to match up the size of the unions (the part that screws your pipe work onto the pumps) Below you can see the physical sizes of the collars, and how they relate to the actual union size you need. So a measurement of 2.5", edge to edge on the collar of the pump is actually a 1.5" union - confusing - absolutely! If you are not sure, give me a shout!

Hot Tub Pump Collar & Union Size Chart

Imperial & Metric Specifications

Union Size	Collar Size	Thread OD	Union OD	O-Ring Size
1.5" Female Buttress Thread (FBT)	2.5" / 64mm (Tip to Tip) Measurement	2-1/2" 64mm	2-13/16" 71mm	2-5/16" OD 59mm
2" Female Buttress Thread (FBT)	3.1" / 78mm (Tip to Tip) Measurement	3-1/16" 78mm	3-3/8" 81mm	2-15/16" OD 75mm
2.5" Female Buttress Thread (FBT)	3.6" / 91mm (Tip to Tip) Measurement	3-5/8" 91mm	4-1/4" 108mm	3-7/16" OD 87mm

Important Notes

The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement.

Collar size is measured from thread tip to thread tip on the pump outlet.

Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications.

O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy.

How do I Replace a Hot Tub Pump?

Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance.

Materials You'll Need:

Replacement pump
Pipe wrench
Adjustable wrench
Screwdriver
Pipe sealant (thread tape or plumber's putty)
PVC primer and cement (if you have PVC plumbing)
Teflon tape (for threaded connections)

Procedure:

Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components.
Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves)
Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment.
Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump.
Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing.
Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts.
Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks.
Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts.
Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly.
Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure.
Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch.
Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections.
Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water.
Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed.
Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues.

Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help.

How do I know what size hot tub pump I have?

Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps:

Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump.
Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it.
Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump.
Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub.
Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model.

Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.
