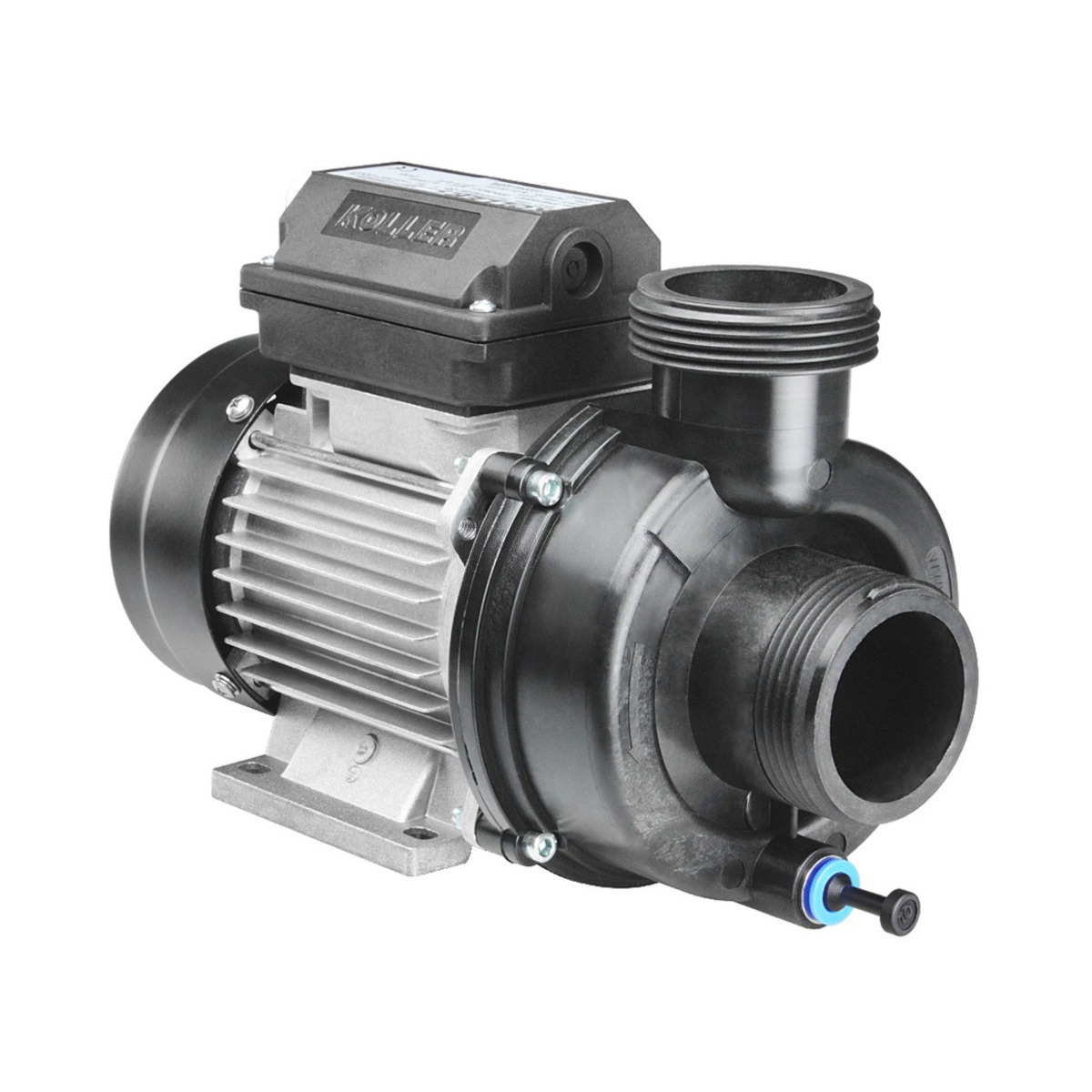

♨️ Koller 0.27 HP Circulation Pump – Quiet, Efficient Hot Tub Water Circulation

Compact European-style circulation pump with 240 L/min flow for continuous spa filtration

💧 Product Overview

The Koller 0.27 HP Circulation Pump is a compact, energy-efficient pump designed for continuous water circulation in hot tubs and spas. Delivering 200W of quiet operation with a maximum flow rate of 240 litres per minute, this pump provides reliable 24/7 filtration circulation without the high energy costs of running a main jet pump.

Found in many European spas, this Koller circulation pump features a centre suction and centre discharge configuration for versatile plumbing options. The finned body European-style motor design provides excellent heat dissipation for extended operational life, whilst the compact 267mm length allows installation in tight equipment bays.

The pump comes pre-cabled with a 4-core AMP plug for straightforward connection to compatible spa control systems. A drain hole at the bottom of the faceplate (closed with a removable plug) allows complete drainage during winterisation or maintenance procedures.

With 1.5-inch male buttress thread connections and 2800 RPM motor speed, the Koller 0.27 HP delivers reliable circulation performance for filtration cycles, heating distribution, and water treatment systems.

⭐ Key Features

✅ 200W / 0.27 HP Power – Low energy consumption for 24/7 circulation operation

✅ 240 L/min Maximum Flow – Strong circulation for effective filtration and heating

✅ 2800 RPM Motor Speed – Efficient water movement with quiet operation

✅ Centre Suction / Centre Discharge – Versatile plumbing configuration

✅ Finned Body Motor – European-style design with excellent heat dissipation

✅ Compact Dimensions – 267 × 136 × 178 mm fits tight equipment spaces

✅ 1.5″ Male Buttress Thread – Standard 62mm connection size

✅ 4-Core AMP Plug – Pre-cabled for easy spa pack connection

✅ Integrated Drain Hole – Allows complete pump drainage for maintenance

✅ Koller Quality – Trusted European manufacturer

🔧 Technical Specifications

Specification	Value
Manufacturer	Koller
SKU	PMP-12272
MPN	P-0110-E
Pump Type	Circulation
Speed	Single Speed
Power Output	200 W / 0.27 HP
Motor RPM	2800
Maximum Flow Rate	240 L/min
Motor Type	Finned Body (European Style)
Configuration	Centre Suction, Centre Discharge
Thread Type	Male MPT (Male Buttress Thread)
Thread Diameter	62 mm / 1.5″
Cord Type	4 Core AMP
Dimensions (L × W × H)	267 × 136 × 178 mm
Unions Included	No (available separately)
Drain Plug	Yes (removable)

⚡ Electrical Requirements

Specification	Value
Power Input	200 W
Cord Type	4 Core AMP Plug

⚠️ Electrical Safety

All electrical installation must be carried out by a qualified electrician in accordance with UK wiring regulations (BS 7671). Requirements include:

• RCD protection (30mA residual current device)
• Proper earth bonding of all metal components
• Connection to compatible spa control system
• Accessible isolation switch

💡 Note: This pump comes pre-cabled with a 4-core AMP plug for direct connection to spa packs with matching AMP receptacles.

💦 Hydraulic Performance

Specification	Value
Maximum Flow Rate	240 L/min
Motor Speed	2800 RPM
Configuration	Centre Suction, Centre Discharge

Performance Notes

💡 Circulation Duty: Designed for continuous 24/7 operation during filtration cycles

💡 Flow Rate: 240 L/min provides effective water turnover for filtration and heating distribution

💡 Quiet Operation: Low 200W power consumption with finned body cooling for reduced noise

🔗 Compatibility Guide

Connection Specifications

Connection	Specification
Suction Port	1.5″ / 62 mm
Discharge Port	1.5″ / 62 mm
Thread Type	Male Buttress Thread (MBT)
Position	Centre Suction, Centre Discharge

Unions

⚠️ Important: Pump unions are NOT included with this pump but are available separately. Ensure you order compatible 1.5″ unions for your installation.

Compatible Applications

📍 European Spas – Commonly found in many European hot tub brands

📍 Spa Packs with AMP Receptacles – Pre-wired 4-core AMP plug

📍 24/7 Circulation Systems – Designed for continuous filtration duty

🛠️ Installation Requirements

Mounting

Requirement	Specification
Orientation	Per manufacturer guidelines
Surface	Solid, level base
Ventilation	Adequate clearance for finned body cooling
Access	Space for maintenance and union connections

Physical Dimensions

Dimension	Measurement
Length	267 mm
Width	136 mm
Height	178 mm

Installation Notes

⚠️ Unions required – Order 1.5″ unions separately

⚠️ Never run pump dry – Causes immediate seal damage

⚠️ Check drain plug – Ensure plug is secure before filling

⚠️ Proper bonding – All metal components must be earthed

⚠️ AMP connection – Verify spa pack has compatible AMP receptacle

🔄 Maintenance Guide

Routine Maintenance

Task	Frequency	Notes
Visual leak inspection	Monthly	Check around seals and unions
Union tightness check	Monthly	Hand-tighten only
Motor ventilation check	Quarterly	Keep finned body clear of debris
Drain plug inspection	Before winterisation	Remove to drain pump completely
Professional inspection	Annually	Check electrical connections

Drain Plug Feature

The integrated drain hole at the bottom of the faceplate allows complete pump drainage:

📍 Winterisation – Remove plug to drain all water before freezing conditions

📍 Maintenance – Allows pump to be fully drained for service

Warning Signs – When to Replace

• ❌ Unusual noise (grinding, screeching)
• ❌ Water leaking around seal area
• ❌ Reduced water flow
• ❌ Motor running hot
• ❌ Pump not priming
• ❌ Electrical tripping

♨️ Ideal Applications

Application	Suitability	Notes
♨️ Hot tub circulation	✅ Ideal	Primary design application
♨️ 24/7 filtration systems	✅ Excellent	Low energy continuous operation
♨️ Heating distribution	✅ Suitable	Maintains water flow through heater
♨️ European spa replacement	✅ Ideal	Common in European brands
♨️ Ozone/UV circulation	✅ Suitable	Provides flow for water treatment

Application Notes

This 0.27 HP circulation pump is designed for:

• Continuous filtration – 24/7 operation with low energy consumption
• Heating cycles – Maintains water flow through spa heater
• Water treatment – Provides circulation for ozone or UV systems
• European spas – Direct replacement in many European hot tub brands

❓ Frequently Asked Questions

Q: What power does this pump use? A: 200W (0.27 HP) – designed for energy-efficient 24/7 circulation operation.

Q: What is the maximum flow rate? A: 240 litres per minute maximum flow rate.

Q: What are the connection sizes? A: 1.5″ (62mm) male buttress thread on both suction and discharge ports.

Q: Are unions included? A: No – unions are not included and must be ordered separately.

Q: What is the pump configuration? A: Centre suction and centre discharge configuration.

Q: What type of electrical connection does it have? A: Pre-cabled with a 4-core AMP plug for spa pack connection.

Q: What are the pump dimensions? A: Length: 267mm, Width: 136mm, Height: 178mm.

Q: Is this pump suitable for continuous operation? A: Yes – designed for 24/7 circulation and filtration duty cycles.

Q: What motor type does this pump have? A: Finned body European-style motor for excellent heat dissipation.

Q: Does the pump have a drain feature? A: Yes – integrated drain hole at faceplate bottom with removable plug for winterisation.

Q: What spas is this pump compatible with? A: Found in many European spa brands. Check your existing pump specifications for compatibility.

🏆 Why Choose the Koller 0.27 HP Circulation Pump

✅ Energy Efficient – Only 200W for 24/7 operation

✅ Strong Flow – 240 L/min maximum circulation

✅ Compact Design – 267 × 136 × 178 mm fits tight spaces

✅ European Quality – Trusted Koller manufacturing

✅ Pre-Cabled – 4-core AMP plug for easy connection

✅ Finned Body Motor – Excellent cooling for long life

✅ Versatile Configuration – Centre suction and discharge

✅ Drain Feature – Integrated drain hole for winterisation

🤝 Why Buy from Parts4Tubs

✅ UK-Based Company – Local support from our expert team

✅ Fast Delivery – Quick dispatch on all orders

✅ Expert Technical Advice – Speak to specialists who understand circulation systems

✅ Competitive Pricing – Great value on genuine Koller pumps

✅ Full Warranty Support – Manufacturer’s warranty plus extended options

✅ Easy Returns – Hassle-free 30-day return policy

✅ Unions Available – Order matching 1.5″ unions for complete installation

✨ Summary

The Koller 0.27 HP Circulation Pump delivers energy-efficient 24/7 water circulation with 240 L/min flow rate and 2800 RPM motor speed. Featuring centre suction/discharge configuration, 1.5″ male buttress connections, and pre-cabled 4-core AMP plug, this compact pump (267 × 136 × 178 mm) is ideal for European hot tubs and spas. Finned body motor design ensures quiet operation and long service life. Unions not included.
