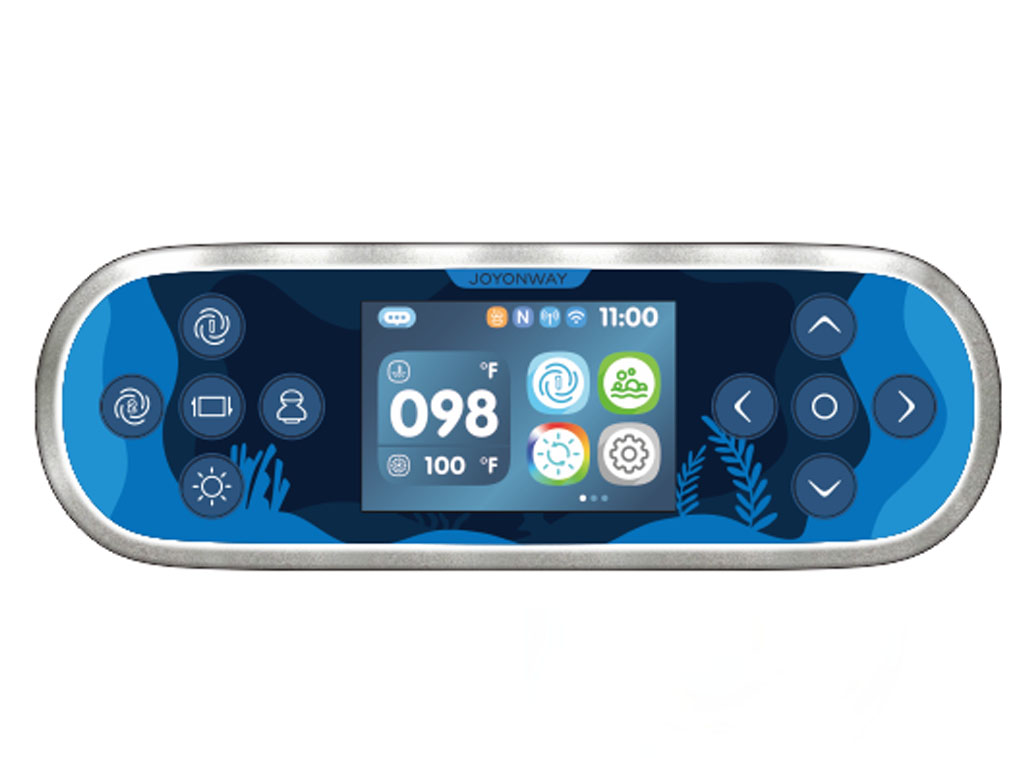

🎛️ Joyonway PB563 Topside Control Panel – Large 3.5″ TFT Display with 10 Capacitive Touch Buttons

Premium ten-button capacitive touch control panel with large TFT colour display and 10-language European support

📋 Product Overview

The Joyonway PB563 Topside Control (TS-JO563) delivers premium display and touch technology with an impressive 3.5-inch TFT colour display and 10 capacitive touch buttons. This large-format panel provides the ultimate spa control experience with crystal-clear graphics and responsive touch operation, offering the same premium features as the PB563 Plus but without integrated WiFi.

Built by Joyonway, this top-tier topside combines maximum display size with full capacitive touch capability. The generous 232 × 80 mm form factor provides ample space for the large display and comfortable button layout, while supporting 10 European languages for international markets.

Compatible with the P68B123 and P69B133 Joyonway control boxes, this panel is ideal for installations where WiFi connectivity is not required or where a separate WiFi solution is preferred. The overlay is included, and detailed PDF documentation is available for professional installation.

⭐ Key Features

• ✅ 3.5″ TFT Colour Display – Largest display in range
• ✅ 10 Capacitive Touch Buttons – Premium touch technology
• ✅ 10 Language Support – European multilingual display
• ✅ Extended Design – 232 × 80 mm premium form factor
• ✅ 12V Operation – Safe low-voltage design
• ✅ Dual System Compatibility – P68B123 and P69B133 boxes
• ✅ Overlay Included – Complete installation package
• ✅ Documentation Available – Installation PDF included
• ✅ Cost-Effective – Premium features without WiFi premium
• ✅ Maximum Display – Top-tier visual experience

🔧 Technical Specifications

Specification	Value
Manufacturer	Joyonway
Model	PB563
SKU	TS-JO563
Product Type	Topside Panel
Total Buttons	10
Button Type	Capacitive touch
Display Size	3.5 inches
Display Type	TFT colour
WiFi	Not included
Operating Voltage	12V
Length	232 mm
Width	80 mm
Compatible Systems	P68B123, P69B133 Joyonway Boxes
Languages Supported	10
Overlay	Included

🖥️ Display Features

The 3.5-inch TFT colour display is the largest in the Joyonway range:

Feature	Specification
Screen Size	3.5 inches
Display Type	TFT colour
Quality	High-resolution graphics
Visibility	Clear at all viewing angles
Interface	Full-colour status and menus

Display Advantages:

• Largest screen in Joyonway P68/P69 series
• Rich colour graphics for clear status display
• Ample space for detailed information
• Easy menu navigation
• Clear temperature and mode indicators

🔘 Capacitive Touch Technology

The PB563 features premium capacitive touch buttons:

Feature	Benefit
Touch Type	Capacitive
Buttons	10 total
Response	Instant, smooth operation
Durability	No mechanical wear
Feel	Premium, modern interface

Capacitive Touch Advantages:

• ✅ More responsive than mechanical buttons
• ✅ Sleek, modern appearance
• ✅ No button degradation over time
• ✅ Sealed surface for moisture resistance
• ✅ Premium tactile experience

🌍 Multilingual Support

The PB563 supports 10 languages for international markets:

Language	Region
🇬🇧 English	UK, International
🇫🇷 French	France, Belgium, Canada
🇩🇪 German	Germany, Austria, Switzerland
🇪🇸 Spanish	Spain, Latin America
🇵🇹 Portuguese	Portugal, Brazil
🇸🇪 Swedish	Sweden
🇳🇴 Norwegian	Norway
🇫🇮 Finnish	Finland
🇳🇱 Dutch	Netherlands, Belgium
🇮🇹 Italian	Italy, Switzerland

Ideal for:

• Premium spa manufacturers
• European export markets
• High-end spa installations
• International hospitality properties

🔗 Compatibility Guide

✅ Compatible Control Systems

System	Model	Compatible
Joyonway	P68B123 Control Box	✅ Yes
Joyonway	P69B133 Control Box	✅ Yes

⚠️ Important: This topside is designed specifically for the P68B123 and P69B133 Joyonway control boxes. It is NOT compatible with P20B29 or P23B32 systems.

How to Verify Compatibility:

• 📍 Check your control box for “Joyonway” branding
• 📍 Look for “P68B123” or “P69B133” model designation
• 📍 Verify existing topside model number
• 📍 Contact Parts4Tubs if unsure

🔌 Connection Information

Connector Details:

Specification	Detail
Compatible Systems	P68B123 and P69B133 Joyonway Control Boxes
Operating Voltage	12V
Connection	System-specific connector

Connection Notes:

• Connects directly to Joyonway P68B123 or P69B133 control box
• Ensure secure connection before powering on
• Do not force connector – verify compatibility first

📐 Dimensions & Mounting

Measurement	Value
Length	232 mm
Width	80 mm
Form Factor	Extended (Large)

Installation Considerations:

• Largest panel in the Joyonway P68/P69 series
• Requires adequate mounting space for 232 mm length
• 80 mm width accommodates 10 buttons comfortably
• Verify cutout dimensions match requirements
• Panel includes overlay – ready for installation
• PDF documentation available for precise measurements

🛠️ Installation Guide

Before Installation:

• ⚠️ Disconnect power to spa at the isolator/breaker
• ⚠️ Verify P68B123 or P69B133 system compatibility
• ⚠️ Ensure mounting space accommodates 232 × 80 mm panel
• ⚠️ Review PDF installation documentation

Installation Steps:

1. Power Off – Isolate all electrical supply to spa
2. Review Documentation – Check PDF for dimensions and requirements
3. Remove Old Panel – Carefully remove existing topside
4. Document Connection – Note connector orientation
5. Disconnect Cable – Unplug connector from control box
6. Verify Cutout – Check mounting opening size (see PDF)
7. Connect New Panel – Plug new topside into control box
8. Mount Panel – Secure in mounting position
9. Power On – Restore power and test all functions
10. Select Language – Choose preferred language from 10 options
11. Test Touch Buttons – Verify all 10 buttons respond

Testing Checklist:

• [ ] 3.5″ TFT display powers on with clear graphics
• [ ] All 10 capacitive touch buttons respond
• [ ] Language selection works
• [ ] Temperature display is accurate
• [ ] All spa functions operate correctly

📥 Downloads & Resources

📄 PB563 Control Panel Dimension and Installation Guide – Detailed installation instructions and dimensional drawings

🔍 Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
Blank display	No power / loose connection	Check power, reseat connector
Wrong language	Language not set	Navigate to language settings
Touch unresponsive	Connection issue / calibration	Verify connector, check for moisture
Display dim	Normal operation or fault	Check brightness settings
Connector doesn’t fit	Wrong control system	Verify P68B123/P69B133 compatibility

Capacitive Touch Tips:

• Keep touch surface clean and dry
• Avoid pressing with wet fingers for best response
• Touch buttons require direct skin contact

🛡️ Maintenance & Care

Routine Care:

Task	Frequency
Wipe display with soft, damp cloth	Weekly
Clean touch button surface	Weekly
Check touch button response	Monthly
Inspect cable connection	Annually

DO NOT:

• ❌ Use abrasive cleaners on TFT display
• ❌ Use harsh chemicals on touch buttons
• ❌ Submerge panel in water
• ❌ Press touch buttons with sharp objects
• ❌ Allow water to pool on touch surface

♨️ Ideal Applications

Application	Suitability
♨️ P68B123 / P69B133 spa systems	✅ Designed for
♨️ Premium spa installations	✅ Large display + touch
♨️ European export spas	✅ Perfect (10 languages)
♨️ Installations without WiFi requirement	✅ Cost-effective choice
♨️ Replacement for faulty PB563	✅ Direct replacement
❌ Installations requiring WiFi	❌ Use PB563 Plus instead
❌ Compact mounting spaces	❌ Consider PB562 series
❌ P20B29/P23B32 control boxes	❌ Not compatible

Common Replacement Scenarios:

• 🔧 Damaged TFT display
• 🔧 Touch button issues
• 🔧 Upgrade from smaller display panel
• 🔧 Complete premium spa refurbishment

💡 When to Choose PB563 Over PB563 Plus

The PB563 (without WiFi) is the ideal choice when:

• ✅ WiFi not needed – Spa doesn’t require remote control
• ✅ Separate WiFi preferred – Using external WiFi module
• ✅ Cost savings – Premium display without WiFi premium
• ✅ Simpler installation – No WiFi configuration required
• ✅ Direct replacement – Replacing existing PB563 panel

Choose PB563 Plus instead when:

• ❌ Built-in WiFi connectivity is required
• ❌ Remote spa control is needed
• ❌ Integrated wireless solution preferred

❓ Frequently Asked Questions

Q: What’s the difference between PB563 and PB563 Plus?

A: The PB563 and PB563 Plus have identical specifications – same 3.5″ TFT display, same 10 capacitive touch buttons, same dimensions (232 × 80 mm), and same 10-language support. The only difference is that the PB563 Plus includes a built-in WiFi transceiver, while the PB563 does not have WiFi capability.

Q: Can I add WiFi to the PB563 later?

A: The PB563 does not have built-in WiFi. If you need WiFi connectivity, you would need either the PB563 Plus (with built-in WiFi) or check if a separate WiFi module is available for your control system.

Q: What are capacitive touch buttons?

A: Capacitive touch buttons respond to the electrical properties of your skin, providing a smooth, modern touch experience without mechanical movement. They’re more durable and responsive than traditional buttons.

Q: What control systems is this compatible with?

A: The PB563 works with P68B123 and P69B133 Joyonway control boxes only.

Q: What languages are supported?

A: English, French, German, Spanish, Portuguese, Swedish, Norwegian, Finnish, Dutch, and Italian – 10 languages total.

Q: Is the overlay included?

A: Yes, the overlay is included with the PB563 topside.

Q: Is there installation documentation?

A: Yes, a PDF installation and dimension guide is available for download.

Q: What is the display size compared to other models?

A: The PB563 has a 3.5″ TFT display, the largest in the P68/P69 compatible range. The PB562 series has 2.4″ displays.

Q: How does this compare to the PB562?

A: The PB563 has a larger display (3.5″ vs 2.4″), more buttons (10 vs 8), and capacitive touch technology (vs standard buttons). Both support 10 languages. Choose PB563 for maximum features or PB562 for a more compact option.

Q: Will this fit in my spa?

A: The PB563 measures 232 × 80 mm – verify your mounting space can accommodate this size before ordering.

🏆 Why Choose the Joyonway PB563 Topside (TS-JO563)

• ✅ 3.5″ TFT Display – Largest in range
• ✅ 10 Capacitive Touch Buttons – Premium technology
• ✅ 10 Languages – Full European support
• ✅ Extended Design – 232 × 80 mm form factor
• ✅ Dual System Compatibility – P68B123 and P69B133
• ✅ Overlay Included – Ready to install
• ✅ PDF Documentation – Professional installation guide
• ✅ Cost-Effective – Premium features without WiFi cost
• ✅ Maximum Display – Top-tier visual experience
• ✅ 12V Safe Operation – Low voltage design

🇬🇧 Why Buy from Parts4Tubs

• ✅ UK-based company with local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa specialists
• ✅ Compatibility assistance available
• ✅ Full warranty support
• ✅ Easy returns within 30 days

✨ Summary

The Joyonway PB563 Topside Control (TS-JO563) is a premium spa control panel featuring a large 3.5-inch TFT colour display and 10 capacitive touch buttons. This extended-format panel (232 × 80 mm) supports 10 European languages (English, French, German, Spanish, Portuguese, Swedish, Norwegian, Finnish, Dutch, Italian) and is compatible with P68B123 and P69B133 Joyonway control boxes. Operating at 12V. Overlay included. PDF installation documentation available. The PB563 offers the same premium 3.5″ TFT display and capacitive touch technology as the PB563 Plus but without built-in WiFi, making it ideal for installations where wireless connectivity is not required or where cost-effectiveness is prioritised. Perfect for premium European spa installations requiring the largest display and most responsive touch controls. Order from Parts4Tubs for fast UK delivery and expert compatibility assistance.
