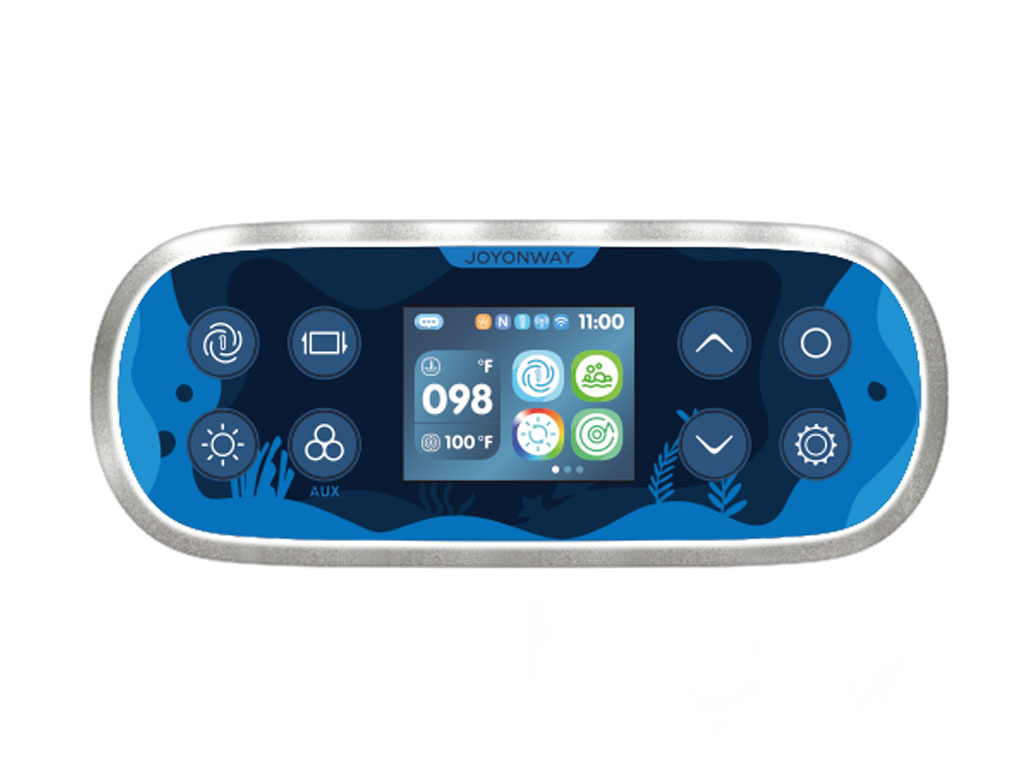

🖥️ Joyonway PB562 Topside Control Panel – 2.4″ Colour Display with 10-Language Support

Eight-button control panel with 2.4-inch high-resolution display and multilingual European language support

📋 Product Overview

The Joyonway PB562 Topside Control (TS-JO562) delivers premium display quality with a crisp 2.4-inch colour screen featuring 320×240 pixel resolution. This 8-button panel provides comprehensive spa control with support for 10 languages, making it ideal for European markets and international spa manufacturers.

Built by Joyonway, this topside offers the same high-quality display and multilingual capabilities found in the PB562 Plus, but without integrated WiFi – perfect for installations where wireless connectivity is not required or where a separate WiFi solution is preferred. The 188 × 78 mm form factor provides ample display space while maintaining a professional appearance.

Compatible with the P68B123 and P69B133 Joyonway control boxes, this panel supports English, French, German, Spanish, Portuguese, Swedish, Norwegian, Finnish, Dutch, and Italian languages. The overlay is included, making this a complete ready-to-install solution for spas requiring premium display quality and multilingual support.

⭐ Key Features

• ✅ 2.4″ Colour Display – Clear, detailed screen
• ✅ 320×240 Pixel Resolution – Sharp graphics and text
• ✅ 10 Language Support – European multilingual display
• ✅ 8 Button Operation – Comprehensive control
• ✅ 12V Operation – Safe low-voltage design
• ✅ Dual System Compatibility – P68B123 and P69B133 boxes
• ✅ Professional Size – 188 × 78 mm form factor
• ✅ Overlay Included – Complete installation package
• ✅ Documentation Available – Installation PDF included
• ✅ Cost-Effective – Premium display without WiFi premium

🔧 Technical Specifications

Specification	Value
Manufacturer	Joyonway
Model	PB562
SKU	TS-JO562
Product Type	Topside Panel
Total Buttons	8
Display Size	2.4 inches
Display Resolution	320 × 240 pixels
WiFi	Not included
Operating Voltage	12V
Length	188 mm
Width	78 mm
Compatible Systems	P68B123, P69B133 Joyonway Boxes
Languages Supported	10
Overlay	Included

🖥️ Display Features

The 2.4-inch colour display offers premium visual quality:

Feature	Specification
Screen Size	2.4 inches
Resolution	320 × 240 pixels
Display Type	Colour screen
Graphics	High-resolution interface
Text Clarity	Sharp, readable at all angles

Display Capabilities:

• Clear temperature readings
• Status icons and indicators
• Menu navigation graphics
• Error code display
• Mode and function indicators

🌍 Multilingual Support

The PB562 supports 10 languages for international markets:

Language	Region
🇬🇧 English	UK, International
🇫🇷 French	France, Belgium, Canada
🇩🇪 German	Germany, Austria, Switzerland
🇪🇸 Spanish	Spain, Latin America
🇵🇹 Portuguese	Portugal, Brazil
🇸🇪 Swedish	Sweden
🇳🇴 Norwegian	Norway
🇫🇮 Finnish	Finland
🇳🇱 Dutch	Netherlands, Belgium
🇮🇹 Italian	Italy, Switzerland

Ideal for:

• International spa manufacturers
• European export markets
• Multi-language household installations
• Holiday rental properties

🔗 Compatibility Guide

✅ Compatible Control Systems

System	Model	Compatible
Joyonway	P68B123 Control Box	✅ Yes
Joyonway	P69B133 Control Box	✅ Yes

⚠️ Important: This topside is designed specifically for the P68B123 and P69B133 Joyonway control boxes. It is NOT compatible with P20B29 or P23B32 systems.

How to Verify Compatibility:

• 📍 Check your control box for “Joyonway” branding
• 📍 Look for “P68B123” or “P69B133” model designation
• 📍 Verify existing topside model number
• 📍 Contact Parts4Tubs if unsure

🔄 PB562 vs PB562 Plus Comparison

Feature	PB562 (TS-JO562)	PB562 Plus (TS-JO062)
Display Size	2.4 inches	2.4 inches
Resolution	320×240 px	320×240 px
Total Buttons	8	8
Languages	10	10
Dimensions	188 × 78 mm	188 × 78 mm
Compatible Boxes	P68B123, P69B133	P68B123, P69B133
WiFi	❌ Not included	✅ Built-in
Overlay	✅ Included	✅ Included
PDF Documentation	✅ Available	✅ Available

🔌 Connection Information

Connector Details:

Specification	Detail
Compatible Systems	P68B123 and P69B133 Joyonway Control Boxes
Operating Voltage	12V
Connection	System-specific connector

Connection Notes:

• Connects directly to Joyonway P68B123 or P69B133 control box
• Ensure secure connection before powering on
• Do not force connector – verify compatibility first

📐 Dimensions & Mounting

Measurement	Value
Length	188 mm
Width	78 mm
Form Factor	Standard

Installation Considerations:

• Medium-sized panel suitable for most spa designs
• 78 mm width provides comfortable button spacing
• Verify cutout dimensions match existing installation
• Panel includes overlay – ready for installation
• PDF documentation available for precise measurements

🛠️ Installation Guide

Before Installation:

• ⚠️ Disconnect power to spa at the isolator/breaker
• ⚠️ Verify P68B123 or P69B133 system compatibility
• ⚠️ Ensure mounting space accommodates 188 × 78 mm panel
• ⚠️ Review PDF installation documentation

Installation Steps:

1. Power Off – Isolate all electrical supply to spa
2. Review Documentation – Check PDF for dimensions and requirements
3. Remove Old Panel – Carefully remove existing topside
4. Document Connection – Note connector orientation
5. Disconnect Cable – Unplug connector from control box
6. Verify Cutout – Check mounting opening size (see PDF)
7. Connect New Panel – Plug new topside into control box
8. Mount Panel – Secure in mounting position
9. Power On – Restore power and test all functions
10. Select Language – Choose preferred language from 10 options

Testing Checklist:

• [ ] Display powers on and shows main screen
• [ ] All 8 buttons respond correctly
• [ ] Language selection works
• [ ] Temperature display is accurate
• [ ] All spa functions operate

📥 Downloads & Resources

📄 PB562 Control Panel Dimension and Installation Guide – Detailed installation instructions and dimensional drawings

🔍 Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
Blank display	No power / loose connection	Check power, reseat connector
Wrong language	Language not set	Navigate to language settings
Buttons unresponsive	Connection issue	Verify connector seating
Display dim	Normal operation or fault	Check brightness settings
Connector doesn’t fit	Wrong control system	Verify P68B123/P69B133 compatibility

🛡️ Maintenance & Care

Routine Care:

Task	Frequency
Wipe display with soft, damp cloth	Weekly
Check button response	Monthly
Inspect cable connection	Annually
Check overlay condition	Annually

DO NOT:

• ❌ Use abrasive cleaners on display
• ❌ Use harsh chemicals on buttons
• ❌ Submerge panel in water
• ❌ Press buttons with sharp objects
• ❌ Allow water to enter connector area

♨️ Ideal Applications

Application	Suitability
♨️ P68B123 / P69B133 spa systems	✅ Designed for
♨️ European export spas	✅ Perfect (10 languages)
♨️ International spa manufacturers	✅ Ideal
♨️ Holiday rental properties	✅ Multilingual support
♨️ Installations without WiFi requirement	✅ Cost-effective choice
♨️ Replacement for faulty PB562	✅ Direct replacement
❌ Installations requiring WiFi	❌ Use PB562 Plus instead
❌ P20B29 control boxes	❌ Use PB553 instead
❌ P23B32 control boxes	❌ Use PB554/PB557
❌ Other control system brands	❌ Not compatible

Common Replacement Scenarios:

• 🔧 Damaged display
• 🔧 Unresponsive buttons
• 🔧 Water damage to existing panel
• 🔧 Upgrade from basic panel
• 🔧 Complete spa refurbishment

💡 When to Choose PB562 Over PB562 Plus

The PB562 (without WiFi) is the ideal choice when:

• ✅ WiFi not needed – Spa doesn’t require remote control
• ✅ Separate WiFi preferred – Using external WiFi module
• ✅ Cost savings – Premium display without WiFi premium
• ✅ Simpler installation – No WiFi configuration required
• ✅ Direct replacement – Replacing existing PB562 panel

Choose PB562 Plus instead when:

• ❌ Built-in WiFi connectivity is required
• ❌ Remote spa control is needed
• ❌ Integrated wireless solution preferred

❓ Frequently Asked Questions

Q: What’s the difference between PB562 and PB562 Plus?

A: The PB562 and PB562 Plus have identical display specifications (2.4″, 320×240 pixels), dimensions (188 × 78 mm), and 10-language support. The only difference is that the PB562 Plus includes a built-in WiFi transceiver, while the PB562 does not have WiFi capability.

Q: Can I add WiFi to the PB562 later?

A: The PB562 does not have built-in WiFi. If you need WiFi connectivity, you would need either the PB562 Plus (with built-in WiFi) or check if a separate WiFi module is available for your control system.

Q: What languages are supported?

A: English, French, German, Spanish, Portuguese, Swedish, Norwegian, Finnish, Dutch, and Italian – 10 languages total, identical to the PB562 Plus.

Q: What control systems is this compatible with?

A: The PB562 works with P68B123 and P69B133 Joyonway control boxes only.

Q: What is the display resolution?

A: The 2.4-inch display has 320×240 pixel resolution for sharp, clear graphics.

Q: Is the overlay included?

A: Yes, the overlay is included with the PB562 topside.

Q: Is there installation documentation?

A: Yes, a PDF installation and dimension guide is available for download.

Q: What voltage does it operate at?

A: The panel operates at 12V, provided by the compatible control box.

Q: Is this the same physical size as the PB562 Plus?

A: Yes, both the PB562 and PB562 Plus measure exactly 188 × 78 mm with identical mounting requirements.

Q: Is this suitable for European markets?

A: Absolutely – with 10 European languages supported, it’s ideal for European spa manufacturers and export markets.

🏆 Why Choose the Joyonway PB562 Topside (TS-JO562)

• ✅ 2.4″ Colour Display – Premium visual quality
• ✅ 320×240 Resolution – Sharp, clear graphics
• ✅ 10 Languages – European multilingual support
• ✅ 8 Button Control – Comprehensive operation
• ✅ Dual System Compatibility – P68B123 and P69B133
• ✅ Professional Size – 188 × 78 mm form factor
• ✅ Overlay Included – Ready to install
• ✅ PDF Documentation – Installation guide available
• ✅ Cost-Effective – Premium display without WiFi cost
• ✅ 12V Safe Operation – Low voltage design

🇬🇧 Why Buy from Parts4Tubs

• ✅ UK-based company with local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa specialists
• ✅ Compatibility assistance available
• ✅ Full warranty support
• ✅ Easy returns within 30 days

✨ Summary

The Joyonway PB562 Topside Control (TS-JO562) is a premium spa control panel featuring a 2.4-inch colour display with 320×240 pixel resolution and support for 10 European languages (English, French, German, Spanish, Portuguese, Swedish, Norwegian, Finnish, Dutch, Italian). This 8-button topside is compatible with P68B123 and P69B133 Joyonway control boxes, measuring 188 × 78 mm, operating at 12V. Overlay included. PDF installation documentation available. The PB562 offers the same premium display quality and multilingual support as the PB562 Plus but without built-in WiFi, making it ideal for installations where wireless connectivity is not required or where cost-effectiveness is prioritised. Perfect for European markets and international spa manufacturers. Order from Parts4Tubs for fast UK delivery and expert compatibility assistance.
