⚡ Joyonway P69B133 Control Box – High-Performance Multi-Pump Spa Control System

Advanced spa control system with four pump outputs and dual lighting channels for demanding hot tub configurations.

🎛️ Product Overview

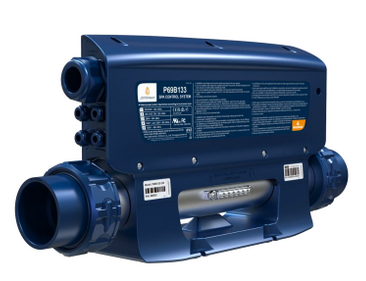

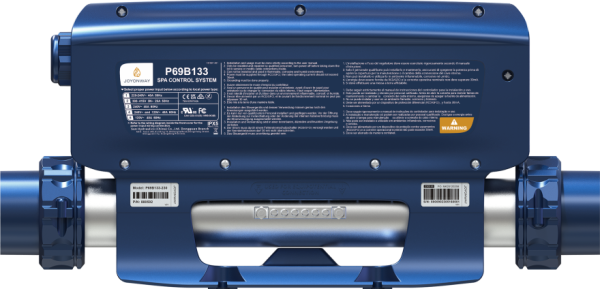

The Joyonway P69B133 Control Box is a high-performance spa control system designed for advanced configurations requiring multiple pump outputs. This powerful unit supports up to four single-speed pumps, making it ideal for large hot tubs with multiple jet zones and massage features.

Featuring multi-voltage support including European 220-240V~ single-phase at 48A and 380-415V 3N~ three-phase at 28A, the P69B133 delivers the electrical capacity needed for comprehensive spa systems. Selectable heater options (2kW, 3kW, or 4kW at 230V~) provide flexible heating performance to match your spa requirements.

The system includes dual lighting channels for ON/OFF type or RGB spa lights (+5V/3A or +12V/3A total), circulation pump output, air blower output, ozone generator connection, and auxiliary power output. Compatible with Joyonway’s PB562, PB563, and PB565 series touchscreen topside panels (including Plus versions), this control box offers intuitive operation with clock display, programmable heating timer, water circulation timer, and freeze protection.

✨ Key Features

• ✅ Four Single-Speed Pump Outputs – Each rated at 10.5A for comprehensive jet zone control
• ✅ Multi-Voltage Support – Compatible with 220-240V~ 48A 50Hz single-phase and 380-415V 3N~ 28A 50Hz three-phase power supplies
• ✅ Selectable Heater Output – Choose from 2kW, 3kW, or 4kW heating tube options at 230V~
• ✅ Dual Lighting Channels – Two sets of ON/OFF type or RGB spa lighting (+5V/3A or +12V/3A total)
• ✅ Circulation Pump Support – Dedicated 3.5A output for continuous water circulation
• ✅ Air Blower Output – 10.5A capacity for air massage system
• ✅ Auxiliary Power Output – 10.5A for additional equipment
• ✅ Ozone Generator Ready – 1A output for water sanitisation
• ✅ Triple Topside Compatibility – Works with PB562, PB563, and PB565 series panels (including Plus versions)
• ✅ Freeze Protection – Built-in protection for cold weather operation
• ✅ Programmable Timers – Heating timer and water circulation timer functions
• ✅ Clock Display – Real-time clock function via topside panel
• ✅ Wide Operating Temperature – Functions from -20°C to 55°C

🔌 Electrical Specifications

Single-Phase Power Input (European):

Specification	Value
Input Voltage	220-240V~
Frequency	50Hz
Maximum Amperage	48A
Recommended Cable	3 × 10mm² copper (for 48A total load)
Wire Colours	L – Brown, N – Blue, G – Yellow/Green

Three-Phase Power Input (European):

Specification	Value
Input Voltage	380-415V 3N~
Frequency	50Hz
Maximum Amperage	28A
Recommended Cable	5 × 4mm² copper (for 28A total load)
Wire Colours	L1 – Brown, L2 – Brown, N1 – Blue, N2 – Blue, G – Yellow/Green

Cable Requirements:

• Copper conductors only
• Minimum temperature rating: 75°C (167°F)

⚙️ Output & Connection Specifications

Output	Quantity	Maximum Load	Notes
Pump 1	1	10.5A at 220-240V~	Single-speed jet pump
Pump 2	1	10.5A at 220-240V~	Single-speed jet pump
Pump 3	1	10.5A at 220-240V~	Single-speed jet pump
Pump 4	1	10.5A at 220-240V~	Single-speed jet pump
Circulation Pump	1	3.5A at 220-240V~	Heater pump / continuous circulation
Blower	1	10.5A at 220-240V~	Air blower
Ozone	1	1A at 220-240V~	Ozone generator connection
Auxiliary	1	10.5A at 220-240V~	Additional equipment
Heater	1	2000W, 3000W, or 4000W at 230V~	Thermostatic heating control
Light	2 channels	+5V/3A or +12V/3A total	ON/OFF type or RGB spa lighting (2A max per channel)

🔗 Compatibility

Compatible Topside Panels:

Panel Series	Compatible Versions
PB562	Any version of PB562 / PB562 Plus
PB563	Any version of PB563 / PB563 Plus
PB565	Any version of PB565 / PB565 Plus

Heating Element Options:

Option	Power Rating
2kW Heating Tube	2000W at 230V~
3kW Heating Tube	3000W at 230V~
4kW Heating Tube	4000W at 230V~

📐 Physical Specifications

Specification	Value
Length (Box Only)	380 mm
Length (Including Heater)	420 mm
Height	238 mm
Width	100 mm
Heater Connection Size	2″ (50mm) socket union sleeves

Installation Space Requirements:

Requirement	Dimension
Minimum Width	140 mm
Minimum Height	258 mm
Minimum Depth	450 mm
Clearance from Obstacles	Minimum 20 mm

Mounting Hole Pattern:

Specification	Value
Hole Spacing	128 mm × 88 mm
Hole Diameter	4 × Φ7 mm

🔒 Safety Features

Safety Feature	Description
Freeze Protection	Automatic protection for cold weather operation
Thermostatic Heating	Temperature-controlled heater operation
Wide Operating Range	Functions in ambient temperatures from -20°C to 55°C

💻 Programming & Features

Built-In Functions:

• Clock display
• Freeze protection
• Heating timer (programmable)
• Water circulation timer (programmable)

Control Capabilities:

• Four independent single-speed pump controls
• Circulation pump control
• Blower control
• Ozone generator control
• Auxiliary output control
• Dual channel ON/OFF or RGB lighting control
• Temperature set point adjustment

🛠️ Installation Requirements

Pre-Installation Checklist:

• [ ] Electrical supply meets voltage and amperage requirements
• [ ] Appropriate breaker installed (48A single-phase or 28A three-phase)
• [ ] Correct cable gauge available (3 × 10mm² or 5 × 4mm²)
• [ ] Minimum installation space available (W: 140mm, H: 258mm, D: 450mm)
• [ ] 20mm clearance from obstacles ensured
• [ ] 2″ plumbing compatible with heater union connections

Wire Installation Requirements:

⚠️ All wires of the control system should be bent into a U-shape to prevent water ingress along the cables.

⚠️ Steam may condense into water droplets on wires due to temperature differences. Water can flow along wires and damage the product if not properly installed.

Connection Notes:

⚠️ Refer to manufacturer wiring diagram and installation manual.

⚠️ All electrical work must comply with BS 7671 (IET Wiring Regulations).

⚠️ Spa electrical installations in the UK require Part P certification.

⚠️ Use copper conductors only, rated for minimum 75°C (167°F).

⚠️ Pay attention to the different connections between J2/J3/J4/J5/J6/J7/J8/J9/J11/J14/J18/J19 in each power type.

🎯 Ideal Applications

Application	Suitability	Notes
🏠 Home hot tub	✅ Excellent	Ideal for multi-pump residential spas
🏠 Garden spa	✅ Excellent	Wide operating temperature range (-20°C to 55°C)
🏊 Swim spa	✅ Excellent	Four pump outputs for powerful jet systems
🏢 Holiday let	✅ Excellent	Freeze protection for unattended operation
🏢 Commercial	✅ Excellent	Three-phase option and high amperage capacity
🔄 Replacement/Upgrade	✅ Excellent	Upgrade path for spas requiring additional pumps

❓ Frequently Asked Questions

Q: Will this control box work with my spa?

A: The P69B133 is designed for spas requiring up to four single-speed pump outputs with circulation pump and blower support. Compatibility depends on your spa’s electrical requirements (48A single-phase or 28A three-phase capacity needed), plumbing configuration (2″ connections required for heater), and component specifications. Contact Parts4Tubs with your spa details for confirmation.

Q: Do I need a qualified electrician to install this?

A: Yes. All spa control box installations must be performed by a qualified electrician in compliance with BS 7671 and Part P regulations.

Q: What topside panel does this work with?

A: The P69B133 is compatible with three Joyonway topside panel series: PB562, PB563, and PB565 (including all Plus versions). Topside panels are sold separately.

Q: What heater options are available?

A: The P69B133 supports three heater tube options: 2kW, 3kW, or 4kW (all rated at 230V~). This listing includes a 3kW heater.

Q: Can this be used with three-phase power?

A: Yes. The P69B133 supports 380-415V 3N~ three-phase power at 28A (50Hz), as well as single-phase 220-240V~ at 48A (50Hz).

Q: Does this include a topside panel?

A: No. This listing is for the P69B133 control box with 3kW heater only. Compatible topside panels (PB562, PB563, or PB565 series) are sold separately.

Q: What cable size do I need?

A: For single-phase 220-240V~ (48A total load), use 3 × 10mm² copper cable. For three-phase 380-415V 3N~ (28A total load), use 5 × 4mm² copper cable.

Q: What is the operating temperature range?

A: The P69B133 operates in ambient temperatures from -20°C to 55°C, with built-in freeze protection for cold weather operation.

Q: How many lights can this control?

A: The P69B133 supports two sets of ON/OFF type or RGB spa lights with a total output of +5V/3A or +12V/3A (2A maximum per channel).

Q: What’s the difference between P69B133 and P68B123?

A: The P69B133 is the higher-capacity model with four single-speed pump outputs (vs one pump on the P68B123), 48A single-phase capacity (vs 32A), dual lighting channels (vs single), and larger physical dimensions. Choose the P69B133 for spas with multiple jet zones requiring four independent pumps.

📥 Downloads & Resources

📄 P69B133 Control System Dimension and Installation PDF – Manufacturer installation guide

🏆 Why Choose the Joyonway P69B133

• ✅ Four Pump Capacity – Control up to four single-speed pumps (10.5A each) for comprehensive jet zone management
• ✅ High Amperage Support – 48A single-phase or 28A three-phase capacity for demanding spa systems
• ✅ Selectable Heater Power – Choose 2kW, 3kW, or 4kW heating to match your spa requirements
• ✅ Dual Lighting Channels – Two sets of ON/OFF or RGB lights for enhanced spa ambiance
• ✅ Comprehensive Outputs – Controls four pumps, circulation pump, blower, ozone, auxiliary, and dual lighting
• ✅ Wide Panel Compatibility – Works with PB562, PB563, and PB565 series touchscreen panels
• ✅ All-Weather Operation – Functions from -20°C to 55°C with freeze protection
• ✅ Programmable Timers – Heating and water circulation timers for efficient operation

🤝 Why Buy From Parts4Tubs

• ✅ UK-based company with local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa specialists
• ✅ Competitive pricing
• ✅ Full warranty support
• ✅ Easy returns within 30 days
• ✅ Compatible components and accessories available
• ✅ Technical support for installation queries

🌟 Summary

The Joyonway P69B133 is a high-performance spa control system supporting both single-phase 220-240V~ 48A 50Hz and three-phase 380-415V 3N~ 28A 50Hz power configurations. Featuring four single-speed pump outputs (10.5A each), the system controls a circulation pump (3.5A), blower (10.5A), ozone generator (1A), auxiliary output (10.5A), and dual lighting channels (+5V/3A or +12V/3A total). Selectable heater options include 2kW, 3kW, or 4kW at 230V~. Compatible with PB562, PB563, and PB565 series touchscreen topside panels, this control box includes freeze protection, programmable heating and circulation timers, and operates in ambient temperatures from -20°C to 55°C. Measuring 380 × 238 × 100 mm (420mm with heater), the P69B133 is ideal for multi-pump spa configurations with 2-inch heater union connections. Contact Parts4Tubs today for compatibility advice and expert support.
