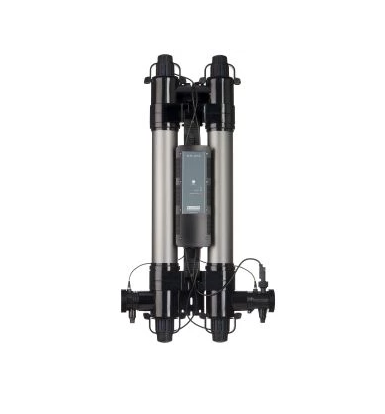

✨ Elecro H.R.UV-C Double Classic 110W UV Sterilisation System (HR-110-UK)

High-capacity UV-C water sterilisation with super reflective E-PTFE technology for pools up to 110,000 litres

💧 Product Overview

The Elecro H.R.UV-C Double Classic delivers powerful UV-C sterilisation for large residential and commercial pools up to 110,000 litres (110m³). Featuring Elecro’s revolutionary E-PTFE super reflective reaction chamber — the highest UV reflective index on the market — this dual-lamp system dramatically amplifies microorganism exposure to sterilising UV-C radiation for supreme efficiency.

Unlike standard UV systems, the H.R.UV-C’s unique E-PTFE chamber maintains up to 95% UV reflection, ensuring maximum pathogen destruction with minimal energy consumption. The 110W dual-lamp configuration (2 x 55W) handles flow rates up to 32,000 litres per hour, making it ideal for larger pools and commercial installations requiring high-volume water treatment.

Engineered and manufactured in Stevenage, England, the HR-110-UK includes an analogue lamp life indicator with reset switch and integrated flow switch for professional monitoring. With 100% salt water compatibility, IP64 protection, and a 2-year European warranty, the H.R.UV-C Double Classic represents the gold standard in UV-C pool sterilisation.

⭐ Key Features

✅ 110W Dual UV-C Lamps – Two 55W low pressure/high output lamps for powerful sterilisation

✅ E-PTFE Super Reflective Chamber – Highest UV reflective index on the market (up to 95% reflection)

✅ Pools up to 110m³ (110,000 Litres) – Perfect for large residential and commercial pools

✅ High Flow Capacity – Handles up to 32,000 litres per hour (32m³/h)

✅ Analogue Lamp Life Indicator – Visual LED monitoring with Green/Amber/Red status

✅ Flow Switch Protection – Integrated flow monitoring ensures safe operation

✅ Reset Switch – Easy lamp life timer reset after maintenance

✅ 9,000 Hours Lamp Life – Approximately 2 years under normal conditions

✅ Salt and Sea Water Compatible – 100% compatible with chlorinated salt and sea water systems

✅ Flexible Mounting Options – Install vertically or horizontally to suit your plant room

✅ IP64 Ingress Protection – Protected against water splashes from all directions

✅ No Harmful By-Products – Chemical-free sterilisation with no gases or residues

✅ 2-Year European Warranty – Manufactured in England to the highest standards

🔧 Technical Specifications

Specification	Value
Model	H.R.UV-C Double Classic
Product Code	HR-110-UK
Technology	UV-C Sterilisation with E-PTFE Reflective Chamber
Reflection Rate	Up to 95% UV reflection
Maximum Pool Size	110,000 litres / 110m³
Lamp Output	110W (2 x 55W)
Maximum Power Consumption	128W
Power Supply	Single Phase 100V ~ 240V
Frequency	50/60 Hz
Minimum Flow Rate	4m³/h (4,000 litres per hour)
Maximum Flow Rate	32,000 litres per hour / 32m³/h
Lamp Type	Low Pressure / High Output
Lamp Life	9,000 hours (approximately 2 years)
Dosing Rate	Exceeds 30mJ/cm² at maximum flow rate
Maximum Working Pressure	3 Bar
Ingress Protection Rating	IP64
Water Connections	2″/63mm stepped ABS unions + reducers 1½”/50mm
Salt Water Compatible	Yes – 100% chlorinated salt and sea water safe
Mounting	Vertical or horizontal wall mounting
Dimensions (L x W x H)	982mm x 519mm x 119mm
Net Weight	9.45 kg
Gross Weight	12.45 kg
Features	Flow switch, analogue lamp life indicator & reset switch
Oxidisation Process	UV
Warranty	2 years (Europe) / 1 year (outside Europe)

🔬 How It Works

The H.R.UV-C Double Classic employs advanced UV-C technology combined with a revolutionary super reflective chamber:

Water enters H.R.UV-C → Passes through E-PTFE reflective chamber → UV-C light destroys microorganisms →

1️⃣ E-PTFE SUPER REFLECTIVE CHAMBER

The unique E-PTFE (Expanded Polytetrafluoroethylene) reaction chamber provides the highest UV reflective index on the market. This extremely repellent material maintains up to 95% UV reflection, dramatically amplifying the exposure of microorganisms to sterilising UV-C radiation.

2️⃣ DUAL UV-C LAMP STERILISATION

Two powerful 55W low pressure/high output UV-C lamps emit germicidal ultraviolet light at 254 nanometres. This wavelength penetrates microorganism cell walls and disrupts their DNA/RNA, preventing reproduction and effectively neutralising:

• Bacteria
• Viruses
• Algae
• Fungi
• Parasites (including Cryptosporidium and Giardia)

3️⃣ AMPLIFIED PATHOGEN DESTRUCTION

The combination of dual lamps and the super reflective E-PTFE chamber means microorganisms receive multiple exposures to UV-C radiation as light reflects throughout the chamber. This dramatically increases sterilisation efficiency compared to standard UV systems.

→ Only sterilised water returns to your pool

Key Advantages of E-PTFE Technology:

• Highest UV reflective index available
• Extremely repellent surface maintains reflectivity
• Up to 95% UV reflection amplifies sterilisation
• No harmful gases or by-products produced
• Neutralises pathogens that traditional chemicals cannot

🔆 Lamp Life Indicator System

The H.R.UV-C Double Classic features an analogue lamp life indicator with colour-coded LED status:

LED Colour	Hours Remaining	Action Required
🟢 Green	9,000 – 500 hours	Normal operation
🟡 Amber	499 – 1 hours	Order replacement lamps
🔴 Red	0 hours	Replace lamps immediately

How the Indicator Works:

At initial power on, the LED indicator lights red for one second to confirm the 9,000-hour setting, then immediately changes to green to indicate the timer has started.

When the timer reaches less than 500 hours, the LED changes from green to amber — this is your signal to order replacement lamps from your distributor.

When the timer reaches zero, the LED changes to red, signalling that the UV lamps should be changed immediately.

Resetting the Timer:

After changing the UV lamps, press and hold the reset button until the LED indicator goes off and then comes back on. When released, the LED will show red for one second followed by green, confirming the timer has restarted at 9,000 hours.

⚡ Electrical Requirements

Specification	Value
Supply Voltage	Single Phase 100V ~ 240V
Frequency	50/60 Hz
Maximum Power Consumption	128W
Plug Type	UK 3-pin (BS 1363)

⚠️ IMPORTANT ELECTRICAL SAFETY INFORMATION:

All electrical work must be carried out by a qualified electrician in accordance with UK wiring regulations (BS 7671).

• This unit must be earthed
• Power must be supplied through a Residual Current Device (RCD) with a rated residual operating current not exceeding 30mA
• An Electrical Installation Certificate must be provided on completion of installation
• The manufacturer will not be liable for any issues caused by poor or improper installation
• Any alterations made to the unit will affect the warranty

🔄 Compatibility

Water Connections:

Connection	Size
Main Unions	2″ / 63mm stepped ABS
Reducers Included	1½” / 50mm

Flow Requirements:

Parameter	Value
Minimum Flow Rate	4m³/h (4,000 litres per hour)
Maximum Flow Rate	32m³/h (32,000 litres per hour)
Maximum Working Pressure	3 Bar

💡 Note: A higher flow rate will require the installation of a bypass to prevent damage to the unit.

Water Type:

• Fresh water pools ✅
• Salt chlorinated pools ✅
• Sea water pools ✅

Water Quality Requirements:

Parameter	Required Range
pH	6.8 – 8.0
Total Alkalinity (TA)	80 – 140 ppm
Chloride Content	Maximum 150 mg/litre
Free Chlorine	2.0 mg/litre
Total Bromine	Maximum 4.5 mg/litre
TDS/Calcium Hardness	200 – 1,000 ppm

⚠️ Failure to meet water quality limits will void the warranty.

Installation Position:

PUMP → FILTER → HEATER → ⭐ H.R.UV-C ⭐ → CHEMICAL DOSING → POOL
                                              ↑
                                     Non-Return Valve

The H.R.UV-C must be installed downstream (after) pumps, filters and heating devices, but upstream (before) any chemical dosing or similar water treatment equipment.

🛠️ Installation

Mounting Requirements:

Requirement	Specification
Position	Vertical or horizontal wall mounting
Clearance	Minimum 1 metre from one side for lamp access
Fixing	Wall mounting kit included
Environment	Dry, permanent, weather-proof area

Critical Installation Notes:

⚠️ Install AFTER pump, filter and heater

⚠️ Install BEFORE chemical dosing equipment

⚠️ Do not run this unit dry

⚠️ Do not cover this unit

⚠️ The unit must not be submerged in water

⚠️ Leave minimum 1 metre clearance for lamp/quartz sleeve replacement (lamps can be replaced from either end)

⚠️ Must be installed within a dry, permanent weather-proof area

⚠️ If water or moisture enters the enclosure, warranty will be void

⚠️ Carefully examine the unit after installation — do not power on if there is water on any parts not intended to be wet

💡 Tip: Flow direction is factory set for water entering on the left and exiting on the right. This can be reversed by rotating the flow switch 180 degrees (½ turn) if required.

💡 Winter Storage: If unused during winter months, drain the unit to prevent frost damage. Water must not be allowed to freeze inside the unit as this will cause severe damage.

Plumbing Notes:

• All factory unions are made from ABS plastic
• When gluing connections to ABS pipe, use ABS cement
• When using PVC pipe, use Transition cement
• No need to use mastic or PTFE tape — use the O-rings provided in the groove on the manifold assembly
• Apply glue evenly to all contact surfaces to reduce risk of leakage

🔧 Maintenance

Routine Tasks:

Task	Frequency
Check lamp life indicator	Monthly
Inspect connections for leaks	Monthly
Replace UV lamps	When indicator shows red (0 hours) / 9,000 hours
Clean quartz sleeves	During lamp replacement
Replace O-rings	Annually
Inspect lamp connectors	Annually

Analogue Lamp Life Indicator:

LED Status	Meaning	Action
🟢 Green	9,000–500 hours remaining	Normal operation
🟡 Amber	499–1 hours remaining	Order replacement lamps
🔴 Red	0 hours – lamps expired	Replace lamps immediately

Annual Maintenance Includes:

• Changing lamps if necessary
• Inspection and cleaning of quartz sleeves (replace if any cracks are discovered)
• Replacing all O-rings
• Replacing lamp connectors (white plastic insert inside the blue lamp shroud) if corroded, wet, damaged or overheated
• Inspecting plastic body and blue compression fittings for excessive wear

⚠️ Important: Before performing any maintenance, isolate from the main power supply, turn off the circulation pump, and drain the unit.

⚠️ Warning: UV light is damaging to eyes and skin. Never handle or look directly at an illuminated UV lamp.

Quartz Sleeve Cleaning:

Clean the sleeves and polish with a soft cloth or paper towel. In hard water areas, limescale can be removed by soaking the sleeve in a proprietary kettle descaling solution (follow manufacturer’s instructions).

💡 Note: Failure to remove limescale will limit the effectiveness of the UV lamps.

💎 Benefits

Benefit	Description
✨ Supreme Sterilisation Efficiency	E-PTFE chamber with up to 95% UV reflection amplifies pathogen exposure
🔆 Dual-Lamp Power	Two 55W lamps provide comprehensive sterilisation for large pools
🦠 Destroys Chlorine-Resistant Pathogens	Neutralises bacteria, viruses, algae and fungi that chemicals cannot
💧 Crystal Clear Water	Powerful UV-C sterilisation eliminates contaminants for pristine water
🧪 Reduces Chemical Dependency	Significantly reduces reliance on traditional chemical sanitisers
👃 Eliminates Chlorine Smell	Powerful sterilisation reduces unpleasant chlorine odours
🌿 No Harmful By-Products	Chemical-free sterilisation produces no gases or residues
📊 Professional Monitoring	Analogue lamp life indicator with reset switch for easy maintenance scheduling
🛡️ Flow Switch Protection	Integrated flow monitoring ensures safe operation
⚡ Energy Efficient	Only 128W maximum power consumption for dual-lamp operation
🏊 High Capacity	Treats pools up to 110,000 litres with 32m³/h flow handling
🌊 Salt Water Safe	100% compatible with chlorinated salt and sea water systems
🇬🇧 UK Manufactured	Engineered and manufactured in Stevenage, England

❓ Frequently Asked Questions

Q: What is the E-PTFE reflective chamber?

A: E-PTFE (Expanded Polytetrafluoroethylene) is a super reflective material that provides the highest UV reflective index on the market. It maintains up to 95% UV reflection, dramatically amplifying microorganism exposure to sterilising UV-C radiation for supreme efficiency.

Q: How does UV-C sterilisation work?

A: UV-C light at 254 nanometres penetrates microorganism cell walls and disrupts their DNA/RNA, preventing reproduction and effectively neutralising bacteria, viruses, algae, fungi, and parasites including Cryptosporidium and Giardia.

Q: What’s the difference between H.R.UV-C and Quantum AOP?

A: The H.R.UV-C uses pure UV-C sterilisation with a super reflective E-PTFE chamber. The Quantum AOP combines UV with photocatalytic oxidation (TiO₂/Mo nano crystals) and hydroxyl radical generation for triple-action treatment. Both are excellent systems — choose H.R.UV-C for efficient UV sterilisation, or Quantum for advanced oxidation technology.

Q: What size pool is this suitable for?

A: The HR-110-UK is designed for pools up to 110,000 litres (110m³) with a minimum filtration turnaround of three times per day. Ideal for large residential pools and commercial installations.

Q: Will this fit my system?

A: The H.R.UV-C connects via 2″/63mm stepped ABS unions, with reducers included for 1½”/50mm pipe. Ensure your flow rate is at least 4m³/h and does not exceed 32m³/h.

Q: How long do the UV lamps last?

A: The UV lamps have a usable life of 9,000 hours under normal conditions, which is approximately 2 years. The analogue lamp life indicator monitors remaining hours and alerts you when replacement is needed.

Q: How do I reset the lamp life timer?

A: After replacing the lamps, press and hold the reset button until the LED indicator goes off and then comes back on. When released, the LED will show red for one second followed by green, confirming the timer has restarted at 9,000 hours.

Q: Does this eliminate the need for chemicals?

A: UV-C sterilisation does not provide residual sanitisation, so it must be used in conjunction with chemical sanitisers. However, it significantly reduces chemical dependency by destroying pathogens that chemicals cannot, and helps reduce chlorine odours.

Q: Is this compatible with salt water?

A: Yes. The H.R.UV-C is 100% compatible with chlorinated salt water and sea water pools.

Q: What’s the warranty?

A: 2 years within Europe, 1 year outside Europe. The warranty does not include serviceable parts such as lamps, quartz sleeves, and O-rings.

Q: Is there a Pro model available?

A: Yes. The HRP-110-UK includes a digital lamp life countdown and intelligent peristaltic dosing pump for automated chemical dosing.

📥 Downloads

📄 Product Data Sheet (PDF) – Complete technical specifications

📄 Installation & Operating Manual (PDF) – Full installation and maintenance guide

📄 Product Leaflet (PDF) – Features and benefits overview

🏆 Why Choose the Elecro H.R.UV-C Double Classic?

✅ Supreme Efficiency – E-PTFE chamber with up to 95% UV reflection for maximum sterilisation

✅ Dual-Lamp Power – Two 55W lamps (110W total) for comprehensive pathogen destruction

✅ High Capacity – Treats pools up to 110,000 litres with 32m³/h flow handling

✅ Professional Monitoring – Analogue lamp life indicator with colour-coded LED status

✅ Flow Switch Protection – Integrated safety monitoring prevents dry running

✅ Destroys Resistant Pathogens – Neutralises bacteria, viruses, algae and fungi that chemicals cannot

✅ Chemical-Free Sterilisation – No harmful gases or by-products produced

✅ Reduces Chemical Dependency – Significantly lowers reliance on traditional sanitisers

✅ Long Lamp Life – 9,000 hours (approximately 2 years) under normal conditions

✅ Salt Water Compatible – 100% safe for chlorinated salt and sea water systems

✅ UK Manufactured – Engineered and built by Elecro Engineering in Stevenage, Hertfordshire

✅ Comprehensive Warranty – 2-year warranty backed by UK-based manufacturer support

🤝 Why Buy from Parts4Tubs?

✅ UK-Based Company – Local support from our Northamptonshire headquarters

✅ Fast UK Delivery – Quick dispatch to get your pool running

✅ Expert Advice – Water treatment specialists available to help with product selection

✅ Competitive Pricing – Great value on genuine Elecro products

✅ Full Warranty Support – We support your warranty claims with the manufacturer

✅ Easy Returns – 30-day returns policy for peace of mind

✅ Replacement Parts Available – UV lamps, quartz sleeves, and O-rings

✨ Summary

The Elecro H.R.UV-C Double Classic (HR-110-UK) delivers powerful UV-C sterilisation for large pools up to 110,000 litres using revolutionary E-PTFE super reflective chamber technology. The unique chamber maintains up to 95% UV reflection — the highest on the market — dramatically amplifying microorganism exposure to the dual 55W UV-C lamps for supreme sterilisation efficiency. With an analogue lamp life indicator, flow switch protection, 9,000-hour lamp life, and 32m³/h flow capacity, this British-manufactured system is ideal for large residential and commercial pools. Neutralise bacteria, viruses, algae, and fungi that traditional chemicals cannot, reduce chemical dependency, and enjoy crystal clear water with 100% salt water compatibility and a 2-year European warranty.
