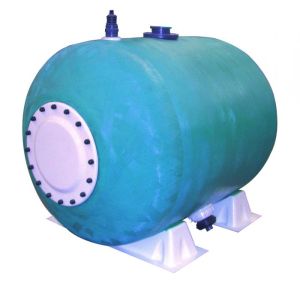

HLX Bobbin Wound Horizontal Commercial Filters: The Ultimate in Pool Filtration Technology

Introduction

As a retailer of hot tub and pool equipment, I’m excited to introduce the HLX Bobbin Wound Horizontal Commercial Filters. These filters represent the pinnacle of filtration technology for large-scale aquatic facilities, offering unparalleled performance, durability, and versatility.

Product Overview

The HLX range of filters is designed for commercial applications where reliability and efficiency are paramount. Utilizing advanced manufacturing techniques and high-quality materials, these filters are built to handle the demanding requirements of large pools, water parks, and aquatic centers.

Key Features

Superior Construction

• Liner made with special resins for a watertight, anti-corrosive barrier
• High resistance to chemicals, including saltwater compatibility
• Outer fiberglass shell applied using bobbin winding process for strength

Versatile Design

• Available in various sizes to suit different pool volumes
• Bed depths options: 0.6 metre, 1 metre, and 1.2 metre
• Horizontal orientation for easy installation and maintenance

High-Performance Specifications

• Working pressure: 2.5 kg/cm² (35.56 psi / 2.45 bar)
• Test pressure: 3.75 kg/cm² (53.3 psi / 3.68 bar)
• Special working pressure option: 4 kg/cm²
• Maximum temperature: 50°C

Standard Features

• Polyester shell lining
• Polypropylene arm collectors for efficient water distribution
• PVC distribution pipework
• Ø400mm bolted top access hatch for easy maintenance
• Ø400mm bolted side access for convenient media replacement
• Automatic air relief valve
• Sand and water drain port
• Flanged inlet and outlet connections
• Pressure gauge panel for monitoring

Technical Specifications

Specification	Detail
Model	HLX Bobbin Wound Horizontal Commercial Filter
Shell Material	Polyester (Vinylester available for ozone systems)
Bed Depth Options	0.6m, 1.0m, 1.2m
Working Pressure	2.5 kg/cm² (35.56 psi / 2.45 bar)
Test Pressure	3.75 kg/cm² (53.3 psi / 3.68 bar)
Special Working Pressure	4 kg/cm²
Maximum Temperature	50°C
Access Hatches	Ø400mm top and side
Connections	Flanged inlet and outlet

Applications

The HLX filters are ideal for:

• Large commercial swimming pools
• Water parks and aquatic centers
• Hotel and resort pools
• Competition and Olympic-sized pools
• Saltwater pools and aquariums

Installation and Maintenance

The horizontal design of the HLX filters allows for easy installation in plant rooms with height restrictions. The large access hatches facilitate straightforward maintenance and media replacement, minimizing downtime for your facility.

Customization Options

To meet the specific needs of your aquatic facility, the HLX range offers:

• Multiple size options to match your pool volume
• Choice of bed depths for optimal filtration
• Special 4 kg/cm² working pressure option for high-demand systems
• Vinylester shell option for ozone treatment systems

Energy Efficiency

The efficient design of the HLX filters, including the polypropylene arm collectors and PVC distribution pipework, ensures optimal water flow with minimal pressure loss. This translates to lower energy costs for pump operation, a crucial factor in commercial pool management.

Durability and Longevity

The combination of the special resin liner and fiberglass outer shell results in a filter that’s built to last. The high resistance to chemicals and corrosion means these filters can withstand years of continuous use in demanding commercial environments.

Compliance and Safety

The HLX filters are designed and manufactured to meet stringent safety standards. The inclusion of features like the automatic air relief valve and pressure gauge panel ensures safe operation and easy monitoring of the filter’s performance.

Conclusion

The HLX Bobbin Wound Horizontal Commercial Filters represent the cutting edge in pool filtration technology. Their robust construction, versatile design, and high-performance capabilities make them the ideal choice for large-scale aquatic facilities that demand the best in water quality and operational efficiency. Whether you’re managing a bustling water park, a competitive swimming venue, or a luxury resort pool, the HLX range offers the filtration solution you need to keep your water crystal clear and your patrons happy. Invest in HLX filters to ensure your commercial pool operates at peak performance, providing a safe and enjoyable swimming experience for years to come.
