Name: Helios II Solar Reel Large - 4.88m - 6.1m (5.8m maximum cover width)
SKU: PRD306K
Availability: InStock

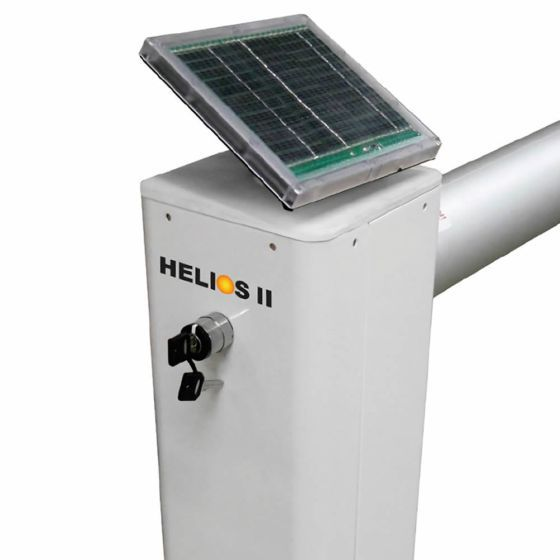

The newly improved Helios II Solar Reel is a fully self-contained and efficient pool cover solution, featuring a robust SELV 12V DC motor with a simple 3-way key operation that ensures effortless control, while its motor-side end stand houses a sealed battery that is continuously trickle-charged by solar energy—allowing for at least six cover operations per day without external power; the reel system has also been upgraded with redesigned end stands, where the back panel can be easily removed to provide quick access to the securing position at the poolside, ensuring a fast and secure installation process, and it comes complete with all necessary components including end stands and connecting tubes for a hassle-free, plug-and-play setup.

Please note: Reels should be set up to have a 150-300mm overlap each side. The maximum recommended area of material on both reels is 60m². The cover/tube overlap should be kept to a minimum. Some flexing of the tube may occur with larger covers.

Please contact us for current lead time information.

Product Specifications:

Tube Size Options: Available in both small and large tube sizes.
Ideal for Domestic Use: Designed for small outdoor solar pool covers.
Cover Compatibility: Suitable for covers up to 70m² (approximately 753ft²).
Powerful & Efficient Motor: Features a SELV 12V DC electric motor with automatic stopping limits.
Self-Contained System: Fully enclosed unit for easy and safe operation.
Complete Set Included: Comes with end stands and tube set for quick installation.
User-Friendly Operation: Simple 3-way key operation for effortless control.
Reliable Battery Performance: The battery supports at least six cover operations per day.

Battery & Charging Information:

External Charging: Yes, the battery can be charged externally using a separate mains charging cable (included).
Battery Type: Lead-acid battery for reliable performance.
Backup Operation: No manual operation available. If the battery fails, use the power cable for mains charging or replace the battery as needed.

Important Guidelines:

Reel Setup: Ensure a 150-300mm overlap on each side for optimal performance.
Material Capacity: Maximum recommended area for both reels is 60m².
Cover/Tube Fit: Minimize overlap to enhance efficiency.
Structural Considerations: Some tube flexing may occur with larger covers.
