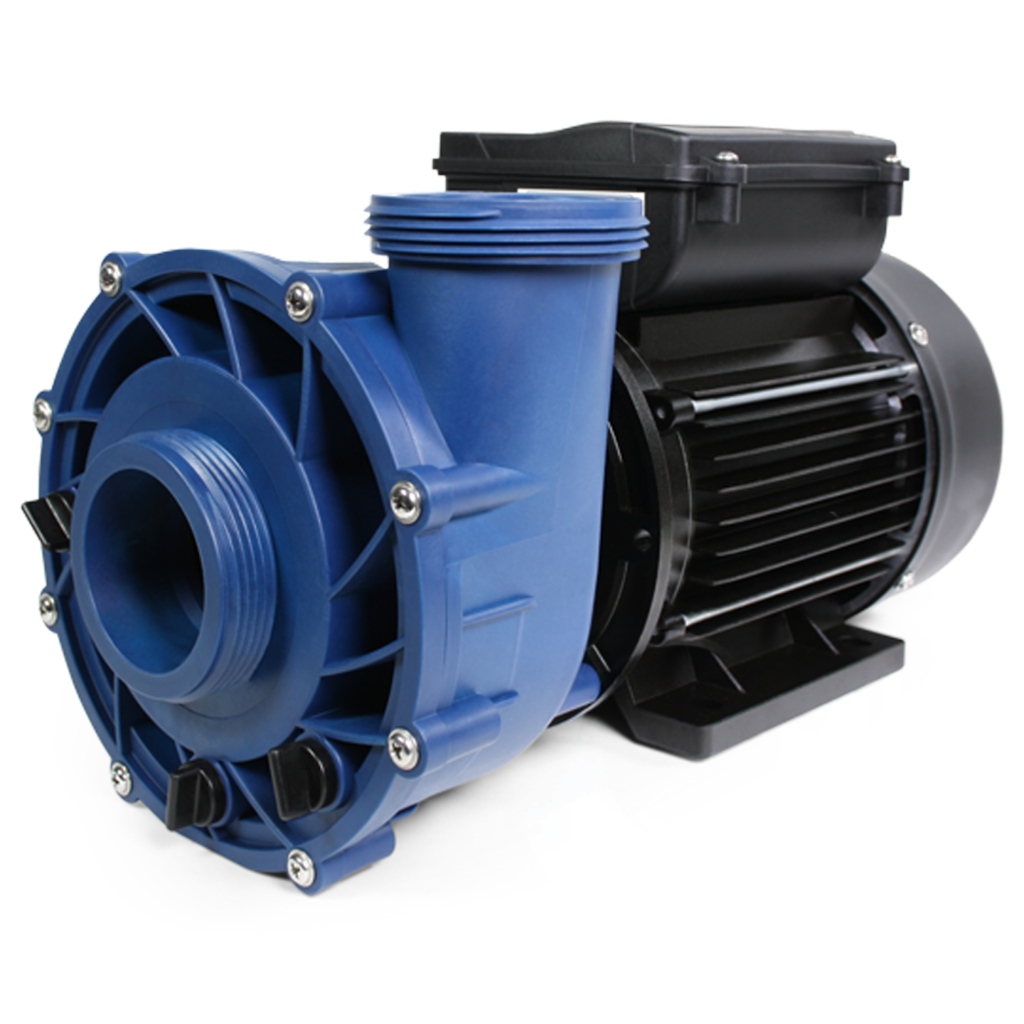

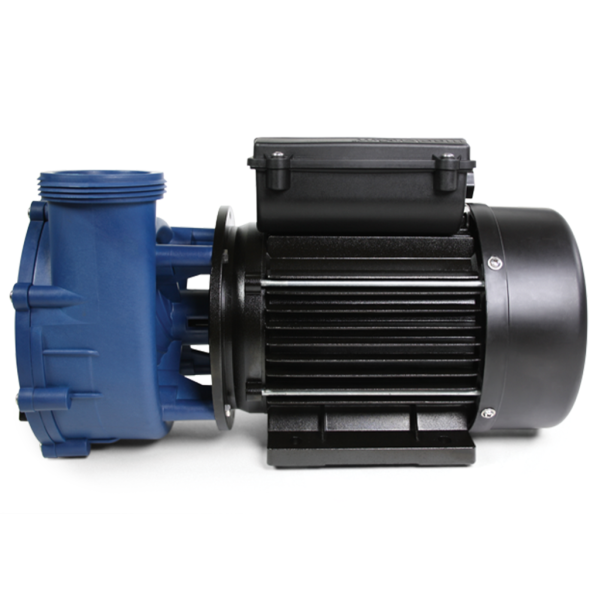

♨️ Gecko Maelstrom MS-1 Spa Pump – 2.5HP 1-Speed

Name: Gecko Maelstrom MS-1 Spa Pump - 2.5HP 1-Speed
SKU: PW-AF253
Availability: InStock

Powerful single-speed performance engineered for dedicated spa jet applications

💧 Product Overview

The Gecko Maelstrom MS-1 2.5HP Single-Speed Pump is a dedicated massage pump designed for spa applications requiring consistent, powerful jet performance. Delivering 2.5 HP (2.2 kW) of motor power, this single-speed pump provides the strong, reliable water flow needed to drive multiple hydrotherapy jets effectively.

Built with Gecko’s proven quality standards, the Maelstrom MS-1 features a rotatable wet end for flexible installation options and 2-inch external thread plumbing connections for standard spa plumbing compatibility. The pump comes with a generous 2.4 metre cable with AMP plug for convenient electrical connection to compatible spa packs.

Premium components including a high-temperature rated capacitor (85°C), sealed bearings, and Gecko’s high-quality universal seal ensure dependable long-term operation. UL approved (E62386), the Maelstrom MS-1 1-Speed represents an excellent choice for spa installations requiring dedicated jet power without the complexity of two-speed operation. Operating at 230V / 50Hz with a 9.5 A current draw, this pump delivers straightforward, powerful performance.

⭐ Key Features

✅ 2.5HP Single-Speed Motor – Delivers 2.2 kW of dedicated jet power

✅ Single-Speed Simplicity – Straightforward operation for dedicated jet function

✅ 2-Inch External Thread Connections – Standard plumbing for easy installation

✅ Rotatable Wet End – Adjustable discharge orientation for flexible plumbing options

✅ 2.4m Cable with AMP Plug – Pre-wired for quick electrical connection

✅ High-Temperature Capacitor – Rated to 85°C for reliable operation

✅ Sealed Bearings – Maintenance-free design for extended service life

✅ Gecko Universal Seal – High-quality seal for leak-free performance

✅ UL Approved (E62386) – Certified for safety and quality

✅ Proven Reliability – Gecko quality trusted by spa manufacturers worldwide

🔧 Technical Specifications

Specification	Value
Pump Type	Single-Speed Massage Pump
Brand	Gecko
Model	Maelstrom MS-1
Motor Power	2.5 HP / 2.2 kW
Speed Settings	Single Speed
Amperage	9.5 A
Voltage	230 V
Frequency	50 Hz
Plumbing Size	2 inch (External Thread)
Wet End	Rotatable
Cable Length	2,400 mm (2.4 m)
Electrical Connection	AMP Plug
Capacitor Rating	85°C High-Temperature
Bearings	Sealed
Seal Type	Gecko High-Quality Universal
Certification	UL Approved (E62386)

⚡ Electrical Requirements

Electrical Specification	Requirement
Supply Voltage	230 V
Frequency	50 Hz
Phase	Single Phase
Full Load Amps	9.5 A
Cable Length	2.4 m
Connection Type	AMP Plug

⚠️ IMPORTANT:

All electrical work must be carried out by a qualified electrician in accordance with UK wiring regulations (BS 7671). Hot tubs require RCD protection (30mA). Verify your spa pack can supply the 9.5 A required before installation.

🔗 Compatibility Guide

This Pump:

📍 Plumbing: 2 inch External Thread

📍 Wet End: Rotatable

📍 Cable: 2.4 m with AMP Plug

📍 Power: 2.5 HP / 2.2 kW

📍 Current: 9.5 A

Plumbing Connections:

Connection	Size	Type
Suction	2 inch	External Thread
Discharge	2 inch	External Thread

Compatible With:

The Maelstrom MS-1 is designed for spa applications requiring a dedicated single-speed jet pump with 2-inch external thread plumbing. Check your existing plumbing configuration for compatibility.

Also Available:

Gecko also offers a 2-speed version of the Maelstrom MS-1 2.5HP for applications requiring both high-speed jet operation and low-speed circulation capability.

🔌 Installation Requirements

Mounting:

Requirement	Specification
Mounting Position	Horizontal
Base	Solid, level, vibration-dampening surface
Ventilation	Adequate clearance for motor cooling
Access	Sufficient space for electrical connections and maintenance

Plumbing:

Connection	Size
Suction Port	2 inch External Thread
Discharge Port	2 inch External Thread

Installation Notes:

⚠️ Pump must be installed below water level (flooded suction) to ensure proper priming

⚠️ Never run pump dry – causes immediate seal damage and motor overheating

⚠️ Wet end can be rotated to adjust discharge direction for your plumbing layout

⚠️ Ensure proper bonding to earth as per BS 7671 regulations

⚠️ 2.4 m cable provides flexibility for spa pack positioning

🛠️ Maintenance Guide

Routine Maintenance:

Task	Frequency	Notes
Check for leaks	Monthly	Inspect around seal plate and union connections
Inspect unions	Monthly	Tighten if any weeping is detected
Check motor ventilation	Quarterly	Ensure motor is not obstructed
Inspect mounting	Quarterly	Tighten bolts if vibration has loosened them
Verify amperage	Annually	Should read approximately 9.5 A under normal load
Clean strainer basket	As needed	Remove debris from filtration system

Warning Signs – Replace Pump If:

Unusual noise such as grinding, screeching, or humming
Water leaking from the seal plate area
Motor repeatedly trips the circuit breaker
Noticeably reduced water flow to jets
Motor overheating or cutting out on thermal protection
Excessive vibration during operation

Seal Replacement:

📍 Seal Type: Gecko High-Quality Universal Seal

⚠️ Replace seal at first sign of leakage to prevent motor damage. Contact Parts4Tubs for compatible seal kits.

⚙️ Ideal Applications

Application	Suitability	Notes
♨️ Hot tub jet pump	✅ Yes	Single-speed design ideal for dedicated jet operation
♨️ Spa massage pump	✅ Yes	2.5 HP delivers powerful hydrotherapy performance
🛁 Whirlpool bath	✅ Yes	Suitable for larger whirlpool systems
🔄 Circulation pump	❌ No	Use dedicated circ pump for 24/7 filtration

❓ Frequently Asked Questions

Q: What horsepower is this pump?

A: This is a 2.5 HP (2.2 kW) single-speed massage pump designed for dedicated jet operation.

Q: What’s the difference between this and the 2-speed version?

A: The single-speed version runs at full power only – ideal for systems with a separate circulation pump. The 2-speed version offers both high-speed for jets and low-speed for circulation, suitable for systems without a dedicated circ pump.

Q: Will this fit my hot tub?

A: This pump has 2-inch external thread plumbing connections and comes with a 2.4m cable with AMP plug. Check your existing pump’s plumbing size and electrical connection type for compatibility.

Q: What voltage does this pump require?

A: 230V / 50Hz single phase. All electrical installation must be carried out by a qualified electrician to BS 7671 standards.

Q: What size are the plumbing connections?

A: 2 inch external thread on both suction and discharge ports.

Q: What electrical connection does it use?

A: The pump comes with a 2.4 m cable fitted with an AMP plug for connection to compatible spa packs.

Q: Is this pump UL certified?

A: Yes, the Maelstrom MS-1 is UL Approved (E62386) for safety and quality assurance.

Q: What makes this pump reliable?

A: Gecko has equipped the MS-1 with sealed bearings, a high-temperature rated capacitor (85°C), and their high-quality universal seal for long-lasting, leak-free operation.

Q: How do I know if my pump needs replacing?

A: Common signs include unusual noises, water leaking from the seal area, reduced jet power, or the motor tripping the breaker repeatedly.

🏆 Why Choose the Gecko Maelstrom MS-1 1-Speed

✅ Powerful Performance – 2.5 HP delivers strong jet massage

✅ Single-Speed Simplicity – Straightforward operation and wiring

✅ UL Certified – E62386 approval for safety and quality

✅ Premium Components – Sealed bearings, 85°C capacitor, Gecko universal seal

✅ Convenient Installation – 2.4 m cable with AMP plug included

✅ Flexible Plumbing – Rotatable wet end adapts to your configuration

✅ Trusted Brand – Gecko quality recognised worldwide

🤝 Why Buy From Parts4Tubs

✅ UK-based company with local expert support

✅ Fast UK delivery – same day dispatch on orders placed before 2pm

✅ Expert advice from dedicated spa specialists

✅ Competitive pricing on quality spa parts

✅ Full warranty support

✅ Easy returns within 30 days

✅ Replacement seals and cables available

✅ Genuine Gecko parts

✨ Summary

The Gecko Maelstrom MS-1 2.5HP Single-Speed Spa Pump delivers powerful, reliable performance for hot tubs requiring dedicated jet operation. With 2.5 HP (2.2 kW) of motor power, 2-inch external thread plumbing, and a convenient 2.4 m cable with AMP plug, this UL-approved pump offers straightforward installation and dependable operation. Premium features including sealed bearings, high-temperature rated capacitor (85°C), and Gecko’s universal seal ensure long service life. For spa systems with a separate circulation pump that need dedicated jet power, the Maelstrom MS-1 1-Speed is an excellent choice backed by Gecko’s trusted quality.

Showing 1 – 6 of 6 results Showing all 6 results Showing the single result No results found


	1.5 inch Union O-Ring	£1.55 Max: 54 Min: 1 Step: 1 Add to cart
	2 inch Union O-Ring	£1.55 Max: 100 Min: 1 Step: 1 Add to cart
	2 to 1.5 inch Threaded Union Adapter	£7.27 Max: 52 Min: 1 Step: 1 Add to cart
	2.5 inch Union O-Ring	£1.55 Max: 100 Min: 1 Step: 1 Add to cart
	2.5 inch Waterway Union with 2 inch Tailpiece	£9.69 Max: 34 Min: 1 Step: 1 Add to cart
	4 pin Amp cord (Dual Speed Pump)	£18.06 Max: 6 Min: 1 Step: 1 Add to cart

The hot tub industry doesnt make it easy for you when you are trying to match up the size of the unions (the part that screws your pipe work onto the pumps) Below you can see the physical sizes of the collars, and how they relate to the actual union size you need. So a measurement of 2.5", edge to edge on the collar of the pump is actually a 1.5" union - confusing - absolutely! If you are not sure, give me a shout!

Hot Tub Pump Collar & Union Size Chart

Imperial & Metric Specifications

Union Size	Collar Size	Thread OD	Union OD	O-Ring Size
1.5" Female Buttress Thread (FBT)	2.5" / 64mm (Tip to Tip) Measurement	2-1/2" 64mm	2-13/16" 71mm	2-5/16" OD 59mm
2" Female Buttress Thread (FBT)	3.1" / 78mm (Tip to Tip) Measurement	3-1/16" 78mm	3-3/8" 81mm	2-15/16" OD 75mm
2.5" Female Buttress Thread (FBT)	3.6" / 91mm (Tip to Tip) Measurement	3-5/8" 91mm	4-1/4" 108mm	3-7/16" OD 87mm

Important Notes

The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement.

Collar size is measured from thread tip to thread tip on the pump outlet.

Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications.

O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy.

How do I Replace a Hot Tub Pump?

Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance.

Materials You'll Need:

Replacement pump
Pipe wrench
Adjustable wrench
Screwdriver
Pipe sealant (thread tape or plumber's putty)
PVC primer and cement (if you have PVC plumbing)
Teflon tape (for threaded connections)

Procedure:

Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components.
Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves)
Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment.
Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump.
Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing.
Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts.
Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks.
Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts.
Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly.
Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure.
Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch.
Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections.
Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water.
Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed.
Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues.

Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help.

How do I know what size hot tub pump I have?

Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps:

Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump.
Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it.
Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump.
Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub.
Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model.

Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.
