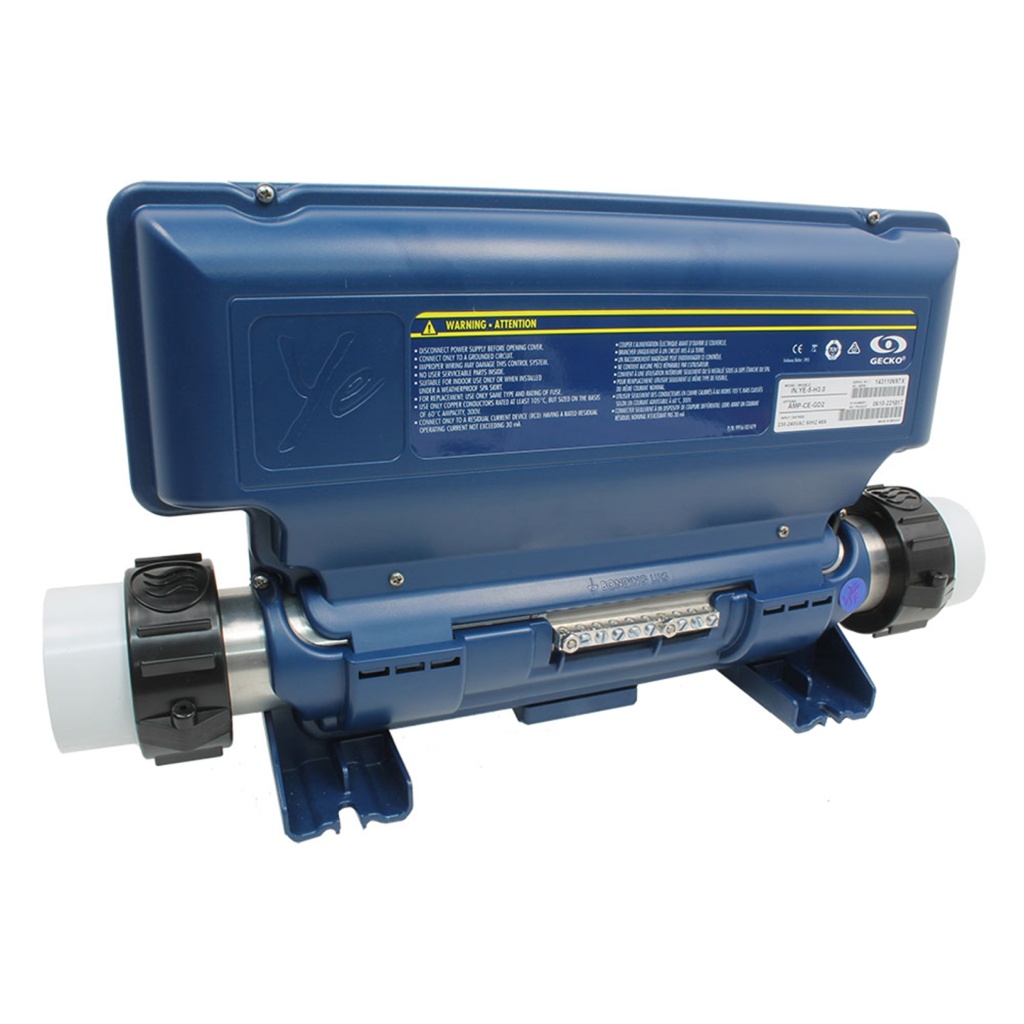

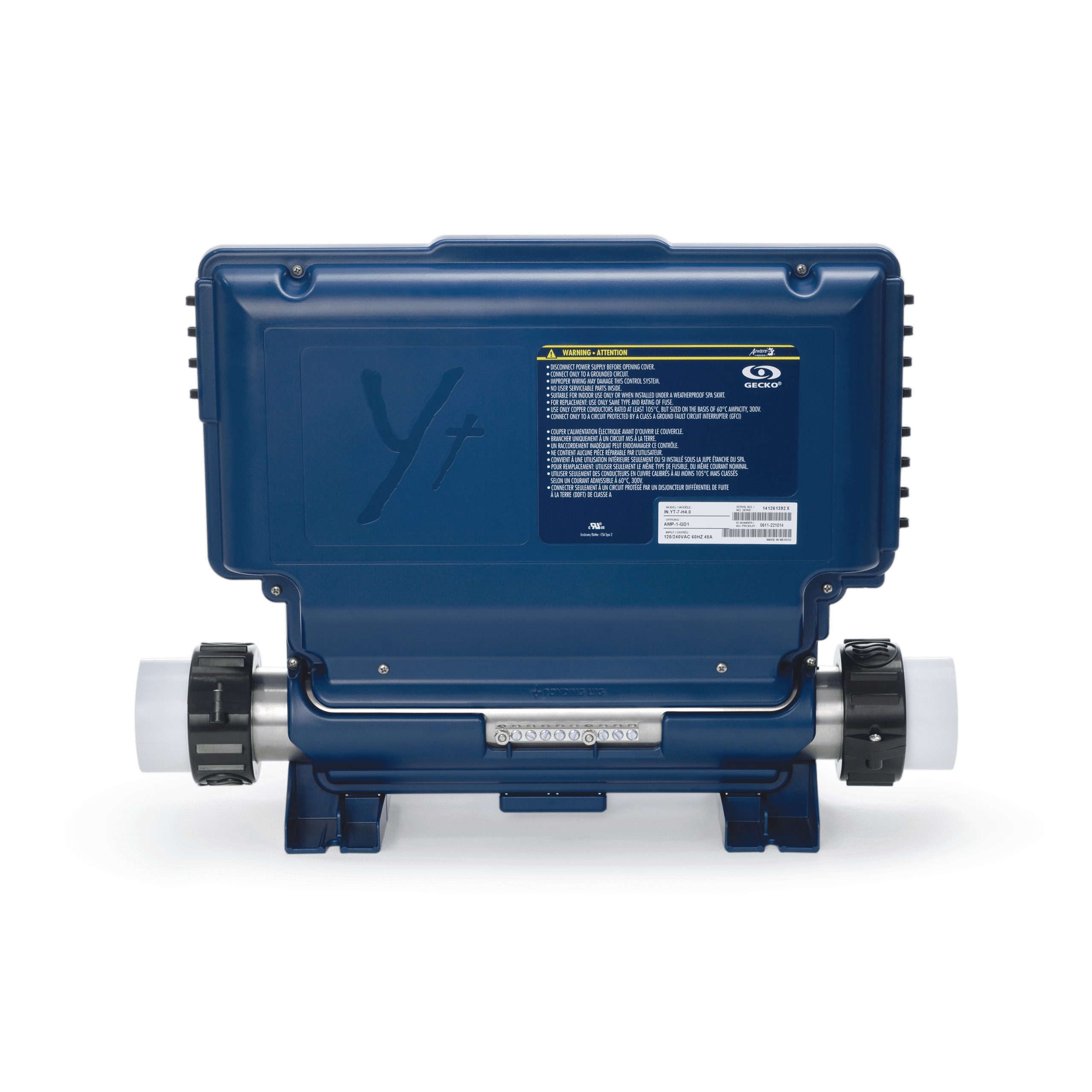

🔌 Gecko IN.YT-7 Control Box (Software 351) 3kW – Pre-Configured Multi-Pump Spa Controller

High-capacity spa controller with specific software configuration for three dual-speed pumps and 3kW heating.

📋 Product Overview

⚠️ ATTENTION: THIS CONTROL BOX HAS SPECIFIC CONFIGURATIONS. Please download the configuration chart before ordering. If you require the generic IN.YT-7 with 4kW heater, please see model BX-YT700.

The Gecko IN.YT-7 Control Box (Software 351) is a high-capacity spa control system pre-configured with specific software settings for particular spa installations. Unlike the standard IN.YT-7 with 4kW heater, this variant features a 3kW heat.wav heater and is designed to manage three dual-speed pumps, an optional circulation pump, and multiple accessory outputs.

With seven configurable outputs, Software 351 configuration supports extensive pump control including three main dual-speed pumps, circulation pump capability, ozone generator support, and two direct outputs for audio/video equipment. The integrated 3kW heat.wav heater with Gecko’s patented in.flo electronic dry-fire protection ensures safe, efficient heating.

The Y Series architecture provides exceptional flexibility with single-phase, dual-phase, and three-phase electrical support. The IPX5-rated watertight enclosure and industry-standard AMP connectors ensure reliable installation in demanding spa cabinet environments.

This control box is intended for like-for-like replacement or specific OEM applications requiring Software 351 configuration. Always verify compatibility with your existing system configuration before ordering.

✨ Key Features

✅ Software 351 Pre-Configured – Specific software setup for defined pump and accessory configurations

✅ 3kW heat.wav Heater – Integrated Incoloy heater element with in.flo electronic dry-fire protection

✅ Three Dual-Speed Pumps – Supports 3 main pumps each with high and low speed capability

✅ Circulation Pump Support – Optional dedicated output for 24-hour water circulation

✅ Dual Direct Outputs – Two 5A direct outputs for audio, video, or other accessories

✅ 12V AC Light Output – 1A capacity for spa lighting

✅ in.touch WiFi Ready – Remote spa control via iOS/Android when paired with in.touch module

✅ IPX5 Watertight Rating – in.seal protection for enclosure and connectors

✅ Multi-Phase Support – Single-phase, dual-phase, and three-phase configurations

✅ Wide Keypad Compatibility – Works with all Gecko IN.K series topside panels

✅ Ozone Support – Integrated ozone generator output

✅ 2″ Plumbing Connection – Standard size for easy integration

⚙️ Electrical Specifications

Specification	Value
Input Voltage	230/240V nominal (+5/-10%)
Frequency	50 Hz
Maximum Amperage (Single-Phase)	48A max
Maximum Amperage (Dual-Phase)	20A max per phase
Maximum Amperage (Three-Phase)	16A max per phase
Heater Output	3kW (2.8kW at 230V)
Heater Type	heat.wav with Incoloy element
Heater Flow Requirement	Minimum 18 GPM (68.1 LPM)
Light Output	12V AC, 1A maximum

⚠️ Important: European models are fuse protected. Maximum current for outputs must not exceed fuse ratings.

Fuse Protection Limits (European Model)

Fuse	Protected Outputs	Maximum Current
F1	Output 2 + Heater	20A max
F2	Outputs 4, 5 + Direct 1	20A max
F3	Outputs 1, 3	20A max
F21	Outputs 6, 7, 8 + Direct 2	20A max

🔗 Output & Connection Specifications

Software 351 Pump Configuration

Component	Configuration	Outputs Used
Pump 1	Dual-speed	2 outputs (high + low)
Pump 2	Dual-speed	2 outputs (high + low)
Pump 3	Dual-speed	2 outputs (high + low)
Circulation Pump	Optional	1 output
Ozone	Yes	Shared output
Direct Output 1	Audio/Video	5A
Direct Output 2	Audio/Video	5A
Light	12V AC	1A

Output Specifications (European CE Model)

Output	Voltage	Maximum Current	Typical Device
Output 1	230/240V	15 FLA / 60 LRA (inrush)	Pump 2 High Speed
Output 2	230/240V	15 FLA / 60 LRA (inrush)	Ozonator
Output 3	230/240V	15 FLA / 60 LRA (inrush)	Pump 2 Low Speed
Output 4	230/240V	15 FLA / 60 LRA (inrush)	Pump 1 High Speed
Output 5	230/240V	15 FLA / 60 LRA (inrush)	Pump 1 Low Speed
Output 6	230/240V	15 FLA / 60 LRA (inrush)	Pump 3 Low Speed
Output 7	230/240V	15 FLA / 60 LRA (inrush)	Circulation Pump
Output 8	230/240V	15 FLA / 60 LRA (inrush)	Pump 3 High Speed
Direct Out 1	230/240V	5A	Audio/Video
Direct Out 2	230/240V	5A	Audio/Video
Light Output	12V AC	1A	Spa Light

Connection Types

Connection	Type	Notes
High Voltage Accessories	AMP connectors or 0.250″ quick-connect terminals	Industry-standard compatibility
Keypad Connection	in.link connector	Low-voltage, watertight
Communication	in.link	For in.touch or in.stik
Plumbing	2″ connections	Standard spa plumbing size

Sensor Inputs

Sensor	Type	Notes
Temperature Sensor	Regulation probe	Integrated with heat.wav
Hi-Limit Sensor	Thermal protection	Built into heater assembly
Flow Detection	in.flo electronic	No pressure switch required

🔄 Compatibility

Compatible Topside Panels

Panel Model	Compatible	Notes
IN.K200	✅ Yes	LED display, 4 keys
IN.K300	✅ Yes	LCD display, 4 keys
IN.K450	✅ Yes	LCD display, 7 keys
IN.K500	✅ Yes	Colour LCD display, 7 keys
IN.K600 (static)	✅ Yes	LCD display, 11 keys
IN.K800	✅ Yes	Colour LCD display, 10 keys
IN.K1000	✅ Yes	Colour LCD capacitive touchscreen
K-19	✅ Yes	LED display, 4 keys (legacy)
K-35	✅ Yes	LED display, 6 keys (legacy)
K-8	✅ Yes	LCD display, 8 keys (legacy)
K-4	✅ Yes	LCD display, 8 keys (legacy)

Connectivity Options

Feature	Supported	Notes
in.touch	✅ Yes	WiFi remote control (module required)
in.stik	✅ Yes	Software configuration upload

⚠️ Software Configuration: This unit comes pre-loaded with Software 351. Use in.stik for any software modifications if required.

📐 Physical Specifications

Specification	Value
Dimensions (L x W x H)	497mm x 126mm x 273mm
Enclosure Material	High-impact plastic
IP Rating	IPX5 (watertight)
Mounting Type	Floor, wall, or cabinet mount
Operating Temperature	0°C to 58°C (32°F to 136°F)
Storage Temperature	-25°C to 85°C (-13°F to 185°F)
Humidity Range	Up to 85% RH, non-condensing
Ambient Temperature Limit	60°C maximum around controller

🛡️ Safety Features

Safety Feature	Specification
Dry-Fire Protection	in.flo electronic detection (no pressure switch)
Watertight Protection	in.seal IPX5 rated enclosure and connectors
Temperature Algorithm	in.t.cip intelligent heating optimisation
RCD Requirement	Must be connected to RCD not exceeding 30mA
Thermal Protection	Integrated with heat.wav heater

Certifications

Certification	Status
CE Mark	✅ Certified
IEC 60335-1:2010	✅ Compliant
IEC 60335-2-60:2002	✅ Compliant (with amendments)
EN 60335-1:2012	✅ Compliant
EN 60335-2-60:2003	✅ Compliant (with amendments)
EN 62233:2008	✅ Compliant
EN55014-1	✅ Compliant
EN55014-2	✅ Compliant

💻 Programming & Features

Software 351 Configuration

This control box is pre-configured with Software 351, which defines specific:

• Pump output assignments
• Filtration cycle parameters
• Temperature control behaviour
• Accessory control sequences

⚠️ Important: Download the Software 351 Quick Card to verify configuration matches your spa requirements before ordering.

Control Features

• Adjustable temperature set point
• Configurable filtration cycles
• Pump runtime programming
• Light timeout settings
• Celsius or Fahrenheit display option

Smart Features

Feature	Description
in.t.cip Algorithm	Intelligent water temperature refresh optimising pump activation and heating cycles
Self-Diagnostics	Automatic error detection and display
in.stik Upload	Software configuration via in.stik device
WiFi Connectivity	Remote control via in.touch module (sold separately)

🔧 Installation Requirements

Pre-Installation Checklist

• [ ] Downloaded and reviewed Software 351 Quick Card
• [ ] Verified configuration matches spa requirements
• [ ] Qualified electrician engaged
• [ ] Electrical supply meets 230/240V, 50Hz requirements
• [ ] Appropriate RCD installed (30mA maximum)
• [ ] Control box positioned minimum 100mm (4″) above potential flood level

Electrical Requirements

Requirement	Specification
Supply Voltage	230/240V nominal (+5/-10%)
Frequency	50 Hz
RCD	Maximum 30mA residual current
Bonding	Copper conductor to bonding lugs

Wiring Configurations (European CE Model)

Configuration	Requirements
Single-Phase	1 line + neutral, 48A max
Dual-Phase	2 lines + neutral, 20A max per phase
Three-Phase (Delta)	3 lines, no neutral, 16A max per phase
Three-Phase (Neutral)	3 lines + neutral, 16A max per phase

⚠️ Important Notes:

• Refer to manufacturer wiring diagram in enclosure lid
• All electrical work must comply with BS 7671 (IET Wiring Regulations)
• Spa electrical installations in the UK require Part P certification
• Only copper wire should be used, never aluminium

🔍 Troubleshooting & Error Codes

Common Error Codes

Code	Meaning	Possible Cause
HL	High Limit	Water temperature at heater exceeded safe limit
OH	Overheat	Water temperature too high
FLO	No Flow	No water flow detected while main pump running
Prr	Probe Error	Problem with regulation temperature probe

⚠️ Always disconnect power before inspecting control box.

🎯 Ideal Applications

Application	Suitability	Notes
🔄 Like-for-like replacement	✅ Excellent	Direct replacement for existing Software 351 systems
🏭 OEM application	✅ Excellent	Pre-configured for specific spa models
🏠 Multi-pump home spa	✅ Good	Supports 3 dual-speed pumps
🏢 Holiday let	✅ Good	WiFi monitoring available

⚠️ Not suitable for: Generic replacement where Software 351 configuration is not required. Use BX-YT700 (4kW) for standard IN.YT-7 applications.

❓ Frequently Asked Questions

Q: What’s the difference between this and the standard IN.YT-7 (BX-YT700)? A: This model (Software 351) has a 3kW heater and specific pre-loaded software configuration. The standard BX-YT700 has a 4kW heater and generic software. Always verify your requirements before ordering.

Q: How do I know if Software 351 is right for my spa? A: Download the Software 351 Quick Card document from the Downloads section. This shows the specific output assignments and configuration. Your spa manufacturer or installer can advise on compatibility.

Q: Can I change the software configuration? A: Yes, using an in.stik device. However, the unit comes pre-loaded with Software 351 which is why it’s sold as a specific configuration option.

Q: Why is the heater 3kW instead of 4kW? A: Different spa configurations have different heating requirements. The 3kW heater (2.8kW at 230V) is sized appropriately for the pump and accessory load defined in Software 351.

Q: Do I need a qualified electrician? A: Yes. All spa control box installations must be performed by a qualified electrician in compliance with BS 7671 and Part P regulations.

Q: What topside panels are compatible? A: All Gecko IN.K series keypads are compatible, including IN.K200, IN.K300, IN.K450, IN.K500, IN.K600, IN.K800, and IN.K1000.

Q: Does this include a topside panel? A: No, the control box with heater tube is sold separately. Topside panels must be purchased separately.

Q: Can I control my spa remotely? A: Yes, with the optional in.touch module (sold separately).

📥 Downloads & Resources

• IN.YT7 (351) Quick Card
• QRC YT-7 SOFTWARE 361Rrev3
• Y series techbook en

🏆 Why Choose the Gecko IN.YT-7 (Software 351) 3kW

✅ Pre-Configured – Software 351 loaded and ready for specific spa applications

✅ Three Dual-Speed Pumps – Full support for demanding multi-pump configurations

✅ 3kW Heating – Appropriately sized heater with in.flo dry-fire protection

✅ Proven Y Series Platform – Reliable architecture trusted by spa manufacturers

✅ Complete Documentation – Quick Card available for configuration verification

✅ CE Certified – Full compliance with European safety standards
