Foras Centrifugal Pump – 1″ Female Thread – 6 Bar – 0.74kW
Reliable Water Flow, Maximum Efficiency, Italian Engineering
Product Overview

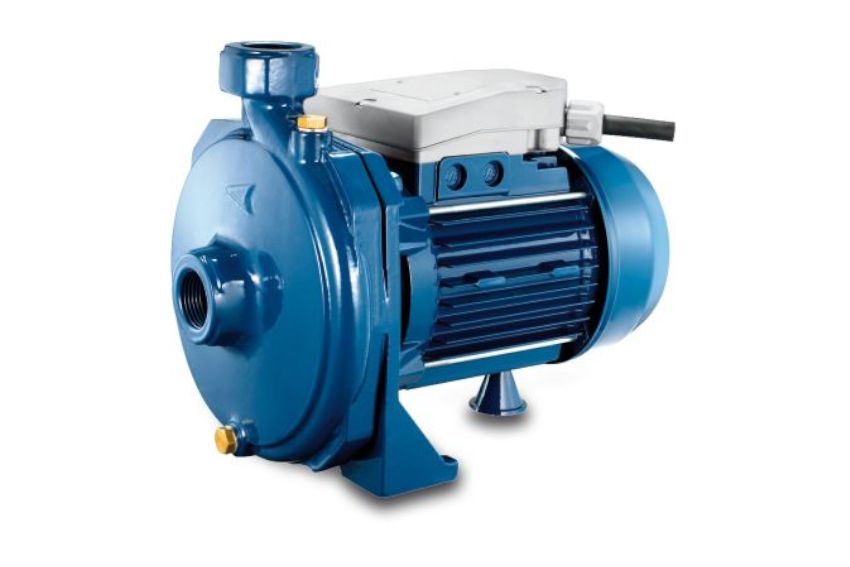

The Foras KM100 Centrifugal Pump is a premium Italian-made pump engineered for reliable water transfer in domestic, agricultural, and light industrial applications. With a 0.74 kW (1 HP) motor, it delivers maximum pressure of 6 bar and ensures consistent performance with quiet operation. Built for durability, it features corrosion-resistant materials, advanced mechanical components, and high thermal tolerance for long-term use.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Foras KM100 (Single-Impeller) |
| Pump Type | Centrifugal (Non-Self-Priming) |
| Power Output | 0.74 kW / 1 HP |
| Voltage | 230V / 50Hz (Single Phase) |
| Connection Size | 1″ Female Thread |
| Maximum Pressure | 6 bar |
| Maximum Flow Rate | 5.4 m³/h (≈ 90 L/min) |
| Maximum Head | 33 m |
| Pump Body | Cast Iron or Aluminium (depending on version) |
| Impeller | Noryl (thermoplastic) or Brass |
| Shaft | Stainless Steel |
| Mechanical Seal | Yes (high quality) |
| Bearings | Oversized, self-lubricating |
| Motor | Sealed with external cooling |
| Electrical Winding | Class F Condenser – thermo-amperometric safety (mono phase only) |
| Maximum Water Temperature | 90°C |
| Insulation Class | F |
| Motor Protection | IP44 with Built-in Thermal Protection |
| Self-Priming | No – must be installed below water level |
| Noise Level | Very Quiet (Super Silent Design) |
| Supplied With Cable | No |
Key Benefits
-
High Efficiency & Consistent Flow: Smooth and reliable water transfer.
-
Durable & Robust: Corrosion-resistant body, oversized bearings, and high-quality mechanical seal ensure long life.
-
Quiet Operation: Super silent design suitable for residential areas.
-
High Temperature Tolerance: Can handle water temperatures up to 90°C.
-
Advanced Motor Protection: Class F winding with thermal safety and external cooling for durability.
-
Easy Installation: Standard 1″ female thread connection.
Why Choose the Foras KM100?
The Foras KM100 combines power, efficiency, and durability in one compact package. Its Italian engineering ensures energy-efficient operation, long-lasting performance, and minimal maintenance. Perfect for irrigation, domestic water boosting, or light industrial use, this pump offers reliability even under demanding conditions.
