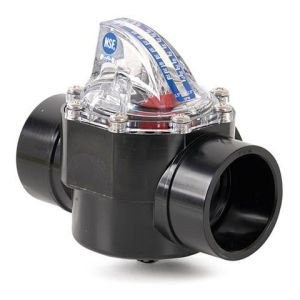

FLVIS063: FlowVis 63mm Flow Meter with NRV

Product Overview

As a retailer of high-quality pool and spa equipment, I’m excited to present the FLVIS063 FlowVis 63mm Flow Meter with Non-Return Valve (NRV). This innovative device represents a significant advancement in flow measurement technology, specifically engineered for pools, spas, fountains, and water features requiring a larger 63mm connection.

Key Features

Dual Functionality

The FLVIS063 ingeniously combines a precision flow meter and a check valve, offering a compact, efficient solution for your water system.

High Accuracy

Maintains an impressive average accuracy of 2.01% between 20 – 110 GPM (Gallons Per Minute), ensuring reliable flow measurements even in larger systems.

Flexible Installation

Eliminates the need for a specific straight pipe diameter for installation, allowing for versatile placement in various system configurations.

Multi-Orientation Mounting

Can be installed horizontally, vertically, or even upside down, adapting to your specific setup requirements and space constraints.

Clear Readability

Features an easy-to-read scale in GPM, allowing for quick and straightforward flow rate checks at a glance.

No Calibration Needed

Designed for immediate use without the need for initial or recurring calibration, saving time and maintenance efforts.

NSF Certified

Certified by NSF to withstand pressures up to 50 psi, ensuring reliability and safety in operation, even in demanding conditions.

Applications

The FLVIS063 FlowVis Flow Meter is ideal for:

• Larger residential swimming pools and spas
• Commercial pool facilities
• Water parks and aquatic centers
• Large fountains and water features
• Industrial water systems requiring 63mm flow measurement

Installation Tips

To ensure optimal performance of your FLVIS063:

1. Select a location that allows for easy reading of the scale and access for maintenance
2. Ensure the flow direction aligns with the arrow indicated on the meter
3. Use appropriate 63mm fittings and sealants for a watertight installation
4. Verify that the installation orientation (horizontal, vertical, or inverted) suits your system layout
5. Flush the system thoroughly after installation to remove any debris that could affect accuracy

Maintenance

The FLVIS063 is engineered for minimal maintenance, but following these steps will ensure long-term reliability:

1. Regularly inspect the meter for any signs of leakage or damage
2. Clean the clear viewing window periodically to maintain optimal readability
3. Check the operation of the non-return valve occasionally to ensure it’s functioning correctly
4. Verify flow readings periodically against system performance expectations
5. Inspect gaskets and seals annually, replacing if necessary

Why Choose the FLVIS063?

The FLVIS063 FlowVis Flow Meter stands out for several compelling reasons:

• Dual Purpose: Functions as both a flow meter and check valve, simplifying system design
• High Precision: 2.01% average accuracy for reliable measurements in larger systems
• Installation Flexibility: No strict pipe diameter requirements, adaptable to various setups
• Versatile Mounting: Can be installed in any orientation to fit your specific needs
• User-Friendly: Clear, easy-to-read GPM scale for quick monitoring
• Low Maintenance: No calibration required, reducing ongoing maintenance costs
• Certified Quality: NSF certified for pressures up to 50 psi, ensuring durability and safety

Specifications Table

Specification	Detail
Model	FLVIS063
Type	Flow Meter with Non-Return Valve
Size	63mm
Accuracy	Average 2.01% between 20-110 GPM
Scale	GPM (Gallons Per Minute)
Certification	NSF certified to 50 psi
Installation	Horizontal, vertical, or inverted
Calibration	Not required

Conclusion

The FLVIS063 FlowVis 63mm Flow Meter with NRV represents a significant leap forward in flow measurement technology for larger pools, spas, and water features. Its combination of high accuracy, installation flexibility, and dual functionality makes it an invaluable tool for ensuring optimal water system performance in more demanding applications.

By integrating the FLVIS063 into your water system, you’re not just measuring flow – you’re gaining precise control over your water circulation, enhancing system efficiency, and ensuring proper operation of your larger pool, spa, or water feature. The added benefit of a built-in check valve further simplifies your system layout and reduces potential points of failure in these more complex setups.

While the FLVIS063 is designed for easy installation and use, proper placement and integration are key to maximizing its benefits, especially in larger systems. Always consider your specific system requirements and consult with a professional if you’re unsure about the best installation approach for your 63mm setup.

Choose the FLVIS063 FlowVis Flow Meter for a reliable, accurate, and user-friendly solution to your larger-scale flow measurement needs. It’s more than just a meter – it’s a comprehensive tool for maintaining the health and efficiency of your water system, specifically tailored for 63mm applications.
