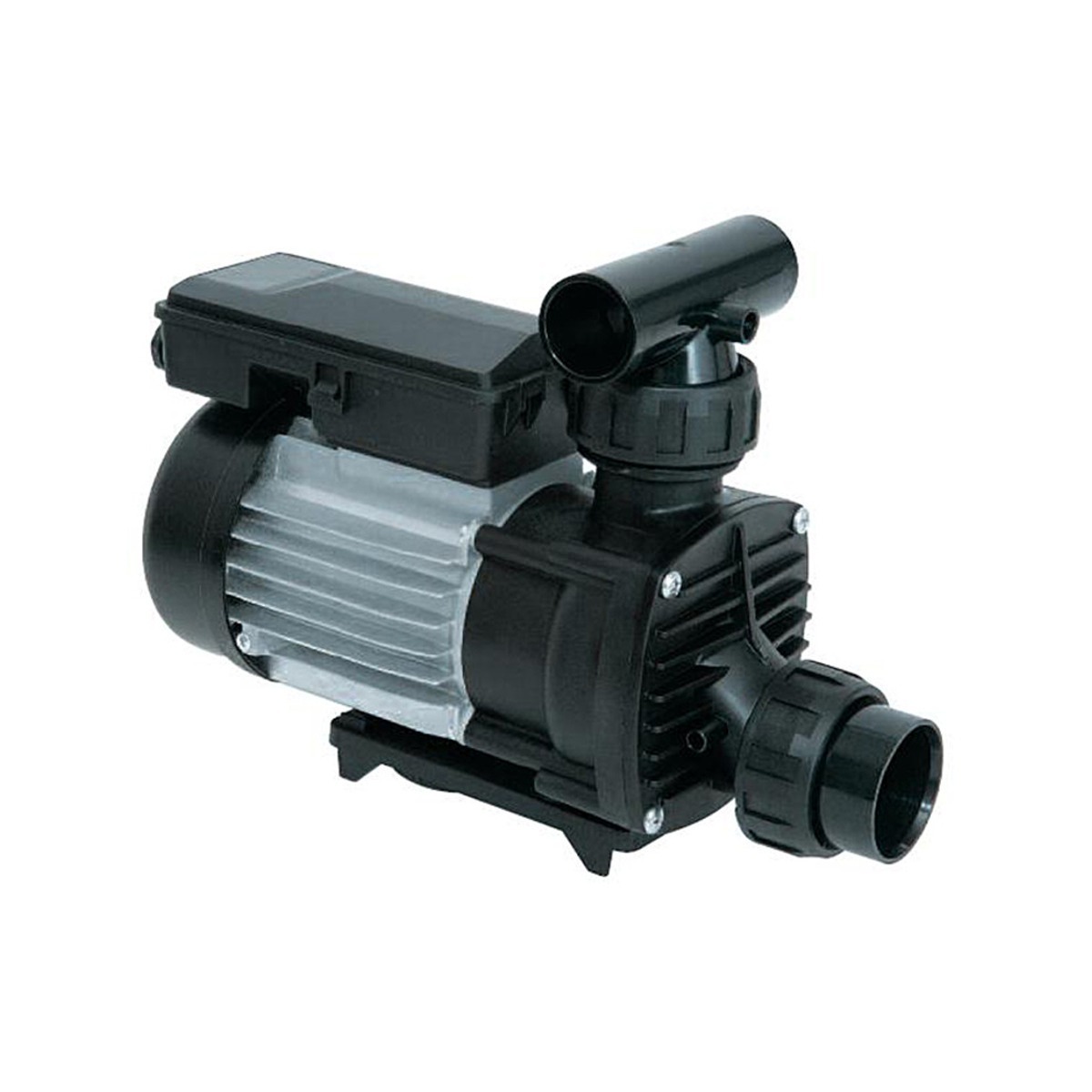

♨️ ESPA Tiper 15 3M SP2 Whirlpool Bath Pump – 0.75 HP (0.55 kW) Self-Draining

Compact self-draining hydromassage pump with built-in pneumatic control for effortless whirlpool bath operation

📋 Product Overview

The ESPA Tiper 15 3M SP2 is a single-stage centrifugal pump designed specifically for use with hydromassage systems. Rated at 0.75 HP (0.55 kW output), this compact self-draining pump delivers reliable water circulation through your whirlpool bath jets, providing a consistent and enjoyable hydrotherapy experience.

A key advantage of the Tiper 15 3M SP2 is its complete drainage device — the self-draining wet end empties automatically after each use, preventing stagnant water from sitting inside the pump body between bathing sessions. This helps maintain hygiene and extends the working life of the pump.

The pump comes complete with suction and discharge connections in both metric and imperial options, making it versatile for a wide range of UK whirlpool bath installations. It also features an integrated pneumatic air switch for simple on/off control. Operating on standard UK 220–240V / 50Hz single-phase supply and drawing just 3 A, the Tiper 15 3M SP2 is an energy-efficient choice for residential whirlpool bath systems. Manufactured by ESPA, this pump carries the Tiper 15 model designation and is supplied without a power cable.

⭐ Key Features

• ✅ 0.75 HP / 0.55 kW Output Power – Efficient motor delivering reliable jet performance for whirlpool baths
• ✅ Self-Draining Wet End – Complete drainage device empties automatically by gravity after each use
• ✅ Built-In Pneumatic Air Switch – Integrated on/off control included — no separate switch required
• ✅ Metric & Imperial Connections – Supplied with suction and discharge fittings in both metric and imperial sizes
• ✅ Low Power Consumption – Input power of just 0.7 kW with 3 A draw for energy-efficient operation
• ✅ 220–240V / 50Hz – Compatible with standard UK single-phase electrical supply
• ✅ Compact Dimensions – Just 326 × 176 × 125 mm, fits neatly into tight bath panel spaces
• ✅ 12 µF Capacitor – Factory-fitted motor capacitor for reliable starting
• ✅ Single-Stage Centrifugal Design – Purpose-built for hydromassage water circulation
• ✅ ESPA Quality – Manufactured by ESPA, an established European pump manufacturer

🔧 Technical Specifications

Specification	Value
Pump Type	Single-stage centrifugal, self-draining
Application	Hydromassage systems / whirlpool bath jet pump
Model	Tiper 15
Motor Output Power (P2)	0.55 kW / 0.75 HP
Motor Input Power (P1)	0.7 kW
Speed	Single speed
Type / Speed Category	Circulation
Voltage	220–240V
Frequency	50 Hz
Phase	Single phase
Amperage	3 A
Capacitor	12 µF
Dimensions (L × W × H)	326 × 176 × 125 mm
Air Switch	Yes
Connections	Metric and imperial supplied
Cable	Not included
MPN	131344M
SKU	PMP-5132

⚡ Electrical Requirements

Electrical Spec	Requirement
Supply Voltage	220–240V
Frequency	50 Hz
Phase	Single phase
Full Load Current	3 A
Capacitor	12 µF
Cable	Not included — reuse existing cable or purchase separately

⚠️ IMPORTANT ELECTRICAL SAFETY NOTICES:

• All electrical work must be carried out by a qualified electrician in accordance with UK wiring regulations (BS 7671).
• Whirlpool bath installations require RCD protection (30 mA).
• The pump is supplied without a power cable. Reuse the cable from your existing pump if it is in good condition, or purchase a suitable replacement.
• Ensure correct earth bonding between the bath and the pump.
• Verify that the supply voltage and frequency match the pump nameplate values before connecting.

🔗 Compatibility Guide

Connections:

Detail	Specification
Suction & Discharge	Metric and imperial connections supplied
Connection Type	Complete with suction and discharge fittings

📍 Important: The Tiper 15 3M SP2 is supplied complete with suction and discharge connections in both metric and imperial sizes. Check your existing plumbing to determine which connection type is appropriate for your installation.

Control:

📍 This pump includes an integrated pneumatic air switch for on/off control. No separate air switch or control box purchase is required.

🛠️ Installation Requirements

Mounting:

Requirement	Specification
Installation Location	Indoor use only
Mounting Position	Horizontal, on a solid level base
Fixing	Secure with bolts through mounting holes in pump base
Ventilation	Ensure motor can self-ventilate with adequate airflow
Dimensions Required	Minimum cavity space of 326 × 176 × 125 mm plus clearance for connections and ventilation

Plumbing:

Connection	Details
Suction	Metric or imperial (supplied)
Discharge	Metric or imperial (supplied)

Installation Notes:

⚠️ The pump must never be run dry — this will cause seal damage.

⚠️ Ensure the hydromassage system includes a minimum water level detection device to prevent dry running.

⚠️ Pipes must be independently supported — never rest pipe weight on the pump.

⚠️ This pump is supplied without a power cable. Ensure correct cable type and connection by a qualified electrician.

🔄 Maintenance Guide

Routine Maintenance:

Task	Frequency	Notes
Visual inspection for leaks	Monthly	Check around seal area and union connections
Check union tightness	Monthly	Retighten if any weeping is noticed
Verify motor ventilation	Quarterly	Ensure air vents are clear of dust and debris
Check amperage draw	Annually	Should read 3 A or less at rated voltage
Clean pump exterior	As needed	Wipe with a damp cloth — no harsh chemicals
Check mounting bolt tightness	Quarterly	Retighten if vibration has loosened bolts

Warning Signs — Consider Replacement If:

• Unusual noise (grinding, screeching, or knocking)
• Water leaking from the mechanical seal area
• Motor trips the circuit breaker repeatedly
• Noticeable reduction in water flow through jets
• Motor runs excessively hot or fails to start

⚠️ Spare Parts: Hydrospares confirms that spare parts are not currently stocked for this pump model. However, ESPA may be able to supply spares on special order — contact Parts4Tubs for assistance.

Extended Inactivity:

If the pump will not be used for an extended period, it is recommended to drain the pump fully and store it in a dry, well-ventilated location.

🎯 Ideal Applications

Application	Suitability	Notes
🛁 Whirlpool bath jet pump	✅ Yes	Primary intended application — self-draining design ideal for bath use
🛁 Hydromassage systems	✅ Yes	Specifically designed for hydromassage applications
♨️ Small spa circulation	⚠️ Check compatibility	Verify port sizes and electrical specs match your system
♨️ Hot tub jet pump	⚠️ Check compatibility	Confirm dimensions and connection types before purchasing

❓ Frequently Asked Questions

Q: What horsepower is this pump? A: The ESPA Tiper 15 3M SP2 delivers 0.55 kW (0.75 HP) output power, with an input power consumption (P1) of 0.7 kW.

Q: Will this fit my whirlpool bath? A: This pump measures 326 × 176 × 125 mm (L × W × H) and comes complete with suction and discharge connections in both metric and imperial sizes. Measure your existing pump and bath panel cavity to confirm it will fit.

Q: What voltage does this pump require? A: 220–240V / 50Hz single phase. All electrical installation must be carried out by a qualified electrician in accordance with BS 7671, with 30 mA RCD protection.

Q: Does this pump include an air switch? A: Yes. The Tiper 15 3M SP2 includes an integrated pneumatic air switch for on/off control. No separate switch purchase is required.

Q: Does this pump come with unions/connections? A: Yes. Unlike some other ESPA Tiper models, the Tiper 15 3M SP2 is supplied complete with suction and discharge connections in both metric and imperial sizes.

Q: Does a power cable come with this pump? A: No. The pump is supplied without a power cable. Reuse the cable from your existing pump if it is in good condition, or purchase a suitable replacement.

Q: What is the difference between the Tiper 15 and the Tiper0? A: The Tiper 15 3M SP2 is a smaller pump (0.55 kW / 0.75 HP) with an integrated air switch and supplied connections, while the Tiper0 90M is a more powerful unit (0.75 kW / 1 HP) with BSP threaded ports and no included unions or air switch. The Tiper 15 also has different dimensions (326 × 176 × 125 mm vs 312 × 155 × 185 mm).

Q: Are spare parts available? A: Spare parts are not currently stocked by standard distributors for this model. However, ESPA may be able to supply spares on special order — contact Parts4Tubs for assistance.

Q: What warranty is included? A: ESPA provides a standard manufacturer’s warranty (typically 1 year). An optional extended warranty for an additional year may also be available through Parts4Tubs — contact our team for details.

Q: How do I know if my pump needs replacing? A: Common signs include unusual grinding or screeching noises, water leaking from the seal area, reduced jet flow, motor repeatedly tripping the breaker, or the motor overheating and shutting down.

🏆 Why Choose the ESPA Tiper 15 3M SP2

• ✅ All-in-one package — Pump, air switch, and connections all included for a straightforward replacement
• ✅ Self-draining convenience — Complete drainage device improves hygiene and extends pump life
• ✅ Energy efficient — Just 0.7 kW input power and 3 A draw keeps running costs low
• ✅ Versatile connections — Both metric and imperial fittings supplied for maximum compatibility
• ✅ Compact size — At just 326 × 176 × 125 mm, ideal for tight bath panel installations
• ✅ Proven ESPA reliability — Manufactured by an established European pump specialist

🤝 Why Buy From Parts4Tubs

• ✅ UK-based company with knowledgeable local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa and whirlpool bath specialists
• ✅ Competitive pricing
• ✅ Full warranty support
• ✅ Easy returns within 30 days
• ✅ Compatible accessories and replacement parts available

💧 Summary

The ESPA Tiper 15 3M SP2 is a compact, self-draining 0.75 HP whirlpool bath pump with an integrated pneumatic air switch and supplied metric/imperial connections. Drawing just 3 A at 220–240V, it offers energy-efficient operation in a small 326 × 176 × 125 mm package — ideal for residential whirlpool bath replacements where space is limited. Order today from Parts4Tubs for fast UK delivery and expert compatibility advice.
