Ebara Centrifugal Pump – 1.25″ x 1″ – 8 Bar- Female Thread – 0.37kW – CDXM70/05

Product Overview

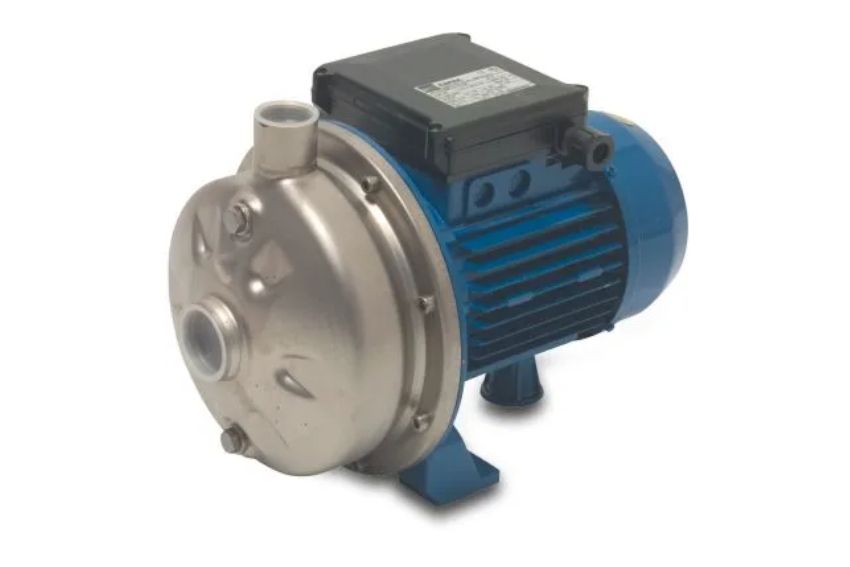

The Ebara CDXM70/05 is a compact stainless steel centrifugal pump designed for handling clean water in domestic, agricultural, and light industrial applications. Built with high-quality AISI 304 stainless steel, it ensures excellent corrosion resistance, reliable operation, and long service life. Its efficient single-phase motor makes it ideal for everyday water supply and circulation tasks.

Technical Specifications

Feature	Details
Model	CDXM70/05
Pump Type	Centrifugal, single impeller
Motor Power	0.37 kW (0.5 HP)
Voltage	230V, Single-phase, 50 Hz
Motor Speed	2800 rpm (2-pole)
Insulation Class	F
Protection Rating	IP55
Flow Range	20 – 90 L/min (1.2 – 5.4 m³/h)
Maximum Head	15–16 m
Maximum Pressure	8 bar (0.8 MPa)
Temperature Range	-5 °C to +60 °C (up to +90 °C in special versions)
Pump Body	Stainless Steel AISI 304
Impeller	Stainless Steel AISI 304
Shaft	Stainless Steel AISI 303
Mechanical Seal	Ceramic/Carbon/NBR
Suction Port	G 1¼” (1.25″)
Discharge Port	G 1″
Weight	Approx. 8.3 kg
Noise Level	~61 dB(A) at 1 m

Features & Benefits

Durable Build – Stainless steel body and impeller ensure high corrosion resistance.
Efficient Performance – Reliable single-phase motor with built-in thermal overload protection.
Compact Size – Space-saving design for easy installation.
Quiet Operation – Low noise level, suitable for domestic use.
Easy Maintenance – Simple design with accessible components.

Applications

Domestic water supply and boosting
Agricultural irrigation systems
Light industrial water circulation
Water treatment and filtration systems
General clean water transfer

Summary

The Ebara CDXM70/05 Centrifugal Pump combines durability, efficiency, and compact design, making it an excellent choice for clean water handling. With stainless steel construction, 0.37 kW power, and up to 15 m head, it provides reliable performance for homes, farms, and light industries.
