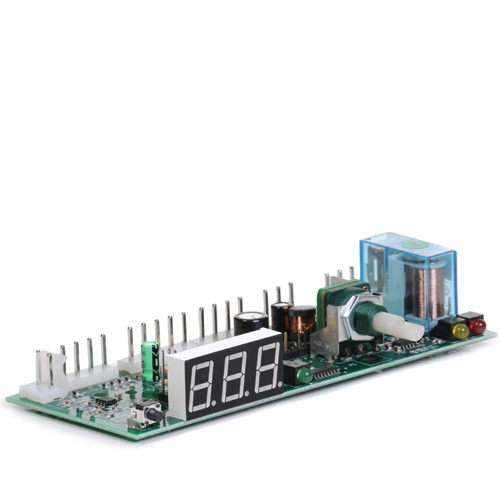

Certikin Genie Pool Thermostat PCB
Digital Control Module for Genie Mk2 Pool Heater Systems
Product Overview
The Pool Thermostat PCB serves as the primary interface and control unit in Certikin Genie pool heaters (Mk2 versions such as Genie C, Genie S models). It monitors pool temperature via sensor input, displays both setpoint and actual temperature, and manages burner modulation, pump, and fan functions. Fault conditions and lockouts are also indicated through the PCB’s LEDs and display.
Specifications
Feature | Details |
---|---|
Control Type | Mk2 pool thermostat PCB for Genie C and S models |
Display | 3-digit temperature readout; green/yellow/red LED fault indicators |
Weight | ~0.29 kg |
Approximate Dimensions | 140 mm × 55 mm |
Compatible Heaters | Certikin Genie C and S Mk2 models (excluding Dual; see separate part SPMBG064) |
Ky Features
-
Pool Temperature Regulation
Controls and displays set and actual water temperature, supporting accurate modulation via pool sensor input. -
Diagnostic Interface & Safety Lockouts
Provides service mode access for fault diagnosis and reset. Shows fault conditions with LED indicators for easy troubleshooting. -
Low-Voltage Modular Design
Compact electronics module mounted inside the heater chassis with plug-in sensor connections.
Why Choose This PCB?
Replacing this thermostat PCB restores temperature control functionality and fault diagnostics capability to Genie pool heaters. Designed specifically for Mk2 C/S models, it ensures accurate control, safer heater operation, and compatibility with Modbus-ready networking configurations (for multiple-heater setups)
