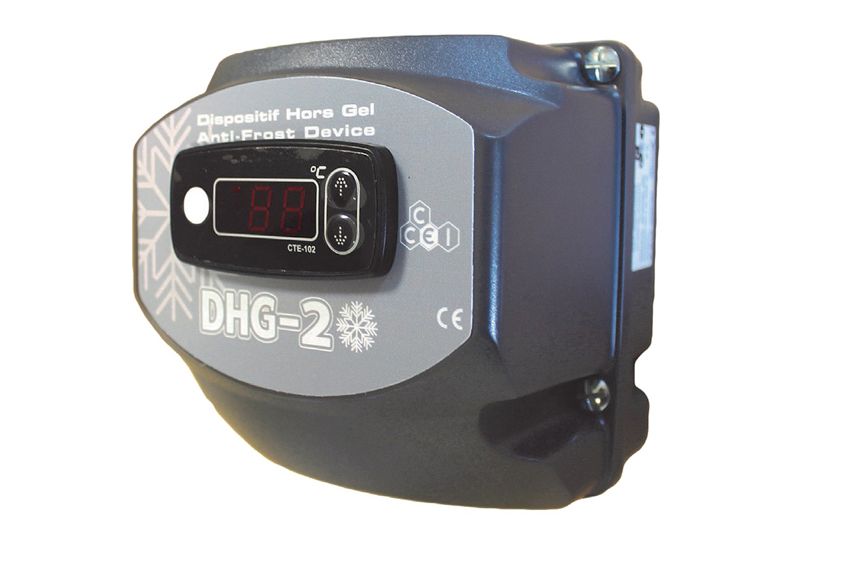

💧 CCEI Anti-Frost Device DHG-2 – Automatic Pool Frost Protection System

❄️ Protect Your Pool Investment From Freezing Damage With Intelligent Temperature-Activated Pump Control

📋 Product Overview

The CCEI DHG-2 Anti-Frost Device is a sophisticated frost protection system engineered to safeguard your pool’s water and filtration equipment during cold weather conditions. This intelligent controller continuously monitors ambient or water temperatures using a precision TNC sensor and automatically activates your filtration pump when freezing conditions threaten.

When temperatures drop below the preset threshold, the DHG-2 forces your pump to circulate water throughout the system. This constant movement prevents ice formation in pipes, fittings, and equipment by raising the freezing point through increased pressure whilst drawing warmer water from the pool’s depths to the surface. The result is comprehensive protection against the costly damage that frozen pipes and equipment can cause.

Manufactured by CCEI in France, this robust IP65-rated device is built for outdoor installation and complies fully with European safety directives. With factory-preset temperature settings that can be easily adjusted to suit your specific installation, the DHG-2 provides reliable, set-and-forget frost protection for pools of all sizes.

⭐ Key Features

✅ Automatic Temperature Monitoring – Continuously measures ambient or water temperature using a precision TNC sensor with ±1°C accuracy across a -50°C to +70°C range, ensuring reliable frost detection in all conditions

✅ Intelligent Pump Activation – Automatically forces your filtration pump to run when temperatures drop below -2°C (factory setting), stopping when temperatures rise above 0°C to prevent unnecessary energy consumption

✅ Adjustable Temperature Thresholds – Simple SET button allows you to customise start and stop temperatures to match your specific location and installation requirements

✅ Real-Time Temperature Display – Digital screen shows current temperature at a glance, with red LED indicator confirming when forced-run mode is active

✅ Weatherproof IP65 Construction – Dust-tight and water-resistant housing designed for outdoor installation near your pool equipment, withstanding harsh winter conditions

✅ Versatile Sensor Placement – Temperature sensor can be positioned outdoors to measure air temperature or clamped directly to pool pipes (with insulation) for water temperature monitoring

✅ Universal Compatibility – Works with all standard pool filtration systems and integrates seamlessly with CCEI filtration panels via dedicated terminals

✅ European Safety Certified – Fully compliant with EU directives 2006/95/CE (safety) and 2004/108/CE (electromagnetic compatibility), manufactured to the highest European standards

✅ Complete Installation Kit – Supplied with temperature sensor, mounting hardware, and comprehensive user manual for straightforward installation

🔧 Technical Specifications

Specification	Details
Dimensions	155 x 155 x 125 mm
Weight	0.6 kg
Power Supply	230V AC, 50/60 Hz
Power Consumption	30W
IP Rating	IP-65 (dust and water resistant)
Temperature Sensor Type	TNC Sensor
Measuring Range	-50°C to +70°C
Accuracy	±1°C
Relay Output Voltage	230V AC
Breaking Capacity	8A
Insulation Class	Class II
Factory Start Temperature	Below -2°C
Factory Stop Temperature	Above 0°C
Required Protection	30mA RCD + overload protection
Certification	CE Marked (2006/95/CE & 2004/108/CE)
Manufacturer	CCEI (Bleu Electrique SAS), France
Reference Number	PF10Y007

📦 Package Contents

• ✅ 1 × DHG-2 Control Panel
• ✅ 1 × Temperature Sensor (TNC type)
• ✅ 4 × Screws and Fixing Dowels
• ✅ 1 × User Manual

💰 Usage Costs & Running Expenses

📊 Annual Running Cost Calculation

The DHG-2 consumes 30W when operating. However, unlike a pool pump that runs continuously during frost events, the DHG-2 control unit itself has minimal impact on your energy bills whilst providing invaluable protection.

DHG-2 Controller Running Cost:

• Power consumption: 0.03 kW
• Typical active monitoring hours: Estimated 2,000 hours during winter months (October-March)
• Current UK electricity rate: £0.2635 per kWh (Ofgem Price Cap Q4 2025)
• ✅ Annual controller cost: 0.03 kW × 2,000 hours × £0.2635 = £15.81 per year

🏊 Total System Running Cost (Including Pump Activation)

The real consideration is the pump running time during frost events. The DHG-2 intelligently minimises this by:

Scenario: Typical UK Winter (30 frost nights averaging 6 hours each)

• Forced pump run time: 30 nights × 6 hours = 180 hours
• Average pool pump power: 0.75 kW (typical single-speed pump)
• Energy rate: £0.2635 per kWh

Cost of frost-protection pump operation:

• ✅ Pump cost: 0.75 kW × 180 hours × £0.2635 = £35.57 per season
• ✅ Controller cost: £15.81 per season
• ✅ Total frost protection cost: £51.38 per winter season

💡 Cost Comparison: Protection vs No Protection

Scenario	Annual Cost
✅ With DHG-2 Protection	~£51 per winter
❌ Without Protection (Frost Damage)	£500 – £5,000+ repair costs

💰 Potential Savings: A single frozen pipe incident can cost hundreds to thousands of pounds in repairs. The DHG-2 pays for itself many times over by preventing just one frost damage event.

---

🎯 Real World Applications

🏊‍♂️ Outdoor Swimming Pools

The primary application for the DHG-2. Outdoor pools are highly vulnerable to frost damage during winter months. The device monitors temperatures and automatically circulates water to prevent ice formation in surface skimmers, return jets, and underground pipework. Ideal for pools that remain filled over winter.

🏢 Commercial Pool Facilities

Hotels, leisure centres, and holiday parks benefit from automated frost protection that operates reliably without staff intervention. The DHG-2 protects valuable pool infrastructure during overnight and weekend periods when facilities may be unattended, providing peace of mind and reducing maintenance call-out costs.

🛁 Hot Tub & Spa Installations

While hot tubs typically maintain heated water, the surrounding pipework and external components can still be vulnerable during extended power outages or when units are winterised. The DHG-2 provides an additional safety layer for high-value spa installations.

🌊 Water Features & Ornamental Ponds

Garden water features, koi ponds, and ornamental fountains with pump systems can utilise the DHG-2 to prevent freezing damage. The precise temperature sensing ensures pumps only operate when genuinely needed, protecting both equipment and aquatic life.

🔄 Retrofit Installations

Perfect for upgrading existing pool systems that lack frost protection. The DHG-2’s universal compatibility and simple wiring requirements make it straightforward to add intelligent frost protection to virtually any pump-based water system.

---

💡 Cost Savings Examples

📍 Scenario 1: Preventing Pipe Burst Damage

A single frozen underground pipe can cost:

• ❌ Emergency plumber call-out: £150-£300
• ❌ Pipe excavation and repair: £500-£1,500
• ❌ Pool draining and refilling: £100-£300
• ❌ Chemical rebalancing: £50-£100
• ❌ Total potential damage: £800 – £2,200

✅ DHG-2 investment: One-time purchase prevents repeated risk 💰 ROI achieved after preventing just ONE frost incident

📍 Scenario 2: Pump and Filter Equipment Protection

Frozen water inside pump housings and filter vessels can crack casings:

• ❌ Replacement pump: £300-£800
• ❌ Replacement filter: £400-£1,200
• ❌ Installation labour: £150-£300
• ❌ Total potential damage: £850 – £2,300

✅ Annual protection cost with DHG-2: ~£51 📈 Protection value: 17-45× return on annual running cost

📍 Scenario 3: Five-Year Protection Investment

Over a typical five-year period:

• ✅ DHG-2 total running cost: 5 × £51 = £255
• ❌ Statistical likelihood of frost damage without protection (UK climate): High
• 💰 Lifetime protection value: Potentially £5,000+ in prevented repairs

⏱ Payback period: Immediate upon preventing first frost damage event

⚙️ Installation & Connection

Mounting Requirements

• Install control panel on a dry, even wall surface using supplied screws and dowels
• Position in a protected location whilst allowing sensor access to measure required temperature
• Ensure adequate ventilation around the unit

Sensor Placement Options

1. Outdoor Air Temperature: Position sensor away from heat sources, radiating surfaces, and direct sunlight for accurate ambient readings
2. Pipe Temperature: Clamp sensor directly to pool pipework using saddle clamps, then insulate thoroughly to isolate from ambient temperature variations

Electrical Connection

• Terminal block provides easy connection for power supply, temperature sensor, and pump relay
• Connect to CCEI filtration panels via terminals A and B for direct forced-run control
• For non-CCEI systems: Wire to the NO (normally open) contact of your filtration timer
• ⚠️ Important: Power supply must be protected by 30mA RCD and appropriate overload protection

Professional Installation

⚠️ This product involves mains voltage electrical connections. Professional installation by a qualified electrician is strongly recommended to ensure safety and compliance with regulations.

🛡️ Settings & Operation

Factory Default Settings

• Start forced filtration: When temperature falls below -2°C
• Stop forced filtration: When temperature rises above 0°C
• Hysteresis: 2°C between start and stop points

Display Functions

• Real-time temperature shown on digital display when powered on
• Red LED indicator illuminates when forced-run mode is active

Adjusting Temperature Set Point

1. Press SET button to display current set point
2. Use UP/DOWN buttons to adjust the stop temperature
3. Start temperature automatically calculates at 2°C below set point
4. Release buttons to confirm new setting

⚠️ Caution: Incorrect settings may prevent proper frost protection. Ensure settings are appropriate for your sensor location and local climate conditions.

📥 Downloads & Resources

📄 DHG-2 User Manual – Complete installation, wiring, and operating instructions (PDF)

🏆 Why Choose the CCEI DHG-2?

✅ Proven French Engineering – Manufactured by CCEI, a respected name in pool equipment with decades of experience in filtration and control systems

✅ Genuine Cost Protection – Prevents thousands of pounds in potential frost damage repairs for a minimal annual running cost of approximately £51

✅ Set and Forget Reliability – Once installed and configured, the DHG-2 operates autonomously throughout winter, requiring no manual intervention

✅ Precision Temperature Control – ±1°C accuracy and wide -50°C to +70°C measuring range ensures reliable frost detection in all UK climate conditions

✅ Full European Certification – CE marked and compliant with EU safety and electromagnetic compatibility directives for complete peace of mind

✅ Universal Compatibility – Works with virtually any pool pump system, whether integrated with CCEI panels or retrofitted to existing installations

🛒 Why Buy From Parts4Tubs?

✅ Pool Equipment Specialists – Dedicated expertise in pool and spa equipment, ensuring you receive knowledgeable advice and genuine products

✅ Competitive UK Pricing – Quality European equipment at fair prices, with no hidden charges or surprise fees

✅ Fast Delivery – Prompt dispatch to get your frost protection installed before cold weather arrives

✅ Technical Support – Assistance available if you have questions about installation or compatibility with your existing system

✅ Genuine Products – Authentic CCEI equipment with full manufacturer warranty and documentation

✨ Summary

The CCEI DHG-2 Anti-Frost Device delivers intelligent, automatic protection for your pool system against the damaging effects of freezing temperatures. With precision temperature monitoring, adjustable thresholds, and weatherproof construction, it provides reliable year-after-year protection for a minimal operating cost of around £51 per winter season. When compared to potential repair bills running into thousands of pounds, the DHG-2 represents essential insurance for any pool owner who keeps their pool filled during winter months. Manufactured in France to European safety standards, it’s a trusted solution for protecting your pool investment.
