Trimline Cartridge Filter CC75 – Efficient Filtration for Medium to Large Pools

Introduction

As a retailer of pool and spa equipment, I’m excited to introduce the Trimline Cartridge Filter CC75. This robust filter is designed for medium to large-sized pools up to 90m³, offering excellent water clarity and easy maintenance.

Key Features

Generous Capacity

The CC75 houses a 75 ft² (6.9 m²) pleated cartridge filter, ideal for pools up to 90m³.

Durable Construction

Built from high-impact polypropylene, this filter is engineered to withstand the demands of both fresh and salt water environments.

User-Friendly Maintenance

Features an easy-to-use lid lock ring design for simple cartridge removal and cleaning.

Efficient Filtration

Utilizes a heavy-duty, easy-to-clean polyester fabric pleated into a cartridge for effective removal of suspended solids.

Versatile Application

Ideal for both in-ground and above-ground pools where backwashing may not be practical.

Technical Specifications

Feature	Specification
Model	CC75
Filter Area	75 ft² (6.9 m²)
Maximum Flow Rate	16.5 m³/hr
Working Pressure	350 kPa
Recommended Pool Size	Up to 90m³
Overall Weight	10.5 kg

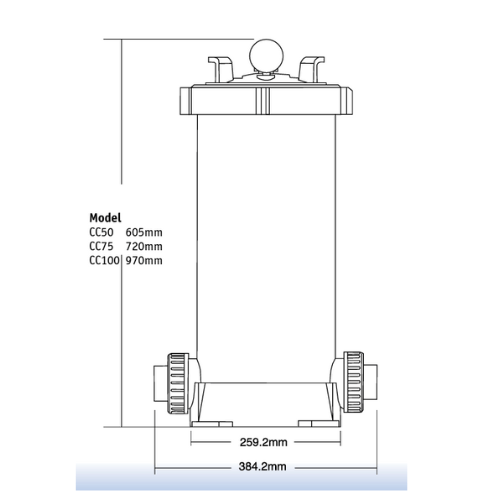

Height	720 mm
Inlet/Outlet Size	50mm/1½”

Installation and Maintenance

1. Place the filter on a flat, level surface aligned with your pump.
2. Connect the pump outlet to the filter’s marked inlet using the supplied half unions.
3. Install the pressure gauge using Teflon tape for proper sealing.
4. Clean the cartridge when the pressure gauge reads 50 kPa above the normal operating pressure.
5. For cleaning, simply remove the cartridge and hose down the pleats with a garden hose.
6. For deep cleaning, soak the cartridge overnight in a cartridge cleaning solution.

Benefits of the Trimline CC75

1. High Capacity: Suitable for medium to large pools up to 90m³.
2. Durable: Corrosion-resistant construction for use in fresh or salt water.
3. Low Maintenance: Easy to clean with a standard garden hose.
4. Energy Efficient: Requires less frequent cleaning than sand filters.
5. Versatile: Ideal for both in-ground and above-ground pools.
6. Long-Lasting: Backed by a 10-year warranty (5+5) on the tank for domestic use.

Additional Features

• Non-corrosive, non-sticking air relief valve
• Built-in automatic air bleed
• Easy-to-read pressure gauge
• Moulded glass-filled PP lid with quick-loading nut for easy operation

Maintenance Tips

1. Regularly check the pressure gauge and clean the filter when pressure increases by 50 kPa.
2. Clean the cartridge at least once every 12 months, regardless of use.
3. Ensure proper chemical balance in your pool to extend the life of the filter cartridge.
4. Always prime the pump before starting the filtration system.
5. Periodically check for any leaks or loose fittings.

Troubleshooting Guide

If you encounter issues such as unclear water or low flow:

• Check and clean strainer baskets
• Inspect for air leaks on the suction side
• Ensure proper chemical balance in the water
• Verify pump operation and flow rate
• Clean or replace the filter cartridge if necessary

Conclusion

The Trimline Cartridge Filter CC75 offers an excellent balance of high capacity filtration and ease of use for medium to large-sized pools. Its durable construction, simple maintenance, and effective filtration make it an ideal choice for pool owners looking for reliable water quality without the need for backwashing. With its robust warranty and versatile use in both fresh and salt water, the CC75 is a smart investment for your pool filtration needs
