♨️ Balboa Wavetec UV-C Water Sanitizer
Chemical-free UV light purification for cleaner, healthier hot tub water
💧 Product Overview

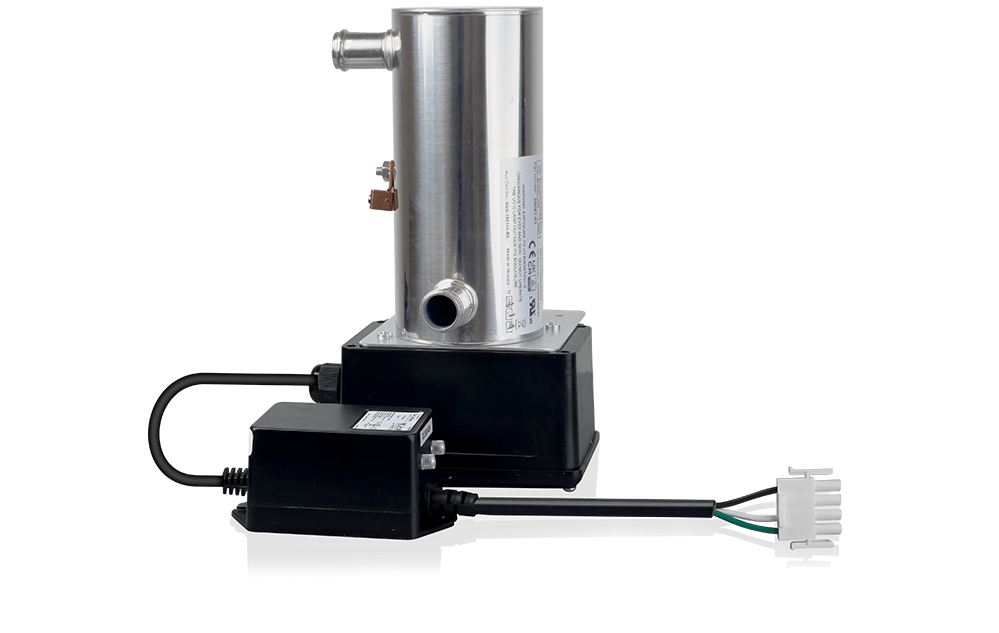

The Balboa Wavetec (WAVETEC254™) is a UV-C water sanitizer designed specifically for hot tub applications. Manufactured by Balboa Water Group, the industry leader in spa controls for over 20 years, this compact unit uses ultraviolet light at 254nm wavelength to destroy 99% of harmful viruses, bacteria, and pathogens without adding chemicals or gases to your water.
Unlike ozone or salt systems that can damage equipment over time, the Wavetec provides safe, effective sanitation whilst significantly reducing chlorine and bromine requirements. The durable 316L stainless steel housing and long-life UV lamp deliver years of reliable, low-maintenance performance.
⭐ Key Features
✅ UV-C Technology – Destroys 99% of harmful viruses, bacteria, and pathogens by inactivating their DNA
✅ Chemical-Free Sanitation – No harmful chemicals or smelly gases added to water
✅ Reduced Chemical Use – Helps eliminate chloramines and reduces skin/eye irritation
✅ Equipment Safe – Won’t damage equipment like ozone and salt systems can
✅ Long-Life UV Lamp – 12,000 hours standard service life
✅ Durable Housing – 316L stainless steel with special heat treatment—no degrading or melting
✅ Stainless Steel Quartz Seal – No cracking, melting, or leaking
✅ Low Power Consumption – Only 7W for energy-efficient operation
✅ Compact Design – Small footprint with built-in mounting bracket
✅ Easy Maintenance – Simple lamp replacement and quartz tube cleaning
✅ Certified Quality – UL/cUL/TÜV approved
⚙️ Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | UV-C Water Sanitizer |
| Manufacturer | Balboa Water Group |
| Model | WAVETEC254™ |
| Part Number (230V) | 59061-01 |
| Voltage | 230V |
| Frequency | 50/60Hz |
| Power Consumption | 7W |
| Flow Rate | 6 GPM (22.7 L/min) |
| Water Connection | ¾” Barb |
| Length | 240mm |
| Housing Material | 316L Stainless Steel (heat-treated) |
| Quartz Seal | Stainless steel |
| UV Lamp Life | 12,000 hours |
| Ballast | UL listed electronic ballast |
| Power Cord | AMP cord pre-installed |
| Certifications | UL/cUL/TÜV |
⚡ Electrical Requirements
| Specification | Requirement |
|---|---|
| Supply Voltage | 230V |
| Frequency | 50/60Hz |
| Power | 7W |
| Connector | AMP cord (pre-installed) |
⚠️ IMPORTANT: All electrical work must be carried out by a qualified electrician in accordance with UK wiring regulations (BS 7671). Hot tubs require RCD protection (30mA).
🔗 Compatibility & Connections
System Compatibility:
- ✅ Fits any Balboa Retrofit System
- ✅ Can replace ozone generators
Connections:
| Connection | Size |
|---|---|
| Water Inlet | ¾” Barb |
| Water Outlet | ¾” Barb |
| Power | AMP cord (pre-installed) |
🛠️ Installation
| Requirement | Detail |
|---|---|
| Flow Rate | 6 GPM (22.7 L/min) |
| Mounting | Built-in bracket (no stands/clamps needed) |
| Water Connections | ¾” barb fittings |
| Space Required | Compact design, minimal room needed |
Design Features for Installation:
- High shock, vibration, and drop resistance
- Built-in mounting bracket eliminates need for additional hardware
- Small compact unit for tight spaces
🔧 Maintenance
| Task | Frequency |
|---|---|
| Clean quartz tube | As needed |
| Replace UV lamp | Every 12,000 hours (~1 year typical use) |
| Inspect connections | Monthly |
Maintenance Advantages:
- Easy lamp replacement
- Simple quartz tube cleaning
- Super low production and field failure rates
- Durable stainless steel construction
🔬 How UV-C Sanitation Works
UV-C light at 254nm wavelength provides effective water sanitation:
- Destroys Pathogens – UV light inactivates DNA of harmful microorganisms including E. Coli, Cryptosporidium and many others
- 99% Effective – Destroys 99% of harmful viruses, bacteria, and pathogens
- No Chemicals – Works without adding harmful chemicals or gases to water
- Reduces Chloramines – Helps eliminate chloramines that cause skin and eye irritation
Third-Party Tested: Scientifically tested by accredited bio-lab specifically for spa applications.
🎯 Applications
| Application | Suitability |
|---|---|
| ♨️ Hot Tubs | ✅ Designed specifically for spa use |
| ♨️ Spas | ✅ Compatible with Balboa systems |
| 🔄 Ozone Replacement | ✅ Can replace ozone generators |
❓ FAQ
Q: What voltage does it require? A: 230V, 50/60Hz for UK installations.
Q: How much power does it use? A: Only 7W—very energy efficient.
Q: How long does the UV lamp last? A: Standard service life of 12,000 hours (approximately 1 year of typical use).
Q: Does it replace chemicals completely? A: It significantly reduces chemical requirements, but some sanitiser is still recommended for optimal water quality.
Q: Can it replace my ozone generator? A: Yes, the Wavetec can replace ozone generators and won’t damage equipment like ozone systems can.
Q: What certifications does it have? A: UL/cUL/TÜV approved for quality and safety.
Q: Is maintenance difficult? A: No—easy lamp replacement and simple quartz tube cleaning when needed.
📥 Downloads
🏆 Why Choose Balboa Wavetec
✅ Effective Sanitation – Destroys 99% of harmful pathogens with UV-C light
✅ Equipment Safe – Won’t damage equipment like ozone and salt systems
✅ Low Maintenance – 12,000-hour lamp life with easy replacement
✅ Durable Construction – 316L heat-treated stainless steel housing
✅ Energy Efficient – Only 7W power consumption
✅ Certified Safe – UL/cUL/TÜV approved
✅ Proven Reliability – Super low failure rates, from Balboa with 20+ years expertise
🤝 Why Buy from Parts4Tubs
✅ UK-based with local support
✅ Fast UK delivery
✅ Expert spa advice
✅ Competitive pricing
✅ Full warranty support
✅ 30-day returns
✅ Genuine Balboa parts
✅ 10 in stock
✨ Summary
The Balboa Wavetec UV-C Water Sanitizer provides chemical-free water purification using proven UV-C technology at 254nm wavelength. With only 7W power consumption, 12,000-hour lamp life, and durable 316L stainless steel construction, this compact 230V unit delivers reliable sanitation without the equipment damage risks of ozone or salt systems. UL/cUL/TÜV certified and compatible with all Balboa Retrofit Systems.
