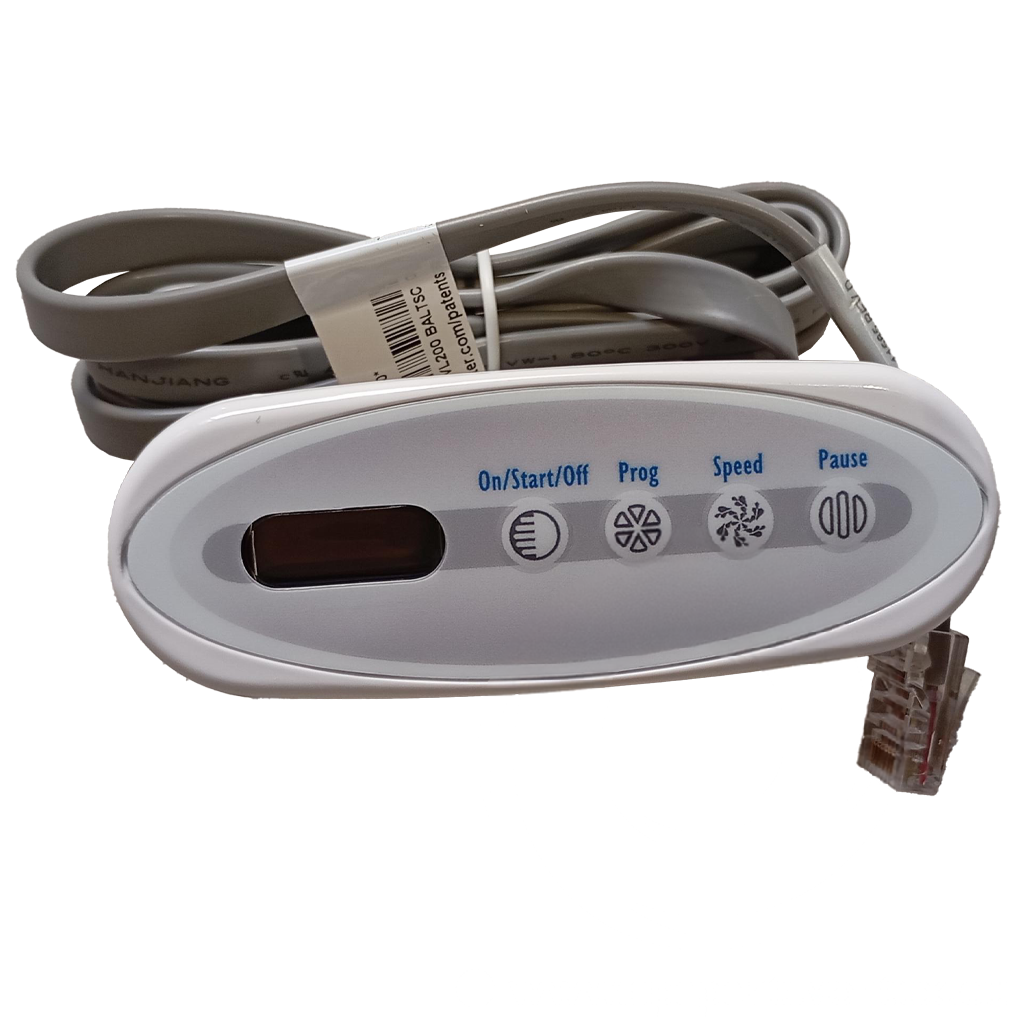

Balboa VL200 Topside Panel – Sequential Massage Model
A specialized four-button spa control panel designed to operate Balboa’s sequential massage system via an external sequencer (part number 54613). Intended for use with compatible Balboa spa packs, this panel enables users to select massage programs, adjust sequence speed, and pause the massage cycle.
Key Features
-
Sequential Massage Control
Works with the Balboa 54613 sequencer to enable therapy-style sequential massage functionality—select one of nine programmable massage sequences, three sequence speeds, and pause at any point. -
Four Button Layout
Consists of:-
On / Start / Off
-
Prog (Program select)
-
Speed (sequence speed)
-
Pause
-
-
Panel Design
-
Mini-oval shape
-
Compact dimensions: 110 mm (length) × 40 mm (height)
-
Overlay included
-
LCD display (basic 3-digit style) showing current operating status
-
Telephone-style RJ45 connector for direct plug-and-play connection to the sequencer
-
-
Power and Compatibility
-
Operates at 12V input
-
Compatible with spa systems Sequencer Balboa 54613.
-
Technical Specifications
Speculation | Details |
---|---|
Enclosure/Button Count | Mini-oval format with 4 buttons |
Sequence Programs | 9 selectable programs |
Sequence Speeds | 3 speed levels |
Control Functions | On/Off, Program Select, Speed Select, Pause |
Power Input | 12V DC |
Connector | RJ45 telephone-style cable |
Display | Basic 3-digit LCD |
Overlay | Included |
Installation & Usage Notes
-
Designed for use only with the Balboa 54613 sequencer to control sequential massage function
-
Requires compatible Balboa spa control systems.
-
Simple plug-in installation via RJ45 connector.
-
Must be paired with a matching overlay and sequencer module.
Summary
The Balboa VL200 Sequential Massage Topside Panel is a targeted accessory for enhancing spa therapy experiences. Compact and user-friendly, this control panel enables users to navigate massage programs, adjust speed, and pause cycles smoothly. It’s ideal for spas equipped with Balboa sequencing systems seeking massage functionality in a clean, intuitive interface.
