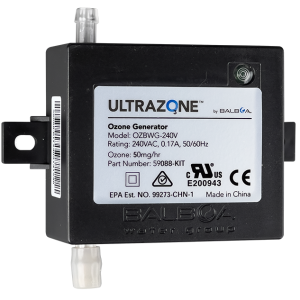

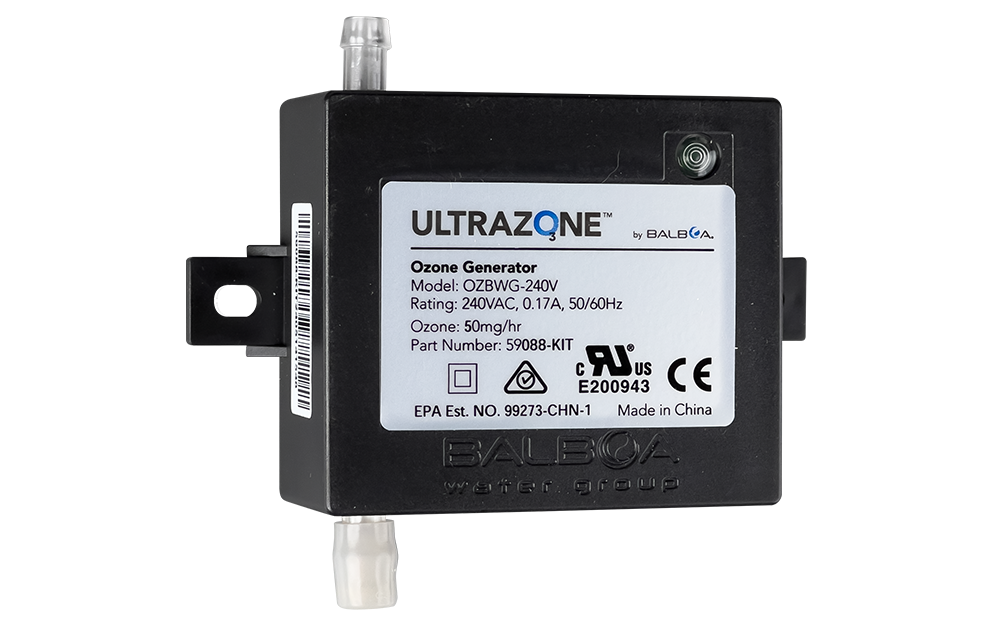

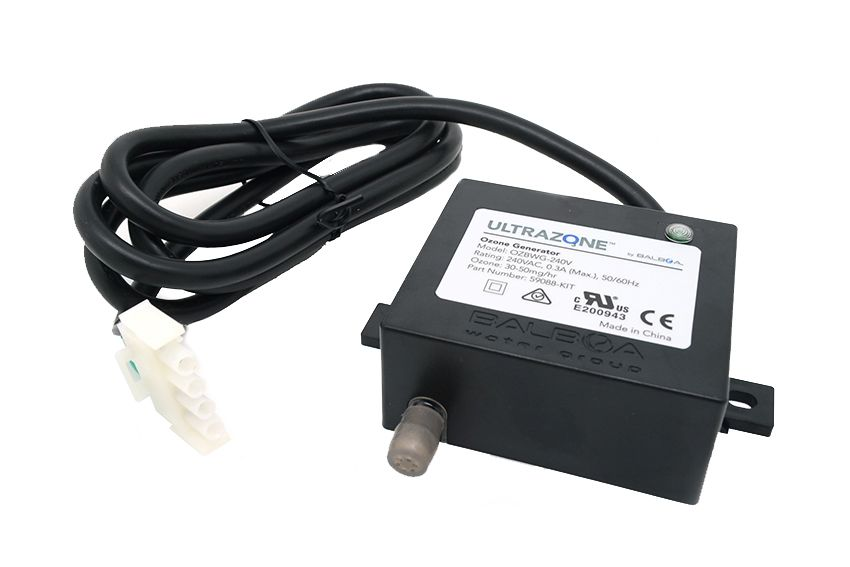

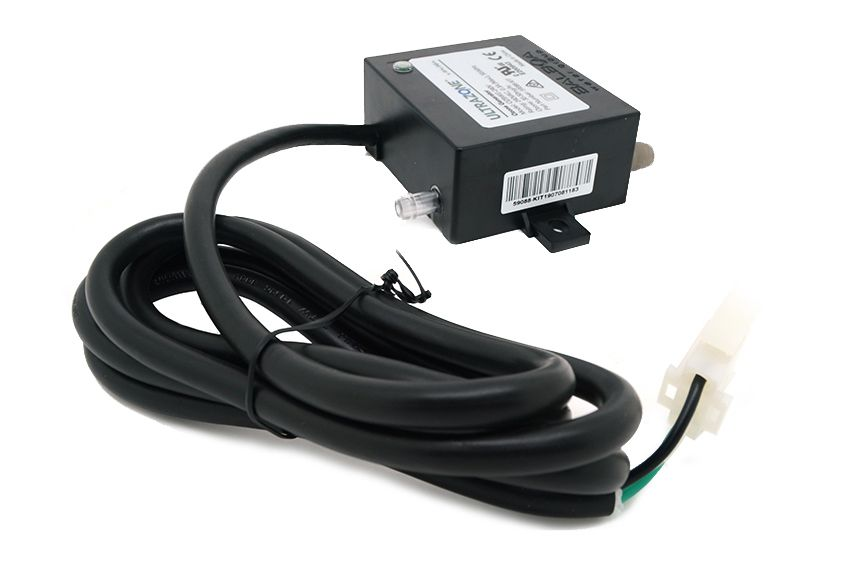

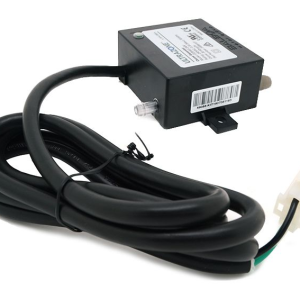

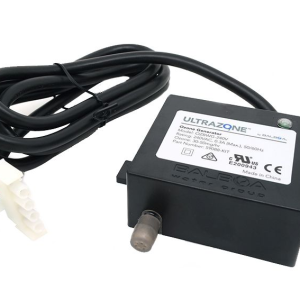

♨️ Balboa Ultrazo3ne™ Natural Purification Ozone System – Corona Discharge Spa Sanitiser
Cut your hot tub chemical use by up to 90% with Balboa’s compact, energy-efficient ozone purification technology.
📋 Product Overview
The Balboa Ultrazo3ne™ is a high-efficiency ozone purification system purpose-built for hot tubs and spas. Using advanced corona discharge (CD) technology, this compact unit generates a powerful natural oxidant that destroys bacteria, viruses, and organic contaminants in your spa water — dramatically reducing your reliance on chlorine and bromine.
Designed and manufactured by Balboa Water Group, the global leader in spa control systems for over 20 years, the Ultrazo3ne™ is engineered specifically for the demanding hot tub environment. The fully epoxy-potted construction protects against moisture and corrosion, whilst the unique CD ozone cell with a solid stainless-steel electrode delivers exceptional longevity and stable ozone output across a wide temperature range. At just 78 × 68 × 34 mm, it fits comfortably into even the tightest spa cabinet spaces.
Whether you’re upgrading an ageing ozonator or fitting one for the first time, the Ultrazo3ne™ offers plug-and-play installation for any ozone-ready spa system up to 500 gallons (approximately 1,900 litres).
✨ Key Features
✅ Corona Discharge Technology – Generates 50 mg/hr of ozone output for powerful, consistent water purification
✅ Ultra-Compact Design – Just 78 × 68 × 34 mm, fits into the tightest spa cabinets with ease
✅ Solid Stainless-Steel Electrode – Unique CD ozone cell delivers exceptional longevity compared to UV alternatives
✅ Fully Epoxy Potted Construction – Complete protection against moisture, corrosion, and harsh spa environments
✅ IPX5 Water Resistance Rating – Tested and certified for reliable operation in wet conditions
✅ Energy Efficient Operation – Draws just 0.17A maximum, using a fraction of the energy of conventional UV generators
✅ Cool Running Temperature – Low heat generation reduces stress on components and extends service life
✅ LED Indicator Light – Visual confirmation the unit is operating correctly
✅ Chemical Reduction Up to 90% – Significantly reduces chlorine and bromine use, meaning softer water and less skin and eye irritation
✅ Double Insulation Rated – Enhanced electrical safety for peace of mind
✅ Rated Lifespan Up to 5 Years – Long-term reliability with normal use
✅ Internationally Certified – UL/cUL, CE, RCM, IPX5, and WEEE compliant
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Model Number | OZBWG-240V |
| Part Number | 59088 |
| Ozone Output | 50 mg/hour |
| Air Flow | 0.8 L/min |
| Generator Type | Corona Discharge (CD) |
| Voltage | 240VAC, 50/60Hz |
| Current Draw | 0.17A (Maximum) |
| Dimensions (L × W × H) | 78 × 68 × 34 mm |
| Compatible Water Volume | Up to 500 gallons (~1,900 litres) |
| Connection | 4-pin AMP plug with 5ft (1.5m) cable |
| Protection Rating | IPX5 (water-resistant) |
| Insulation | Double insulation rated |
| Construction | Fully epoxy potted, UV/ozone-resistant plastics |
| Electrode Material | Solid stainless steel |
| Certifications | UL/cUL, CE, RCM, WEEE |
| Rated Lifespan | Up to 5 years (normal use) |
| Warranty | 1 year manufacturer warranty |
💧 How Ozone Purification Works
Ozone (O₃) is one of nature’s most powerful oxidising agents — up to 3,000 times more effective than chlorine at destroying bacteria and viruses. The Balboa Ultrazo3ne™ works by converting oxygen molecules into ozone using corona discharge technology, then introducing this ozone directly into your spa water through the included tubing system.
The purification process:
- The corona discharge cell generates ozone from ambient air drawn through the built-in silicone air filter
- Ozone is delivered into the spa plumbing via the included 1/4″ tubing and non-return valve
- The ozone oxidises bacteria, viruses, and organic contaminants on contact
- After sanitising, the ozone naturally reverts back to oxygen — leaving no chemical residue
This process means your spa water stays cleaner and fresher with significantly less chlorine or bromine, resulting in softer water that’s gentler on skin, eyes, and swimwear.
🛠️ Installation & Compatibility
Connection Type: 4-pin AMP plug — compatible with most Balboa spa control systems and other ozone-ready controllers that accept a standard 4-pin AMP connection.
Installation Requirements:
| Requirement | Details |
|---|---|
| Spa System | Must be ozone-ready with 4-pin AMP ozone port |
| Voltage Supply | 240VAC (supplied via spa control system) |
| Mounting | Built-in thick mounting tabs for secure installation |
| Tubing Connection | 1/4″ barb fittings (included) |
| Air Supply | Ambient air via included silicone air filter |
| Cabinet Space Required | Minimal — unit measures just 78 × 68 × 34 mm |
Installation Notes:
⚠️ Mount the ozonator above the waterline to prevent water backflow through the tubing.
⚠️ Always install the included non-return (check) valve to protect the unit from water damage.
⚠️ Ensure the silicone air filter is clean and unobstructed for optimal ozone production.
⚠️ If your spa is not ozone-ready, you may need an ozone saddle clamp or inline bypass kit (sold separately).
⚠️ Installation should be carried out by a qualified spa technician in accordance with manufacturer guidelines and local electrical regulations.

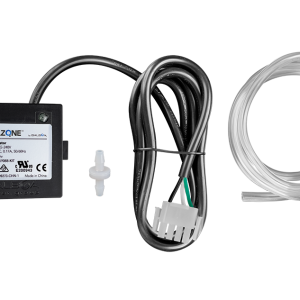

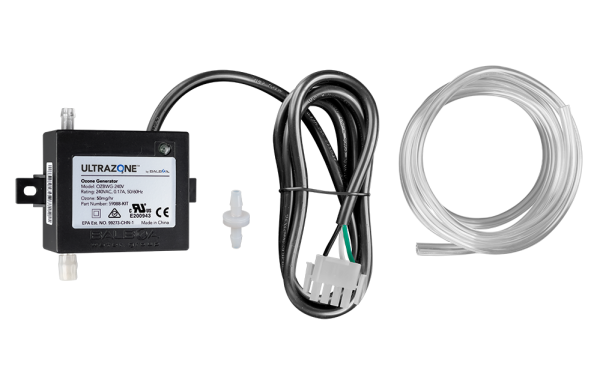

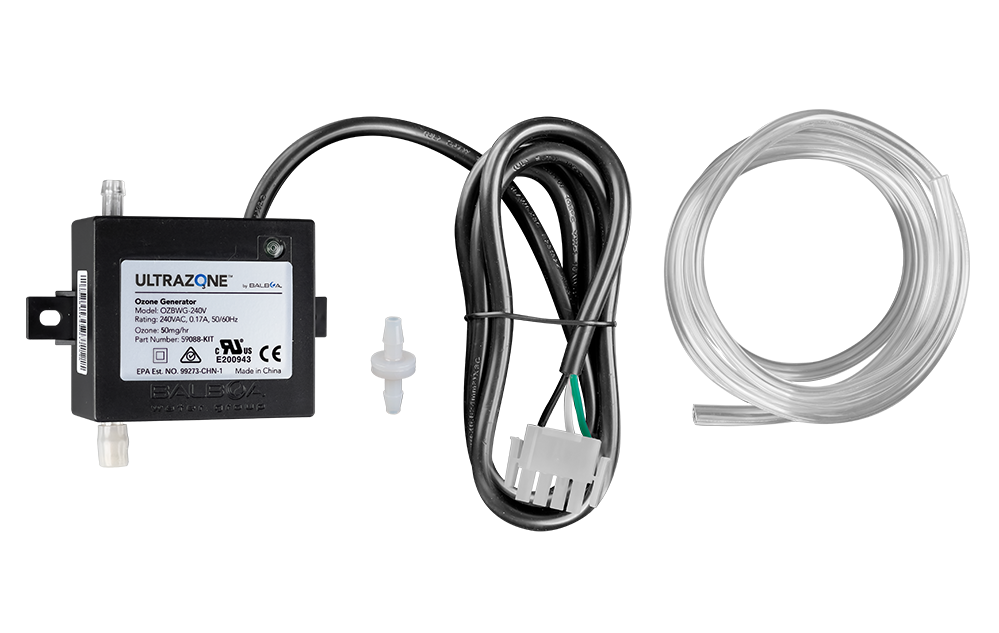

📦 What’s Included in the Kit
✅ 1× Balboa Ultrazo3ne™ ozone generator unit
✅ 1× Non-return (check) valve
✅ 1× 5ft (1.5m) flexible 1/4″ ozone tubing
✅ 1× Installation manual
✅ 3-wire cable with 4-pin AMP connector (pre-attached)
Everything you need for a straightforward plug-and-play installation on any ozone-ready spa system.
🔒 Safety Features & Certifications
Built-in Safety:
✅ Fully epoxy-potted enclosure — no air gaps, no exposed contacts, no corrosion risk
✅ Double insulation rated for enhanced electrical safety
✅ IPX5 water resistance — certified protection against water jets from any direction
✅ UV and ozone-resistant plastic housing — built to withstand the harsh spa cabinet environment
✅ High shock, vibration, and drop resistance — robust construction for long-term reliability
✅ Non-return valve included — prevents water backflow into the ozone unit
Certifications:
✅ UL/cUL — Built and tested to North American safety standards
✅ CE — Conforms to European safety and EMC standards
✅ RCM — Australian/New Zealand regulatory compliance
✅ WEEE — Compliant with EU waste electrical equipment directive
✅ Conforms to: UL1563, UL1795, CSA C22.2 No. 218.1–13, CB Scheme IEC 60335-2-60, EN55014-1/-2, EN61000-3-2 & 3
🎯 Ideal Applications
✅ Hot Tubs & Spas – Designed and tested specifically for spa and bath applications, compatible with tubs up to 500 gallons (~1,900 litres)
✅ Swim Spas – Suitable for larger volume systems within the rated capacity
✅ Replacement Ozonator – Direct plug-and-play replacement for any spa using a 4-pin AMP ozone connection at 240V
✅ New Build Projects – Compact size and reliable performance make it ideal for custom and DIY hot tub builds
✅ Chemical-Sensitive Users – Perfect for anyone wanting to reduce chlorine and bromine exposure for health or comfort reasons
💬 Frequently Asked Questions
Q: Will this ozone generator fit my hot tub? A: The Ultrazo3ne™ is compatible with any ozone-ready spa that uses a standard 4-pin AMP connection at 240V. This covers most Balboa-controlled spas as well as many other brands. If your spa doesn’t have a dedicated ozone port, you may need an ozone saddle clamp or inline bypass kit.
Q: Does ozone completely replace chlorine or bromine? A: Ozone dramatically reduces the amount of chemical sanitiser needed — by up to 90% — but a small residual amount of chlorine or bromine is still recommended to maintain sanitation when the ozonator is not running. Think of ozone as your primary sanitiser with chemicals as a backup.
Q: How long does the unit last? A: The Ultrazo3ne™ has a rated lifespan of up to 5 years under normal use conditions. The fully epoxy-potted construction and solid stainless-steel electrode are specifically designed for longevity in the harsh spa environment.
Q: Is it noisy? A: No. The Ultrazo3ne™ operates silently with no moving parts. You won’t hear it running in your spa cabinet.
Q: How do I know it’s working? A: The built-in LED indicator light provides visual confirmation that the unit is operating. You should also notice clearer, fresher-smelling water and a reduced need for chemical top-ups.
Q: Does it use a lot of electricity? A: Not at all. The Ultrazo3ne™ draws just 0.17A maximum — a fraction of the energy used by conventional UV ozone generators. The running cost is negligible.
Q: What maintenance does it need? A: Very little. Keep the silicone air filter clean and unobstructed, ensure the tubing and check valve remain in good condition, and replace the unit when ozone output diminishes after several years of use.
Q: Can I install it myself? A: If your spa is ozone-ready with a 4-pin AMP port, installation is straightforward plug-and-play. However, we always recommend having a qualified spa technician carry out the installation to ensure everything is connected correctly and safely.
📄 Downloads & Resources
📄 Ultrazo3ne™ Product Information Sheet (PDF) – Full specifications, dimensions, and product details
🏆 Why Choose the Balboa Ultrazo3ne™
✅ Trusted Brand – Balboa Water Group has been the industry leader in spa control systems for over 20 years
✅ Superior Technology – Corona discharge produces more consistent ozone output than UV alternatives, with lower energy consumption
✅ Built to Last – Fully epoxy-potted construction with solid stainless-steel electrode for up to 5 years of reliable service
✅ Safer Water – Reduces chemical sanitiser use by up to 90%, meaning gentler water for your skin, eyes, and swimwear
✅ Ultra-Low Running Costs – Just 0.17A maximum draw means virtually nothing added to your electricity bill
✅ Internationally Certified – Tested and approved to UL, CE, RCM, and IPX5 standards for safety and reliability
✅ Plug-and-Play Simplicity – Complete kit with everything needed for installation on ozone-ready spas
🤝 Why Buy from Parts4Tubs
✅ UK-based company with knowledgeable, personal support from real spa specialists
✅ Fast UK delivery — 198 units currently in stock and ready to ship
✅ Competitive pricing — £79.49 inc VAT
✅ Full manufacturer warranty support
✅ Expert advice on compatibility and installation
✅ Easy returns within 30 days
🔥 Summary
The Balboa Ultrazo3ne™ delivers powerful, natural spa water purification through proven corona discharge technology. Producing 50 mg/hr of ozone in a unit measuring just 78 × 68 × 34 mm, it fits virtually any spa cabinet and connects via a standard 4-pin AMP plug. With up to 90% reduction in chemical sanitiser use, IPX5 water resistance, a rated lifespan of up to 5 years, and CE certification for the UK market, it’s the smart upgrade for cleaner, softer, healthier spa water. Order today from Parts4Tubs for fast UK delivery.
