🎛️ Balboa TP740T Topside Control Panel – Compatible with BP Series Control Systems

🖥️ Advanced digital control with a hi-tech display for complete spa management

📋 Product Overview

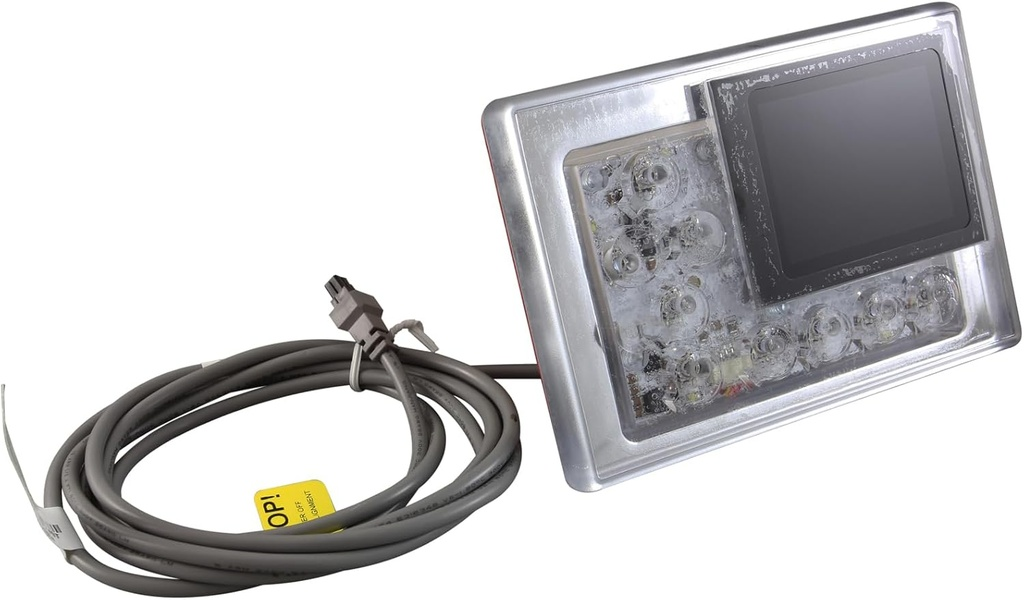

The Balboa TP740T Topside Control Panel is an advanced digital interface designed for use with Balboa BP Series control systems. This sophisticated panel features a hi-tech digital large face screen with component symbols, time functions, and advanced error message display capabilities, providing comprehensive control over your hot tub’s operations.

Engineered to work seamlessly with the BP601, BP2100, BP8, and BP200 control boxes, the TP740T offers multi-language support with easy navigation, making it accessible to a wide range of users. The panel supports control of up to 3 pumps, making it suitable for feature-rich spa installations. Additionally, this topside is compatible with the Balboa Clim8zone Heat Pump for enhanced heating efficiency.

The current Balboa part number is G8474, which replaces previous TP740T models (57530, 57531, 57532), ensuring you receive the latest version of this reliable control interface.

⭐ Key Features

• ✅ Balboa BP Series Compatible – Works with BP601, BP2100, BP8, and BP200 control boxes for reliable integration
• ✅ Hi-Tech Digital Display – Large face screen with component symbols for clear status monitoring
• ✅ 9-Button Interface – Comprehensive control layout for all spa functions
• ✅ Multi-Language Support – Easy navigation through multiple language options
• ✅ Advanced Error Display – Detailed error messages for efficient troubleshooting
• ✅ Time Functions – Built-in clock and scheduling capabilities
• ✅ 3 Pump Support – Controls up to 3 pumps for full spa functionality
• ✅ 12V Operation – Low voltage design for safe operation
• ✅ Heat Pump Compatible – Works with Balboa Clim8zone Heat Pump systems
• ✅ Current Production Model – G8474 replaces legacy part numbers for up-to-date compatibility

⚙️ Technical Specifications

Specification	Value
Manufacturer	Balboa
Model	TP740T
Current Part Number	G8474
Replaces Part Numbers	57530, 57531, 57532
Compatible Systems	BP601, BP2100, BP8, BP200
Model Series	TP
Display Type	Hi-Tech Digital Large Face Screen
Number of Buttons	9
Maximum Pumps Supported	3
Operating Voltage	12V
Dimensions (L × H)	147 mm × 107 mm
Connection Type	4 Black Plastic Pins (Grid Formation)
Overlay Included	No
Multi-Language	Yes
Heat Pump Compatible	Yes (Balboa Clim8zone)

🔌 Compatibility Guide

This Topside Control is Compatible With:

Control System	Series	Confirmed
BP601	BP Series	✅
BP2100	BP Series	✅
BP8	BP Series	✅
BP200	BP Series	✅

Additional Compatibility:

Equipment	Confirmed
Balboa Clim8zone Heat Pump	✅

How to Verify Compatibility:

• 📍 Check your existing topside for part number (G8474, 57530, 57531, or 57532)
• 📍 Identify your spa pack model number on the control box (BP601, BP2100, BP8, or BP200)
• 📍 Verify the connector type matches (4 black plastic pins in grid formation)
• 📍 Contact Parts4Tubs if you require confirmation

⚠️ Important: Topside controls are system-specific. Installing an incompatible topside will not work and may cause error codes.

🖥️ Display & Controls

Display Features:

Feature	Description
Screen Type	Hi-Tech Digital Large Face Display
Component Symbols	Visual icons for pumps, heating, and system status
Time Functions	Clock display and scheduling features
Error Messages	Advanced diagnostic error display
Language Options	Multiple languages with easy navigation

Control Capabilities:

Function	Availability
Pump 1 Control	✅
Pump 2 Control	✅
Pump 3 Control	✅
Temperature Adjustment	✅
Time/Clock Functions	✅
System Diagnostics	✅

🛠️ Installation Guide

Before Installation:

• ⚠️ Disconnect power to spa at the isolator/breaker before any work
• ⚠️ Verify compatibility with your BP Series spa pack
• ⚠️ Confirm connector type matches your existing installation

Installation Steps:

1. Turn off power at the isolator/breaker
2. Remove the existing topside panel from the mounting location
3. Disconnect the cable connector from the spa pack
4. Connect the new TP740T cable to the spa pack (4 black plastic pins in grid formation)
5. Mount the new topside panel in position
6. Restore power and test all functions

Mounting Information:

Specification	Detail
Panel Dimensions	147 mm × 107 mm
Mounting	Refer to installation manual for cutout requirements

⚠️ Professional installation recommended if you are unfamiliar with spa electronics.

⚡ Wiring & Connection

Connector Information:

Specification	Detail
Connector Type	4 Black Plastic Pins in Grid Formation
Operating Voltage	12V

Connection Location:

The TP740T connects to the topside port on Balboa BP Series control systems (BP601, BP2100, BP8, BP200).

⚠️ Never force the connector. If it doesn’t fit, verify compatibility with your control system.

⚠️ Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
Blank display	No power or loose connection	Check power supply and reseat cable connector
Error codes displayed	Various system issues	Refer to BP Series spa pack manual for error meanings
Buttons unresponsive	Overlay wear or moisture ingress	Inspect overlay condition; replacement overlay may be required
Incorrect readings	Temperature sensor issue	Check temperature sensor (separate component from topside)
Partial display	Display fault	Replacement may be needed
Language incorrect	Settings configuration	Navigate menu to adjust language settings

Error Codes:

Error codes are determined by the spa pack, not the topside panel itself. The TP740T displays advanced error messages from your BP Series control system. Refer to your spa pack manual for specific error code meanings.

🧹 Maintenance & Care

Routine Care:

Task	Frequency
Wipe with soft damp cloth	Weekly
Check button response	Monthly
Inspect cable connection	Annually
Check overlay condition	Annually

DO NOT:

• ❌ Use abrasive cleaners or scouring pads
• ❌ Submerge the panel in water
• ❌ Use solvent-based or chemical cleaners
• ❌ Press buttons with sharp objects
• ❌ Apply excessive pressure to the display

Overlay Information:

The TP740T is supplied without an overlay. If your existing overlay becomes worn, faded, or buttons become unresponsive, a replacement overlay may be required. Contact Parts4Tubs for compatible overlay options.

🎯 Ideal Applications

Application	Suitability
🔄 Replacement for faulty TP740T topside	✅ Ideal
⬆️ Upgrade from earlier TP740T models (57530, 57531, 57532)	✅ Ideal
🎛️ Spas with BP601 control systems	✅ Compatible
🎛️ Spas with BP2100 control systems	✅ Compatible
🎛️ Spas with BP8 control systems	✅ Compatible
🎛️ Spas with BP200 control systems	✅ Compatible
🌡️ Systems using Balboa Clim8zone Heat Pump	✅ Compatible

Common Replacement Scenarios:

• 💔 Cracked or damaged display screen
• 🔘 Unresponsive buttons
• 💧 Water damage to existing panel
• 👁️ Faded or illegible display
• ⬆️ Upgrading from legacy TP740T models

💬 Frequently Asked Questions

Q: How do I know if this topside is compatible with my spa?

A: The TP740T is compatible with Balboa BP Series control systems, specifically the BP601, BP2100, BP8, and BP200. Check your spa pack model number on the control box to confirm compatibility. Contact Parts4Tubs if you need assistance.

Q: Is the overlay included with this topside?

A: No, the overlay is not included with the TP740T. If you require a new overlay, please contact Parts4Tubs for compatible options.

Q: What is the connection type?

A: The TP740T uses 4 black plastic pins in a grid formation to connect to your BP Series spa pack.

Q: Will this display error codes?

A: Yes, the TP740T features advanced error message display capabilities. Error codes originate from your spa pack, so refer to your BP Series manual for specific error meanings.

Q: What part numbers does this replace?

A: The current G8474 part number replaces previous TP740T models: 57530, 57531, and 57532.

Q: Can I install this myself?

A: If you are comfortable working with spa electronics and can safely isolate power, DIY installation is possible. However, professional installation is recommended if you are unfamiliar with spa electrical systems.

Q: Does this work with the Balboa Clim8zone Heat Pump?

A: Yes, the TP740T is compatible with the Balboa Clim8zone Heat Pump system.

Q: How many pumps can this control?

A: The TP740T supports control of up to 3 pumps.

⭐ Why Choose the Balboa TP740T

• ✅ Genuine Balboa Quality – Manufactured to Balboa’s exacting standards
• ✅ Hi-Tech Digital Display – Large face screen with clear component symbols
• ✅ Multi-Language Support – Accessible to users across different regions
• ✅ Advanced Diagnostics – Detailed error messages for efficient troubleshooting
• ✅ Comprehensive Control – 9 buttons and support for up to 3 pumps
• ✅ Heat Pump Compatible – Works with Balboa Clim8zone systems
• ✅ Current Production – G8474 ensures you receive the latest version

🇬🇧 Why Buy from Parts4Tubs

• ✅ UK-based company with local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa specialists
• ✅ Compatibility assistance available
• ✅ Full warranty support
• ✅ Easy returns within 30 days
• ✅ Replacement overlays and accessories available

💫 Summary

The Balboa TP740T Topside Control Panel (G8474) delivers advanced digital control for spas equipped with BP Series control systems. Featuring a hi-tech large face display with component symbols, 9-button interface, multi-language support, and control for up to 3 pumps, this panel provides comprehensive spa management. Compatible with BP601, BP2100, BP8, and BP200 systems, plus Balboa Clim8zone Heat Pumps, the TP740T is the ideal replacement or upgrade for your spa control needs. Order from Parts4Tubs for fast UK delivery and expert support.
