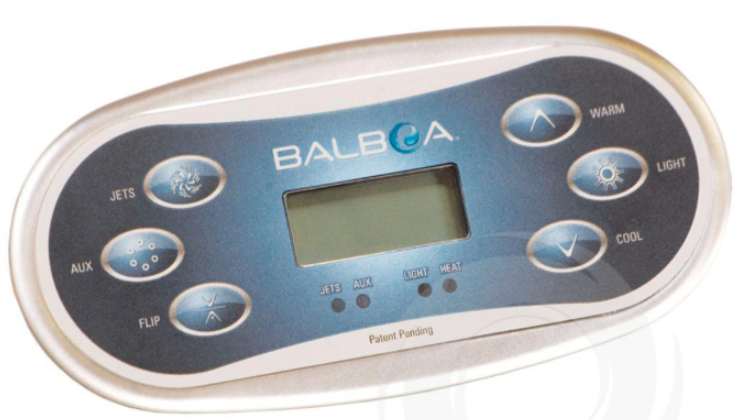

Balboa TP600 Topside Control

Type of Product:	Topside control, touch panel or touch pad
Manufacturer:	Balboa
1
Power:	Volts: 12v
Compatible With:	Viper, Revolution and Colossus. Also works with Balboa BP Series such as BP601 and BP2100
Button Configuration:	JETS, AUX, FLIP, screen WARM, LIGHT, COOL
Connections:	4 black plastic pins in a grid formation
Screens:	Serial Standard style – 4 large digits in horizontal line with scrolling text
Dimensions:	Length: 178 mm Height: 86 mm
Additional Notes:	Overlay included

Balboa BP Spa Packs

If you have a “BP” spa pack, you will find the name and model on the label, then you can use any of the “TP” range of topside controls, TP400, TP600 etc etc.



You can also use any of the “Spa Touch” graphical controllers on your Spa Pack. Spa Touch comes in versions 1-3 with 4 to be released very soon as well as the new “mini”.



The BP Spa Pack made things nice and easy so when you are replacing your topside control with one of these, it is straight forward enough.



Balboa VS & GS Spa Packs.



If you have an older hot tub that you are keeping alive with new parts, then the chances are you have an older spa pack in there too. This is where it gets a little more complicated in terms of compatibility.



Two of the popular models are the VS which stands for Value Series and was supplied to a lot of OEMs (manufacturers for hot tubs) to go into their tubs. Likewise, the GS (global series) was the same. Lots of different rebranded options, different names, but at the heart of things are these two packs.



What is key on these two models, is the combination of letters and numbers that make up the model number on the Spa Pack.



The VL range of topside controls was designed for both of these spa pack ranges; however, there are some “rules” we need to abide by in terms of compatibility.



VL Panels ending in D work with VS/GS systems ending in DZ

VL Panels ending in S work with VS/GS systems ending in SZ

The rest of the VL Panels work with VS/GS systems ending in Z (not SZ or DZ)



For example, a Spa Pack model VS501SZ would work nicely with a Topside that is model VL620S. However, that same topside control would not work with a spa pack model VS501Z. The connections are the same, it would plug in, but would not respond at all.



Another example, a Balboa GS500Z spa pack would work with the VL406T or the VL401 but would not work with the VL702S.



You get the patters. Topside ends in S or D, matches to Spa Pack ending in SZ (for S) or DZ (for D).





Balboa EL & GL Spa Packs



Before the birth of the BP range, the EL and GL Spa Packs did have some level of standardisation in terms of the topside controls.



All of the “ML” range of Balboa Topside Controls are designed to work with the EL and GL range of spa packs. They actually look very similar to the TP range, they just have a different type of connection to plug into the Spa Pack.
