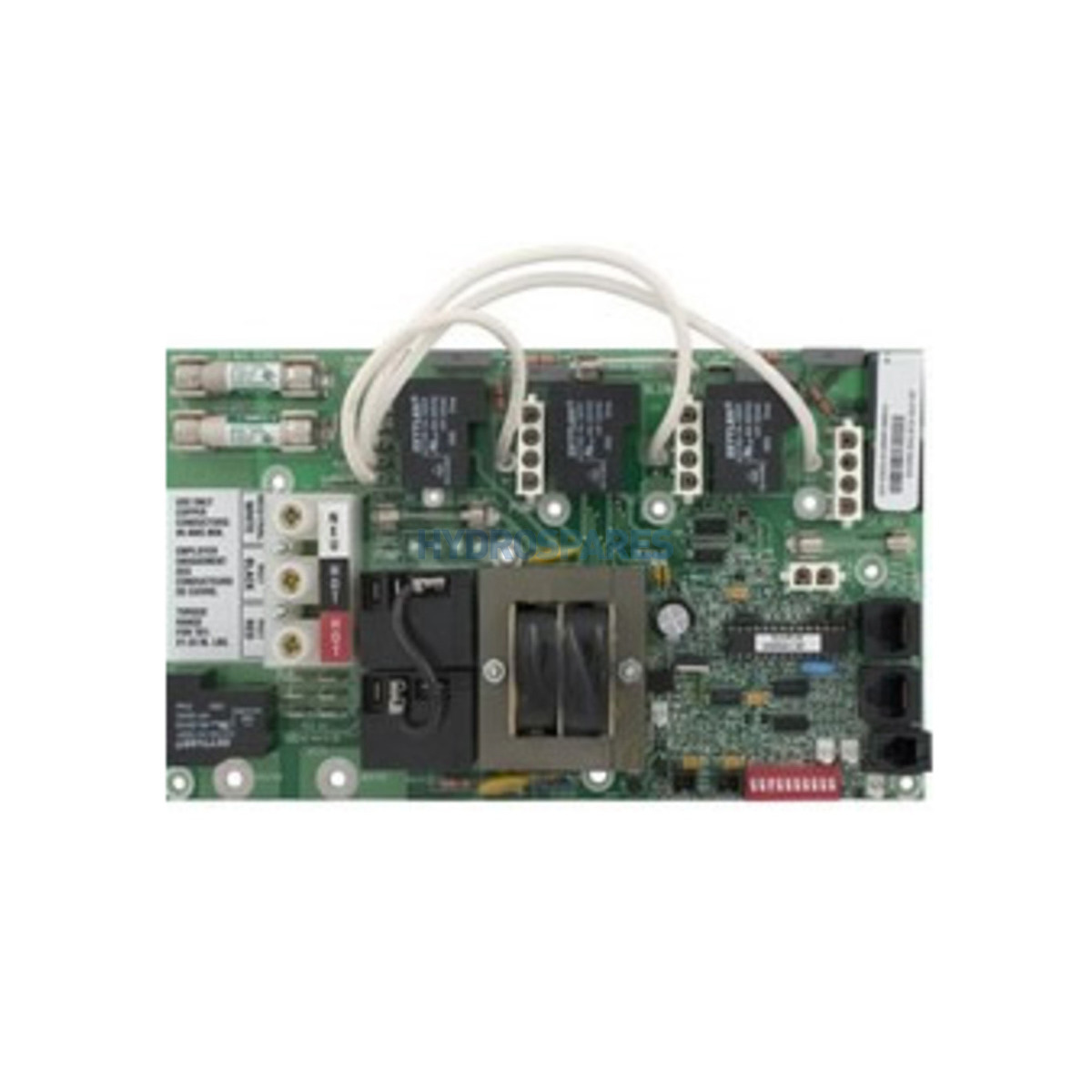

🔌 Balboa SUV Systems PCB (52532) – Spa Control Circuit Board

Genuine Balboa replacement circuit board for SUV spa control systems – restore full functionality to your hot tub.

📋 Product Overview

The Balboa SUV Systems PCB (Part Number 52532) is a genuine Balboa Water Group replacement circuit board designed for SUV series spa control systems. Featuring dual integrated sensors for temperature monitoring and hi-limit protection, this board provides intelligent heater control without the need for external pressure switches.

This high-quality circuit board supports a comprehensive range of spa equipment including a 2-speed primary pump, secondary pump or blower, ozone generator, and 12V spa lighting. The SUV system is commonly found in Master Spas and various other hot tub brands that utilise Balboa control systems.

Compatible with Lite Duplex Digital topside panels, this PCB serves as a direct replacement for failed or damaged boards in existing SUV control systems. The board features persistent memory technology that retains settings during power interruptions, and can be configured for either 120V or 240V operation to suit different electrical supply requirements.

⭐ Key Features

✅ Genuine Balboa Part (PN 52532) – Manufactured by Balboa Water Group for guaranteed quality and compatibility

✅ Dual Sensor System – Integrated temperature and hi-limit sensors eliminate external pressure switches

✅ Persistent Memory – Retains temperature settings and configuration during power loss

✅ Dual Voltage Operation – Configurable for 120V or 240V electrical supply

✅ 5.5kW Heater Support – Maximum heater output at 240V (1.5kW at 120V)

✅ 2-Speed Pump Control – Full control of primary jet pump with high and low speeds

✅ Flexible Secondary Output – Supports either a 1-speed pump OR blower (not both simultaneously)

✅ Ozone Ready – Built-in ozone generator output for water sanitation

✅ 12V Lighting Output – Dedicated low-voltage spa light control

✅ Wide Compatibility – Works with multiple Lite Duplex Digital topside panels

✅ DIP Switch Configuration – Adjustable settings for Hz, temperature units, and system modes

🔧 Technical Specifications

Specification	Value
Balboa Part Number	52532 / 52532-01 / 52532-02
Chip Number	SUVR1A / SUVR1B / SUVR1C
Manufacturer	Balboa Water Group
Board Type	Main Control PCB
Sensor System	Dual (Temperature + Hi-Limit)
Input Voltage	Configurable: 120V or 240V
Frequency	Configurable: 50Hz or 60Hz
Heater Output (240V)	5.5kW maximum
Heater Output (120V)	1.5kW maximum
Pump 1 Circuit	2-Speed, see amperage chart
Pump 2/Blower Circuit	1-Speed, see amperage chart
Ozone Circuit	See manufacturer specifications
Light Output	12V DC
Board Dimensions	See manufacturer documentation
Memory Type	Persistent (battery-free)
Panel Connection	Digital Duplex compatible

⚙️ System Outputs

The SUV Systems PCB provides control for the following spa equipment:

Output	Voltage Options	Speed
Pump 1	120V or 240V	2-Speed
Pump 2 OR Blower	120V or 240V	1-Speed
Ozone Generator	120V or 240V	N/A
Spa Light	12V DC	N/A
Heater	120V or 240V	N/A

⚠️ Important: You may connect either a 1-speed Pump 2 OR a blower to the Pump2/Blower output – not both simultaneously.

🔗 Compatibility Guide

Compatible Topside Panels

This board is compatible with Lite Duplex Digital topside panels. Contact Parts4Tubs or refer to manufacturer documentation for specific panel part numbers compatible with your system.

Replaces Part Numbers

This PCB replaces earlier versions of the SUV system board. Verify your existing board’s chip number (located on white label near centre of board) matches the SUVR1 series before ordering. Contact Parts4Tubs for compatibility verification.

Compatible System Components

This board uses integrated dual sensors in the heater assembly for temperature and hi-limit protection. Contact Parts4Tubs or refer to manufacturer documentation for compatible heater assemblies and sensor kits.

🎛️ DIP Switch Configuration

The SUV PCB features a 10-position DIP switch bank for system configuration:

Switch	Function	OFF Position	ON Position
S1	Test Mode	Normal operation	Test mode active
S2	N/A	OFF (required)	–
S3	Panel Option	Digital Duplex	Mini Panel
S4	N/A	OFF (required)	–
S5	N/A	OFF (required)	–
S6	Frequency	60Hz	50Hz
S7	N/A	OFF (required)	–
S8	Temperature	Fahrenheit (°F)	Celsius (°C)
S9	N/A	OFF (required)	–
S10	Amperage/Voltage	50 Amp / 240V	30 Amp / 120V

⚠️ For UK Installation: Set S6 to ON (50Hz) and S8 to ON (°C). S10 should typically be OFF for 240V operation.

🛠️ Installation Requirements

⚠️ IMPORTANT: All electrical work must be carried out by a qualified electrician in accordance with BS 7671 (IET Wiring Regulations).

Pre-Installation Checklist

• [ ] Verify your existing board’s chip number matches SUVR1 series
• [ ] Confirm topside panel compatibility
• [ ] Disconnect all power at the main breaker
• [ ] Allow capacitors to discharge (wait minimum 5 minutes)
• [ ] Photograph existing wiring and DIP switch positions

Electrical Requirements (UK)

Requirement	Specification
Supply Voltage	230-240V AC
Frequency	50Hz
Circuit Breaker	Minimum 32A (see amperage calculation)
RCD Protection	Required – 30mA
Earth Connection	Mandatory
Bonding	Minimum 8 AWG solid copper

Voltage Configuration

For 240V Operation (UK Standard):

• DIP Switch S10: OFF position
• No jumper wire required
• Connect Black to Line 1, Red to Line 2, White to Neutral, Green to Ground

For 120V Operation (if required):

• Install jumper wire between J16 and J35
• Set DIP Switch S10 to ON position
• Connect Black to Line, White to Neutral, Green to Ground

Output Voltage Conversion

Individual outputs can be configured for 120V or 240V by moving connection wires:

Output	120V Connection	240V Connection
Pump 1 (W1)	J15	J33
Pump 2/Blower (W2)	J40	J37
Ozone (W3)	J114	J3

---

⚠️ Safety Warnings

Electrical Safety

⚠️ ALWAYS disconnect power at the main breaker before any work on the control system.

⚠️ A Ground Fault Circuit Interrupter (GFCI) or Residual Current Device (RCD) is mandatory – must be installed at least 1.5m from the spa.

⚠️ Do not permit any electrical appliance within 1.5m of the spa.

⚠️ All electrical connections must be made by a qualified electrician.

⚠️ Use minimum 6 AWG copper conductors only for main power connections.

Water Safety

⚠️ Maximum safe water temperature is 40°C (104°F).

⚠️ Suction fittings must be rated for the system’s maximum flow rate.

⚠️ Each pump requires a minimum of two suction fittings or one fitting plus skimmer.

🔍 Power-Up Procedure

After installation, follow this sequence:

1. Fill spa to correct operating level with all valves open
2. Vent air from pumps by loosening discharge union nuts briefly
3. Apply power – display will show countdown sequence
4. Priming mode – “Pr” appears on display (4-5 minutes)
5. Prime pumps – Press Jet button to activate pumps
6. Exit priming – Press Temp button or wait for automatic exit
7. Temperature display – Actual temperature shows after approximately 1 minute of water flow
8. Verify voltage – Check voltage at terminal block under load

⚠️ Do not allow pumps to run for more than 2 minutes without priming. Turn off and re-vent if water is not flowing.

❓ Frequently Asked Questions

Q: How do I identify if this board fits my spa? A: Locate the chip number on the white label near the centre of your existing board. It should show SUVR1A, SUVR1B, SUVR1C, STD05R1, or similar. The board should visually match the replacement.

Q: Is this board plug-and-play? A: No. Circuit boards require correct DIP switch configuration and may need voltage setup. Copy DIP switch settings from your original board, or configure according to your system requirements.

Q: Can I use a 2-speed pump on the Pump 2/Blower output? A: No. The Pump 2/Blower output only supports 1-speed devices. Only Pump 1 supports 2-speed operation.

Q: What topside panels work with this board? A: This board is compatible with Lite Duplex Digital panels. See the compatibility table above for specific part numbers.

Q: My spa trips the breaker after installing this board – why? A: This is commonly caused by incorrect voltage configuration. Verify DIP switch S10 is set correctly for your supply voltage (OFF for 240V, ON for 120V). Also check that no wiring is crossed.

Q: Does this board have persistent memory? A: Yes. The board retains temperature settings and configuration without a battery, though time-of-day will reset after power loss.

🏆 Why Choose the Balboa SUV Systems PCB (52532)

✅ Genuine Balboa Part – Manufactured by Balboa Water Group for guaranteed quality

✅ Dual Sensor System – Integrated temperature and hi-limit protection

✅ Persistent Memory – Settings retained during power interruptions

✅ Flexible Configuration – Supports multiple voltage and frequency options

✅ Wide Compatibility – Works with common Lite Duplex Digital panels

✅ Direct Replacement – Drop-in replacement for existing SUV system boards

🤝 Why Buy from Parts4Tubs

✅ UK-Based Company – Local support from spa industry experts

✅ Fast UK Delivery – Get your spa running again quickly

✅ Expert Technical Advice – We understand Balboa control systems

✅ Competitive Pricing – Genuine parts at fair prices

✅ Full Warranty Support – Peace of mind with your purchase

✅ Identification Assistance – Help finding the right board for your spa

✨ Summary

The Balboa SUV Systems PCB (PN 52532) is the genuine Balboa replacement circuit board for SUV series spa control systems featuring dual integrated sensors for temperature and hi-limit protection. Supporting a 2-speed primary pump, secondary pump or blower, ozone generator, and 12V lighting, this board provides comprehensive spa control with persistent memory and configurable voltage options. Compatible with Lite Duplex Digital topside panels and commonly found in Master Spas, this PCB serves as a direct replacement for SUVR1 series boards. Configurable for 50Hz/60Hz operation and 120V/240V supply, with heater output up to 5.5kW at 240V. Professional installation by a qualified electrician is required.
