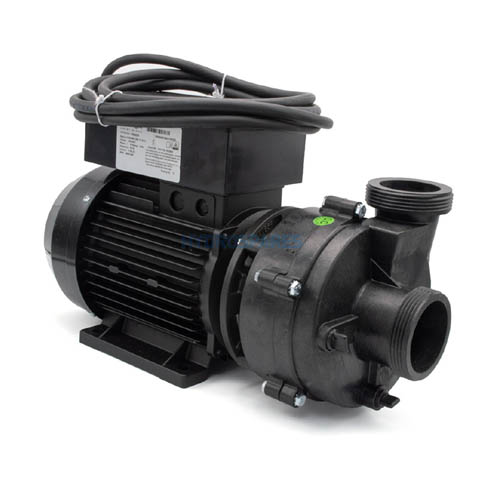

⚡ Balboa Niagara Spa Pump – 3HP Dual Speed

The ultimate combination of maximum jet power and energy-efficient filtration for luxury spa installations

💧 Product Overview

The Balboa Niagara 3HP Dual Speed Spa Pump is the flagship pump in the Niagara range, engineered by HydroAir, a division of Balboa Water Group, combining maximum hydrotherapy power with energy-efficient operation. This premium dual-speed jet pump delivers exceptional performance on high speed whilst significantly reducing running costs during routine filtration and heating cycles.

Producing outstanding flow rates exceeding 49 m³/h on high speed and 25 m³/h on low speed, the 3HP Niagara is the ultimate choice for luxury spas, swim spas, commercial installations, and multi-jet configurations. The robust 56-frame motor with 90-frame wet end features carbon ceramic seals with Viton® elastomers, designed to withstand prolonged heat and chemical exposure for reliable long-term performance.

As the direct replacement for discontinued Vico Ultimax and Sta-Rite Durajet 3HP 2-speed pumps, the Niagara offers a seamless upgrade with identical wet end dimensions. VDE approved according to European safety norms EN60335-1 and EN60335-2-41, this pump delivers the quality and certification standards expected from Balboa Water Group for professional and high-end residential spa installations.

💫 Key Features

✅ 3HP Dual Speed Motor – 2.5 kW high speed for maximum jets, 0.55 kW low speed for efficient filtration and heating

✅ Exceptional Flow Rate – Exceeds 49 m³/h on high speed, 25 m³/h on low speed for ultimate versatility

✅ High Head Pressure – 17 metres maximum head on high speed for driving multiple jets across large spa systems

✅ Energy Efficient – Low speed operation at just 2.5A significantly reduces electricity consumption

✅ Carbon Ceramic Seals – Premium seals with Viton® elastomers resist heat and chemical degradation for extended service life

✅ 56-Frame Motor – Compact finned body European-style motor fits tight spaces whilst delivering full 3HP power

✅ Multi-Directional Volute – Flexible mounting options with centre suction and radial side discharge orientation

✅ 2-Inch Ports – Standard 2″ suction and discharge ports with buttress thread connections for universal compatibility

✅ Class F Insulation – High-temperature motor insulation rating for reliable operation in hot spa environments

✅ IPX5 Water Protection – TEFC (Totally Enclosed Fan Cooled) motor rated for protection against water jets

✅ VDE/CE Certified – Approved to European safety standards EN60335-1 and EN60335-2-41

✅ Pre-Wired with AMP Plug – Includes 3-metre cable with 4-core AMP connector for plug-and-play spa pack connection

📊 Technical Specifications

Specification	Value
Pump Type	Jet Pump (Massage) – Dual Speed
Motor Power (High Speed)	3 HP / 2.5 kW
Motor Power (Low Speed)	0.55 kW
Speed Settings	Dual Speed (High/Low)
Flow Rate (High Speed)	>49 m³/h
Flow Rate (Low Speed)	25 m³/h
Maximum Head (High Speed)	17 m
Maximum Head (Low Speed)	4 m
Voltage	230 V
Frequency	50 Hz
Amperage (High Speed)	11.5 A
Amperage (Low Speed)	2.5 A
Motor Speed (High)	2900 RPM
Motor Speed (Low)	1450 RPM
Motor Frame	56 Frame
Wet End Frame	90 Frame
Motor Type	TEFC Finned Body (European Style)
Motor Insulation	Class F
Water Protection	IPX5
Discharge Port	2 inch (79mm OD)
Suction Port	2 inch (79mm OD)
Thread Type	Male Buttress (Asymmetric MBT)
Port Position	Centre Suction / Side Discharge
Dimensions (L × W × H)	459 × 203 × 203 mm
Seal Type	Carbon Ceramic with Viton® Elastomers
Shaft Seal Reference	PS-201
Wet End Part No.	1215186
Cable Length	3 metres
Cable Connector	4-Core AMP Plug
Certifications	CE, VDE, GS, CSA
Manufacturer Part No.	1023332
Warranty	1 Year Manufacturer

🔌 Electrical Requirements

Electrical Specification	High Speed	Low Speed
Supply Voltage	230 V	230 V
Frequency	50 Hz	50 Hz
Phase	Single Phase	Single Phase
Full Load Amps	11.5 A	2.5 A
Power Consumption	2.5 kW	0.55 kW

General Requirement	Specification
Minimum Circuit Breaker	16 A (recommended)
Cable Supplied	3m with 4-core AMP plug
Wiring	4-wire connection for speed control

⚠️ IMPORTANT ELECTRICAL SAFETY:

All electrical work must be carried out by a qualified electrician in accordance with UK wiring regulations (BS 7671). Hot tubs require RCD protection (30mA). Ensure proper earthing and bonding of all electrical components. The 4-core cable requires correct wiring to the spa pack for proper speed control functionality. The higher amperage draw of this 3HP pump may require verification of existing circuit capacity.

🔗 Compatibility Guide

This Pump Specifications:

📍 Motor Frame: 56 Frame (Finned European Style) 📍 Wet End Frame: 90 Frame 📍 Suction Port: 2 inch (79mm) Centre 📍 Discharge Port: 2 inch (79mm) Side 📍 Thread Type: Male Buttress 📍 Speed Control: 4-wire dual speed

Direct Replacement For:

This pump is designed as a direct replacement for the following discontinued models:

• Vico Ultimax 3HP 2-Speed pumps
• Vico Ultrajet 3HP 2-Speed pumps
• Sta-Rite Durajet 3HP 2-Speed pumps
• Balboa Ultima 3HP 2-Speed pumps

Compatible Part Numbers:

1023332, 1023008, 1023009, 1023006, 1023039, 1023061, 1023062

Union Options Available Separately:

• 2″ Female Socket Union – Part No: 2614029
• 63mm Female Socket Union – Part No: 2614020
• 2.5″ Female Socket Union – Part No: 2614030

⚙️ Installation Requirements

Mounting:

Requirement	Specification
Mounting Position	Horizontal
Base	Solid, level, vibration-dampening surface
Ventilation	Minimum 50mm clearance around motor for cooling
Access	Allow adequate space for maintenance and union access

Plumbing Connections:

Connection	Size
Suction	2 inch / 79mm (Centre)
Discharge	2 inch / 79mm (Side)
Thread Type	Male Buttress

Wet End Orientation:

The wet end can be rotated to any 90-degree position to accommodate your specific plumbing configuration. The pump is supplied with centre suction and includes 2 drain connections for complete drainage.

Installation Notes:

⚠️ Pump must be installed below water level (flooded suction) to ensure proper priming

⚠️ Never run the pump dry – this causes immediate seal damage

⚠️ Ensure proper electrical bonding to earth

⚠️ Use anti-vibration mounts (available separately – Part No: 1216001) to reduce noise transmission

⚠️ Verify spa pack compatibility for 2-speed operation before installation

⚠️ Verify electrical circuit can handle 11.5A draw on high speed before installation

💡 The Niagara wet ends are dimensionally identical to the old Ultimax wet ends, allowing straightforward replacement in most applications

🔧 Maintenance Guide

Routine Maintenance:

Task	Frequency	Notes
Check for leaks	Monthly	Inspect around seal plate and union connections
Inspect unions	Monthly	Tighten if necessary, check O-rings
Clean strainer/filter	As needed	Remove debris to maintain flow
Check amperage draw	Annually	High: 11.5A, Low: 2.5A
Inspect motor vents	Quarterly	Keep cooling fins clear of debris
Check mounting bolts	Quarterly	Tighten if vibration has loosened
Test both speeds	Monthly	Ensure proper speed switching

Warning Signs – Consider Replacement If:

• Unusual noise (grinding, screeching, or humming)
• Water leaking from the seal plate area
• Motor trips the circuit breaker repeatedly
• Noticeably reduced water flow to jets
• Motor overheating or hot to touch
• One speed fails to operate
• Visible corrosion or damage to motor housing

Seal Replacement Information:

📍 Seal Type: Carbon Ceramic with Viton® Elastomers 📍 Seal Reference: PS-201 📍 Shaft Diameter: 3/4″ (19mm)

⚠️ Replace the mechanical seal at the first sign of leakage to prevent motor damage

🎯 Ideal Applications

Application	Suitability	Notes
♨️ Large Hot Tub Jet Pump	Yes	Ideal – maximum jets on high, efficient filtration on low
♨️ Luxury Spa Hydrotherapy	Yes	Ultimate power for premium spa installations
♨️ Multi-Pump Configurations	Yes	Perfect for systems running 100+ jets
♨️ Swim Spa Jets	Yes	Excellent for powerful resistance swimming
♨️ Commercial Spa Installations	Yes	Professional-grade reliability with energy savings
♨️ Energy-Conscious Luxury Spas	Yes	Low speed significantly reduces running costs
🛁 Large Whirlpool Systems	Yes	Suitable for high-capacity whirlpool baths

❓ Frequently Asked Questions

Q: What horsepower is this pump? A: This is a 3HP dual-speed jet pump – the most powerful model in the Niagara range – delivering 2.5 kW on high speed and 0.55 kW on low speed.

Q: What is the benefit of a dual-speed pump at this power level? A: The 3HP dual-speed offers the best of both worlds: maximum jet power when you need it, plus significant energy savings during filtration and heating. Low speed runs at just 2.5A compared to 11.5A on high speed, dramatically reducing electricity costs for routine operation.

Q: How does this compare to the 2HP dual-speed model? A: The 3HP delivers approximately 14% more flow on high speed (49 m³/h vs 43 m³/h) and higher head pressure (17m vs 15.8m), making it ideal for larger spas or systems requiring more jet power.

Q: Will this pump fit my hot tub? A: This pump has a 56-frame motor with 90-frame wet end, featuring 2-inch centre suction and 2-inch side discharge ports. The dimensions are 459 × 203 × 203mm. Measure your existing pump’s frame size and port configuration to confirm compatibility.

Q: What voltage does this pump require? A: 230V / 50Hz single phase. All electrical installation must be carried out by a qualified electrician in accordance with BS 7671.

Q: Will my existing electrical circuit handle this pump? A: The pump draws 11.5A at full load on high speed. Verify your circuit capacity with a qualified electrician before installation, particularly if upgrading from a lower-powered pump.

Q: What size are the plumbing connections? A: Both suction and discharge ports are 2 inch (79mm outside diameter) with male buttress threads. Unions are sold separately.

Q: Does this pump come with unions? A: No, unions are sold separately. Compatible 2″ unions are available (Part No: 2614029).

Q: What cable and plug does this pump have? A: The pump includes a 3-metre cable with a 4-core AMP plug, ready for direct connection to most spa packs with 2-speed pump capability.

Q: Can I use this as a single-speed pump? A: The pump can be wired for single-speed operation if required, though you would lose the energy-saving benefits of low-speed operation.

Q: What warranty is included? A: 1-year manufacturer warranty. Extended warranty options may be available – contact Parts4Tubs for details.

Q: How do I know if my pump needs replacing? A: Common signs include unusual noises, water leaking from the seal, reduced jet pressure, the motor tripping the breaker, failure of one speed to operate, or visible damage to the housing.

🏆 Why Choose the Balboa Niagara 3HP Dual Speed

✅ Ultimate Power & Efficiency – 3HP high speed for maximum jets, energy-saving low speed for filtration

✅ Exceptional Flow – Over 49 m³/h on high speed for powerful jet performance in demanding applications

✅ Significant Energy Savings – Low speed at 2.5A vs 11.5A dramatically reduces running costs

✅ Premium Build Quality – Carbon ceramic seals with Viton® elastomers for longevity in harsh spa environments

✅ Direct Replacement – Identical wet end dimensions to discontinued Ultimax and Sta-Rite 3HP 2-speed pumps

✅ European Certified – VDE, CE, and GS approved to EN60335-1 and EN60335-2-41 safety standards

✅ Plug-and-Play Ready – Pre-wired with 3m cable and 4-core AMP connector for easy spa pack integration

✅ Manufacturer Warranty – 1-year warranty from Balboa Water Group

🤝 Why Buy From Parts4Tubs

✅ UK-based company with expert local support

✅ Fast UK delivery options available

✅ Knowledgeable advice from spa industry specialists

✅ Competitive pricing on genuine Balboa products

✅ Full manufacturer warranty support

✅ Replacement seals, wet ends, and accessories in stock

✅ Easy returns within 30 days

✨ Summary

The Balboa Niagara 3HP Dual Speed Spa Pump (Part No: 1023332) is the flagship pump in the Niagara range, combining maximum jet power with energy-efficient operation. Delivering 2.5 kW / 11.5A on high speed for exceptional hydrotherapy and just 0.55 kW / 2.5A on low speed for economical filtration, this pump offers the ultimate balance of performance and running cost savings. Built with a 56-frame motor and 90-frame wet end featuring carbon ceramic seals with Viton® elastomers, the Niagara provides VDE/CE certified reliability as a direct replacement for discontinued Vico Ultimax and Sta-Rite 3HP 2-speed pumps. Pre-wired with a 3-metre 4-core AMP cable for easy installation.

The hot tub industry doesnt make it easy for you when you are trying to match up the size of the unions (the part that screws your pipe work onto the pumps) Below you can see the physical sizes of the collars, and how they relate to the actual union size you need. So a measurement of 2.5", edge to edge on the collar of the pump is actually a 1.5" union - confusing - absolutely! If you are not sure, give me a shout!

How do I Replace a Hot Tub Pump?

Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance.

Materials You'll Need:

• Replacement pump
• Pipe wrench
• Adjustable wrench
• Screwdriver
• Pipe sealant (thread tape or plumber's putty)
• PVC primer and cement (if you have PVC plumbing)
• Teflon tape (for threaded connections)

Procedure:

1. Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components.
2. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves)
3. Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment.
4. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump.
5. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing.
6. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts.
7. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks.
8. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts.
9. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly.
10. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure.
11. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch.
12. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections.
13. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water.
14. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed.
15. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues.

Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help.

How do I know what size hot tub pump I have?

Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps:

1. Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump.
2. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it.
3. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump.
4. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub.
5. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model.

Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.
