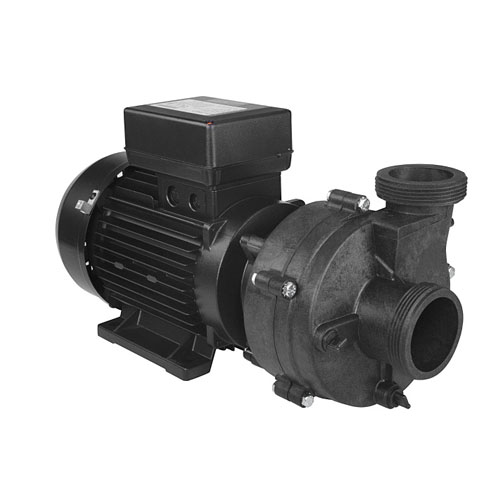

Balboa 3.0 HP 1 Speed Pump: Unleash Premium Power for Your Spa

Are you seeking a high-performance pump to revolutionize your hot tub experience? Look no further! I’m thrilled to offer you the Balboa 3.0 HP 1 Speed Pump, a robust powerhouse designed to deliver exceptional performance for all your spa’s pumping needs.

Product Highlights

• Versatile Powerhouse: Functions as a water pump, jet pump, and filtration pump all in one.
• Superior Output: With up to 3.35 Motor HP and 3 Wet End Impellor HP, it delivers intense, consistent flow.
• Energy Conscious: Operating at 230V and 50Hz, it balances high power with energy awareness.
• Easy Installation: Comes with 2 x 2 inch Hydroair unions for straightforward replacement.
• Flexible Wiring: Pre-attached 3 core amp cable can be easily replaced with your existing wire.

Technical Specifications

• Manufacturer: Balboa
• Type: Water pump / Jet pump / Filtration pump
• Common Power Reference: 3.0 HP 1 speed
• Voltage: 230V
• Frequency: 50Hz
• Motor HP: 3.35 (max)
• Wet End Impellor HP: 3
• Amperage: 11.5A
• Plumbing Connections: 2 x 2 inch Hydroair unions
• Electrical Connections: Comes with 3 core amp cable attached (replaceable)
• Dimensions: 459mm (L) x 203mm (H) x 203mm (D)

Documentation

• Technical specification

Versatility and Compatibility

I’ve carefully selected this Balboa 3.0 HP pump for its impressive power and versatility. It’s based on the previous Sta-Rite model, making it an excellent replacement option for spas such as Master Spas and others that previously used high-powered Sta-Rite pumps. This compatibility ensures a wide range of applications across various spa brands and models, especially those requiring robust water flow.

Powerful Single-Speed Operation

With its formidable 3.35 Motor HP, this pump delivers consistent and powerful performance for all your spa’s needs:

1. Intense Water Circulation: Ensures rapid and even temperature distribution, perfect for larger spas or those with complex plumbing systems.
2. Vigorous Jet Power: Provides exceptionally strong hydrotherapy with powerful, steady water flow for the most invigorating massage experience.
3. Efficient Filtration: Maintains crystal-clear water by powering your spa’s filtration system with high-flow capability, ensuring thorough cleaning cycles.

Easy Installation and Wiring

The pump comes equipped with 2 x 2 inch Hydroair unions, making it compatible with standard hot tub plumbing and ensuring a straightforward replacement process. The pre-attached 3 core amp cable offers flexibility – you can easily replace it with your existing wiring if needed, allowing for seamless integration with your current setup.

Personal Support

I understand that choosing the right high-powered pump is crucial for your spa’s performance. If you’re unsure about compatibility with your specific model, have questions about installation, or want to know if this pump is the right upgrade for your system, please don’t hesitate to reach out. I’m here to provide personalized advice and ensure you get the perfect fit for your spa.

Why Choose This Pump?

1. Unmatched Power: With 3.35 Motor HP, it offers superior performance for all spa functions.
2. Versatility: Serves multiple functions – water pump, jet pump, and filtration pump.
3. Reliability: Balboa is a trusted name in the spa industry, known for producing durable, high-quality components.
4. Compatibility: Based on the Sta-Rite model, it’s an excellent replacement or upgrade for many existing systems.
5. Ideal for Demanding Systems: Perfect for larger spas, complex jet configurations, or those desiring the strongest possible water flow.

Installation Note

While this pump is designed for easy replacement, always ensure you follow proper safety procedures when working with electrical components, especially with high-powered pumps. If you’re not comfortable with the installation process, I strongly recommend consulting with a professional technician.

My Promise to You

As an individual seller specializing in hot tub spare parts, I’ve carefully chosen this Balboa 3.0 HP pump to offer you a solution that combines top-tier power, versatility, and reliability. I’m committed to helping you maintain and upgrade your spa to its fullest potential, and I’m always here to provide personalized advice and support.

Elevate your spa experience to new heights with the Balboa 3.0 HP 1 Speed Pump – the ultimate powerhouse your hot tub deserves!

The hot tub industry doesnt make it easy for you when you are trying to match up the size of the unions (the part that screws your pipe work onto the pumps) Below you can see the physical sizes of the collars, and how they relate to the actual union size you need. So a measurement of 2.5", edge to edge on the collar of the pump is actually a 1.5" union - confusing - absolutely! If you are not sure, give me a shout!

How do I Replace a Hot Tub Pump?

Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance.

Materials You'll Need:

• Replacement pump
• Pipe wrench
• Adjustable wrench
• Screwdriver
• Pipe sealant (thread tape or plumber's putty)
• PVC primer and cement (if you have PVC plumbing)
• Teflon tape (for threaded connections)

Procedure:

1. Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components.
2. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves)
3. Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment.
4. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump.
5. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing.
6. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts.
7. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks.
8. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts.
9. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly.
10. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure.
11. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch.
12. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections.
13. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water.
14. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed.
15. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues.

Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help.

How do I know what size hot tub pump I have?

Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps:

1. Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump.
2. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it.
3. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump.
4. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub.
5. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model.

Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.
